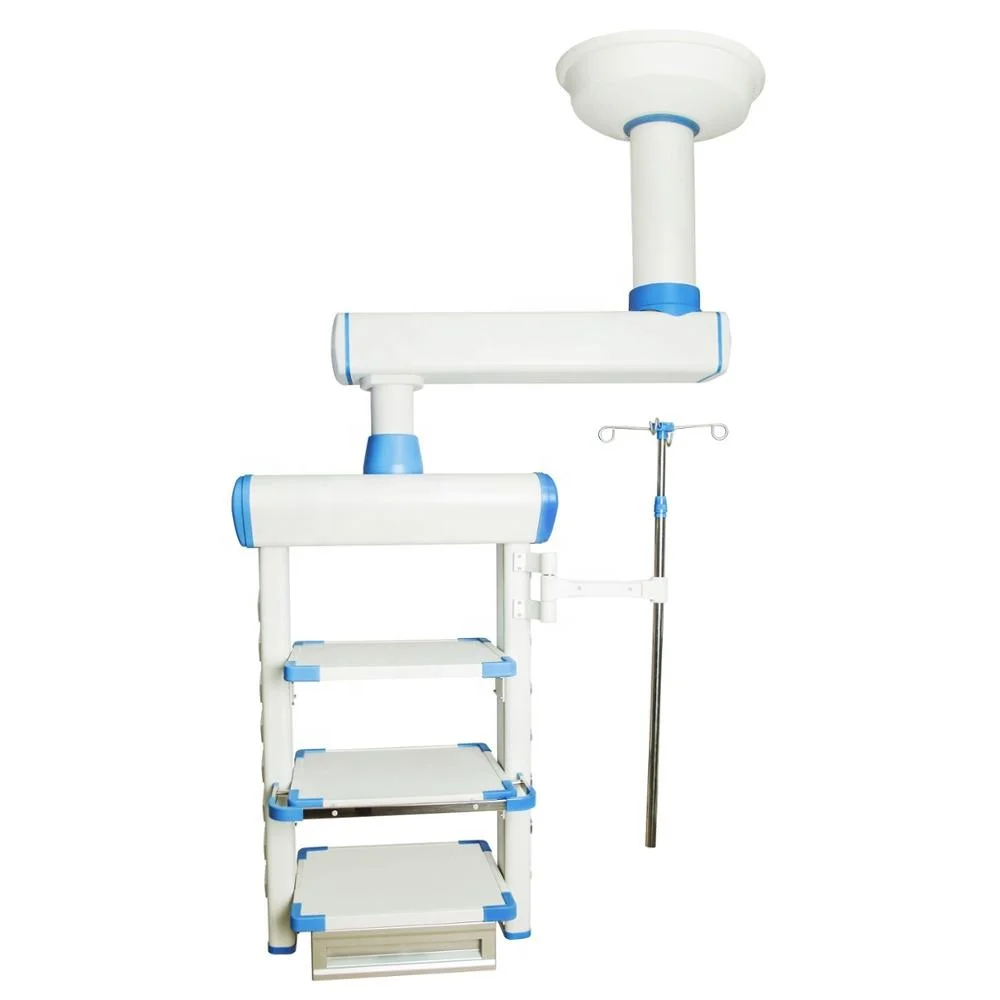

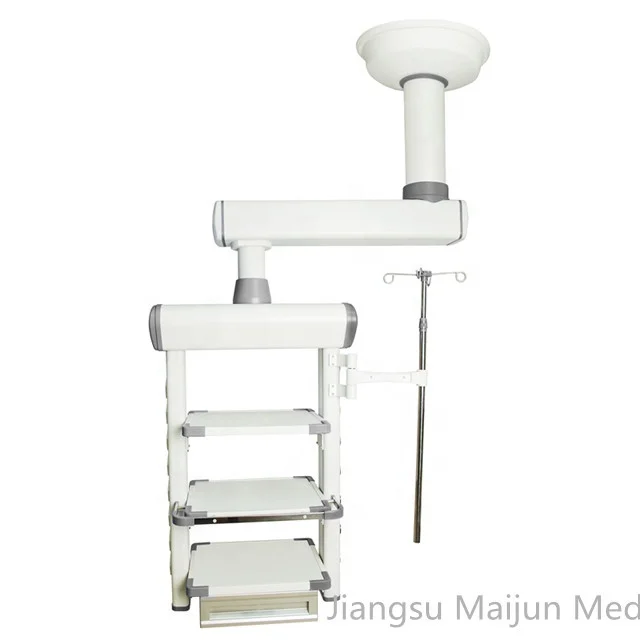

Single Arm electric ICU endoscope pendant

Product Description:

1. The main material is made of high-strength aluminum and magnesium alloy with circular arc design, without sharp corners on the surface, environmentally friendly plastics, electrostatic spraying, matte treatment, anti-corrosion, easy to clean and disinfect.

2.Weight of equipment: 130KG;

3.The air source interface is on the rear side of the tower body, and the power supply is distributed on both sides of the tower body, fully realizing electrical and gas separation to ensure the safety of the equipment.

4. Power supply: AC220V, 50HZ;

5. Horizontal arm activity range (radius): 800MM (it can be determined according to the actual situation);

6. The horizontal rotating Angle: 0 ~ 340 °, the cross arm and terminal box body can be respectively or rotate at the same time;

7. Equipped with cylinder pneumatic brake (non-air bag type), coupled with mechanical damping brake, double guarantee stable operation and free and reliable operation of crane tower.The equipment will not drift in the case of lack of electricity and gas.

8. Net deadweight: 75-150kg;

9. Instrument platform:  525*400*30mm;The high strength aluminum and magnesium alloy is extruded as a whole, the instrument platform (thickness is 30mm), the bearing strength is high, there is no assembly, no gap, circular corner anticollision design, it conforms to the cleaning standard and adopts the edge rail enclosure of 10*25mm international standard.





Item Name	Specifaction
Product Material	The main body of the equipment adopts high-strength aluminum alloy profile, circular arc design, no sharp corners on the surface, environmentally friendly plastics, electrostatic spraying, matte treatment, anti-corrosion, easy to clean and disinfect, using Angle contact ball bearing, running more smoothly. Net load: equal to or equal to 75Kg.
arm	Arm length 1000 mm (150 * 190 mm) section (length can be customized according to customer's require), up to 8 mm, the thickness of tower body rotation Angle: a minimum of 340 °.
console	Length 800mm (can be customized according to user requirements), rotation 340 degrees, gas-electric separation design.
Power socket	10 universal power sockets, working power: 220V 50HZ 10A, One equipotential grounding terminal.Network socket 1.
Gas terminal	2 oxygens, 1 air, 1 negative pressure.Gas piping in strict accordance with international standards, color,And different shapes to avoid improper insertion, the number of inserts is greater than or equal to 20,000 times
Platform	2 instrument platforms, 550*420mm, easy to clean and disinfect.Round Angle anti-collision design, height adjustable, with 2 standard side rails 10*25.
Drawer	Drawer 1, engineering plastic molding, automatic reset device.
Gas tube	Import gas pipeline, provide inspection report according to medical grade.
Infusion support	Stainless steel infusion rack 1 set, adjust height is not less than 800mm
Mechanical damping brake	Mechanical damping brake, even in the absence of electricity, gas, equipment will not produce drift.
Accessories can be selected as required: 1. Instrument platform 2. Gas terminal 3. Telephone interface 4. Network interface 5. Paging device 6. Power socket 7. Grounding terminal

















1.what's your advantages?
A: Superior Quality, Fast Delivery, Competitive prices, Advanced Production Equipment-Standardized Warehouse Logistics and Professional Service.

2.Can you provide OEM service?
A: Yes, we accept OEM orders for which the material, design, color and size will all be made at your request with your logo on your products.

3.How about your ordinary delivery period?
A:Usually we keep our regular products in adequate stock.Quick delivery is available for stock products. But for some customized products, the delivery period will be 7-30 days according to the different orders.

4.Do you have the CE certificate?
A:Yes, most of our products have the CE certificate.

5.How is your warranty?
A:2 years.
