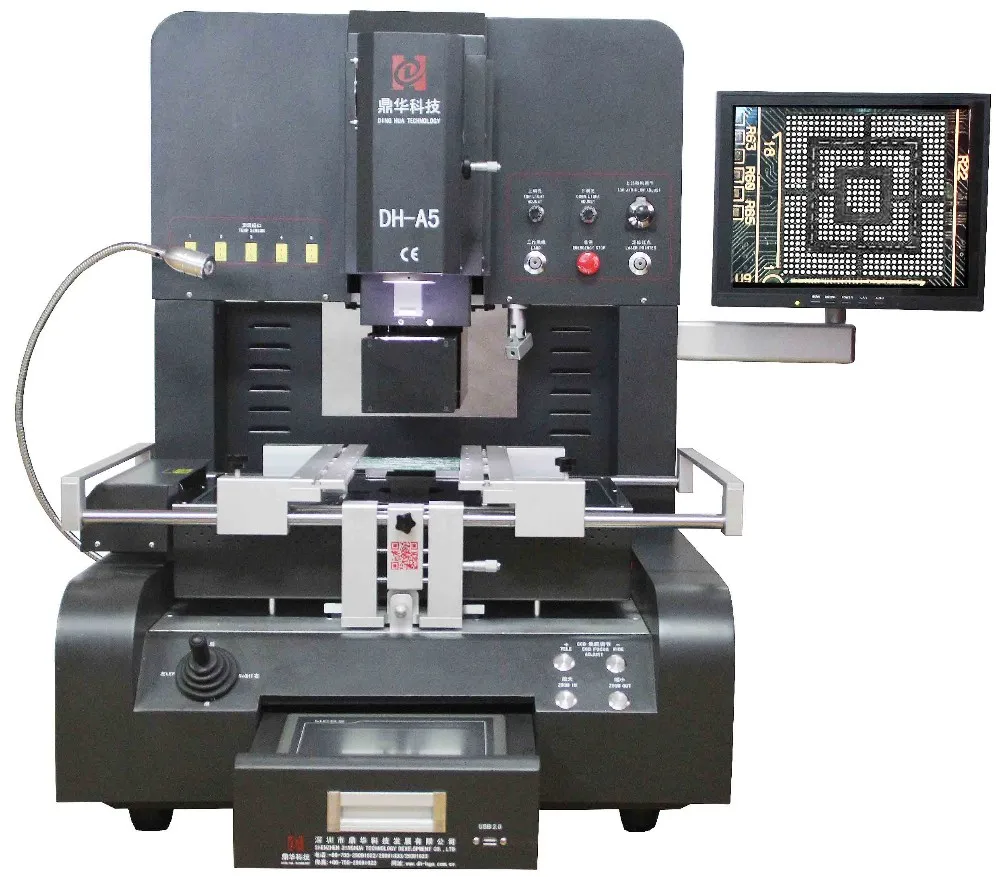

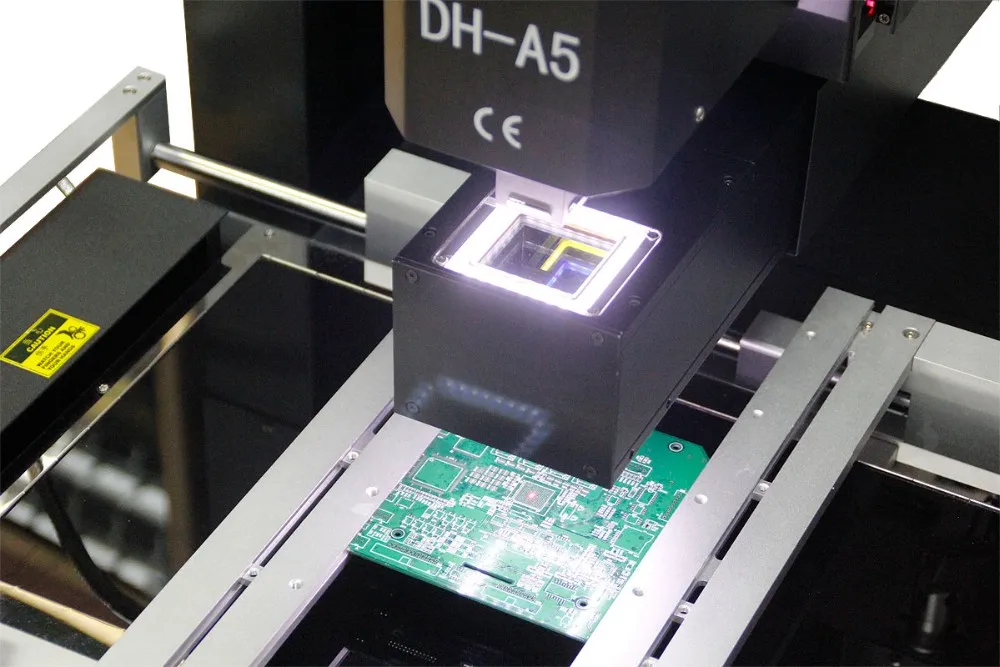

Dinghua DH-A5 верхний нагреватель и сопло 2 в 1 станция для пайки распайки
Dinghua DH-A5 верхний нагреватель и сопло 2 в 1 станция для пайки распайки
Dinghua DH-A5 верхний нагреватель и сопло 2 в 1 станция для пайки распайки
Dinghua DH-A5 верхний нагреватель и сопло 2 в 1 станция для пайки распайки
Dinghua DH-A5 верхний нагреватель и сопло 2 в 1 станция для пайки распайки
Dinghua DH-A5 верхний нагреватель и сопло 2 в 1 станция для пайки распайки
Dinghua DH-A5 верхний нагреватель и сопло 2 в 1 станция для пайки распайки

Dinghua DH-A5 верхний нагреватель и сопло 2 в 1 станция для пайки распайки


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Product Description
\t
                                                                                   Specification
\t
Total Power
\t
6800W
\t
Top heater
\t
1200W
\t
Bottom heater
\t
2nd 1200W, 3rd IR heater 4200W
\t
Power
\t
AC220V±10%     50Hz
\t
Driver
\t
Servo driver used. Fully automatic pick, placement, soldering and desoldering, cooling.
\t
Operation mode
\t
Two modes: manual and automatic, HD touch screen, intelligent man-machine, digital system setting.
\t
chip feeder
\t
automatic, for 1*1~80*80 mm chip
\t
Optical CCD camera lens
\t
Automatic Frontward / backward, right / left
\t
CCD camera
\t
imported from Japan
\t
Camera magnification
\t
10x - 220x
\t
Workbench fine-tuning:
\t
±15mm forward/backward, ±15mm right/left
\t
BGA positioning
\t
Laser position, fast and accurate position of pcb and bga
\t
Top air speed
\t
Can be adjusted by adjusting knob, prevent tiny bga from movement.
\t
PCB Positioning
\t
Intelligent positioning, PCB can be adjusted in X, Y direction with "5 points support" + V-groove pcb bracket + universal fixtures.
\t
Temperature control
\t
K sensor, close loop, PLC control, Servo driver
\t
Placement accuracy:
\t
±0.01mm
\t
Temp accuracy
\t
±1℃
\t
Lighting
\t
2 pcs of light, no matter you observe the chip/PCB from any view, there is no shadow
\t
Temperature profile storage
\t
more than 50000 groups
\t
Temperature profiles recording
\t
full temp profiles recording(good for analyse )
\t
PCB size
\t
Max 420×470 mm Min 22×22 mm
\t
BGA chip
\t
2x2 - 80x80 mm
\t
Minimum chip spacing
\t
0.15mm
\t

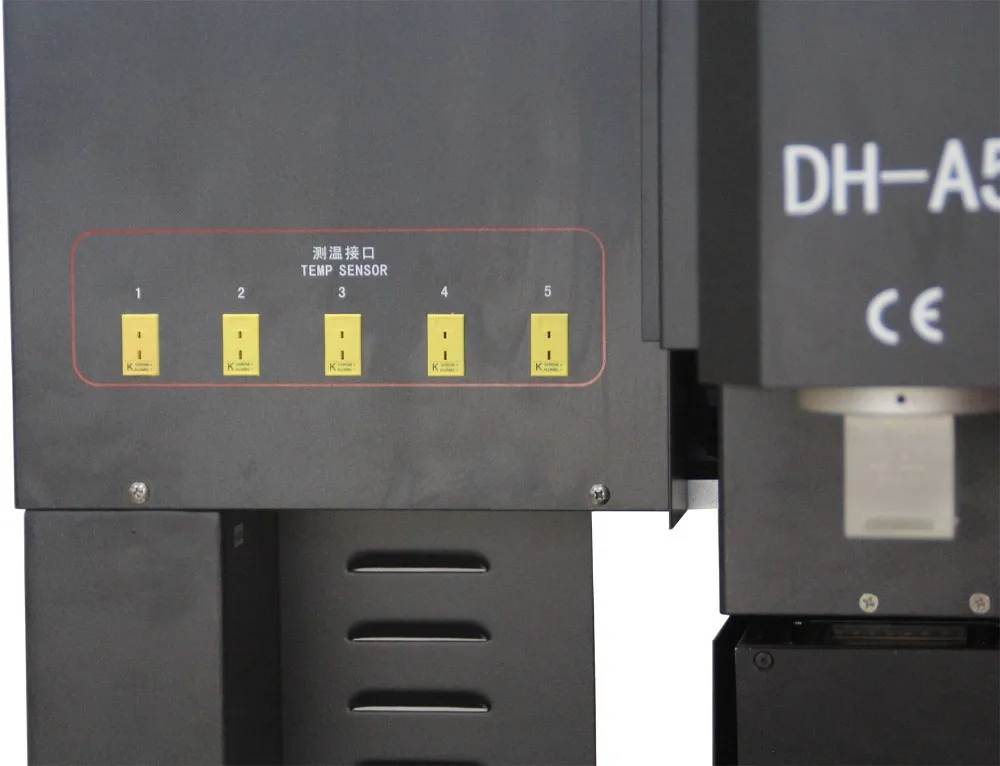

External temper sensor
\t
5pc
\t
Dimensions
\t
730x670x940mm
\t
Net weight
\t
91KG

Main Features

1.High definition touch screen conversational interface, drawer type design, PLC control, Intelligent man-machine, digital system setting, fully automatic position, soldering and desoldering integration. HD CCD monitor, Coordinate Orientation, intelligent temperature curve control. Meanwhile, with multi-function: "keep same temperature", "instant curve analysis" and "voice warning before heating finish". Real-time actual temperature and temperature curve setting can also be used to analyze and correct the curve if necessary.


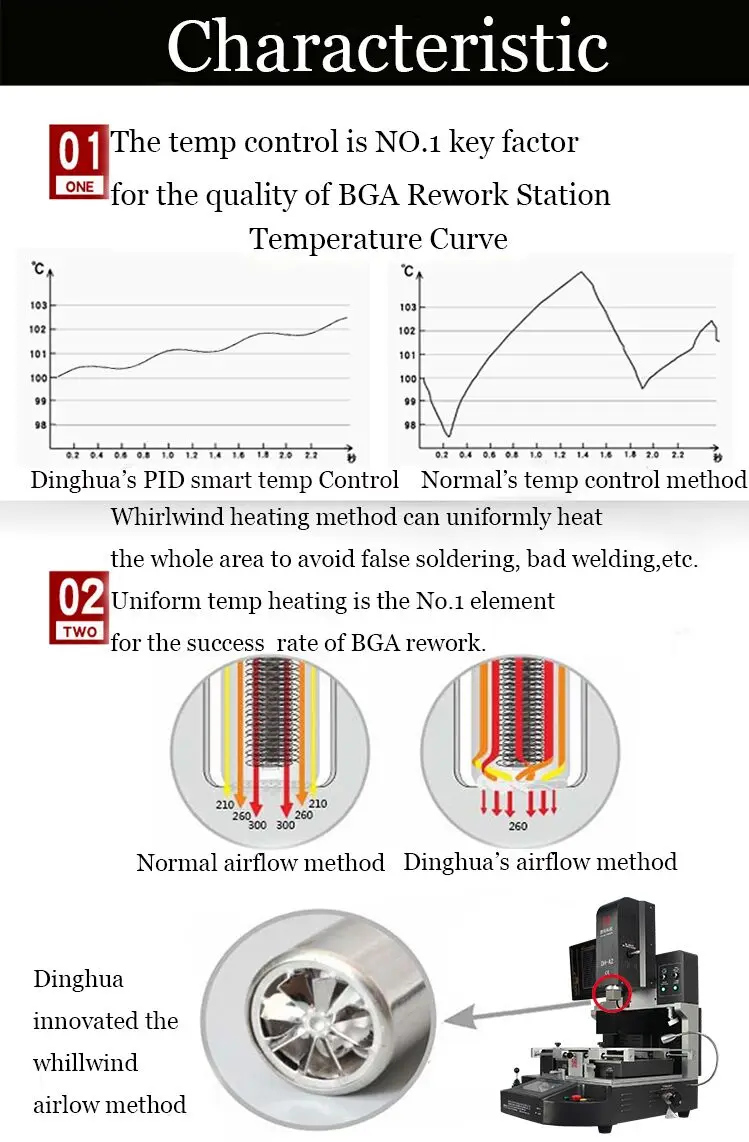

2.High precise k-type thermocouple closed-loop control and PID automatic temperature compensation system, with PLC and temperature module and intelligent control unit to enable precise temperature deviation on ±1℃. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.

3.Used Panasonic servo control unit to realize automatic control of position, soldering and desoldering: stable, reliable, safety and high effective.

4.Optical alignment system, auto focus, auto magnification, auto color separation. Also, with micrometer, fine-tuning position of pcb and bga.

5.Panasonic camera Lens automatic frontward/ backward, and manual frontward/backward, right/left with joysticks, to avoid "dead angle".

6.Automatic feeding system can be added if need, more intelligent and effective.

Movable universal fixture + V-groove bracket prevent pcb from damaged on fringe component, suitable for all kinds of pcb repairing. Meanwhile, X, Y and R axis can be fine-tuning with micrometer, fast, accurate and convenient positioning.
Detailed Images

Chip feeder

Full automatic chip feeder, chip feeder for 1*1~80*80 mm available

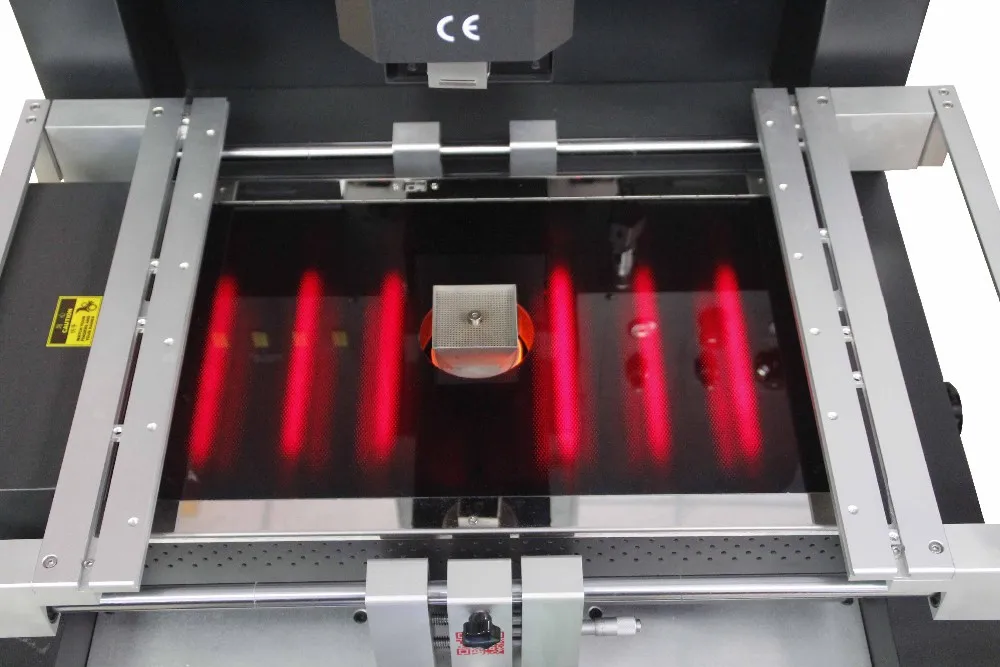

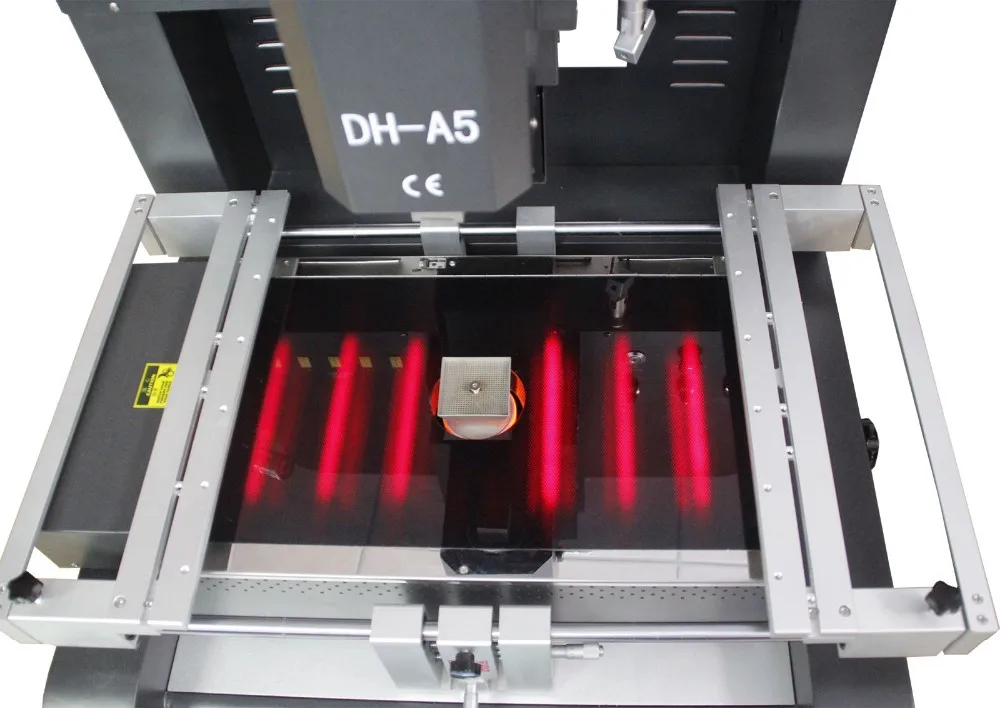

IR preheating area

Carbon fiber heating tubes, dark light is more easy to be absorbed by PCB/chip, and anti high temperature glass covering them can prevent any small components and dust from dropping inside.

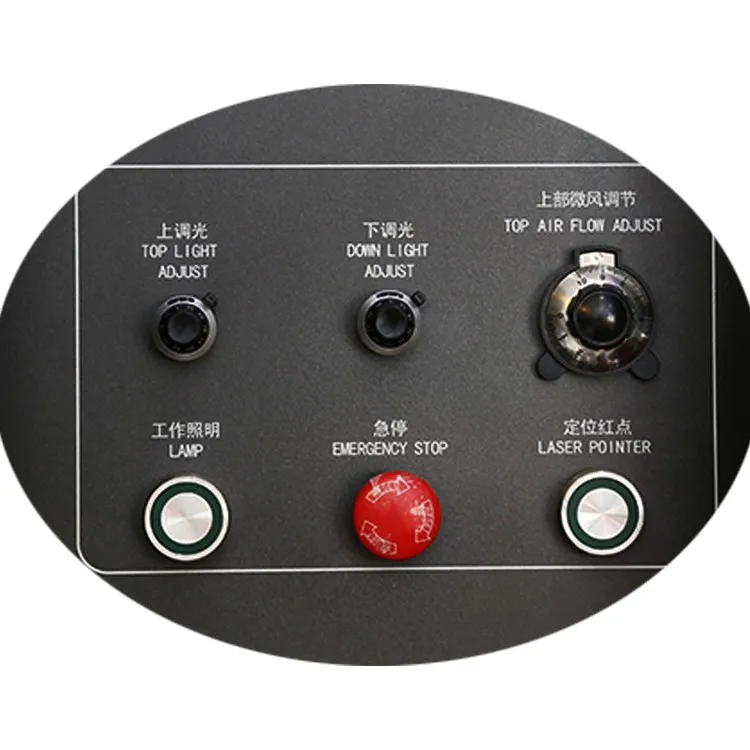

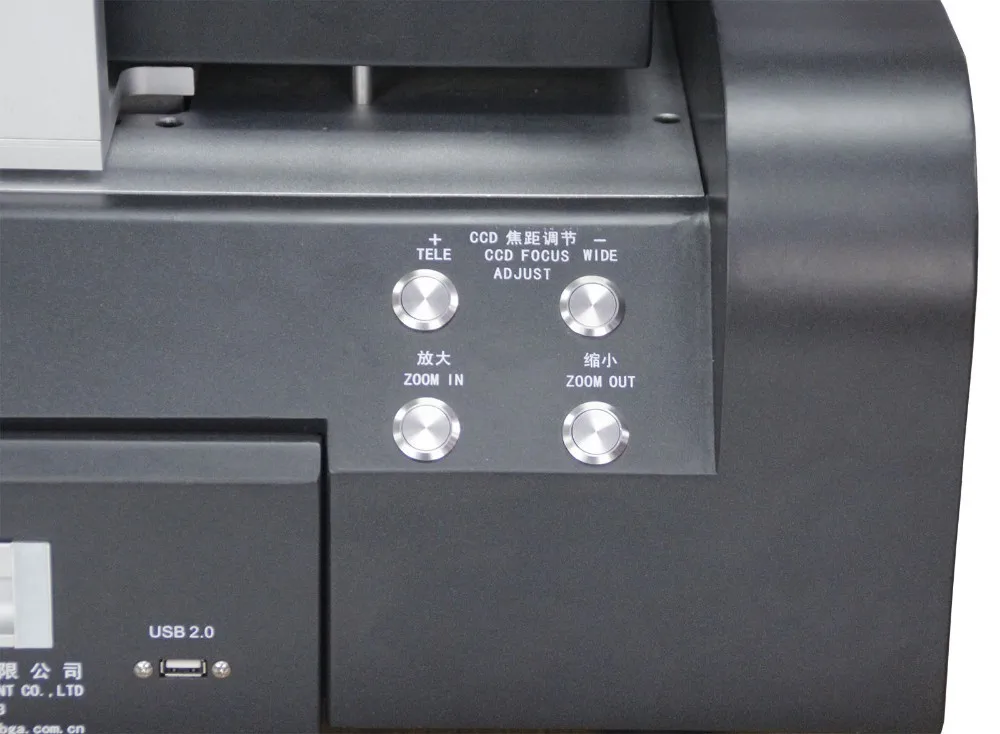

Function buttons

1 . Air flow adjusting buttons, it can be upgraded into full automatic(being programmed), especially for small precise components.

2. Lights switch: 2 lights can help you observe the PCB or chip from any view and no shadow.

3. Emergency button, optical lights adjusting buttons and laser positioning etc.

Monitor screen

1980P, 15 inches, zoom in 10x~220x, they can help technician better watch all of  dots on chip and PCB.

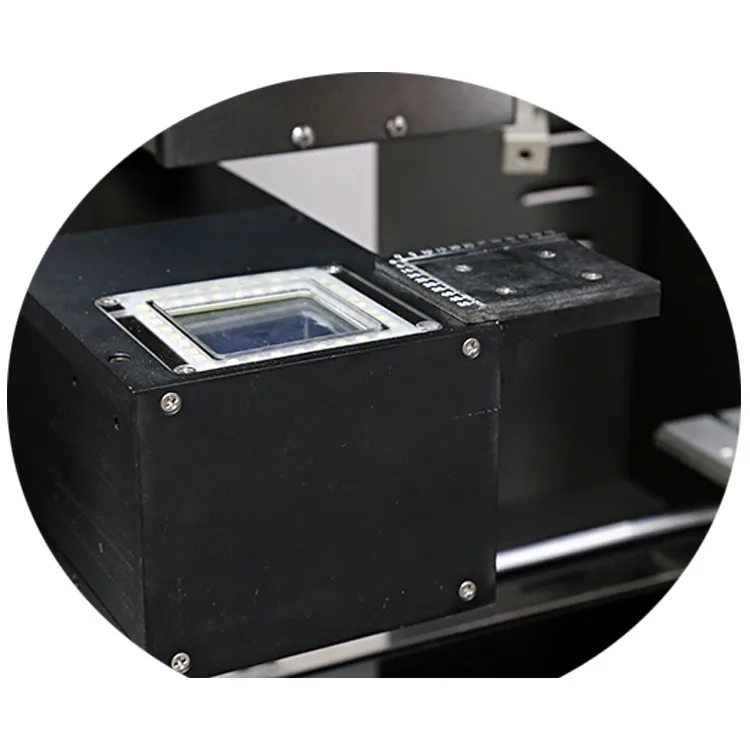

Optical CCD camera

Imported from Japan, it has two sides that can make dots of chip and PCB observed on monitor screen, with up to 5~10 million pixels.

Temperature profiles

Full temp profiles recording which help make temp and time be analyzed so that optimize a more proper profiles.

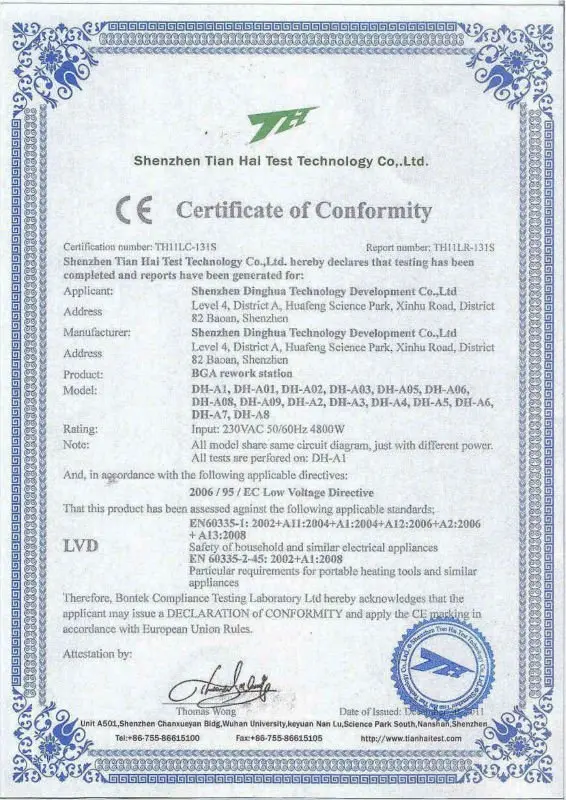

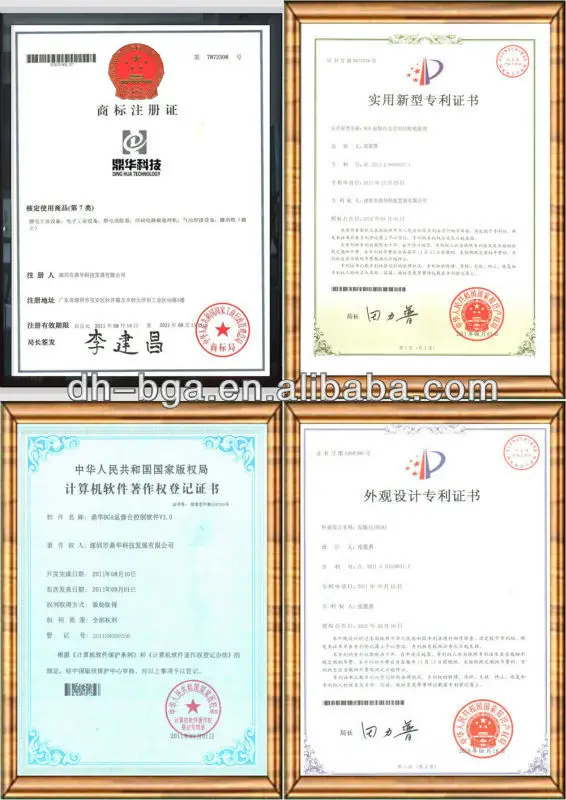

Certifications

Certification

Awarded by official from people's government of People's Republic of China for Patents of creative technology, and CE,Rohs and Reach etc. from official department( the relevant country  appointed).
Our Company
Packing & Delivery
\t
Packaging
\t
Size
\t
96*106*112cm
\t
Weight
\t
150kg
\t

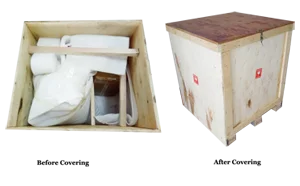

Packaging Details
\t
Materials:
 Strong wooden case+nailed wooden bars+proof pearl cottons with wrapped film


Delivery


1.Machine will be tested(vibration test and soft runing) for 2~4 days before delivery.
2. Shipping by DHL,TNT ,Fedex ,Air, sea, etc. if quantity is less than 3 sets.
3. Shipping by sea, if massive goods.
4. Shipping by Land transportation, if you are in Russai, Ukrain and Europe etc.
Our Service

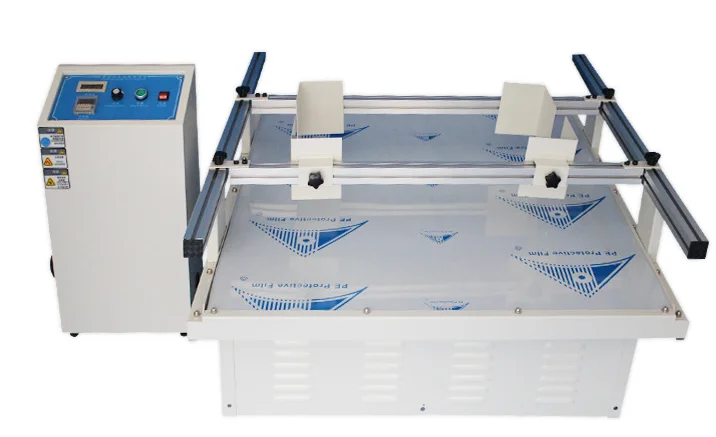

Vibration test

* Inquiry and consulting support.

* machine test and check (every machine will be tested for 1~3 days

before delivery)

* View our Factory and free training.

After-Sales Service

* 2 years warranty for whole machine, 3 years for heating elements.

* Training how to install the machine, training how to use the machine.

* if necessary, engineers available to service machinery overseas.
