      CE approved silica sand rotary dryer ore Three cylinder dryer price

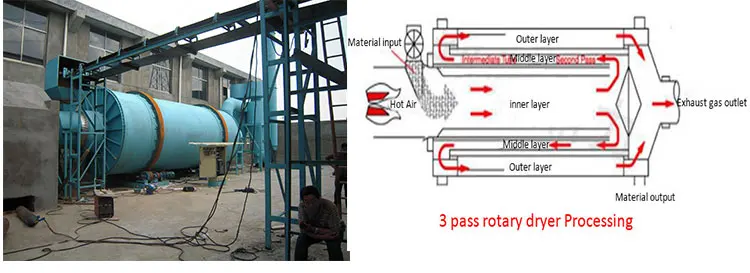

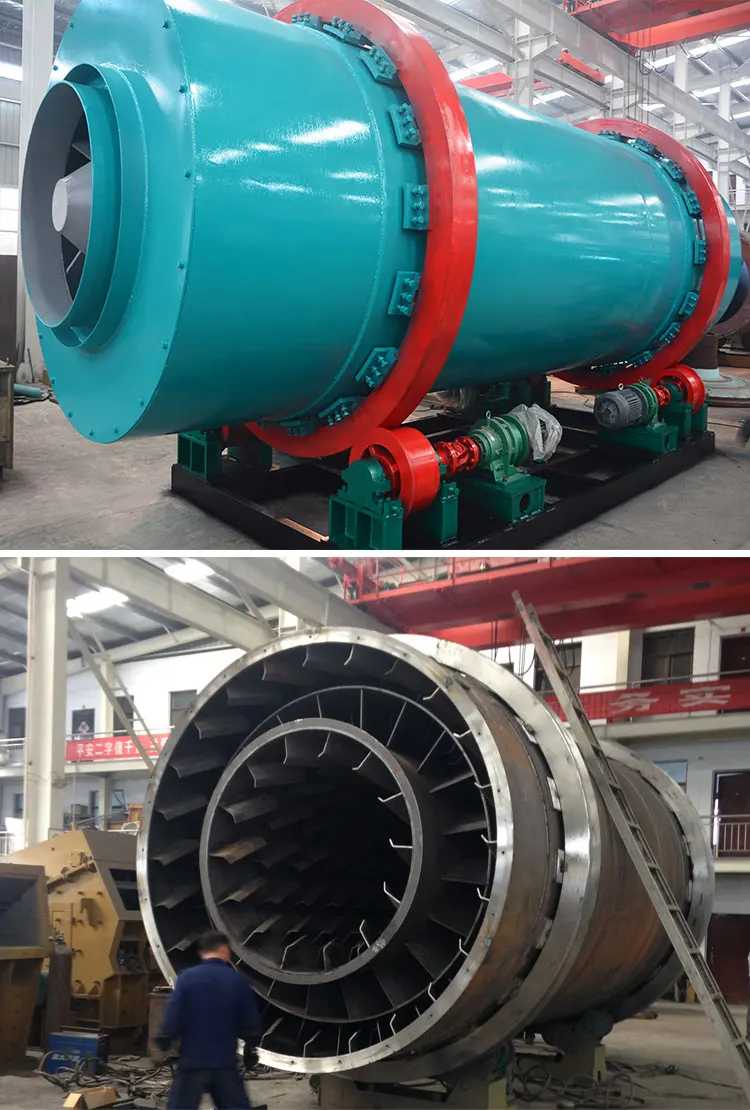

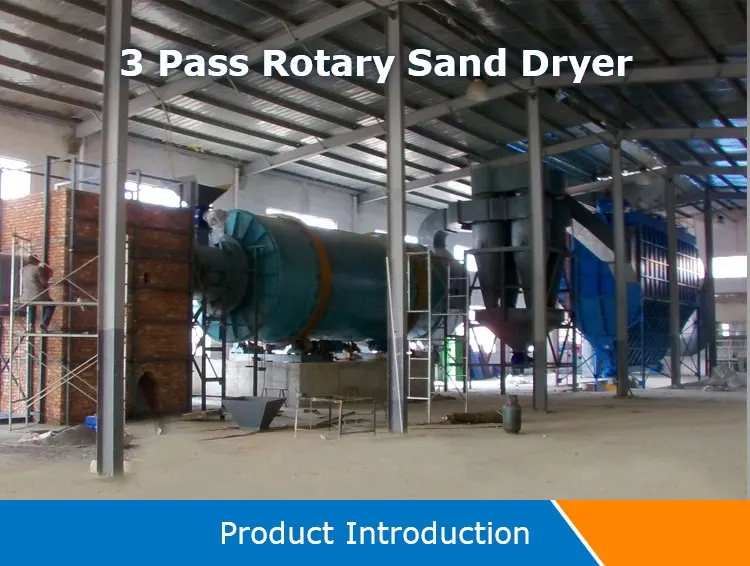

Three-drum dryer is also called three-cylinder dryer and  triple-drum dryer. It has improved     internal structure of monocular dryer, which prolongs the time of pre-drying of wet materials and wet materials in the machine, thus improving 50% to 80% of production capacity compared with original monocular dryer.

Drying Materials:  Powder, coal, sand, clay, slag, etc.

Item/Unit/Model	Φ2.5×7m	Φ2.7×7m	Φ3.0×7.0m	Φ3.2×7.0m	Φ3.6×8m
Diameter of outer cylinder(m)	2.5	2.7	3.0	3.2	3.6
Length of outer cylinder(m)	7	7	7.0	7.0	8
Cylinder volume( m³ )	16.63	16.63	52.678	52.678	81.38
Rotating speed of cylinder(rpm)	4-10	4-10	4 -10	4 -10	4 -10
Initial moisture of slag(%)	10-12	10-12	10-12	10-12	10-12
Final moisture of slag(%)	1	1	1	1	1
Initial moisture of yellow ground(%)	8-10	8-10	8-10	8-10	8-10
Final moisture of yellow ground (%)	0.5-1	0.5-1	0.5-1	0.5-1	0.5-1
Highest intake air temperature(℃)	700-750℃	700-750℃	700-750℃	700-750℃	700-750℃
Production capacity(T/h)	Yellow sand25-30        Slag20-25	Yellow sand30-35        Slag25-30	Yellow sand35-40        Slag30-35	Yellow sand45-50        Slag35-40	Yellow sand65-70        Slag60-65
Motor type	Y2-132m-4E	Y2-132m-4E	Y2-160m-4	Y2-160m-4	Y2-160m-4
Motor power(kw)	7.5×2	11×2	7.5×4	7.5×4	15×4
Reducer type	XWD7-23-11W	XWD7-23-11W	XWD6-23-7.5KW	XWD6-23-7.5KW	XWD8-23-15KW
Velocity ratio of reducer	29	29	29	29	29





Three-drum dryer was exported to Indonesia in 2018                                  » »More Details

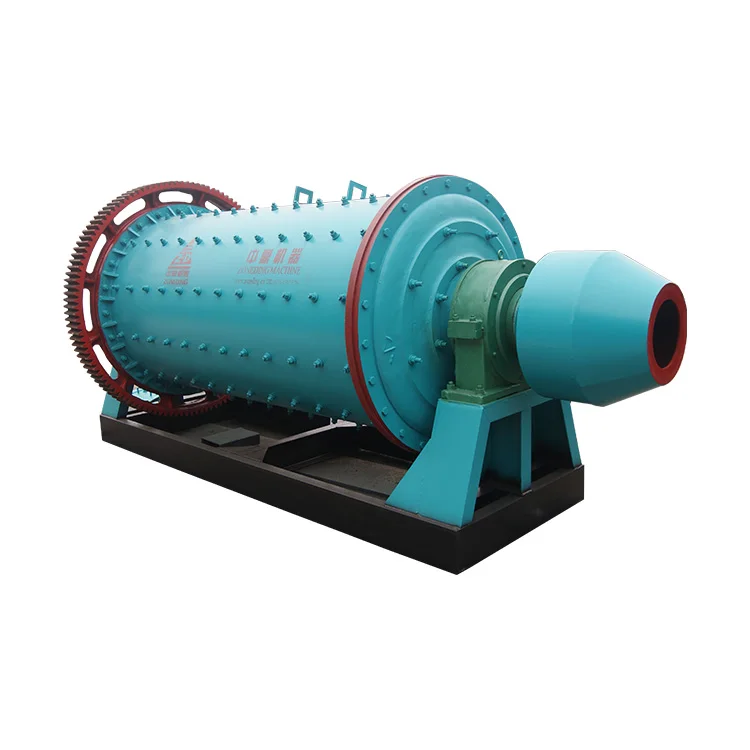

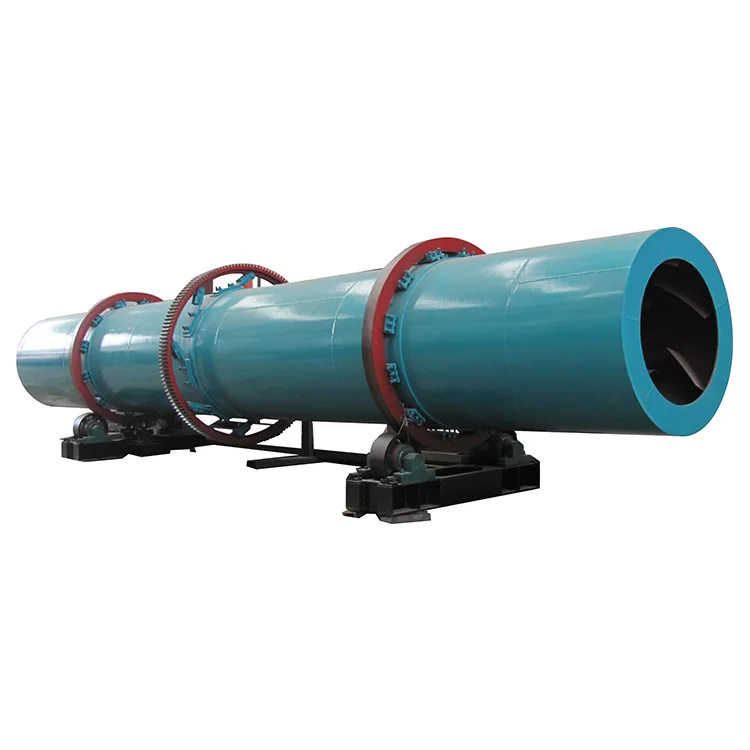

Jaw Crusher	Ball mill	Rotary Dryer	Vibrating Screen
