Product Description
Wanglink plastic housing 10/100/1000Mbps 8 port Reverse POE Switch
WOR-917-RPOE is an Ethernet switch with reverse power supply that powers the device through the user's network cable and a special POE power module. At the same time, the device itself can also provide 12VDC power for other terminal devices. It effectively solves the problem of the device being far away from the power supply. What's more, you can turn off the power when you don't need it, which is both energy efficient and environmentally friendly. There are 8 10/100/1000Mbps Ethernet RJ45 ports. The transmission distance can be extended from twisted pair 100M to 120KM.
Product name | 8 Ports Gigabit Reverse Poe Switch |
Model No. | WOR-917-RPOE |
Standard | IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3z 1000Base-SX/LX, IEEE802.3x Flow control, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3q VLAN |
Connector: RJ45 Data Rate: 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level | |
Processing Type: Store and Forward MAC Table Size: 4K Buffer Space: 1Mbit Maximum Packet Length: 9216 bytes Back bandwidth: 20G Time Delay:<20μs | |
MTBF | 100, 000 hours |
Power type: POE network power supply Cable core: 1/2+,3/6- 4/5+,7/8- Input Voltage: DC15V~48V Output Voltage: 12V Power Consumption: 2.2W~4.5W | |
Storage Temperature: -40~70℃ Operating Temperature: -10~55℃ Relative Humidity: 5-90% ( no condensation) | |
Mechanical Structures | Dimension: 217×110×28mm Weight: 0.25kg |

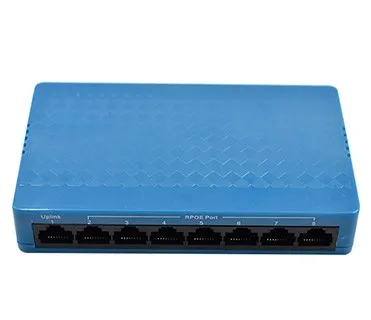

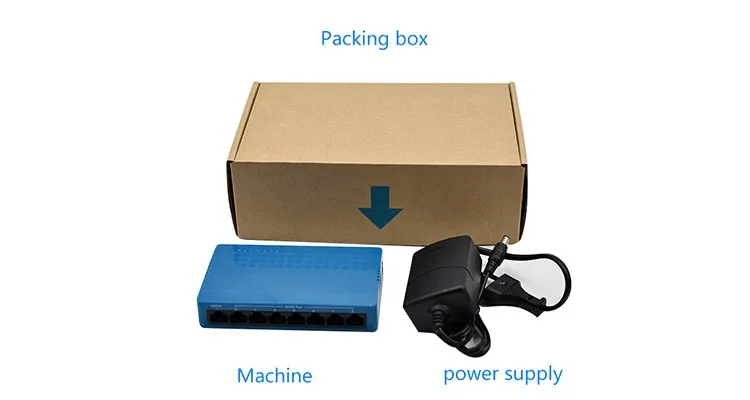

Products Show
Reverse Poe Switch
Support the switch between 10/100/1000Base-T and 1000Base-SX/LX. 8*1000M Ethernet ports with auto-negotiation function. Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function.

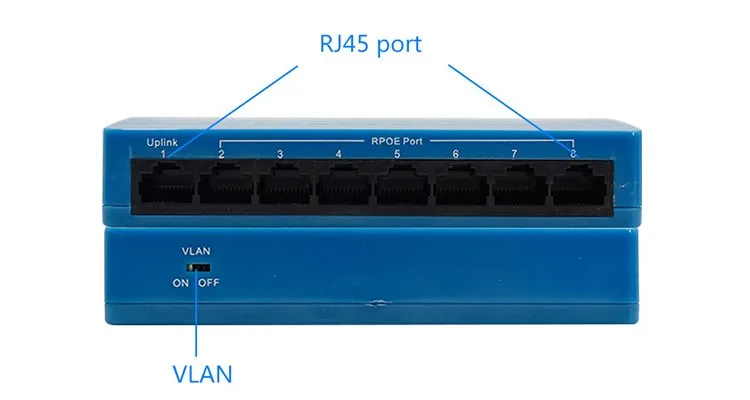

Each port has the complete LED Indicator light.3 modes available: single mode single fiber, single mode dual fiber, multi mode dual fiber.
Simple operation, plug and play
Support 15-48V voltage input through network cables from ending equipment. 1/2+,3/6- 4/5+,7/8- are both optional for power supply. 12V DC voltage output.
Strong core, stable performance
Low power consumption, stable and fast transmission. Easy to install, fast connecting equipment.
Extreme transmission, super compatibility.

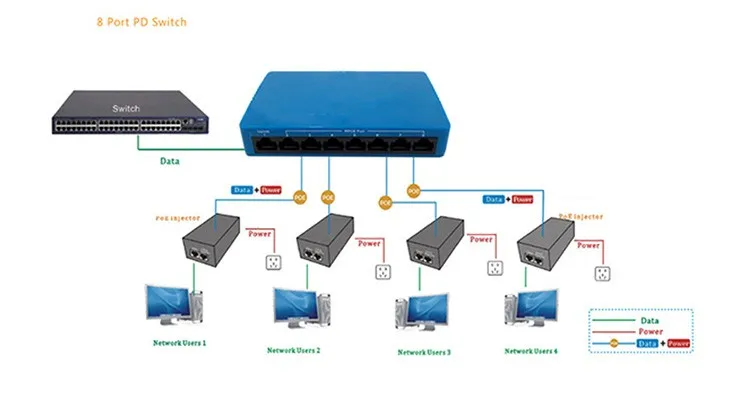

Application
Our Service
Our Company
Our Certifications
Customer Photo
Contact us:
Tel/WhatsApp/skype/Wechat: +86 13145856326
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1.Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. What is the lead time? How do you ship the goods and how long does it take arrive?
For usual products. We keep stock, could ship 1-3 days after payment. For big quantity and special products. Please check lead time with our sales representative. Sea transportation & Air transportation & Express ( DHL / UPS / TNT / FedEx / EMS ). Air transportation & Express usually take 3-5 days to arrive.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us.
Man-made sabotage and natural factors are not within the scope of warranty.
5. Why choose Wanglink?
1) Prompt delivery and remarkable services .
2) Competitive selling prices
3) Rich experience of OEM & ODM co-operation
4) 100% new materials for production and 100% reliable quality
