Изготовленный На Заказ монохромный прозрачный цифровой круговой 7-сегментный 14 сегментный ЖК-дисплей для
- Категории: Segment Display >>>
- Поставщик: Changsha,Sunman,Electronics,Co.,Ltd.,[Hunan,China]Changsha
Поделиться:
Описание и отзывы
Характеристики
Custom monochrome transparent digital circular round 7 segment 14 segment lcd display for meter
Product Description
Product Description
Applicaion | Multimeter,ammeter,voltmeter display,speedmeter,blood glucose,weight scale hourmeter and so on |
| Display Content | 20numbers+11 Decimal points+73 Prompts |
| Operating voltage | 3.3V |
| Driving method | 1/4BIAS,1/8DUTY |
| Viewing angle | 6H |
| LCD mode | FSTN,Positive |
| Conecting mode | Metal pin |
| Backlihgtlight | White |
| Voltage driving | Dynamic voltage |
| Controller | Nil |
| Operating voltage | -20~+70℃ |
| Storage voltage | -30~+80℃ |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
Warranty | 12 moths free, payed warranty lifttime |
Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 7 days for available designs,Customized: 35~40 days |
| Cetification | ISO,SGS |

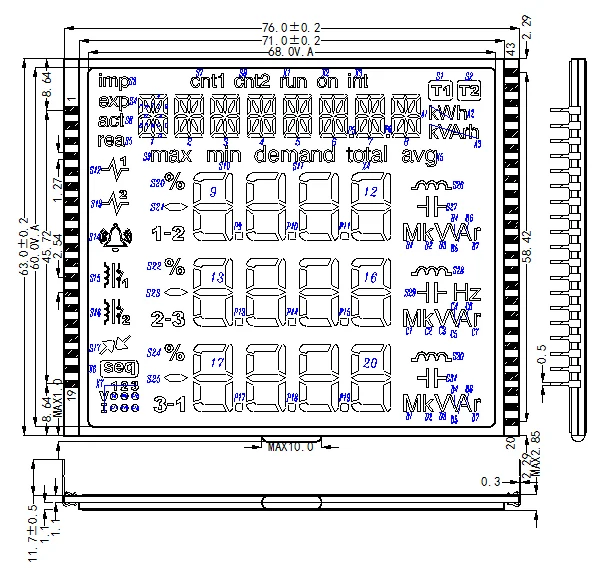

Mechanical Demesion

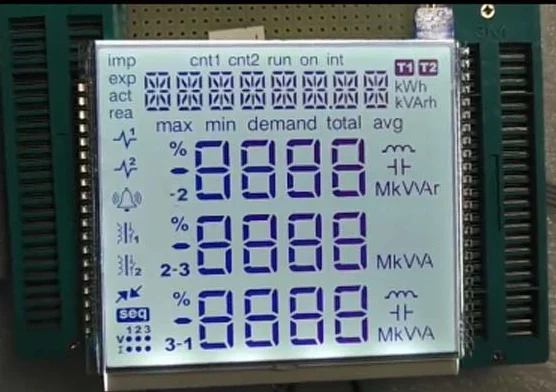

Product Show
Related energy meter

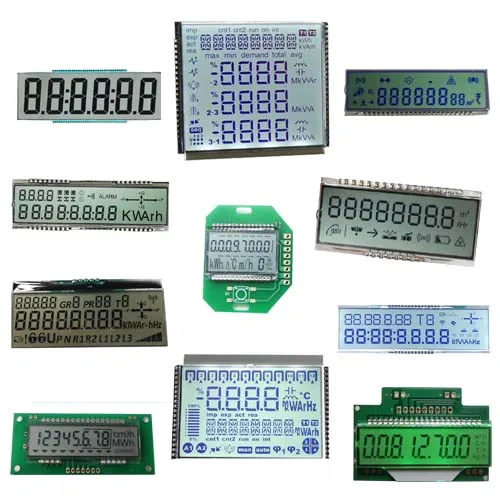

hot sell products
Hot Custom LCD ,we could customize any lcd according to your requiremets :
how to customize?
Welcome custom-made !Free design !
What can we custom?
Display type :VA/TN/HTN/STN/FSTN/FFSTN/DFSTN
LCD structure:LCD Glass With/Without backlight COB,COG
Polarizer:Transflective, Transmissive, Reflective, Anti- Glare, Anti-UV
Background :Gray, Yellow-Green, Blue, Black
Operating temperature:-30 ℃ +85 ℃, Customization
Connector/Connection:Metal PIN, Rubber/Zebra, Heat seal, Flat cable(FPC)
Product Application
INSPECTION PROCESS
| Packaging | Plastic bag +foam+cartom |
| Carton Size | 41.5cm*36.0cm*50cm or customized,100-300PCS/ carton |
| Gross weight | 15.0 -20KGS |
| MOQ | 5 PCS for Customized segment digit lcd display for instrument and meters |
| Specitional packaging | negotiated |
| Shipment date | 5 days to all area of any country(usually DHL) |
Factory Show
FACTORY SHOW
CERTIFICATION
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
CERTIFICATION
FAQ
- QWhat is the MOQ ?
- A No MOQ for Customized segment digit lcdfor instrument and meters
- QCan I get samples?
- A Yes,just give us sample orders,and free samples for custom
- QHow to customize an lcd module?
- A Give us messages to design lcd modules and comfirm the drawings
- QCan mould cost been returened ?
- AYes, if quantity satisfied.
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QWhen you ship my order?
- ANormally 30-45days after receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AOne year!
- QHow can you guarantee the production quality ?
- AOur production quality follow ISO9000 standard system, stable design team,22 years experience of QC team and strictly quality control system guarantee the production quality. accept third part inspection,we have mechanical checking,display checking,high&low temperature storage&operating test during high humidity condition,EMC test(optional) for every design .
