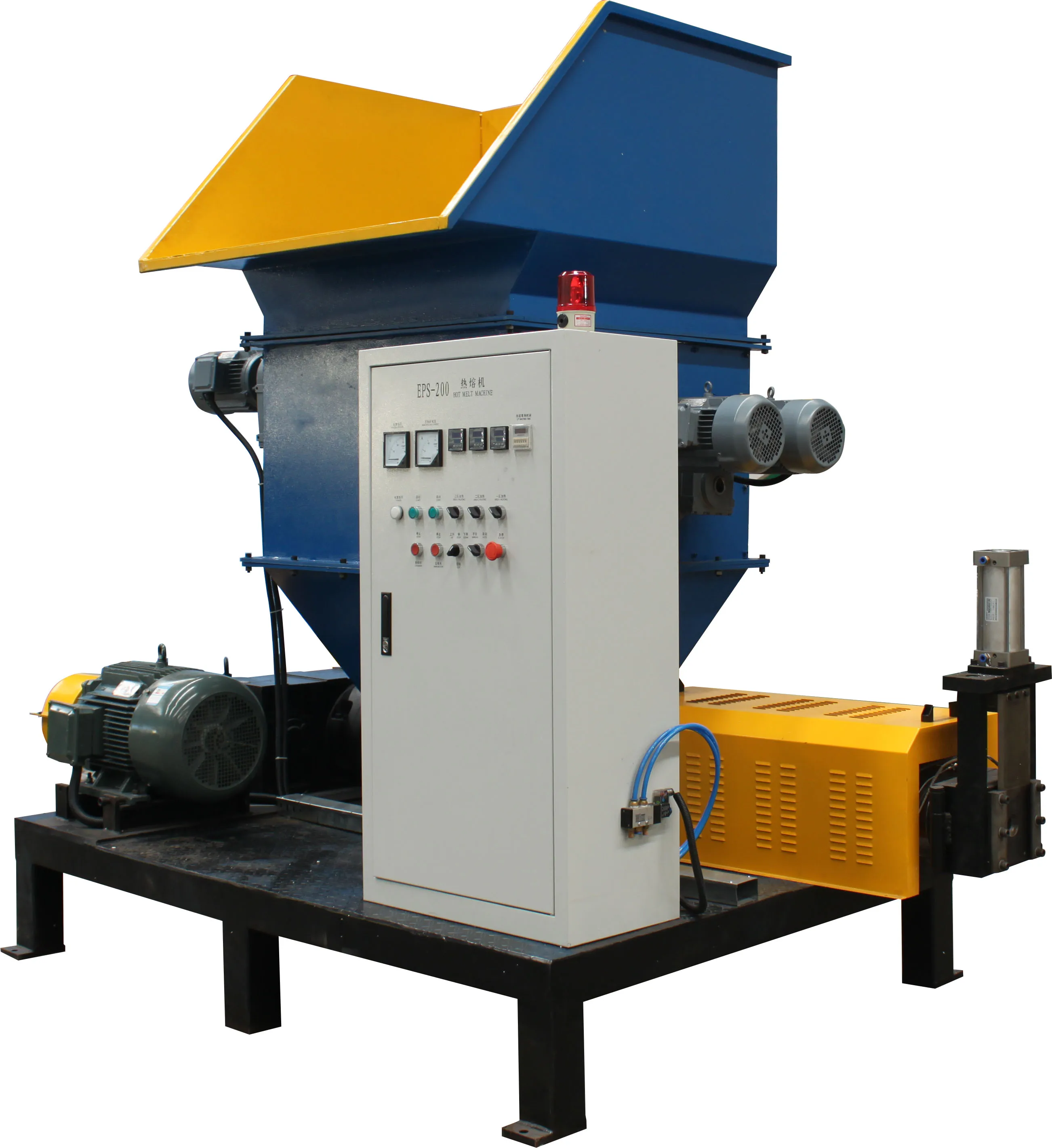

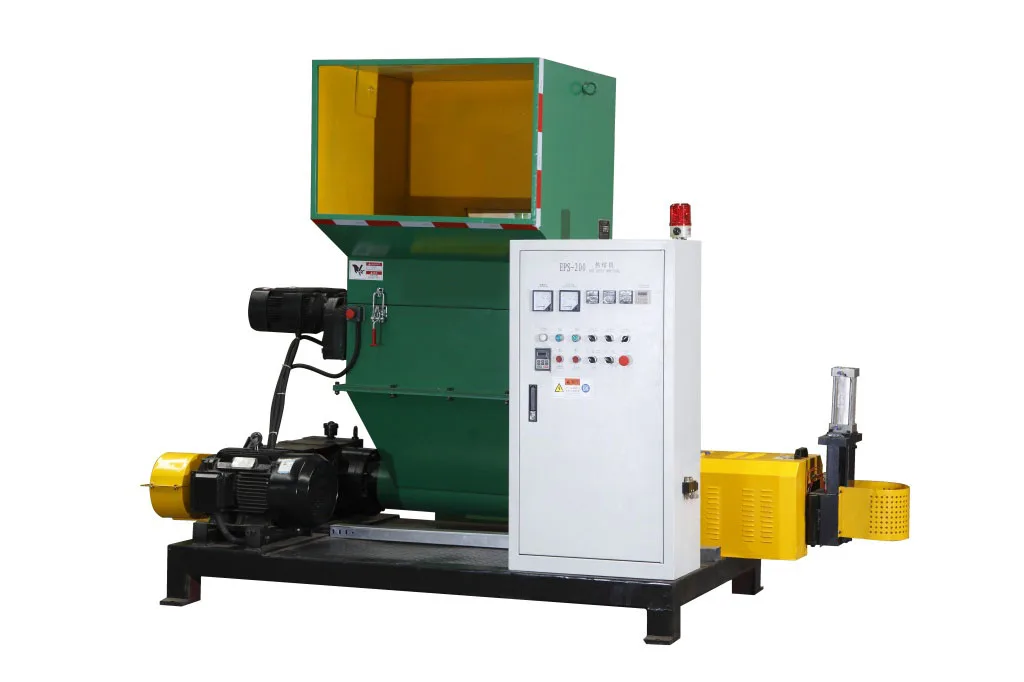

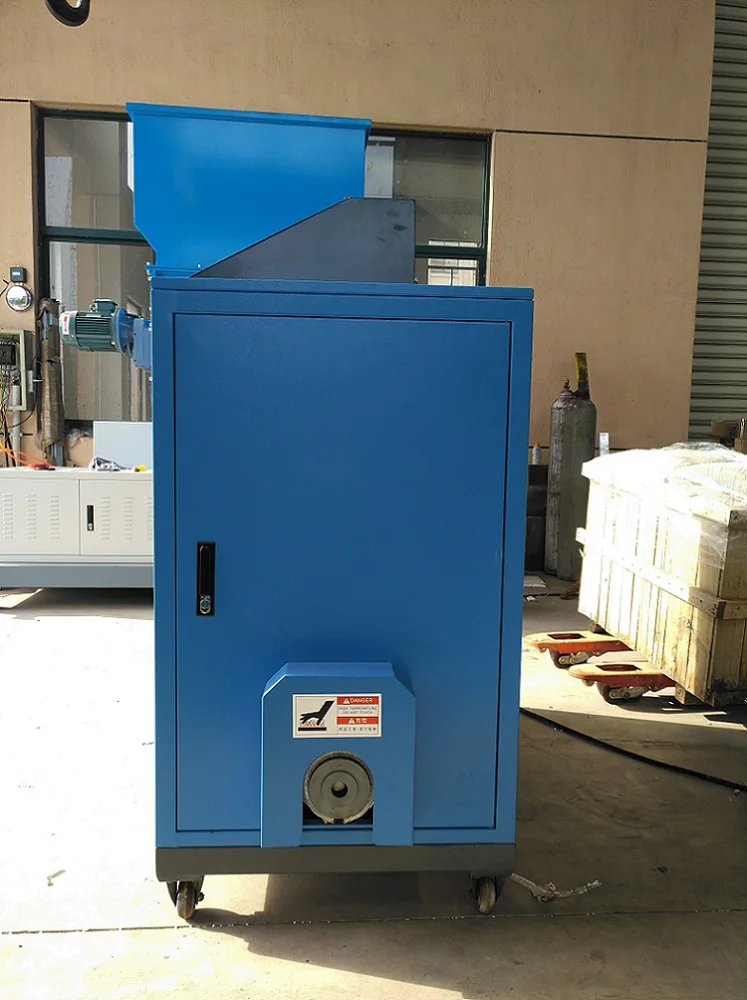

Small polystyrene plastic crushing hot melt molding machinery
This small hot melt molding machinery adopts manual feeding ,the material will be crushed by the single shaft blades and conveyed to the barrel of the main machSmall polystyrene plastic crushing hot melt molding machineryine through the screen. This screw of the main machine can convey the heat the material to melt condition, then extrude them and air jam bladecut them to pieces for easy storage and transportation.

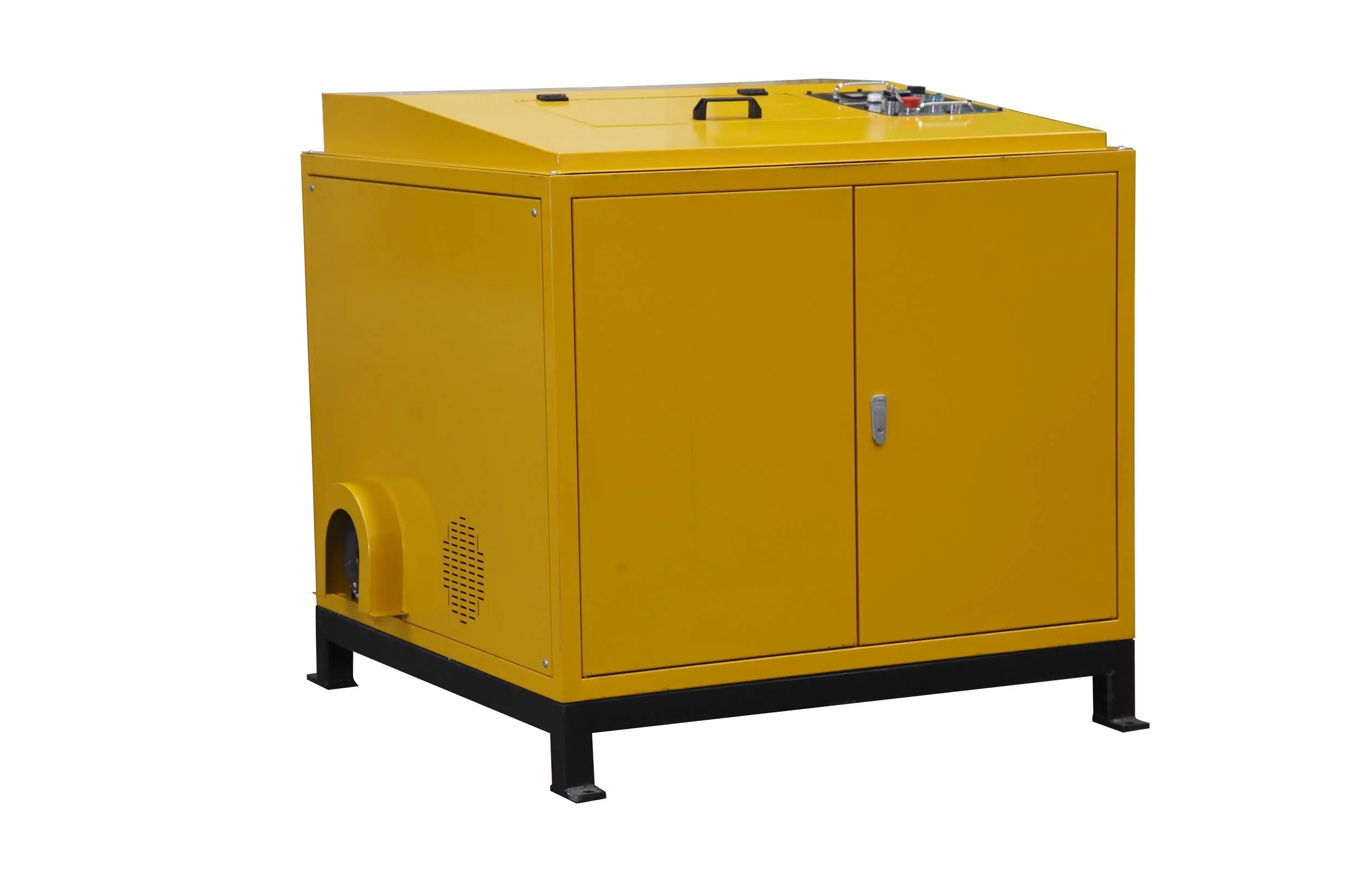

In the side board, we have already prepared the power wire inside, the user just need to connect the wire to the plug, then user can put it in the plug base to run the machine.
Technical Parameters
The following data of hot melt molding machinery for reference
Model small hot melt molding machinery
CF-HM-50 composite extruder
Feeding Size
460mmx460mm
Screw diameter
φ138mm
Screw Length
889mm
Screw Speed
150rpm
Extrusion center hight
250mm
Heating power
Two zones,3kw each
Main motor power
5.5kw
Screen Size
40mm
Blade rotation diameter
250mm
Blades quatity
10sets
Blades rotation speed
150rpm
Size
950x900x1050
Weight
600kg
Capacity
30kg/h
Configuration
Item
Standard Configuration
High configuration
Motor
Dongya
SIEMENS

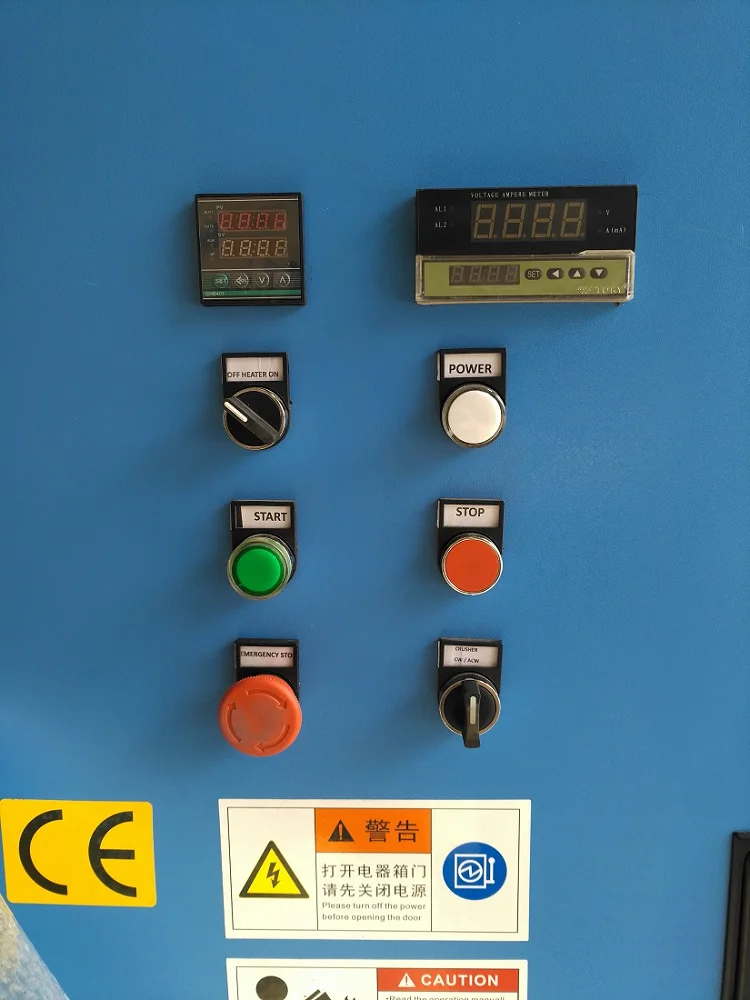

Control
Yatai
PLC Control(SIEMENS)
Inverter control
(NONE)
ABB Inverter
Touch screen
(NONE)
Siemens touch screen
Gearbox
GUOMAO
GUOMAO
Bearing
ZWZ
NSK
Air Valve
CHNT
Yadek

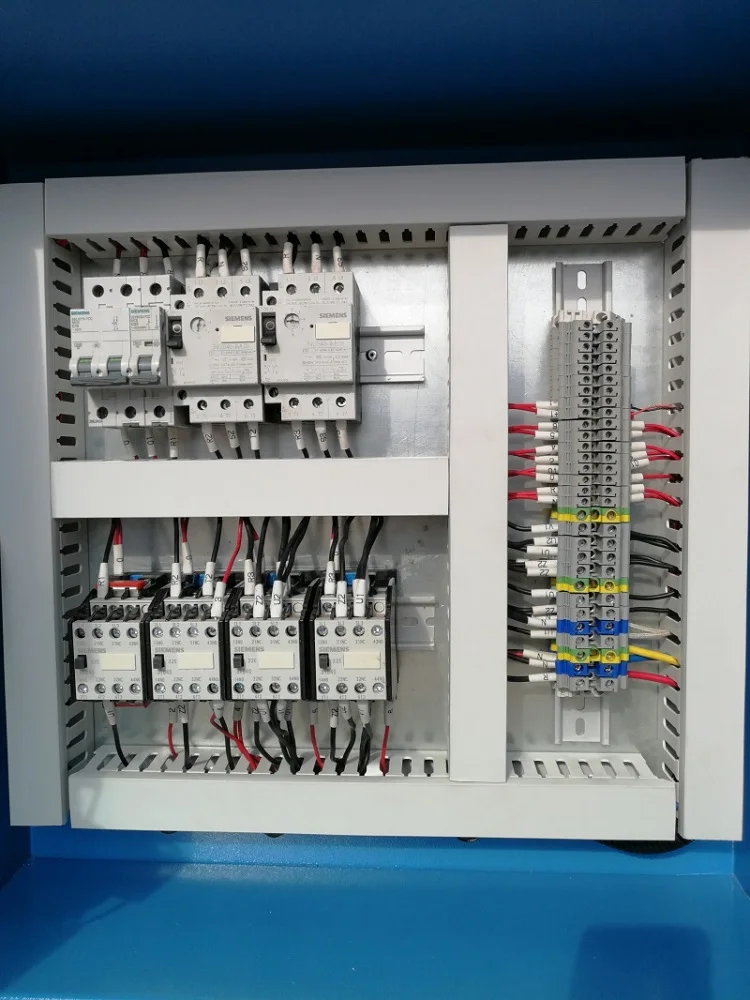

Electricity Elements
CHNT
All the elements use SIEMENS
Detail View

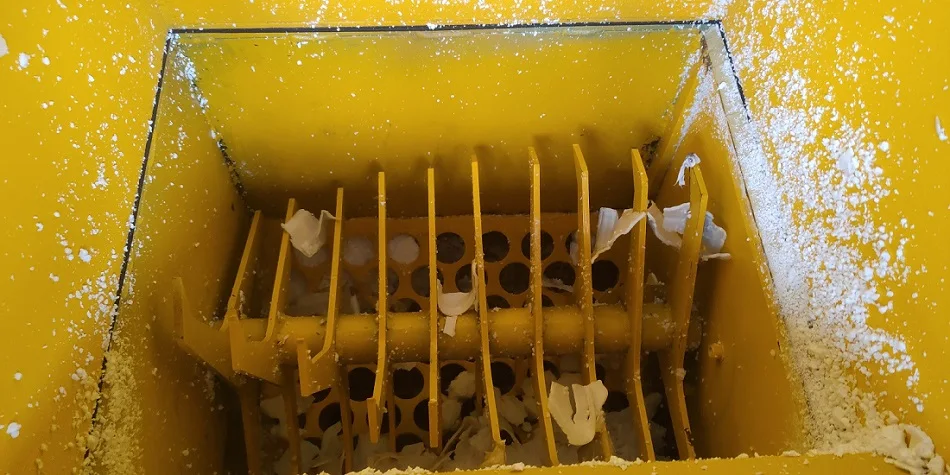

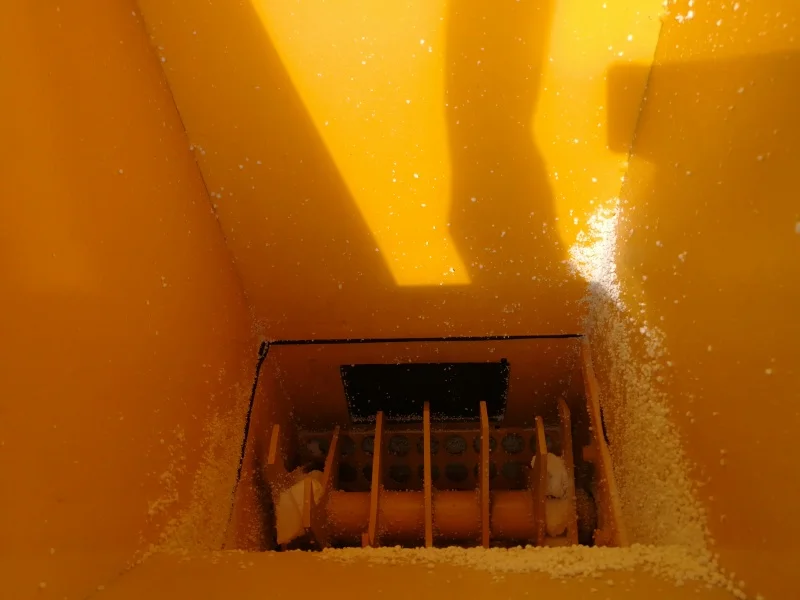

The small polystyrene plastic crushing hot melt molding machinery use single shaft crushing blades, The first blade and the last blade of each shaft has a 90°angle.
When the shaft crushing blades are working, form a wave down the grip , so that the material constant downward movement, after going through the cutting blade , and broken into smaller blocks of matter .

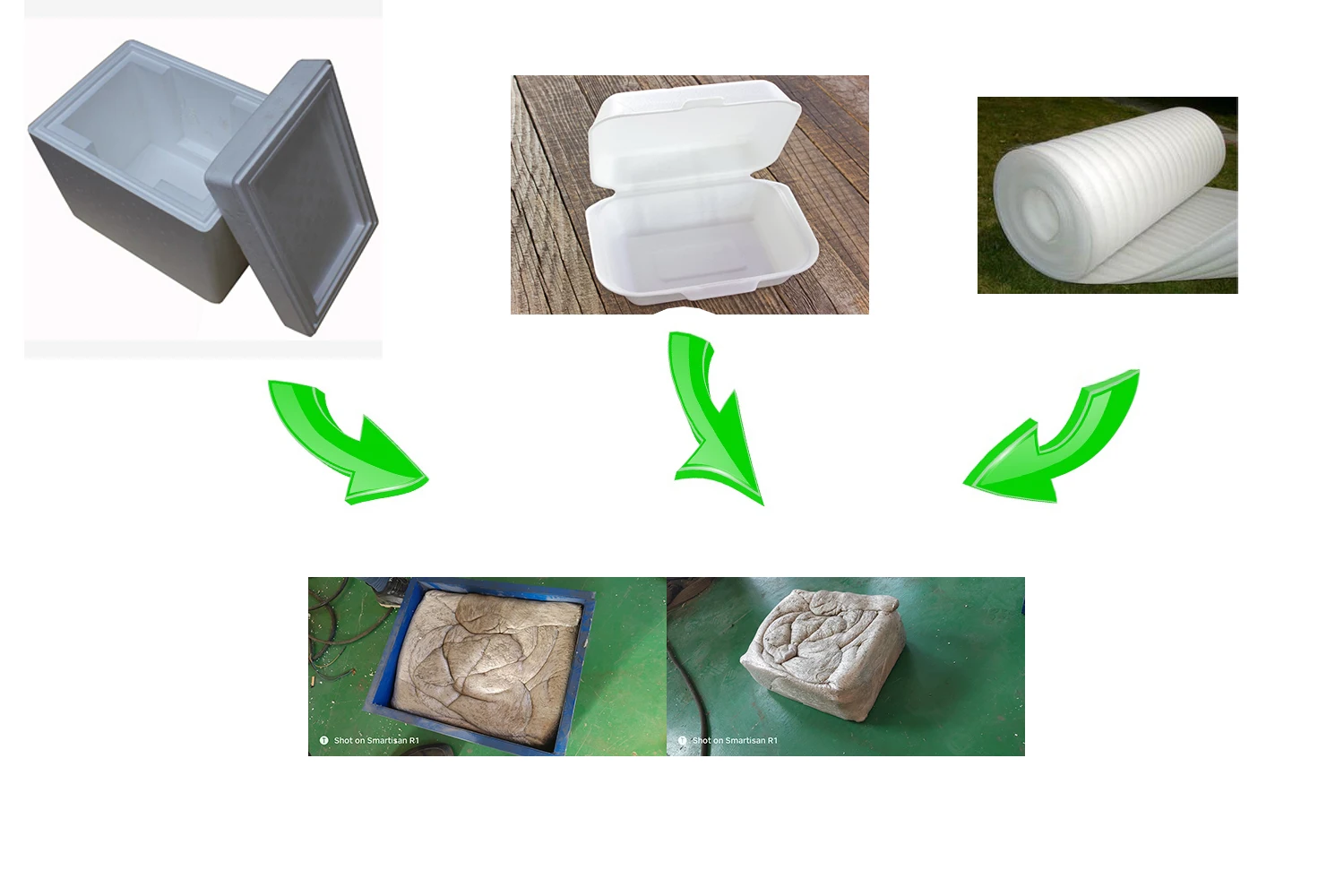

The shaft crushing blades in the small polystyrene plastic crushing hot melt molding machinery can broke the EPS material into small blacks and go through the screen. The material that can’t go through the screen will be crushed again, and finally go through the screen. The material will been sent by the high speed rotary screw to the heating barrel. The screw of the main machine caEPS ingot making machinen convey and heat the material to melt condition, then extrude them for easy storage and transportation.
