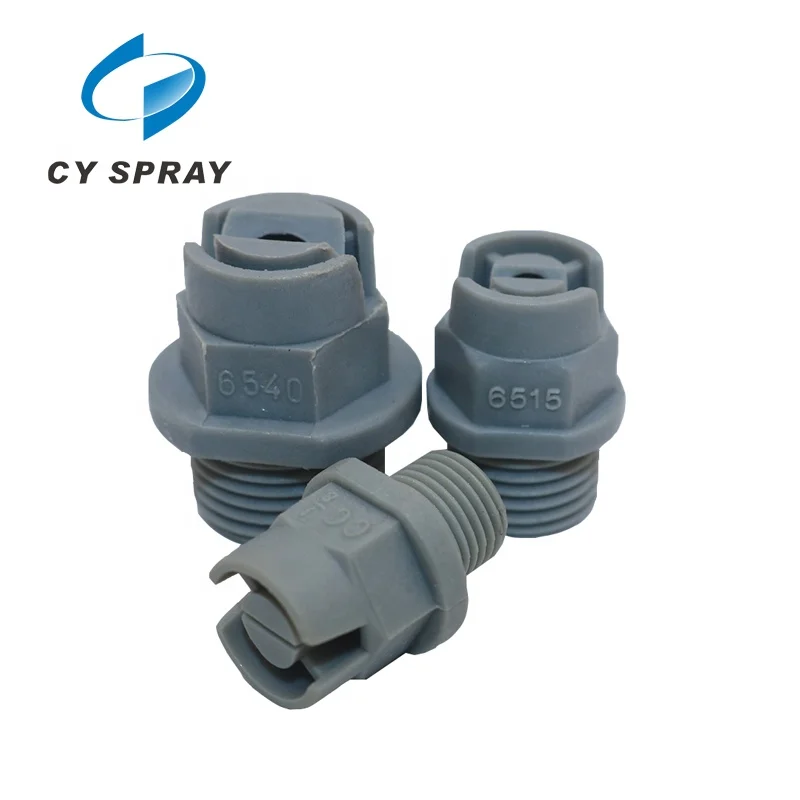

The new natural KYNAR spray nozzle provides chemical and corrosion resistancein an ultra-pure material he natural non-pigmented KYNAR material contains no colorants or fillings which naked it especially well sutied for integrated circuit and PCB manufacturing These full cone /flat fan nozzles are made of natural polylinyldene fluoride(PVDF)thermoplastic
KYNAR spray nozzles are available with pipe connection sizes of 1/8,1/4 and 3/8BSPT.
The nozzle body has standard hexagon sizes and a flange for easy installation and removal using a standard socket wrench.
| Product Name | CC-KY Plastic Flat fan Nozzle |
| Material | PP ,PVDF |
| Thread Type | BSPT |
| Thread Size | 1/8'', 1/4'', 3/8'' |
| Flow Rate | 0.25-22 L/Min@ 0.3-10BAR |
| Spray Angle | 65° ,80°,95°,120° |
| Working Temperature | 0-85° |
| Colour | Grey or White |
| Application | Cleaning, washing, mist eliminating |
| Packing | Plastic Bag+ Carton, Special requirements are available |
| Custom Made | Available |
Common Applications:
- PCB manufacturing
- Washing & Raining
- Dedusting
- Quenching & Cooling
- Gas Washing
- Deoxidation, Dearating and Aerating
