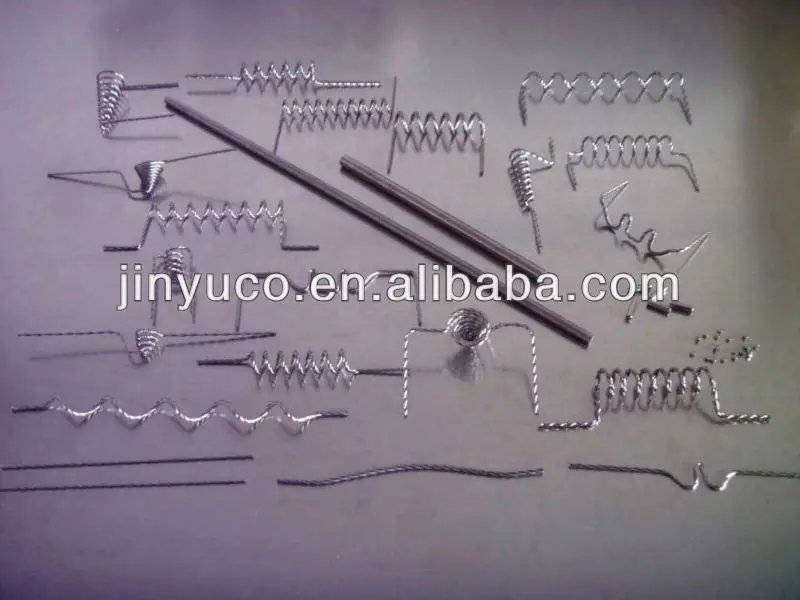

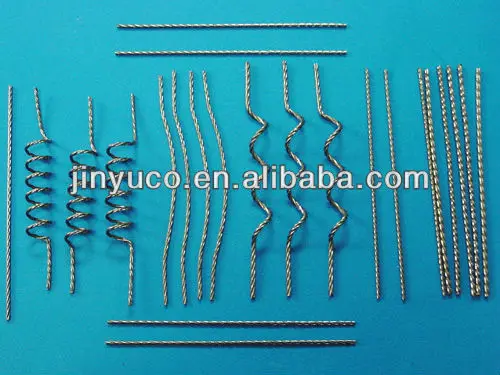

High purity twisted stranded W Tungsten filament is spooled on clean, defect free spools. For very large diameters, tungsten wire is self coiled. Spools are level filled without piling near flanges. The outer end of the wire is properly marked and attached securely to the spool or self coil.



W Tungsten filament product feature:
 Doped tungsten wires are manufactured by the high technology of doping,acid,washing, isostatic pressing, PLC controlled direct-sintering, swaging and auto feeding. The products are featured with minimum deformation at high temperatures, high recrystallization temperatures, uniformity in dimension and excellent coilability.

Diameter:φ0.0020-1.8mm
Use: Used for making stranded(spiral) tungsten wire, tungsten heater elements, filaments, lamp filaments, coiled –coil filaments, support , electrode and lead etc.



Chemical Composition: W≥99.95% Fe≤0.002% Mo≤0.003% Other elements≤0.001%
Coil Weight: As customers’requirements.

Cleaned Tungsten Wires



Purity 99.95% ~ 99.98%

Diameter: 0.1 ~ 3.0 mm

Grade: W1, W2.1, WAL1,W-61

MOQ:1KG

Certificate: ISO 9001:2000, SGS

Avaiable:30 MT/M



W Tungsten filament use: The surface of electrolytic polished tungsten wire shall be smooth, clean, gray silver with metal luster. The tungsten wire features excellent formability, long life and super lighting efficiency. Mainly used for making various electron tube, H series auto lamp, halogen lamp and other special lamp.



Classification:
A: Electrolytic cleaned, polished
B: Electrolytic cleaned , polished and straightened.



W Tungsten filament application:



Type	Name	Kind	Applications
WAL1	Nonsag tungsten wires	L	Used in making single coiled filaments, filaments in fluorescent lamps and other components.
		B	Used in making coiled coil and filaments in High power incandescent bulb, stage decoration lamp, heating filaments, halogen lamp, special lamps etc.
		T	Used in making special lamps, exposition lamp of copy machine and lamps used in automobiles.
WAL2	Nonsag tungsten wires	J	Used in making filaments in incandescent bulb, fluorescent lamp, heating filaments, spring filaments, grid electrode, gas-discharge lamp, electrode and other electrode tubes parts.



W Tungsten filament specifications:



1.Tungsten Wires
Diameter (µm)	Wire Weight per 200mm in length (mg)	Wire Weight per 200mm in length for tolerance (%)
15 d 18	> 0.3~0.98	Class A	Class B
		+2.5	+3.0
18 < d 40	>0.98~4.85	+2.0	+2.5
40 < d 80	>4.85~19.39	+1.5	+2.0
80 < d 300	>19.39~30.30	+1.0	+1.5
300< d 400	>272.71~484.80	+0.5	+1.0



2.Cleaned Tungsten Wires
Diameter (µm)	Wire Weight per 200mm in length (mg)	Wire Weight per 200mm in length for tolerance (%)		Linearity
10 d 18	>0.3~0.98	Class A	Class B	Suspension length (%)	Chord high (mm)
		+2.5	+3.0	-	-
18 < d 40	>0.98~4.85	+2.0	+2.5	-	-
40 < d 80	>4.85~19.39	+1.5	+2.0	90	-
80 < d 100	>19.39~30.30	+1.0	+1.5	-	-
100< d 300	>30.30~272.71	+1.0	+1.5	-	8
300< d 400	>272.71~484.80	+0.5	+1.0	-	-
