Stonkam Высокое качество 1080P 4 канала автомобиля камера Мобильный dvr Водонепроницаемый Автомобильный видеорегистратор Wi-Fi gps и

Описание и отзывы

Характеристики

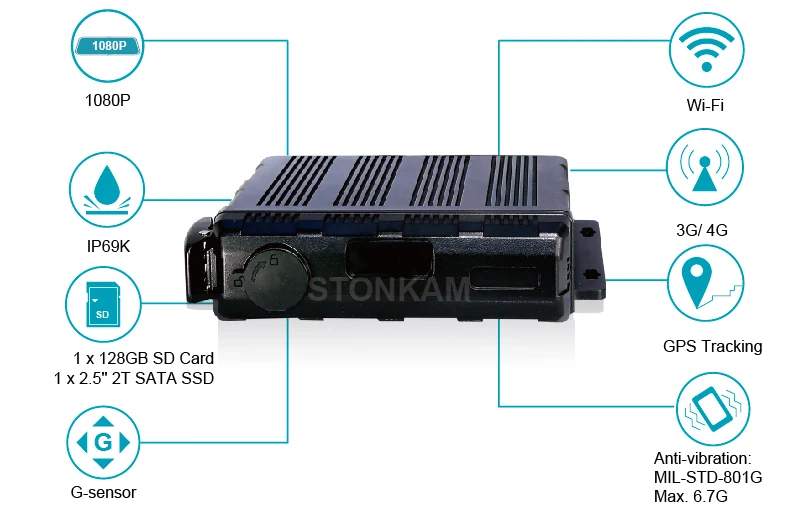

Features of Waterproof 4CH 1080P car dvr wifi gps vehicle video recorder  (DV-428):

• Support 4 channel AHD 1080P input and HD 1080P VGA output


• 4x1080P, 4x720P, 4xD1 and 4 mixed-resolution recording,  with 10 seconds pre-recording function


• Start trigger recording, timer trigger recording, motion trigger recording, G-force trigger recording, over-speeding trigger recording, 8-channel customized alarm input trigger recording, remote control trigger recording


• 3G/4G/WIFI/GPS tracking technology,platform-side CMS server, IOS, Android and windows Client network client, can achieve real remotely monitoring


• WIFI support STATION and AP mode; AP mode can support that mobile directly connect to devices, and is easy for preview and configuration at mobile terminal


• Alarm recording, alarm information, log information, GPS trajectory, real-time videos and pictures remotely automatic uploading, remotely intelligent data analysis and management


• Various storage types: SD card * 1( max 128GB), SSD ( max 1T) can be all supported


• Support dual stream, sub-stream and HD jpeg pictures network transmission


• Supports Gsensor acceleration sensor,GPS


• Support touch-screen and infrared remote control


• Well protected by Super-capacitor


• Shockproof:MIL-STD 810G


• IP69K



Specification of Waterproof 4CH 1080P car dvr wifi gps vehicle video recorder  (DV-428)



System	Operating system	Linux
	Operating interface	Graphical menu operation interface(OSD)
	Video permission	Administrator & user setting
Video	Video input	Max 4ch 1080P analog high definition
	CVBS output	1CH 6pin aviation connector output PAL/NSTC
	VGA output	1CH VGA output, 720P
	Video display	1 or 4CH
	Video standard	PAL: 25FPS, NTSC: 30FPS
	Compression	H.264 main profile
	Total resources	1080P PAL: 100FPS NTSC:120FPS
Audio	Audio input	4 channels
	Audio output	1 channel
	Record format	Synchronized video & audio recording
	Audio compression	ADPCM
Digital processing & storage	Image resolution	4*1080P(1920*1080)
	Video bit rate	512kbps~6Mbps/channel
	Storage	224~2700MB/(channel*hour)
	Playback resolution	4*1080P(encoding & decoding at the same time)
	Audio bit rate	32kbps
	Storage	4CH SD card (Max:4 x 256GB)
Alarm	Alarm input	6 channels
	Alarm output	2 channels
	Motion detection	High/middle/low sensitivity adjustable or Advanced setting
Interface for communication	IR	1 channel
	RS232	1 channel
	RS485	1 channel
	RJ45	1 channel
	USB2.0	1 channel for file backup and firmware upgrade
	CAN	2 channel
Wireless	3G/4G	HSPDA/EVDO/FDD-LTE/TDD-LTE module optional
	WIFI	optional
	WIFI hotspot/AP	optional
GPS	Internal GPS/GLONASS module, coordinate/speed  can be encoded in video stream and upload to server by wireless communication
G-Sensor/Gyroscope	G-Sensor and Gyroscope
Software	Windows client	Available
	iOS client	Available
	Android client	Available
	Web portal	Available
Electrical spec	Power supply & consumption	DC 10~32V, less than 13w(without camera)
	Operating temp. & humidity	-20~70 degree/ <80%
	Clock	Built-in clock, Calendar
	Super Capacitor	Available
	Video input impedance	75ohm
	Video output voltage	1Vpp CVBS output

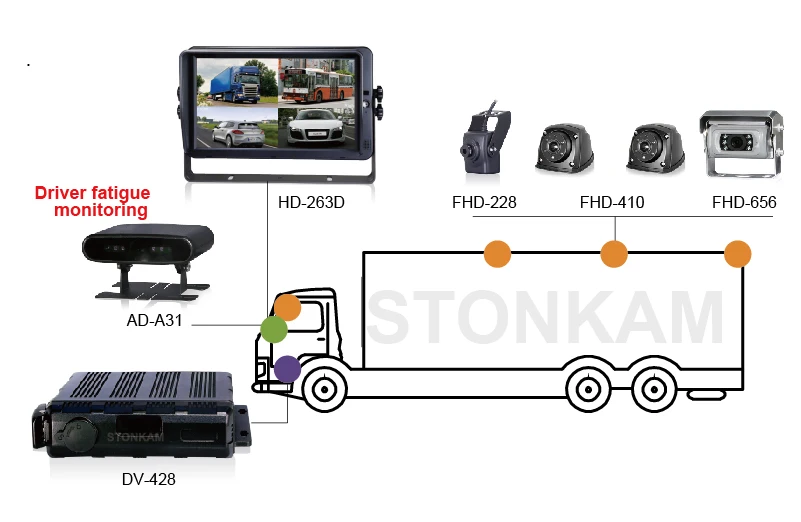

Professional 4 Channel DVR system for effective fleet management

It’s designed for various vehicles management, and widely used in buses, coaches, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.



Achieve remote monitoring by MDVR GPS tracking/ 3G/ 4G/ WiFi, convenient vehicle management on PC/ Mobile phone







Application of Waterproof 4CH 1080P car dvr wifi gps vehicle video recorder:







We also offer the following in-vision products and advanced driving assistance products for commercial and special vehicles, if you are interested, please click.
