BS5163 PN16 QT450 задвижка из чугуна с мягким
- Категории: >>>
- Поставщик: Baoding,Valvula,Imp,&,Exp,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

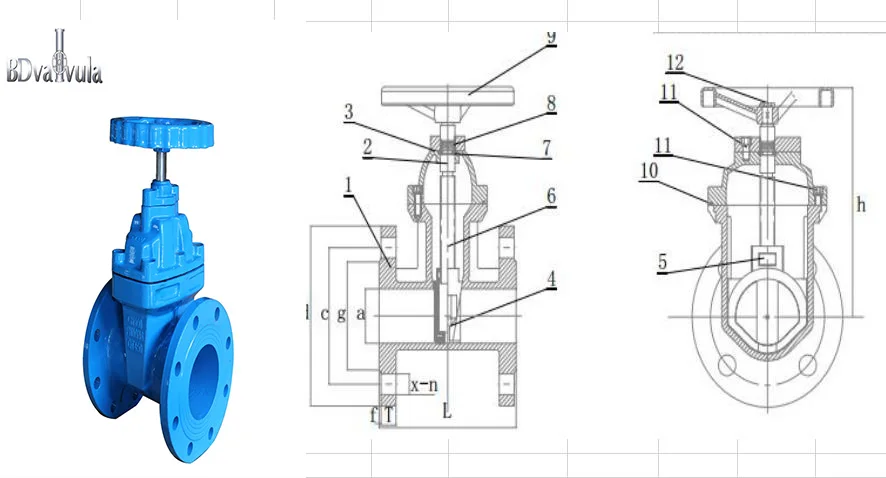

drawing of soft sealing gate valve
BS5163 standard PN16 QT450 soft sealing gate valve
| Valve Body/Bonnet | Ductile Iron |
| Stem | Stainless Steel |
| Wedge | Ductile Iron+NBR/EPDM/Fluororubber |
Type | Nominal pressure (Mpa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
Strength(Water)(Mpa) | Eclose(Water)(Mpa) | ||||
Z45X-10 | 1.0 | 1.5 | 1.1 |
≤80℃
| Water |
Z45X-16 | 1.6 | 2.4 | 1.8 | ||

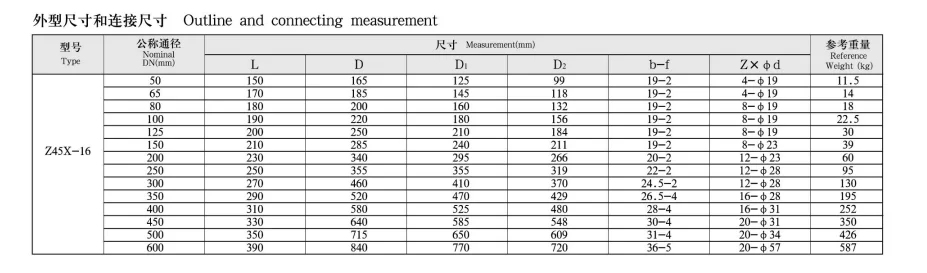

The size of soft-sealing gate valve
The detail of soft-sealing gate valve
