Наклонный осветлитель для растений Lamella первичный или

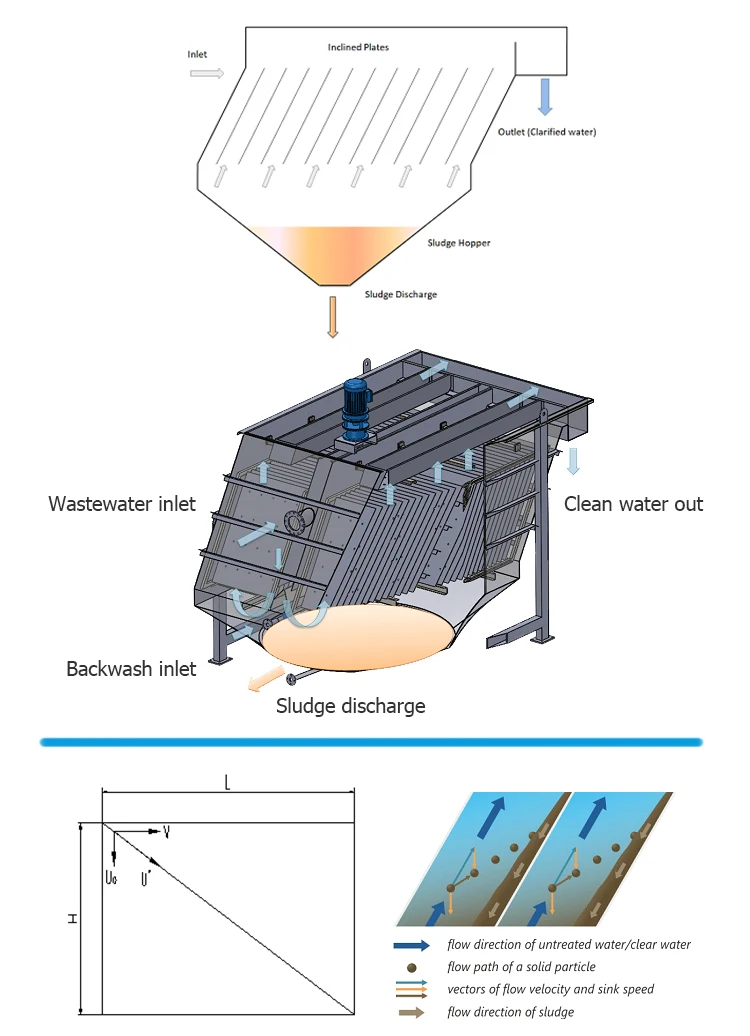

Typical lamella clarifier design consists of a series of inclined plates framework components, see first figure. The untreated feed (raw)water stream enters from the top of body side and flows down a feed channel underneath the inclined plates. Water then flows up inside the clarifier between the inclined plates. During this time solids settle onto the plates and eventually fall to the bottom of the vessel,The route a particle takes will  be dependent upon the flow rate of the suspension and the settling rate of the particle and can be seen in the second figure.At the bottom of the vessel a hopper or funnel collects these particles as sludge. Sludge may be continuously or intermittently discharged.Above the inclined plates all particles have settled and clarified water is produced which is drawn off into an outlet channel. The clarified water exits .
