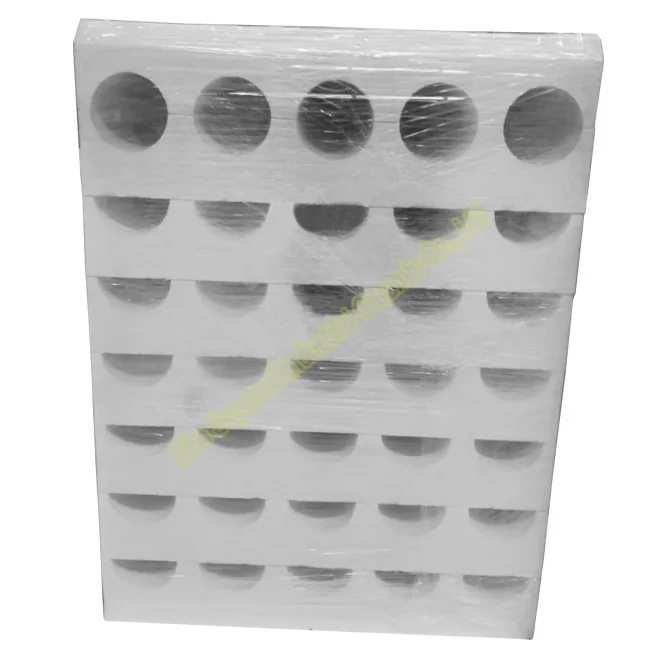

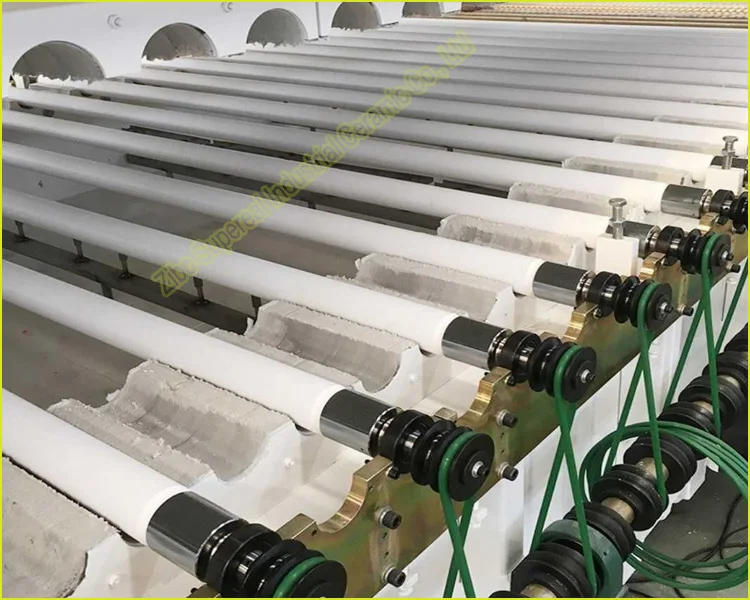

Glass tempering furnace ceramic fiber roller brackets

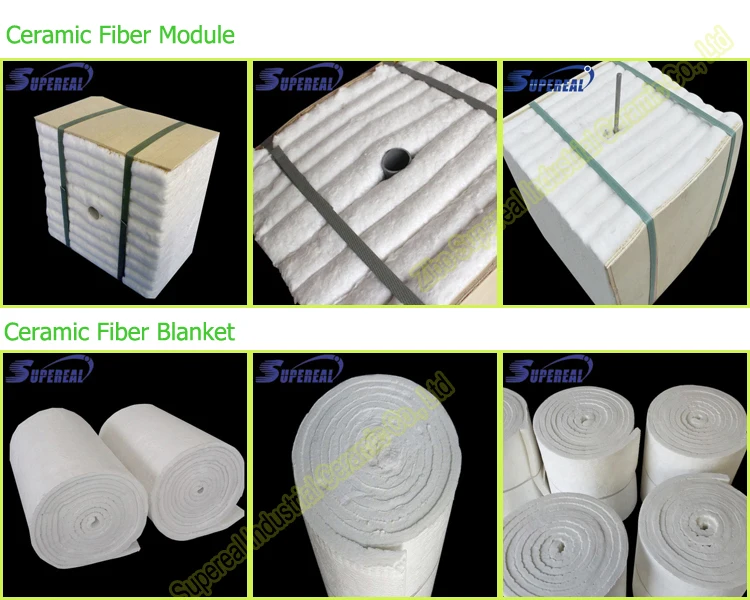

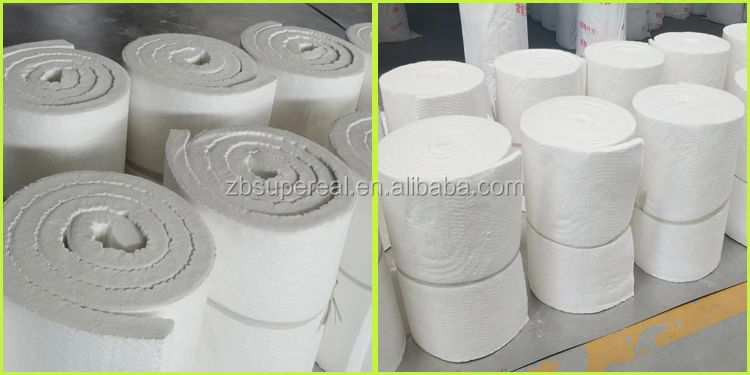

Ceramic fiber blanket is made of high quality alumina silicate ceramic fiber by using double side needling methods which improve the tensile strength and the flatness of the ceramic fiber blanket. Our ceramic fiber blanket contains no organic binders which guarantee the stability and constructability of theceramic fiber blanket at both high temperature and low temperature.

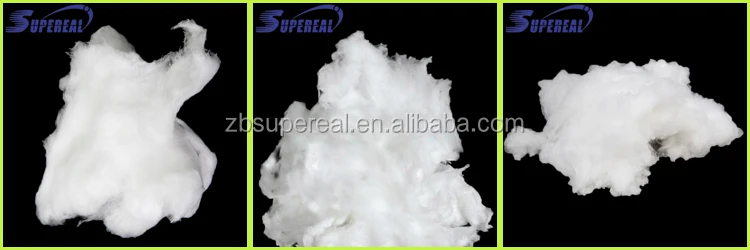

Ceramic Fiber Cotton

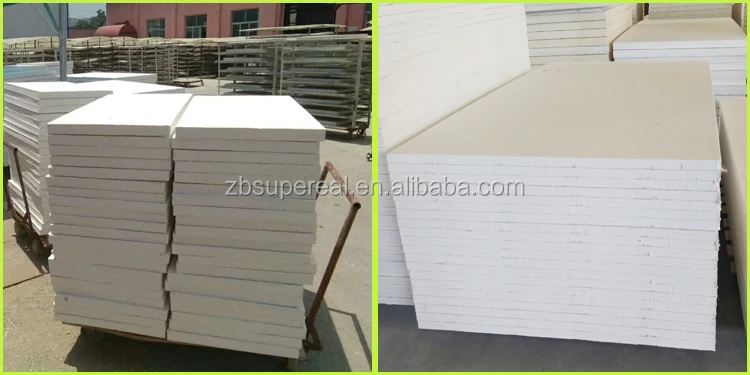

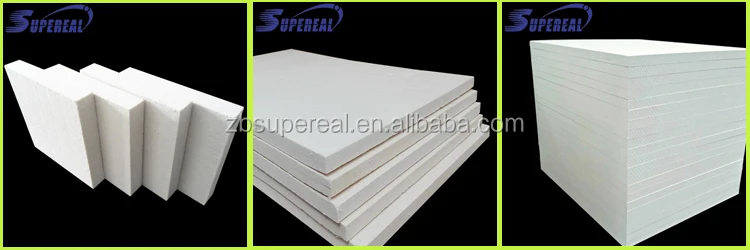

Ceramic Fiber Board


1. Thermal Insulation Ceramic Fiber Blanket 1260 C For Industrial Furnace , thickness 10mm to 50mm,Width 610mm OR 1220mm.

   Normal sizes:7320X610X25mm

                        3660X610X50mm

                       14640X610X12.5mm

2. All raw materials are strictly inspected before they are put into use. To ensure the blanket have low slag content.

.jpg

Types(℃)  1050 1260 1260 1400 1450
Working temperature(℃)  950℃ 1050℃ 1100℃ 1200℃ 1350℃
Density (kg/m3)                        64/80/96/128/160
Permanent change on heating(%)

 950℃x24h

       ≤-3

 1050℃x24h

       ≤-3

 1100℃x24h

       ≤-3



1200℃x24h

       ≤-3

 		 1350℃x24h

       ≤-3

Theoretic Heat Conductive Co-efficient W/(m.k)(128kg/m3)

0.15(600℃)

0.22(800℃)

 0.12(600℃)

0.20(800℃)

0.12(600℃)

0.20(800℃)

0.12(600℃)

0.20(800℃)

0.16(600℃)

0.20(1000℃)

Tensile Strength

(Thickness 25mm)

 ≥0.04 ≥0.05 ≥0.05 ≥0.04 ≥0.06
Chemical composition    Al2O3(%)  44 45-46 47-49 52-55 39-40
Al2O3 +SIO2(%)≥96≥98≥99≥99     -
ZrO2(%)    -    -    -5-7%15-17
 Al2O3 +SIO2+ZrO2(%)    -    -    -    - ≥99
Fe2O3(%)  ≤1.0 ≤0.8 ≤0.2 ≤0.2 ≤0.2
 Na2O+K2O(%) ≤0.4 ≤0.3 ≤0.2 ≤0.2 ≤0.2
 CaO+MgO(%) ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.2

.jpg

Thermal Insulation Ceramic Fiber Blanket 1260 C For Industrial Furnace Size and Specifications
Density: 96kg/m³,128kg/m³,160kg/m³

Thickness:6mm,13mm, 19mm, 25mm, 38mm, 50mm
Width: 610mm,1220mm

21840x610x6mm, 14640x610x12.5mm, 7320x610x25mm, 4800x610x38mm, 3660x610x50mm

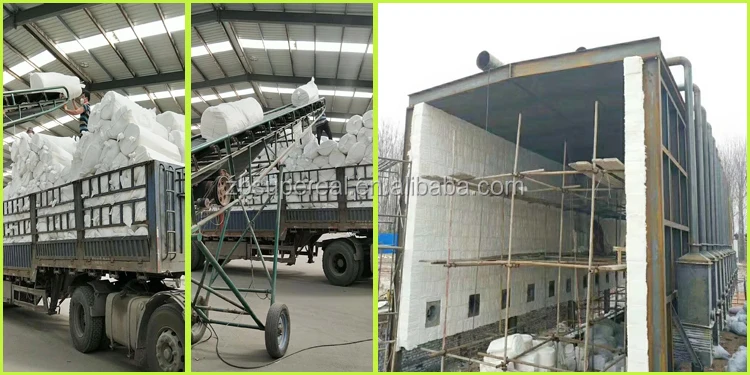

Thermal Insulation Ceramic Fiber Blanket 1260 C For Industrial Furnace Loading Details:

20’ container 260 woven bags or 225 paper cartons
40’HQ 620 woven bags or 525 paper cartons

Zibo Supereal Industrial Co., Ltd, located in Zhangdian Economic Development Zone in Zibo city is focusing on silicon carbide ceramic products,alumina ceramic product and ceramic fiber products(such as Thermal Insulation Ceramic Fiber Blanket 1260 C For Industrial Furnace , glass tempering furnace ceramic fiber roller bracket, sceramic fiber cotton,ceramic fiber board,ceramic fiber module,ceramic fiber paper). Here you can realize an one-stop shopping for complete wear and erosion protection solutions and heat insulation in wide range of industries including Power Sector, Mining, Cement, Metallurgy, Coal Washing, Steel& Iron Plant, Railway, Port and so on.

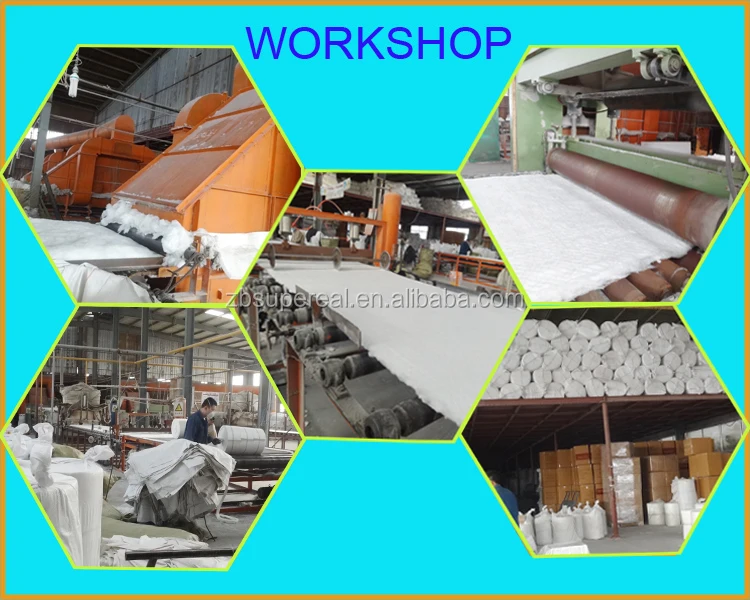

WORKSHOP

.jpg

Thermal Insulation Ceramic Fiber Blanket 1260 C For Industrial Furnace Application:

♦Industrial furnace wall lining
♦Back lining material
♦Furnace masonry expansion joints, door, roof heat insulation seal
♦High temperature pipe insulation material
♦Module / folded module processing material
♦Fireproof coating
♦Steel industry
♦Heat treating and annealing furnaces
♦Furnace door linings and seals
♦Soaking pit covers and seals
♦Furnace hot face repairs
♦Reheat furnaces
♦Ladle covers
♦Power generation
♦Boiler Insulation
