Product Description

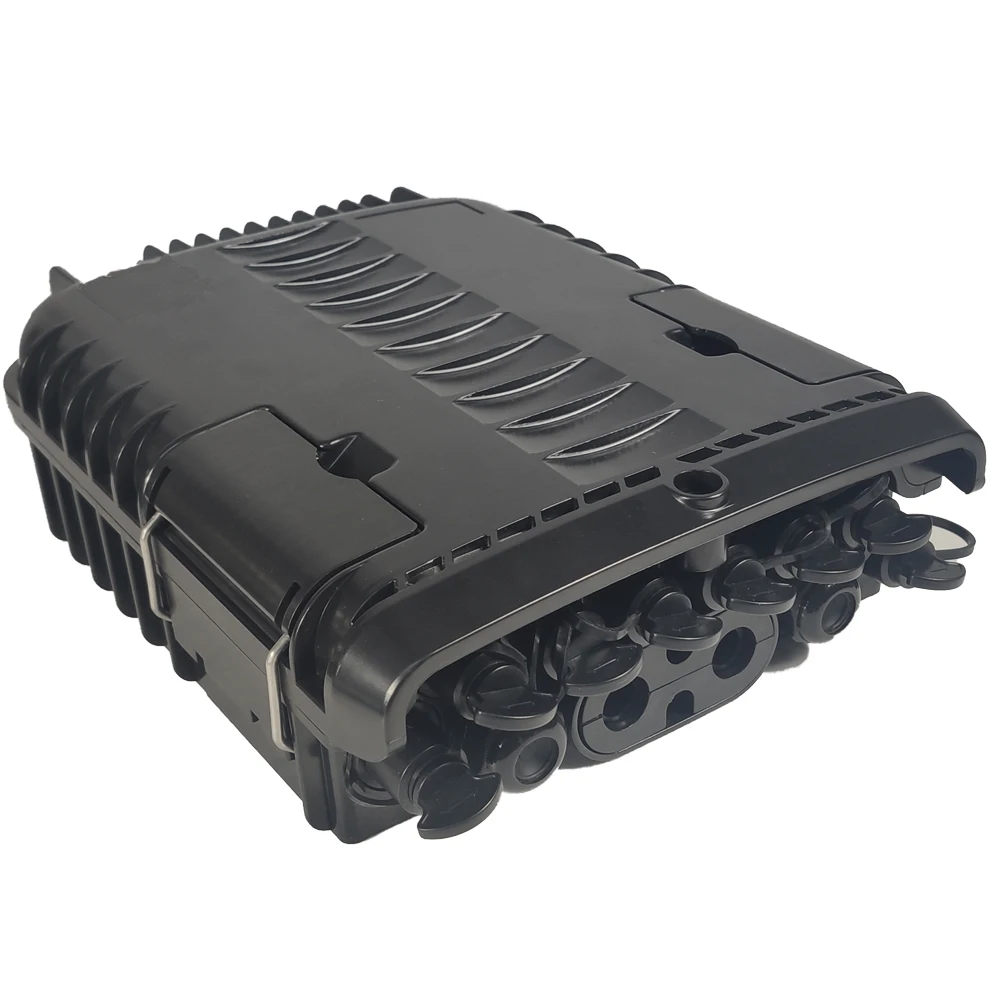

TLM-N3-8S Optic Distribution Box
TLM-N3-8S is a 8 cores fiber optic terminal box. The body of this box is made of 70% PC and 30% ABS. It has the advantage of high pressure resistance and corrosion resistance.
The biggest feature of this box is the design of a new drop cable outlet. Compared with the normal style of fiber terminal box, the optical drop cable passes directly from the surface makes it easier to install and maintain.
At the same time, the waterproof level reaches IP65. This box can be equipped with 1*8 Mini splitter and 8 adapters.
The biggest feature of this box is the design of a new drop cable outlet. Compared with the normal style of fiber terminal box, the optical drop cable passes directly from the surface makes it easier to install and maintain.
At the same time, the waterproof level reaches IP65. This box can be equipped with 1*8 Mini splitter and 8 adapters.
Model | TLM-N3-8S |
Size | 290*210*82mm |
Max. Capacity | 24 cores |
Material | PC+ABS |
Cable ports | 1 uncut cable ports + 2 mechanical ports + 8 drop cable ports (with Huawei connectors) |
Installation ways | Aerial, wall or pole-Mounting |
Detailed Images

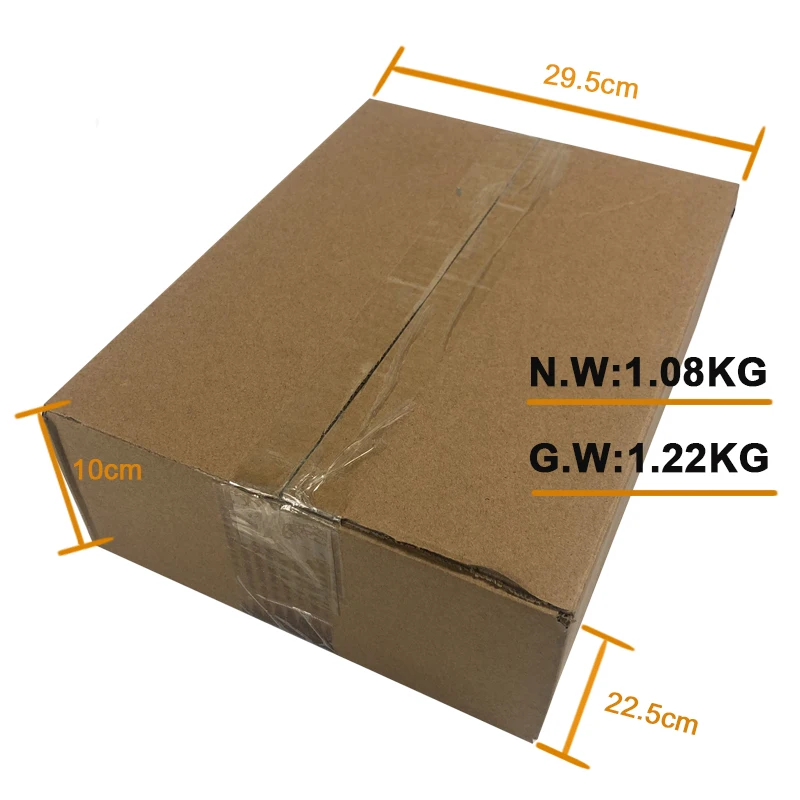

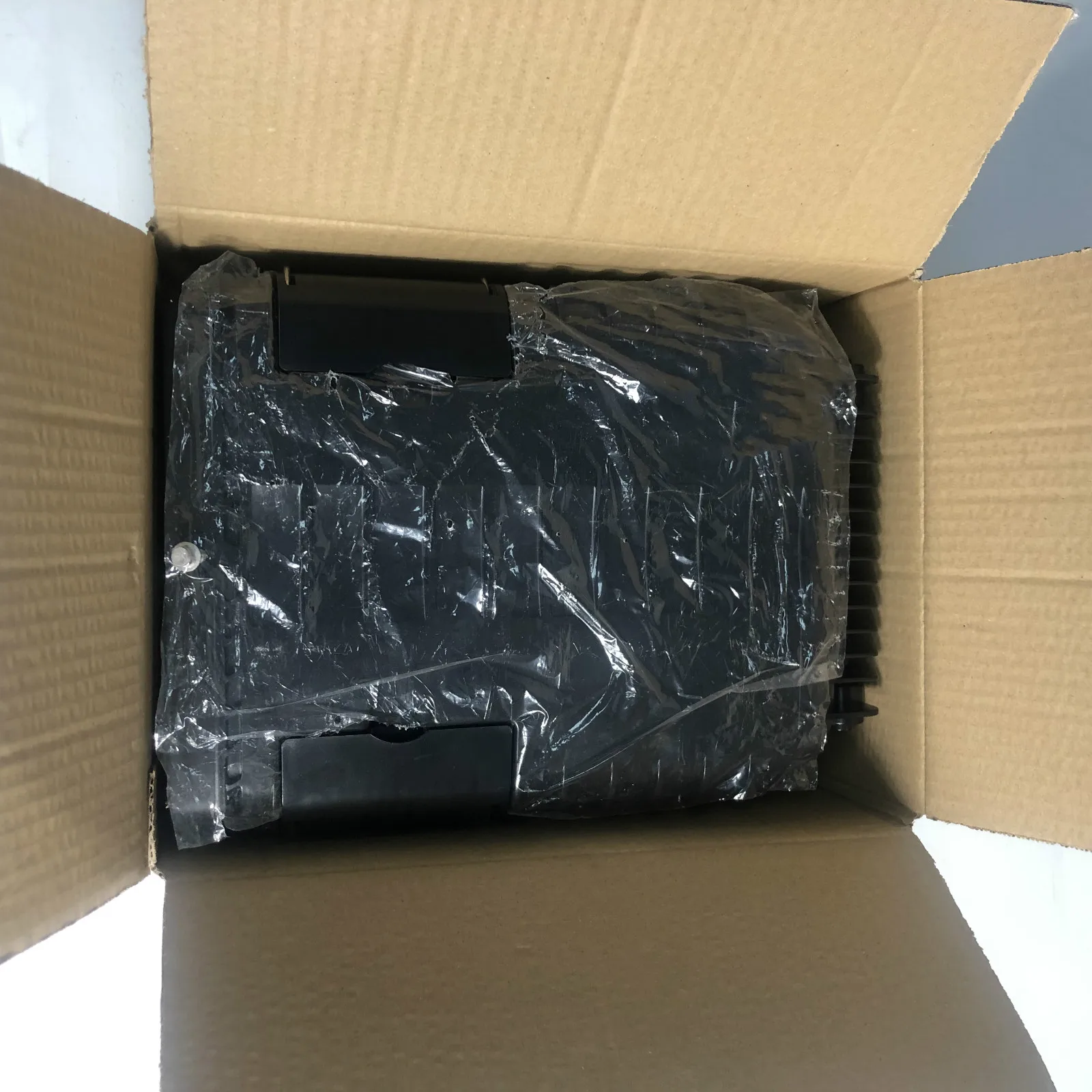

Packing & Delivery
Transportation Methods | Time | Features | ||
Air Transportation | About 7-10 days (Some special address not included) | Weight≥45KG (1. Fees will be the same as 45KG if within 45KG; 2. FOCC and products with battery forbidden in air.) | ||
Express Transportation | About 7-10 days (Some special address not included) | Usually used for Sample Order (FOCC and products with battery forbidden in Express.) | ||
Sea Transportation | About 35 days (Some special port not included) | No weight limit (The most economic way for not urgent goods.) | ||
Trunk or Railway Transpotation | About 30-40 days | Only used for inland countries or neighboring countries of China. | ||
