Product Description

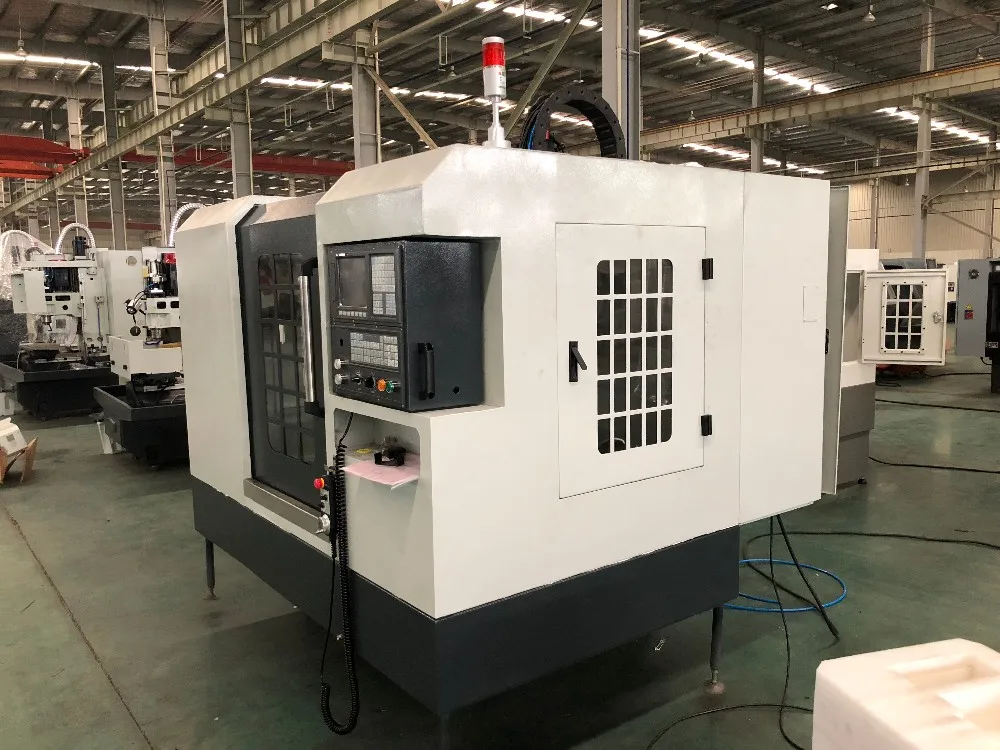

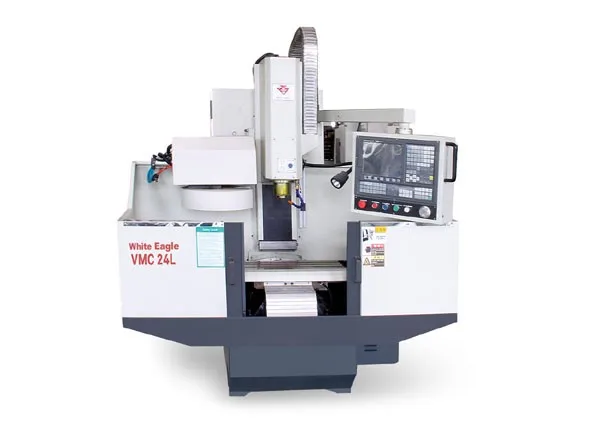

China High precision economical CNC mill machine for education and manufacture VMC24L

\t
worktable
\t
Size of worktable(L*W)(mm)
\t
810*240mm
\t
\t
Max loading weight on worktable(kg)
\t
100kg
\t
\t
T slot(width*qty*spaces)(mm)
\t
16mm*3pcs*60mm
\t
Travel
\t
X/Y/Z Axis travel(mm)
\t
380/240/370mm
\t
\t
Distance from spindle nose to worktable(mm)
\t
60-430mm
\t
\t
Distance from spindle center to colum(mm)
\t
309mm
\t
Spindle
\t
Spindle speed(r.p.m)
\t
60-6000rpm
\t
\t
Spindle taper
\t
BT30
\t
\t
Tool champing way
\t
pneumatically
\t
\t
ATC capacity(pcs)
\t
12pcs
\t
Feeding
\t
Feeding speed(mm/min)
\t
0-2000mm/min
\t
\t
Rapid feeding speed:X,Y,Z axis(m/min)
\t
15m/min
\t
Accuracy
\t
positioning accuracy
\t
0.025mm
\t
\t
repeatability accuracy
\t
0.016mm
\t
Motor
\t
Main motor power(kw)
\t
2.2/3.7kw
\t
\t
Feeding motor power:X/Y/Z Axis(kw)
\t
1.5/1.5/1.5kw
\t
Tool
\t
Max.size of tool(mm)
\t
φ60*175mm
\t
\t
Max.loading weight of tool(kg)
\t
3.5kg
\t
Others
\t
N.W(include machine stand)kg
\t
1280kg
\t
\t
Packing size(L*W*H)
\t
1900*1620*2580mm

Main features

Specially design for mini-size  parts machining

With space occupied small,but very  rigidity and precision marking

High-speed and precisely spindle unit with servo motor driven

X,Y,Z linear quideway,servo driven

Supplied with Cloak' type ATC 12PCS and concentrated all of functions as vertical machine

Accessories

Standard accessories

Auto lubricating system

Cloak's type ATC 12 tools

Coolant system

Tool-released and clamped pneumatically

Iron casting machine stand

Optional accessories

The 4th Axis

Hightened column (Z travel 50-550mm)

900*240mm worktable

160mm paraller vise

Tool holer


Detailed Images

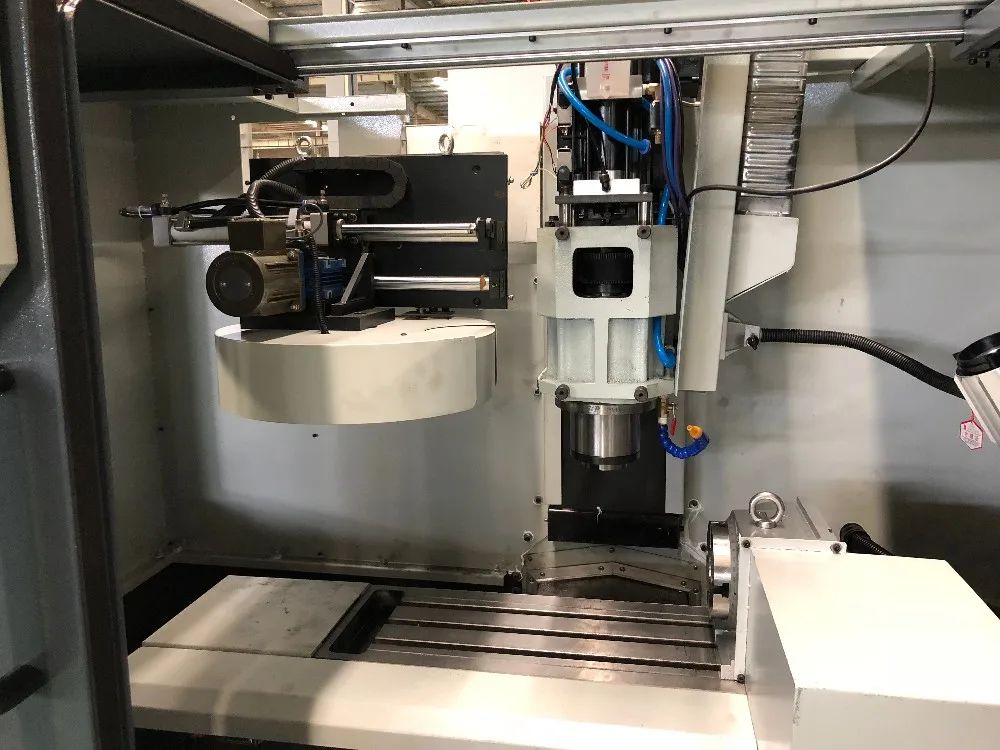

Cloak's type  ATC 12 tools  capacity

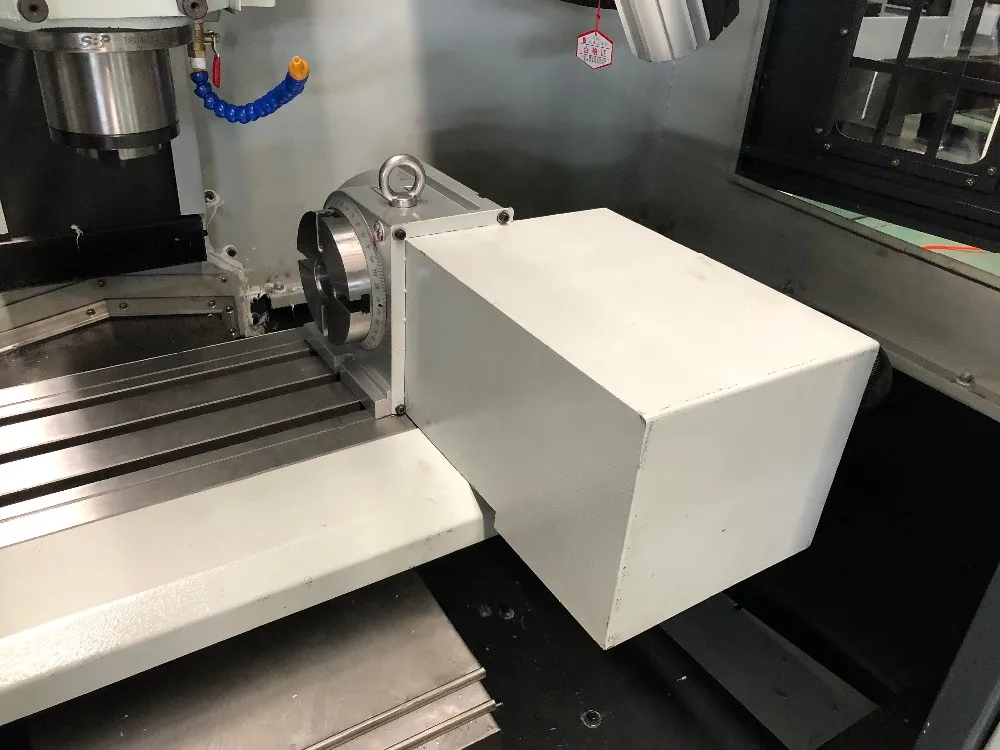

The 4th Axis

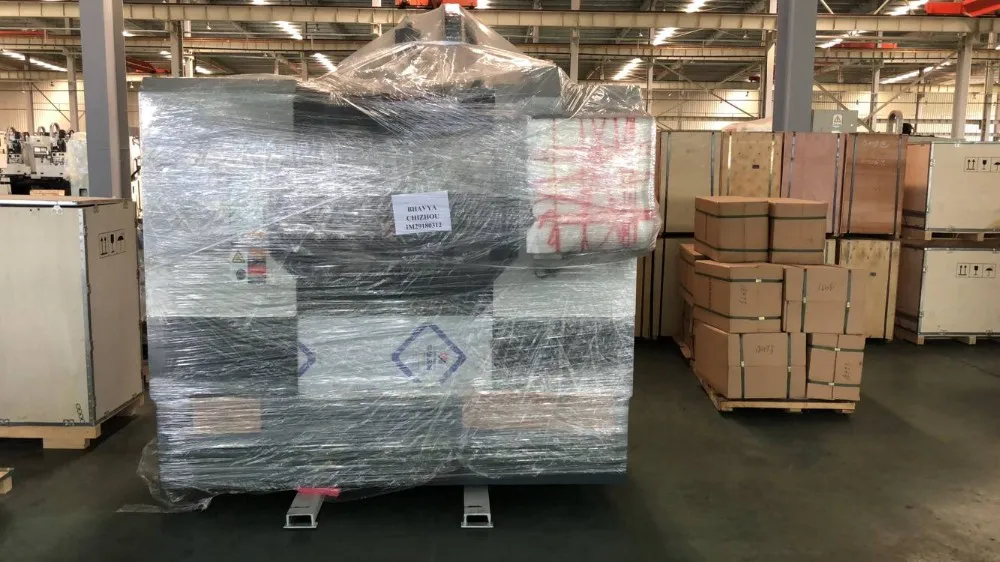

Packing & Delivery
\t
Size
\t
1900*1620*2580mm
\t
Weight
\t
1300KG
\t
Package detials
\t
Iron casting pallet
Certifications

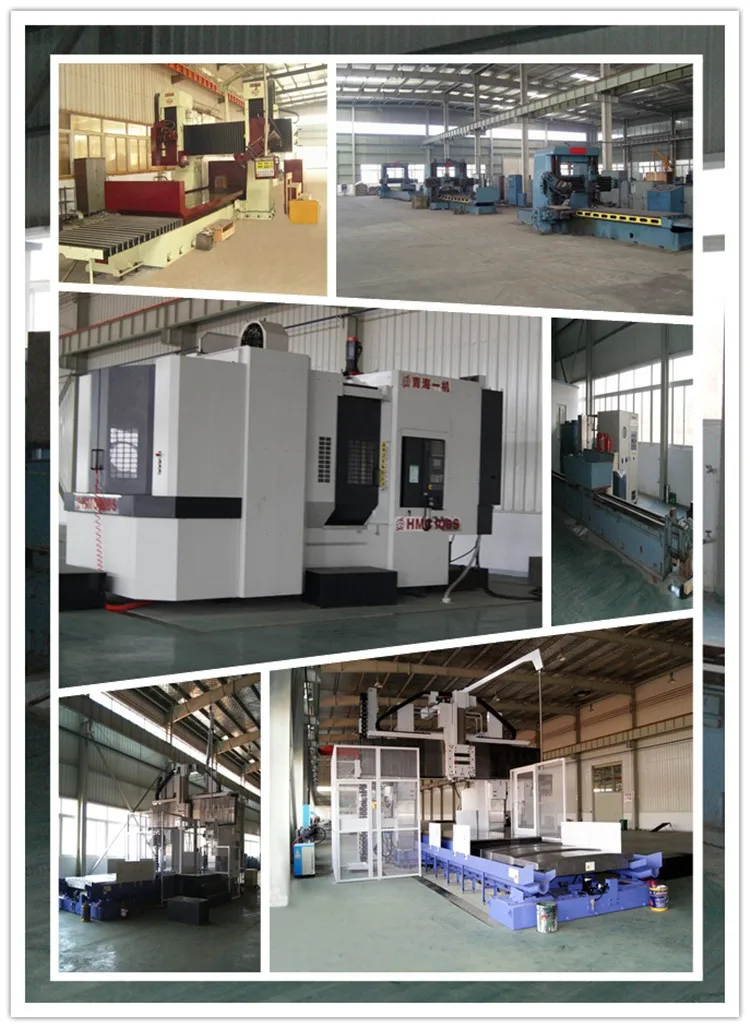

Our Work Shop
We In Fairs
Our Service
