RIZ40 центробежного литья в одну сторону Sprag муфта свободного хода

RIZ40 центробежного литья в одну сторону Sprag муфта свободного хода

Категории: Other Bearings >>>
Поставщик: Changzhou,Suma,Precision,Machinery,Co.,Ltd.

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

RIZ40 Centrifugal One Way Sprag Overrunning Clutch Bearing

RIZ2

Product Description

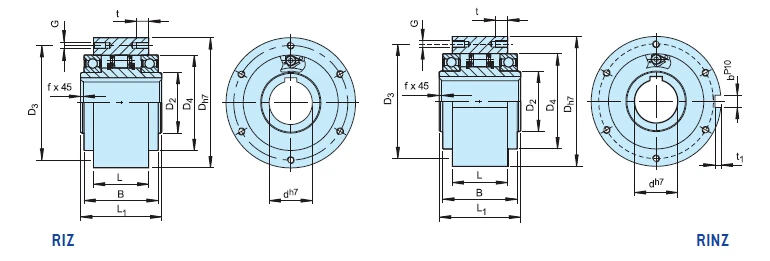

Structure of RIZ sprag freewheel clutch bearing:

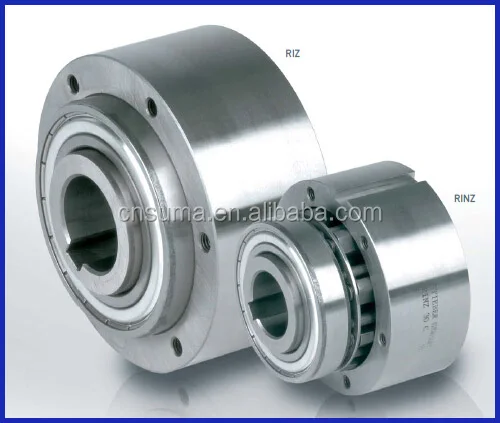

Types RIZ, RINZ are centrifugal lift off sprag type freewheels with the inner race rotating.

Suitable for backstop, or overrunning clutch applications.

Only the inner race is designed for freewheeling.

They are bearing supported using series 60.. bearings, grease lubricated and fitted with ZZ seals.

Available Shaft Diameter: 30-130mm

Specification
Model	RIZ 40
Materail	GCr15
Shaft Diameter	40mm
Outer diameter	125mm
Height	86mm
Torque capacity	800Nm
RMP	7500r/min
Application	Backstop / Overrunning
Package	Carton package / Wooden package
Delivery time	5-7 days
Payment terms	TT, L/C, D/P, D/A, Western Union, Paypal

Catalogue of sprag freewheel clutch for your choice

Type	Size		Speeds									Number					Weight
	d^H7	T_KN¹⁾	n_max²⁾	n_imin³⁾	n_imax⁴⁾	D_h7	D₃	D₄	D₅	D₇	O	z	S	L₁	L	L₅	G1
	[mm]	[Nm]	[min^-1]	[min^-1]	[min^-1]	[mm]	[mm]	[mm]	[mm]	[mm]			[mm]	[mm]	[mm]	[mm]	[kg]
	30	375	290	700	9000	100	114	75	128	109	6.6	6	11.5	68	43	70	3.9
	35	550	280	670	8500	110	124	80	140	119	6.6	6	13.5	74	45	76	4.9
	40	800	260	630	7500	125	142	90	160	135	9	6	15.5	86	53	88	7.5
	45	912	255	610	6700	130	146	95	165	140	9	8	15.5	86	53	88	7.8
	50	1400	235	560	6000	150	166	110	185	160	9	8	14	94	64	96	10.8
	60	2350	210	510	5300	170	192	125	214	182	11	10	17	114	78	116	16.8
RIZ	70	3050	195	470	4000	190	212	140	234	202	11	10	18.5	134	95	136	20.8
RINZ	80	5800	155	375	4000	210	232	160	254	222	11	10	21	144	110	146	27
	90	8700	145	350	3000	230	254	180	278	242	14	10	20.5	158	115	160	40
	100	16000	140	340	2400	270	305	210	335	282	18	10	30	182	120	184	67
	130	2300	130	320	2400	310	345	240	380	322	18	12	29	212	152	214	94

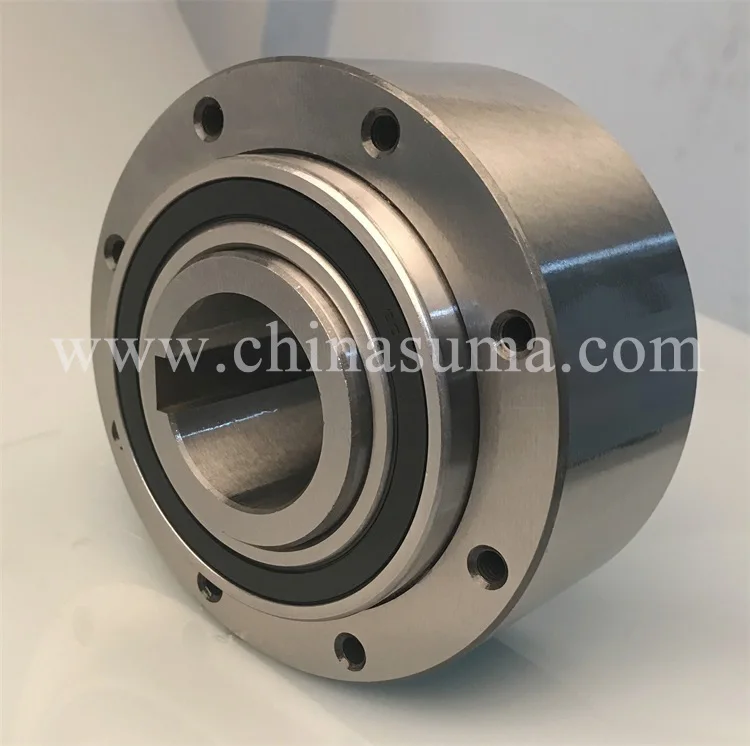

Detailed Images

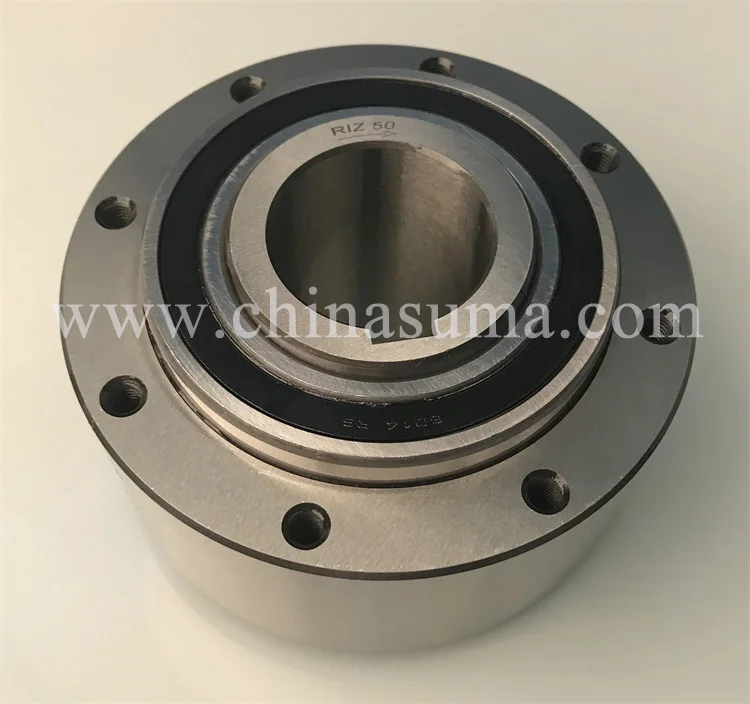

RIZ-50 2 RIZ-50

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Production flow

production flow

Certifications

Clients Visit

.jpg

FAQ

Q: How do you pack the goods?

Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

Small items: In stock.
Medium Items: 10-15 Days
Big items: 20-25 Days
