Product Description

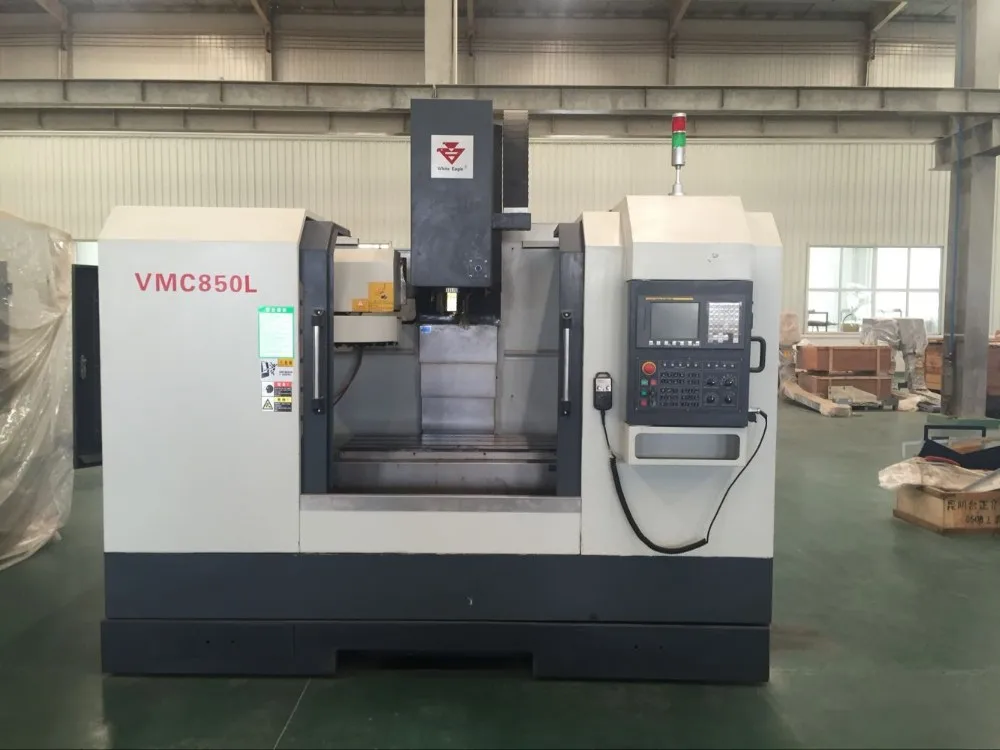

Vertical Machine Center CNC Machine with linear way VMC850L
Model | VMC850L | |||
Travel | X/Y/Z Axis travel(mm) | 800/500/550 | ||
Distance from spindle nose to worktable(mm) | 150*700 | |||
Distance from spindle center to colum(mm) | 600 | |||
worktable | T slot (width*no.*space)(mm) | 18*5*100 | ||
worktable size(L*W)(mm) | 1000*500 | |||
Max.loading on worktable(kg) | 600 | |||
Spindle | Motor power(kw) | 7.5/11 | ||
Spindle speed(r.p.m) | 60-8000rpm | |||
Spindle taper | BT40 | |||
Spindle bearing | P4 | |||
Feeding | 3axes fast moving speed | X&Y(m/min) | 24 | |
Z(m/min) | 20 | |||
Linear guideway(X/Y/Z) | 35/45/45 | |||
Cutting feeding rate(mm) | 1-10000 | |||
Min.set and moving unit(mm) | 0.001 | |||
Pitch of X/Y axis | 12 | |||
Pitch of Z axis | 12 | |||
ATC | ATC type | Manipulator | ||
time of tools automatic changing (near) (s) | 24 | |||
ATC capacity | 80*7*300 | |||
Max.diameter of tool(near)(mm)*Weight(kg)*Length(mm) | 3 | |||
3-axis accuracy | Position accuracy(300mm) | ±0.005 | ||
repeated position accuracy(300mm) | ±0.003 | |||
Others | Machine weight(kg) | 6000 | ||
Air pressure(kg/cm²) | 6 | |||
Power of cutting coolant pump(w) | 370 | |||
power capacity(KVA) | 15 | |||
Main Features
1)Use strong rigid casting steel. X/Y/Z axes are supplied with rectangular guide ways by plastic sticker, medium frequency quenching and precisely scraping.
2)Spindle from Taiwan with high speed and precision.
3)Imported bearing with high precision
4)Coolant system equipped with pump of large flow and high lift pump to insure enough cooling under high-speed cutting.

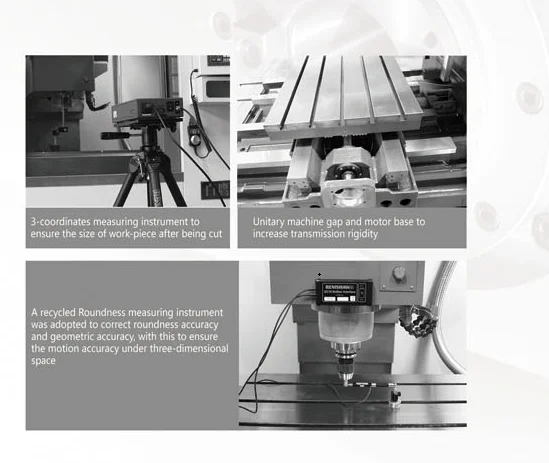

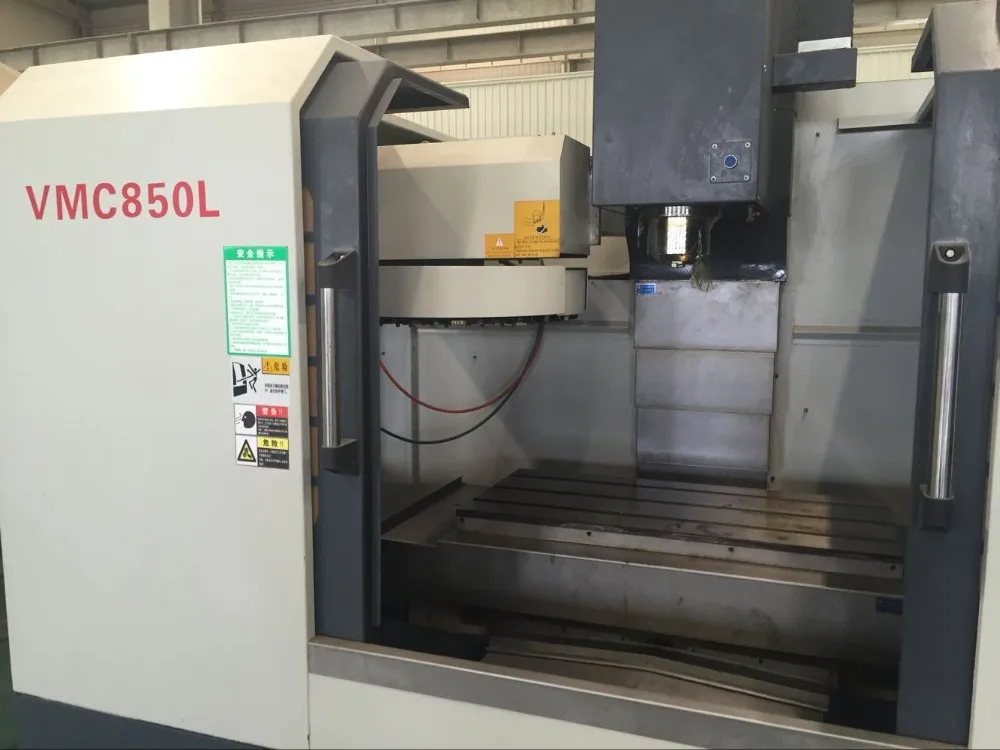

Detailed Images
Control system :FANUC ,SIEMENS ,GSK or others
Standard accessories
Arm-type ATC
Automatic lubricating system
Spindle blowing device
Guide-way telescopic cover
Movable hand-wheel
Hand-held air -gun
Alarm light
Coolant system
Working light
RS232 interface
Level adjusting screws and block
Tool-box and manual
Packing & Delivery
Packaging | ||
Size | 2700*2300*2600mm | |
Weight | N.W./G.W. 5500/6000KGS | |
Packaging Details | Iron casting pallet with | |
Certifications
Our Work Shop
We In Fairs
Our Service
OEM APPROVED
* LOGO OEM accept.
* Packing design OEM accept
* Even machine design OEM accept.
Our team Service
* Professional team,perfect pre-sale and after-sale service.
* Engineers available to service machinery overseas.
* Good English speakers from sale department,can handle your suggestion
