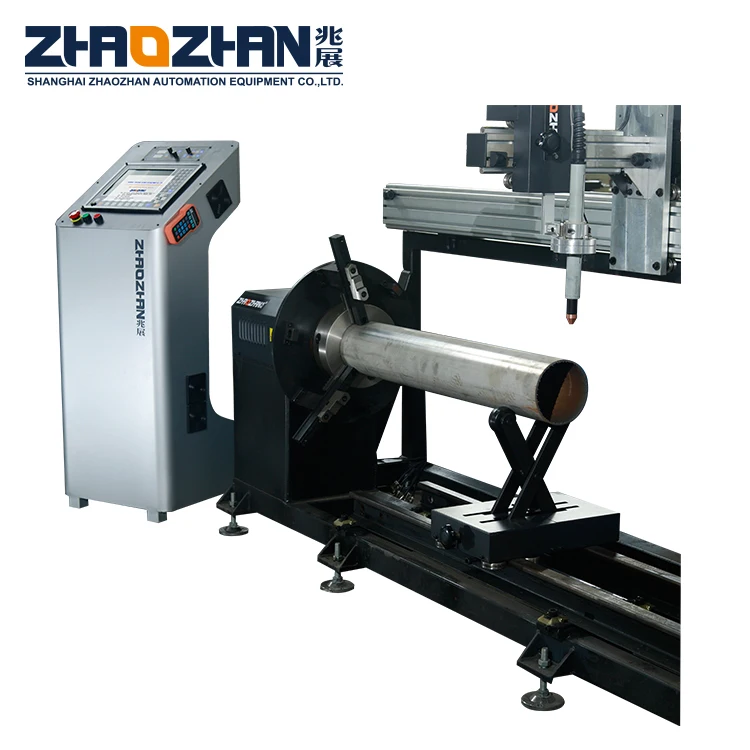

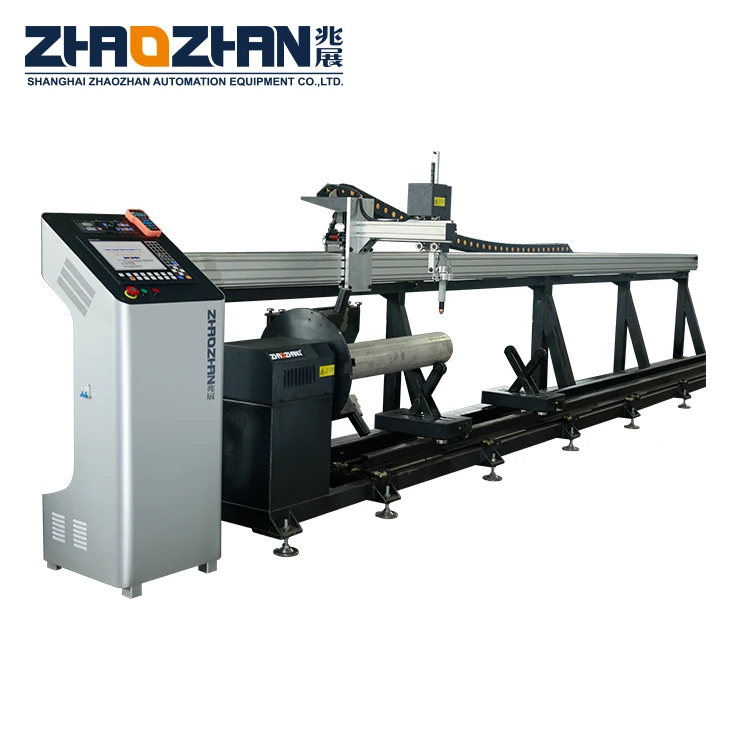

CNC PIPE INTERSECTING LINE CUTTING MACHINE

Product Description

This product is used for nc pipe cutting, With three cutting range and two motors.You can choose according to the actual demand.

Model No.	CNCUT-3P250-ST	CNCUT-3P520-ST	CNCUT-3P250-SE	CNCUT-3P520-SE
Pipe's Diameter	φ50-φ260mm	φ50-φ520mm	φ50-φ260mm	φ50-φ520mm
Pipe's Length	3000mm (Produce According to buyer's demand)
Driving Configuration	86 series 120 step motor with planetary reducer		750W panasonic servo motor with planetary reducer
Tool And Torch Quantity	Single tool,and can be both with plasma and flame torch
Torch Height Control	Plasma arc voltage auto torch height control or flame capacitive auto torch height control
Axis Quantity	Three axis two linkage
Input Power	Single phase AC 220V 800W		Single phase AC 220V 1200W
Working Precision	± 0.2 mm / m
Flame (Gas) Cutting Capacity	Piercing capacity: 5-60 mm Edge start cutting: 5-120mm
Plasma Cutting Capacity	Depends on the plasma source's cutting capacity
Controller, Software And Torch Height Control	CNCUT-10A 10.4 inch controller,FASTPIPE software, ZZ-PTHC plasma THC, remote controller
Pipe's Maximum Weight	≤500kg		≤1000kg
Needed Installation Area	L 3.7m * W 1m * H1.7m		L 4m * W 1m * H 2m
Packing Size	397011601690mm

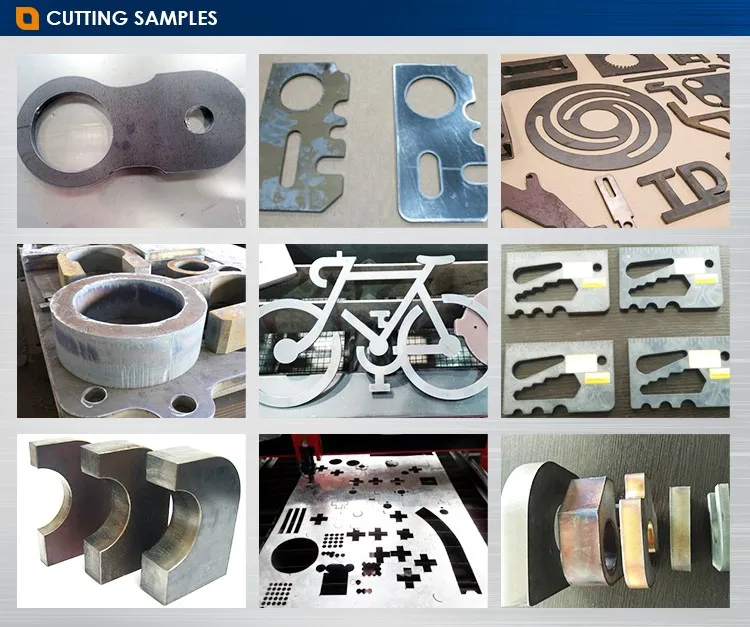

CNCUT-P 1.jpg CNCUT-P .jpg cutting sample

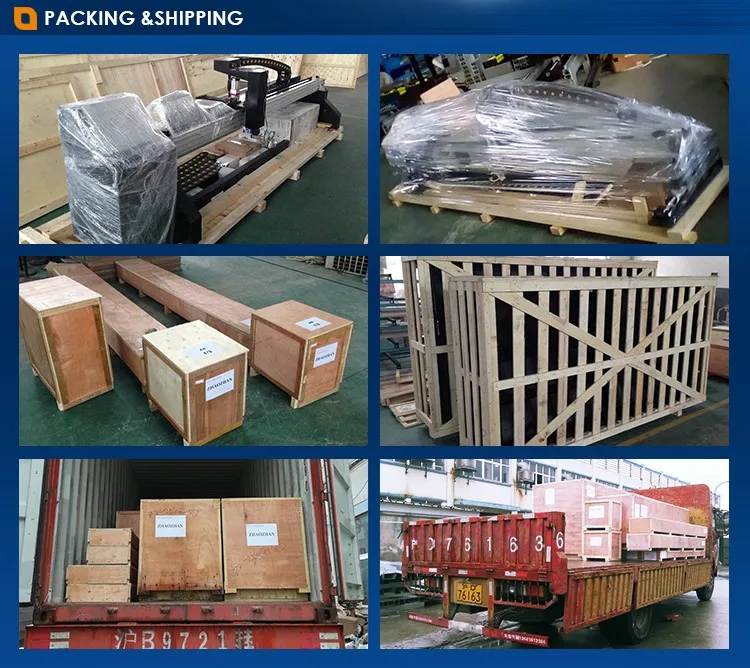

Packaging & Shipping
