cc2540 usb dongle ble receiver and transmitter low power BLE4.0 solution ble transmitter receiver
[IC] : CC2540
[Frequency] : 2.402~2.480GHz
[Protocol] : BLE 4.0
[Distance] : 60m
[Interface] : USB

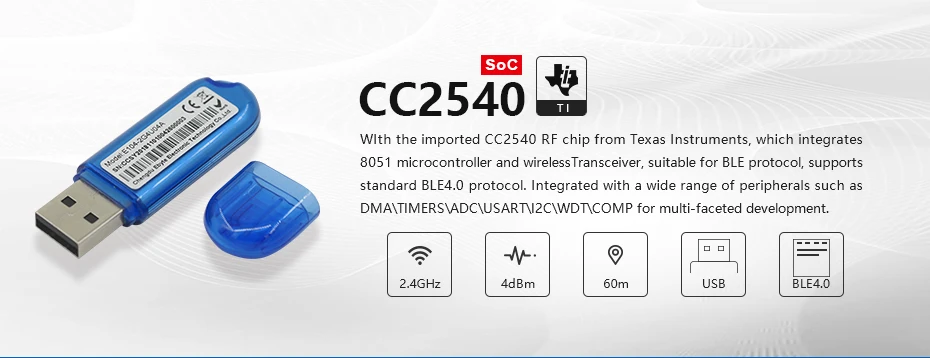

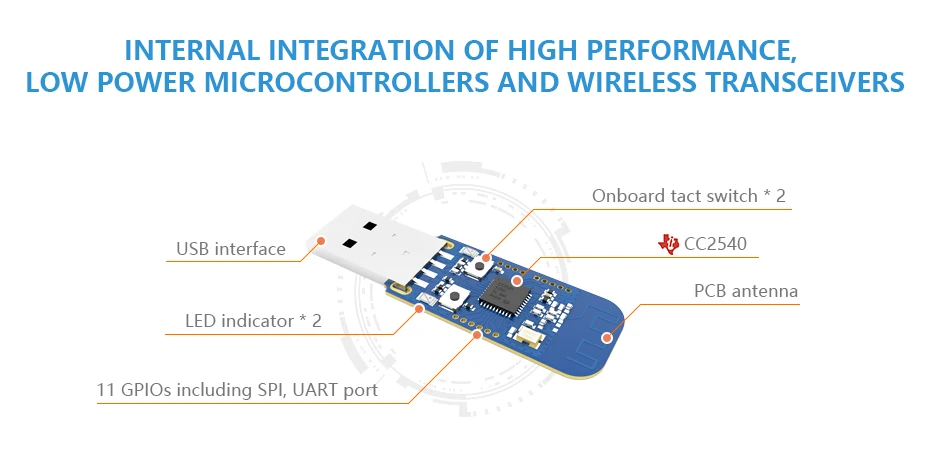

[introduction] : E104-2G4U04A is a small ble wireless module designed and manufactured by Chengdu Ebyte, USB type (pin spacing 1.27mm). This module has a high-performance PCB on-board antenna, using low power consumption ble (BLE) SOC solution.
Hardware Parameter
Value
IC
CC2540F256RHAR/QFN40
FLASH
256 KB
SRAM
8 KB
Core
8051 mcu

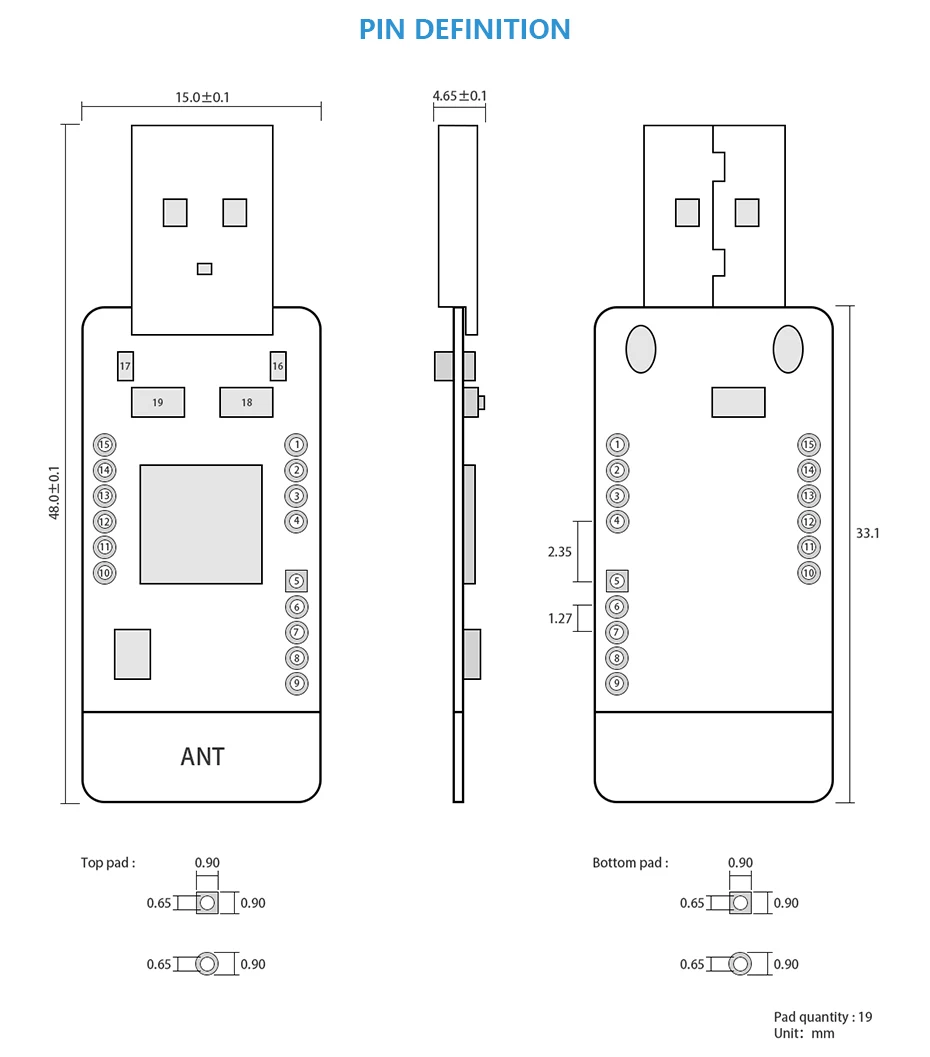

Size
59 * 18 mm
Power supply
USB
Protocol
BLE 4.0
Electronic parameter
Min
Type
Max
Unit
Remark
Operating voltage
2.7
5
5.5
V
USB power supply
Operating voltage
2.0
3.3
3.6
V
On-board power supply
Communication level
-
3.3
-
V
For 5V TTL, it may be atrisk of burning down
TX current
-
31.5
-
mA
-
RX current
-
22
-
mA
-
Sleep current
-
-
-
μA
-
Operating temperature
-40
-
85
℃
Industrial class
Storage temperature
-40
20
+125
℃
-
