New style 350kg vacuum suction cup glass lifter for sale
333
Product Description

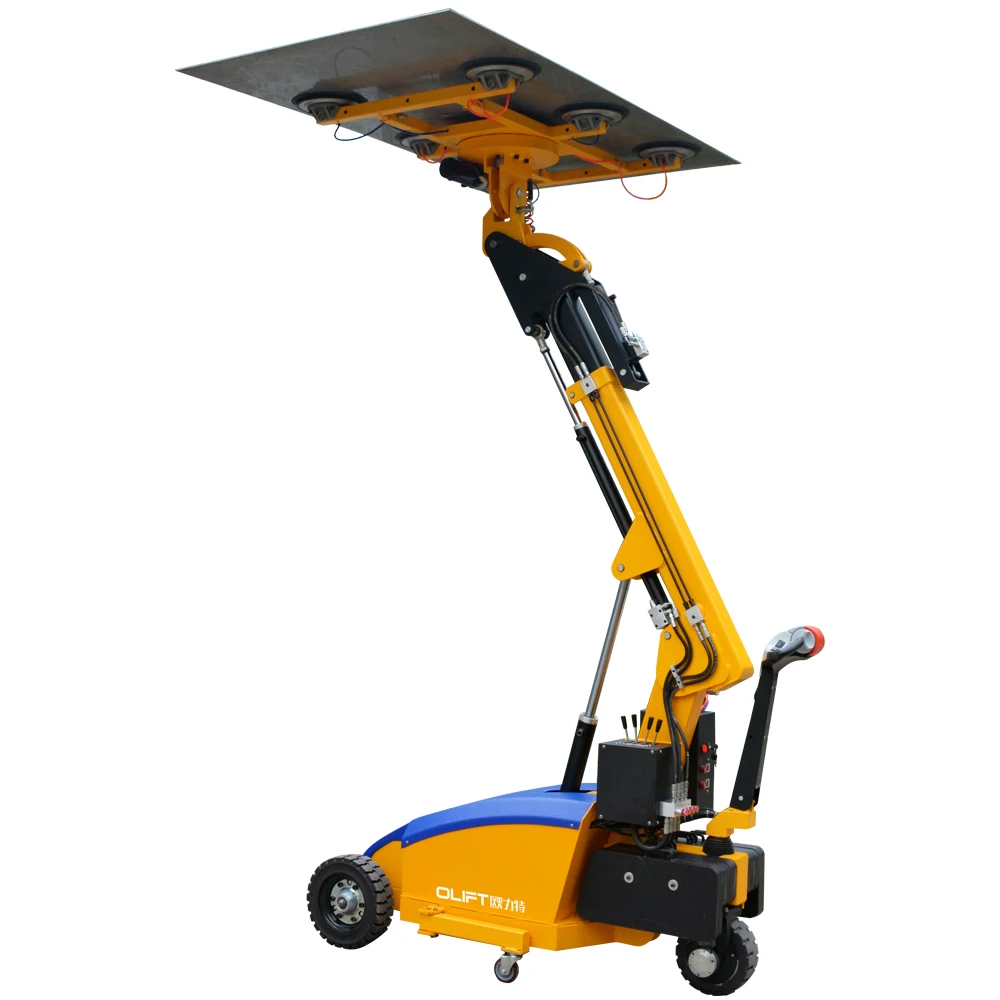

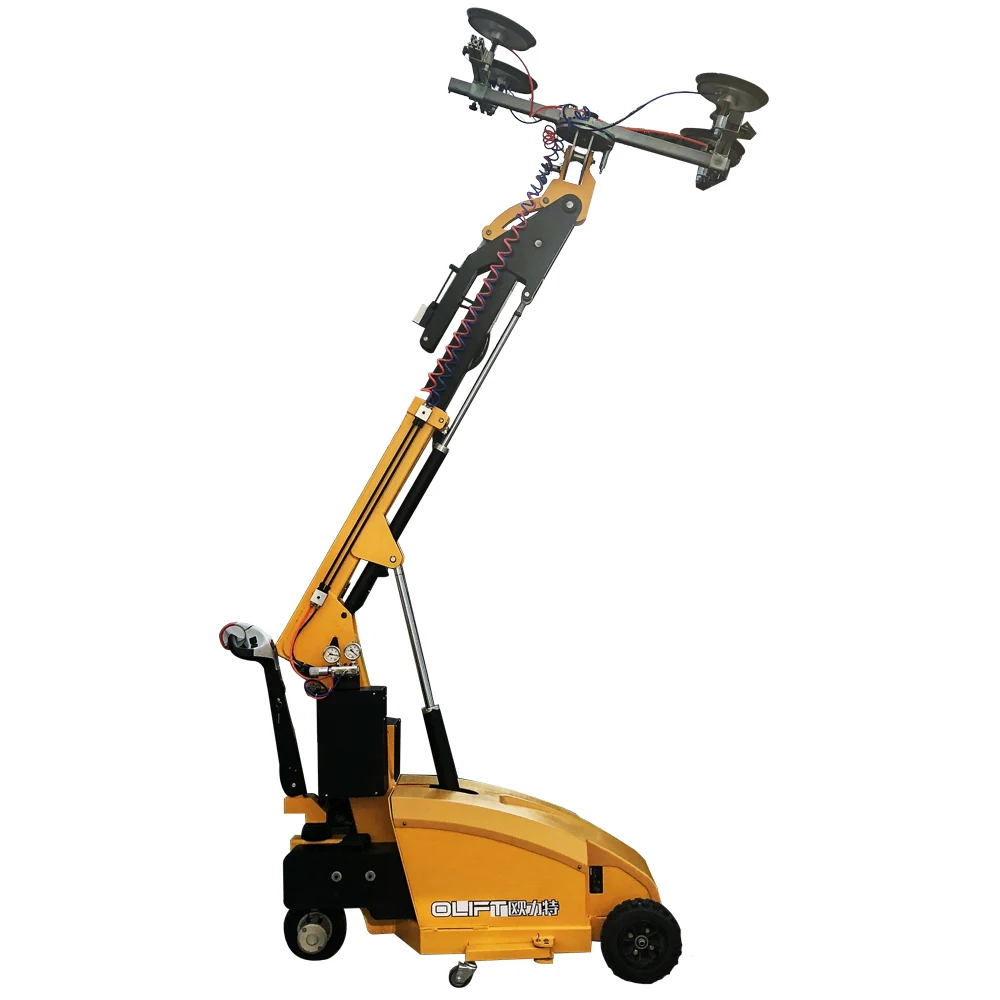

Vacuum Glass Lifter GL350&GL600
Electric Vacuum Lifter-GL350&GL600 for handling and fitting glass sheets etc in/outside buildings. The vacuum lifter is designed with automatic pressure control and dual safety circuits to avoid system failure.
Ideal for loading & unloading transporting, rotating and installation, and with small width to access into doors.
Easy for operation, with the following functions:
1. Self-propelled drive.
2. Electric hydraulic lift and extensions to Lift Height 3500 mm Forward Extension 610 mm.
3. Electric hydraulic tilting forwards & backwards from vertical to horizontal thru 180 deg.
4. Manual rotating 360 deg.
Ideal for loading & unloading transporting, rotating and installation, and with small width to access into doors.
Easy for operation, with the following functions:
1. Self-propelled drive.
2. Electric hydraulic lift and extensions to Lift Height 3500 mm Forward Extension 610 mm.
3. Electric hydraulic tilting forwards & backwards from vertical to horizontal thru 180 deg.
4. Manual rotating 360 deg.
Features for Vacuum Lifter
1. Special design for handling difference kinds of heavy plates, such as steel, glass, granite, marble and so forth, with vacuum suction cups.
2. The number of suction cups can be selected according to the size and weight of the plates are: four suction cups, six suction cups, eight suction cups, etc. The suction cup can be manually turned 360 degrees in both directions.
3. This vacuum lifter is controlled by a two-way control system (that is, the suction cups are arranged in two rows), and the suction cups are arranged in a font shape and it controls the vacuum lifter to lift and rotate flat goods such as glass and marble etc.
4. During operation, the suction cup is controlled to make the suction cup suck, lift and rotate the plate. With electric forward and backward walking, electric hydraulic lifting,suction cup suction assurance system, electric rotate and other functions.
2. The number of suction cups can be selected according to the size and weight of the plates are: four suction cups, six suction cups, eight suction cups, etc. The suction cup can be manually turned 360 degrees in both directions.
3. This vacuum lifter is controlled by a two-way control system (that is, the suction cups are arranged in two rows), and the suction cups are arranged in a font shape and it controls the vacuum lifter to lift and rotate flat goods such as glass and marble etc.
4. During operation, the suction cup is controlled to make the suction cup suck, lift and rotate the plate. With electric forward and backward walking, electric hydraulic lifting,suction cup suction assurance system, electric rotate and other functions.
5. Suction Cups’ Suction Guarantee System: If one set of suction cups leaks air, another set of suction cups can also hold the cargo, ensuring that the vacuum lifter can lift and rotate the flat plates to operate normally.
6. The product has a compact appearance and is convenient for entering and exiting the elevator. Ingenious design, multi-function keys are concentrated on the control handle.
7. Electric walking, electronic stepless speed regulation system and high-power drive motor make the vacuum lifter walks smoothly and ensure the safety of carrying glass etc.
8. Convenient charging: The vacuum lifter is equipped with an intelligent charger, which is convenient for replenishing the power of the lifter at any time.
6. The product has a compact appearance and is convenient for entering and exiting the elevator. Ingenious design, multi-function keys are concentrated on the control handle.
7. Electric walking, electronic stepless speed regulation system and high-power drive motor make the vacuum lifter walks smoothly and ensure the safety of carrying glass etc.
8. Convenient charging: The vacuum lifter is equipped with an intelligent charger, which is convenient for replenishing the power of the lifter at any time.
Model | Unit | GL350(4x30) | GL600(6x30) |
Max. Load Capacity(Retracted) | kg | 350kg | 600kg |
Safe Load Capacity(Extended) | kg | 150kg | 300kg |
Height Forward Extension | mm | 610 | 610 |
Electric hydraulic tilting forwards&backwards | deg | 180 | 180 |
Manual rotating | deg | 360 | 360 |
Lifting Height | mm | 3500mm | 3700mm |
QTY of Cups (customized) | mm | 4pcs*Φ300 | 6pcs*Φ300 |
Suction cups type | Rubber | Rubber | |
Air Tank | L | 5L to 10L | 5L to 10L |
Swept volume | 200L | 200L | |
Pump | W | 500W | 500W |
Drive speed(with or without load) | km/h | 3/4 | 3.5/4.5 |
Lift speed(with or without load) | mm/s | 13/18 | 13/18 |
Down speed(with load or without load) | Adjustable | Adjustable | |
Gradeability(without load) | % | 5 | 10 |
Drive Motor | V/W | 24V/600W | 24V/900W |
Lift Motor | V/W | 24V/1300W | 24V/2000W |
Battery | V/Ah | 2*12V/70Ah | 2*12V/100Ah |
Charger | V/A | 24V/10A | 24V/15A |
Overall Length | mm | 1990 | 2420 |
Overall Width | mm | 750 | 850 |
Overall Height | mm | 1500 | 1620 |
Net Weight | kg | 850 | 1000 |
Detailed Images
Related Products
Packing&Shipping
Packaging Detail: | Vacuum Lifter will be packed by Flexible Package, Seaworthy Package | ||||||
Delivery Detail: | 15-30 days for OLIFT vacuum lifter. | ||||||
Certifications
Company Introduction
Qingdao Olift Equipment Co.,Ltd. provides wide selection of products such as forklift truck, pallet truck and electric stacker, semi-electric stacker, scissor lifts, moving tool, car mover, platform lifting, wheelchair lift platform and more. We have professional team members to design your hand pallet truck products and control the quality.
After Sales Service
Service for Glass Vacuum Lifter
1.We can design the customerized Electric Vacuum Glass Lifter as per your requirement.
2.The most suitable Electric vacuum lifter will be recommended to you once we got your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the Electric vacuum lifter break down to help you repair.
6.Parts of Electric vacuum lifter can be sent to you by express within 7 days if needed.
2.The most suitable Electric vacuum lifter will be recommended to you once we got your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the Electric vacuum lifter break down to help you repair.
6.Parts of Electric vacuum lifter can be sent to you by express within 7 days if needed.
Qingdao Olift Equipment Co., Ltd. is professional Material Handling Expert.
1. After-sales service provided: Engineer available to service machinery overseas.
2. We offer technical supporting for the Vacuum Glass Lifter all year round.3. Choose OLIFT is to choose higher work efficiency, better quality and service.
4. If you want to get more details, please visit our website: www.olift.com for more details of the trucks.
5. The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment.
6. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
Qingdao Olift Equipment Co., Ltd.
Address: No. 143, Zhuzhou Road, Laoshan District, Qingdao, Shandong, China
Tel : +86-532-88990008
Sales Manager: Jenny Jiang
Mobile/WhatsApp/Wechat:+86 18354255925
Website: www.olift.com
Tel : +86-532-88990008
Sales Manager: Jenny Jiang
Mobile/WhatsApp/Wechat:+86 18354255925
Website: www.olift.com
FAQ
1.How can customer buy parts once the Electric vacuum glass lifter break down?
The Electric vacuum glass lifter adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the Electric vacuum glass lifter?
One of the great advantage of Glass lifter is with very very low failure rate.Even it breaks down, we can guide to repair it by
video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 4 years if you maintain it as per our maintenance manual.
4.How long is the quality guarantee of the Electric vacuum glass lifter?
One year quality guarantee including battery.Wheels are not included. If it breaks down within one year, we can send the parts free of charge to you.
The Electric vacuum glass lifter adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the Electric vacuum glass lifter?
One of the great advantage of Glass lifter is with very very low failure rate.Even it breaks down, we can guide to repair it by
video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 4 years if you maintain it as per our maintenance manual.
4.How long is the quality guarantee of the Electric vacuum glass lifter?
One year quality guarantee including battery.Wheels are not included. If it breaks down within one year, we can send the parts free of charge to you.
