Product Description
AMBOHR 220Vac Mini Compressor Air Pump MP-A03
Ambohr mini pump series use a unique linear motion design that has the capability of over 18000 hours of continuous maintenance-free operation. They are compact, very quiet, highly reliable and inexpensive.
Ambohr MP-series miniature air pump, specially designed for small ozone products, compact structure, stable and consistent pressure, high temperature rise and low characteristics, is an ideal supporting air pump for ozone products.
AMBOHR Model Number | MP-A03 | |
Article-No. | ||
Usage | Air Pump | |
Power | Electric, 3W | |
Pressure | High Pressure | |
Material | Plastic | |
Voltage | DC12V | |
Air Output | 4~8 SCFH (2~4 lpm) | |
Pump Pressure | 2 PSI (14 KPa) | |
Power Requirement | 220V/50Hz, 120V/60Hz available | |
Power Consumption | 3 W | |
Pump Design | Single diaphragm, duckbill valves | |
Pump Body | Plastic | |
Outlet & Inlet Dia | 1/4" (6 mm) | |
Electrical Connections | 1-ft (300 mm) Insulated wire pair | |
Mute | 50 dB unconnected | |
Dimension (L*W*H) | 3.7*2.3*1.5" (95*48*39mm) | |
Net Weight | 0.44-lb (0.2 kg) | |
Warranty | 1 Year | |
Feature | Compact Size | |
Certificate | CE Certificate | |
Article-No. |

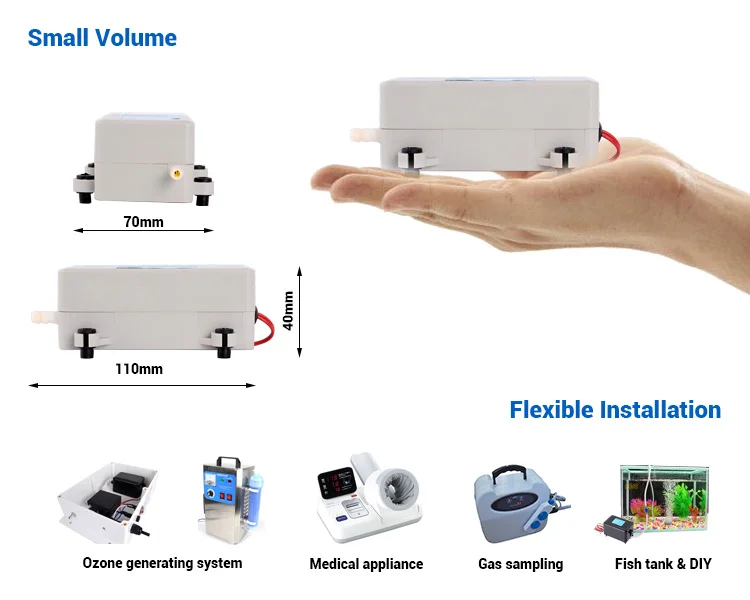

Small Volume
Relying on advanced technology and unique design, this pump achieves the perfect integration of small volume and Good quality. The shell is made of safe and non-polluting plastic material. Its internal structure is simple, easy to install, and it can be connected to a variety of devices.
Big Energy
Although this product is small in size. But because it relies on advanced technology, its energy is very large. Internal parts are the best materials used,so it has the capability of over 18000 hours of continuous maintenance-free operation. Besides, it is suitable for various voltages, such as AC/DC 12V, AC/DC 24V, AC/DC 48V, 100~120V 50/60Hz, 200~2400V 50/60Hz.
Strong points
1) Multiple Connector Choices: The connector is customizable.Choose different connectors according to different equipmnt. For example, considering that each country's outlets are different, our Air Pump can be modified according to different requirements.
2) Suitable for Any Contral Unit: It is very easy to connect to any other control units.such as socket, switch, relay, PLC, intelligent control etc.
Related Products
Mini Air pump - MP-B08
Click for details
Mini Air pump - MP-A03
Click for details
Mini Air pump - MP-A03plus
Click for details
Certifications

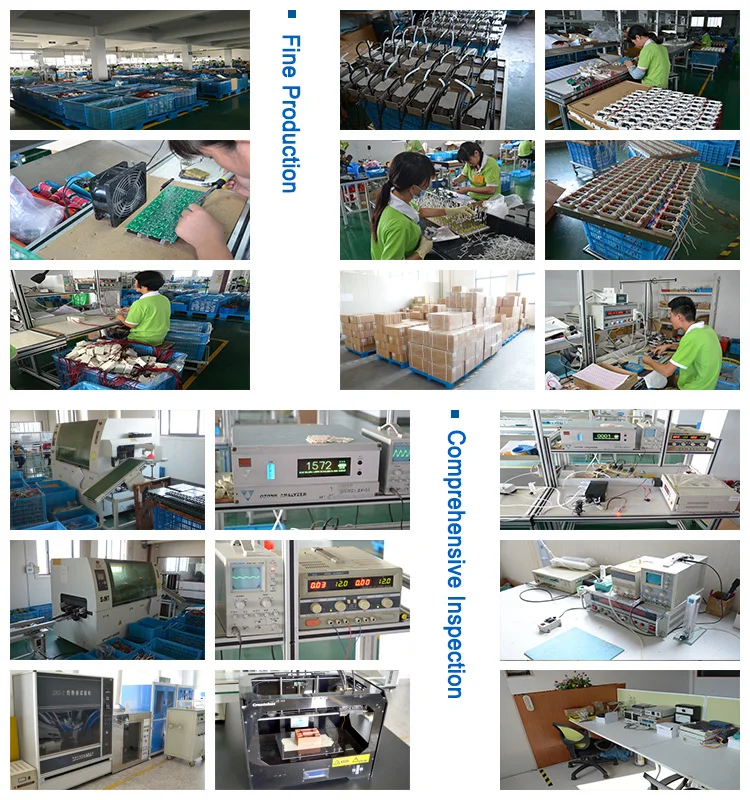

Production Flow
TEST FACILITIES
In order to test its products internally for standards compliance and to evolve toward greater reliability AMBOHR has several test sites equipped with :
•\tMaterial for test environment (damp heat, climate, shock)
•\tHT digital Oscilloscope fast
•\tWave generators current up to 100 kA - 8/20µs
•\tCurrent waveform generators up to 100 kA - 10/350
•\t1.2/50-8/20µs hybrid wave generators up to 20 kV/10 kA
•\t400 Vac three phase low voltage network-Icc 1.5 kA / phase for coupling with pulsed current
The G100K test generator can produce exceptionally high impulse current of 100 kA and is used for testing structural lightning protection systems as well as Type 1 surge protectors.
FAQ
Q1: What's your warranty ?
A1: The warranty is 1 years and we deliver new and faultless products. Also, we are responsible to repair and replace the defective ones in the warranty period, meanwhile we provide life-long free technical support and maintenance.
Q2: How to proceed an order air pump?
A2: Firstly, let us know your requirements or application.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
Q3: What's the standard of package?
A3: Inner box and out carton are made as per international standard and we can make special design according to customer's need. And if necessary,goods will be packed by pallet to avoid any damage.
Q4: Could you do OEM for us?
A4: Sure,OEM is acceptable, and please supply with the brand letter of Authorization.
Q5: What is the payment terms?
A5: T.T,Western Union and L/C is acceptable. Moreover, you can place order on Alibaba though Trade Assurance.
Q6: What' your advantages?
A6: 1. We can provide the most comprehensive Mini Air Pump products.
2. We have the professional engineer team which can provide free consultation and design services. the customize will be according to your drawings or samples
3. Your inquire will be replied within 6 hours any time.
4. Our Freight forwarders are faster,safer,and more convenient, and we can make sure the delivery on time.
