SEM front end loader 6ton SEM660D wheel loader with high efficiency
Our Products
Product Description
Specification:
Main Specifications
Rated load capacity (Kg)
6000
Operating weight with standard bucket (Kg)
20000
Bucket capacities (M3)
3.3-5.5
Wheelbase (mm)
3350
Overall Dimensions L*W*H (mm)
8 414×3 370×3 458
Engine
Model
WD10G240
Rated power (kW)
178
Rated speed (r/min)
2000
Displacement (L)
9.726
Operating Specifications
Dump clearance (mm)
3048
Breakout Force (kN)
183
Articulated angle (°)
38±1°
Hydraulic system
Implement system type
Single load sensing flow sharing system
System Pressure setting (Mpa)
18
Hydraulic cycle time (s)
9.7
Boom Raise time (s)
5.3
Axle
Main drive type
Spiral bevel gear, single stage
Final drive reduction type
Planetary type, single stage
Rear - oscillating +/- (°)
±11°
Steering system
System type
Flow amplifying
Steering pump type
Gear pump
System pressure setting (MPa)
16
Steering angle L/R ( °)
38 ±1°
Brake system
Service brake
Dry&caliper,Air-to-oil control
Parking brake
Drum-type shoe brake,spring applied & oil released
Transmission
Type
Counter shaft / Power shift
Transmission gears
F4/R4
Torque converter type
Single stage 3 elements
Maker & type
TR200
Forward I/ Reverse I (km/h)
7.4 / 7.4
Forward II/ Reverse II (km/h)
14 / 14
Forward III/ Reverse III (km/h)
22 / 22
Forward IV/ Reverse IV (km/h)
38 / 38
Tires
Size
23.5-25
Type
Bias
Layers
20
Textured type
L3 /E3
Product Details

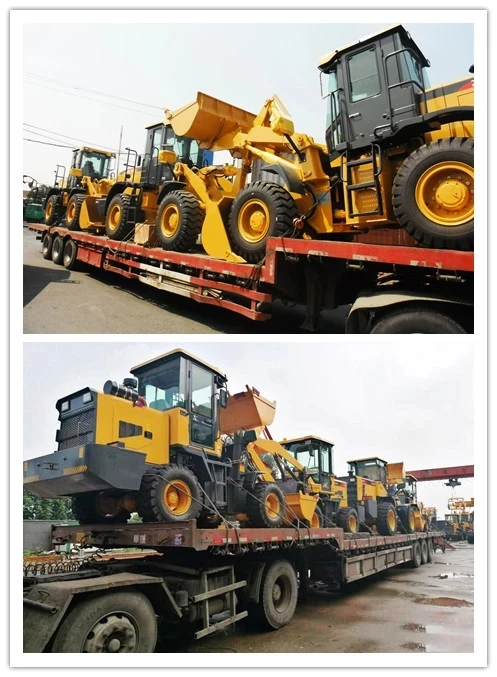

Packaging & Shipping
Package :Nude or Polish with wax before shipping.
Shipping:Withing 45days after payment
Our Services
Company Information
Jining United Import and Export Co.,Ltd is the authorized company of SEM. We supply Wheel Loader, Soil Compactor, Motor Grader, Track Type Tractor and also many kinds of normal products and customized products, to support parts maintenance, service and sales of all machines and 950GC.
Our company was found in 2011,located in Jining City, Shandong province,Before we worked as the construction machinery factory Jining Changhong Construction Machinery Co.,Ltd in Nov, 1996, mainly doing all construction machine spare parts, though all staff ‘effort and government`s support, We has quickly developed and expansion into overseas market.Now as a special spare parts and whole machine supplier, we have a complete set of service from before-sales to after-sales. Now our product have been sold all of the world,like Russia,India,Brazil,Southeast Asia,Africa and other countries.Warmly welcome all regular and new customers to visit our company.
FAQ
1, What’s your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.
2,What’s the qualify assurance we provided and how do we control quality?
1). Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2).100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the machines and parts?
1),We transport the machines in nude or Polish with wax before shipping.
2),Spare parts delivery by container or packed with export standard box send by DHL,TNT,UPS and others Express delivery.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
