Драйвер шагового двигателя CW5045 для nema

Описание и отзывы

Характеристики

M545D NEMA 23 bipolar stepper motor driver

1. Using brand new imported chips, adoption of bipolar constant-current chopper technology

2. Low-noise, low-vibration and low temperature rising

3. Voltage 18-50VDC

4. With 8 stalls output current setting, peak current 4.5A

5. With 16 stalls microstep subdivision setting

6. Automatic Half current, motor wires misconnected protection

7. Internal optical isolation, highest frequency response 200KHZ

8. Suitable for current range 1.5-4.5A nema23, nema34 2 and 4 phase stepper motor

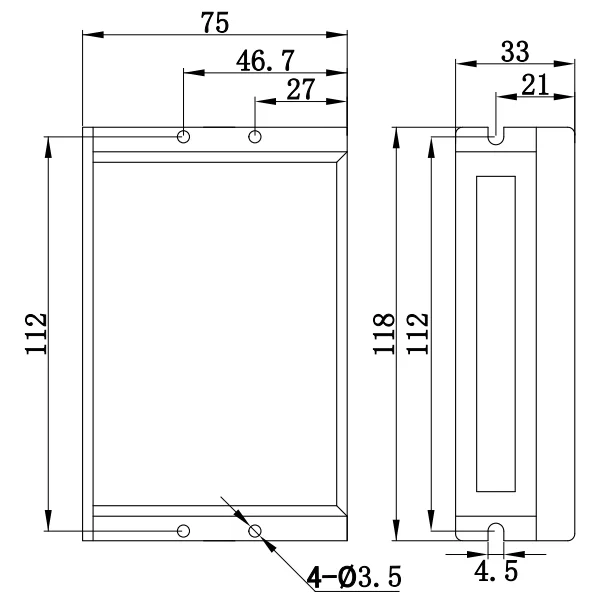

Dimensions(mm)

Current selection

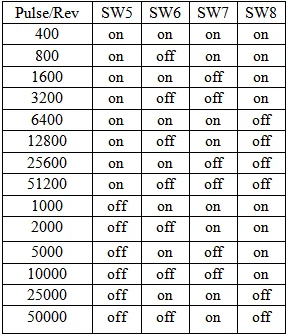

Microstep selection



Driver Catalog:

Model No.	current range	voltage range	microstep/pulse	dimension (mm)	suitable motor
M415D	0.21-1.5A	18-40VDC	1-64 mirostep	86x55x20	nema 17, nema 15
M430D	0.9-3.0A	18-40VDC	1-64 mirostep	117x71x35	nema 23, nema 17
M545D	1.5-4.5A	24-48VDC	2-256 mirostep	117x71x35	nema 34, nema 23
M860D	2.0-6.0A	36-80VDC	2-256 mirostep	150x99x48	nema 34, nema 23
M660A	2.0-6.0A	24-60VAC	2-256 mirostep	150x99x48	nema 34, nema 23
M1160A	0.38-6.0A	80-110VAC	1-256 mirostep	170x94x66	nema 43, nema 34
DM422	0.5-2.2A	20-40VDC	1-256 mirostep	66x56x20	nema 23, nema 17
DM542	1-4.2A	18-50VDC	1-256 mirostep	118x75x32	nema 34, nema 23
DM556D	2.1-5.6A	24-50VDC	1-256 mirostep	118x75x32	nema 34, nema 23
DM860D	2.4-7.2A	24-80VDC	1-256 mirostep	150x98x51	nema 34, nema 23
DM860A	2.4-7.2A	60-80VAC	1-256 mirostep	150x98x51	nema 34, nema 43
2DM2280	4.5-8.0A	80-240VAC	1-256 mirostep	198x130x76	nema 43, nema 34
3DM683	3.2-8.3A	24-60VAC	800-51200 pulses	118x75x32	3 phase nema 34, nema 23
3DM860D	2.4-7.2A	24-80VDC	800-51200 pulses	150x98x51	3 phase nema 34
