Chair Shaping Machine With High Frequency Heating Press YX80-SA



Technical Parameters



Model No.		YX803-SA
HF Generator		20KW, 1 or 2 Outputs
Hydraulic Cylinder	Vertical	80T (2 PCS)
	Horizontal	60T (2 PCS)
Power of Hydraulic		7.5KW
Press Plate Dimension		1600x800 mm
Stroke of Cylinder		600 mm
Control Type		Automatic
Max. Opening Height of Plate		1200 mm
Overall Dimension		2300x800x2200 mm
Gross Weight		8T



Product Description

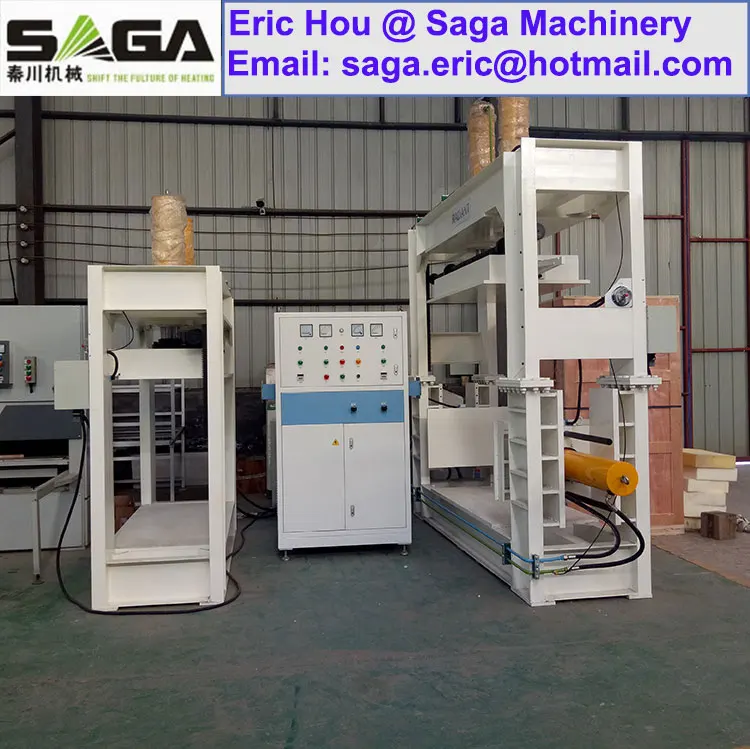

Chair Shaping Machine With High Frequency Heating Press YX80-SA

applies high frequency generator to hydraulic press, by mould and electrode. It transfers the high frequency power to the work piece to achieve fast gluing and forming. Fit for curving plywood or solid wood for chair, skateboard, furniture, bed, cloth hanger, body of wooden musical instrument, etc.



Features:

1. Fast and uniform heating;

2. The bending shape is stable;

3. High frequency is a selectively heating power, it concentrates only on water or glue, wood does not consume High Frequency power, so HF heating is effective and power -saving.

4. Use Wooden or MDF mould, much more economic than metal mould if shape is frequently changed.

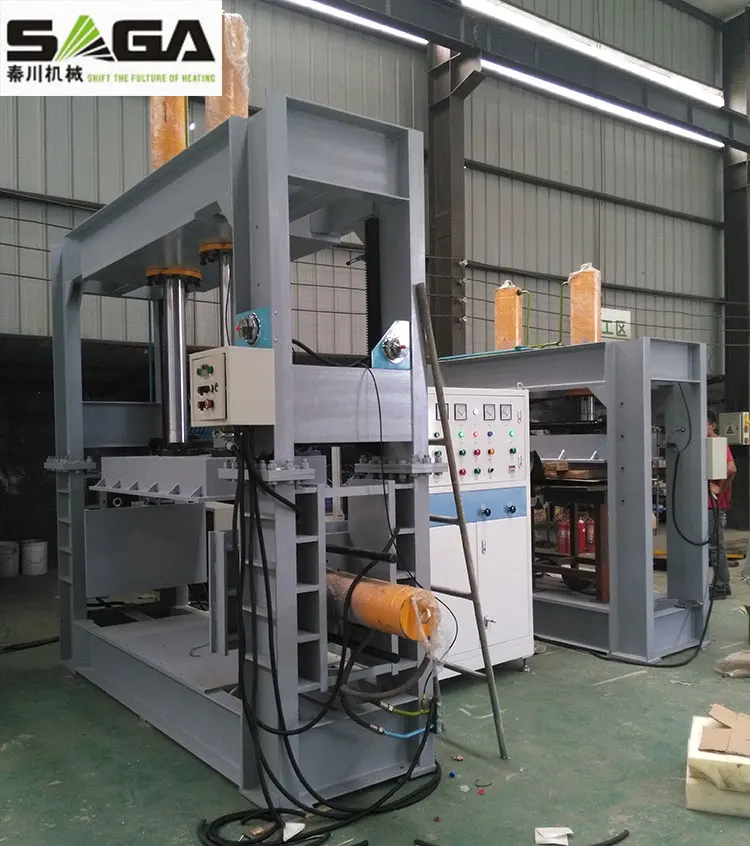

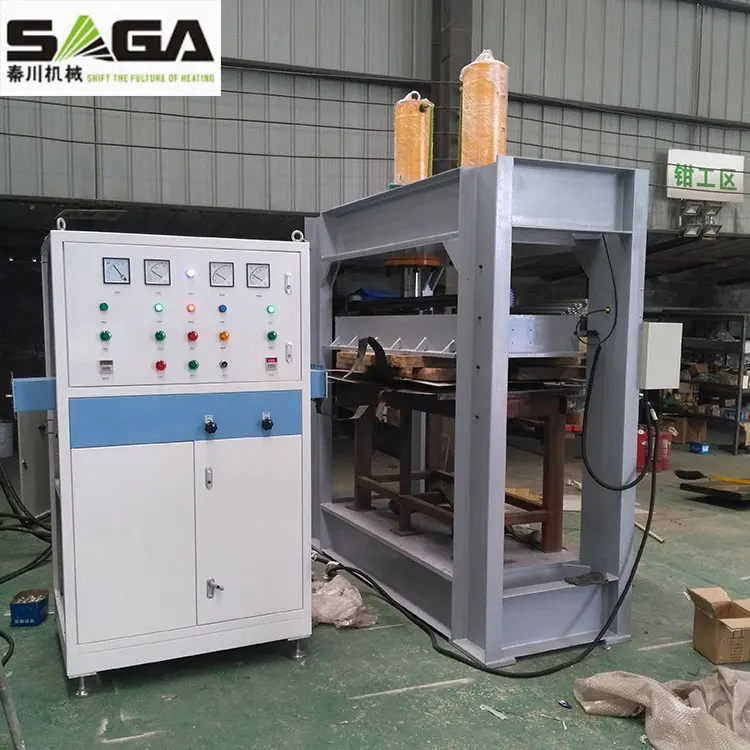

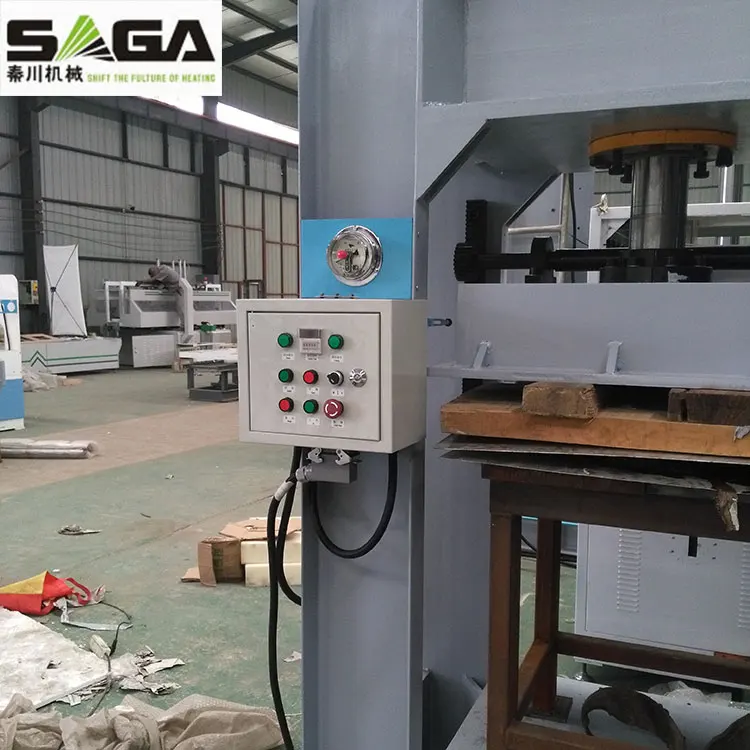

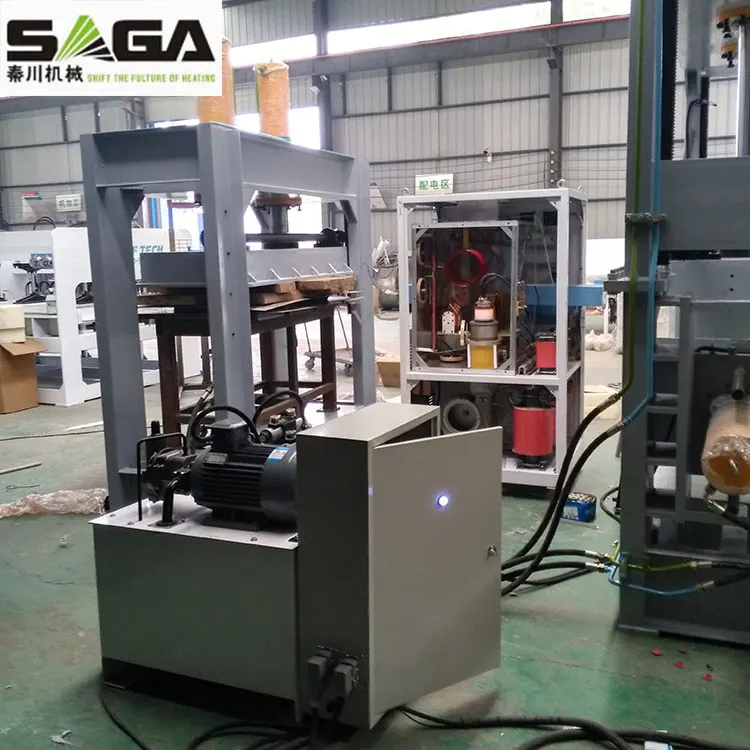

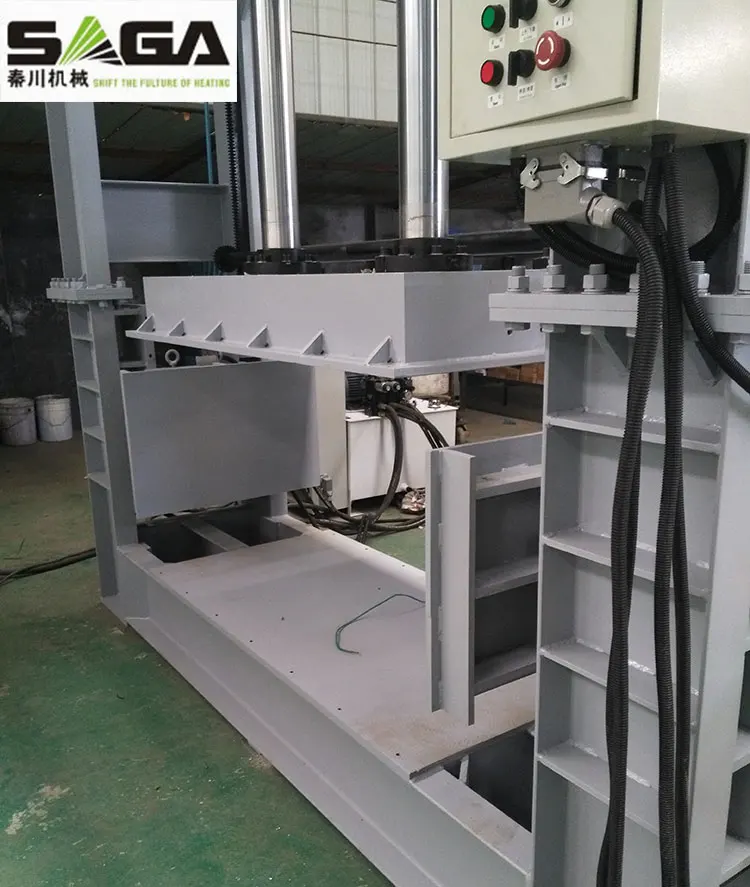

Detailed Pics















After-sale Service

1. Engineers install and train the operators overseas.

2. One year guarantee for whole machine except high frequency tube;

3. Calling or door-to-door service when having a problem in use.

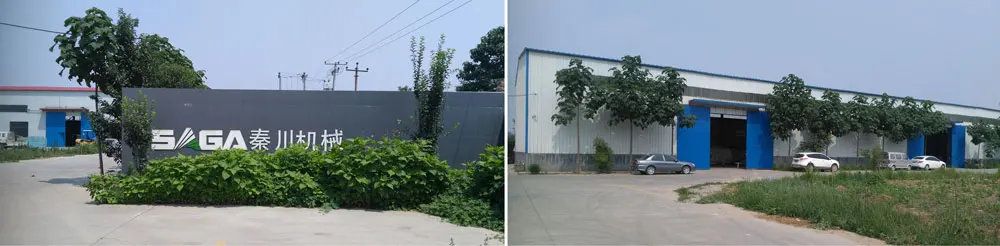

About Saga Machinery





Shijiazhuang Saga Machinery Co., Ltd. specializes in developing, designing and producing smart series high frequency woodworking machinery. Our products cover high frequency vacuum wood dryer, edge gluing machine, wood curving machine, wood frame assembly machine and high frequency generator, etc.



Saga’s senior engineers, production manager, sale group and persons for after-sale service have more-than-15-year professional experience in high frequency machine industry. The energetic and passionate staff and the highly-efficient and innovative team of Saga are hoping to cooperate with you.



Contact





Welcome to contact me (by email) for more details.
