Оборудование для очистки песка жидкий циклонный сепаратор

Describe:

Hydrocyclone is a classifier which utilize centrifugal force to accelerate ore particle deposition. Due to the lack of moving, power parts, the need for the corresponding mud pump.It is mostly used in the second closed circuit grinding.

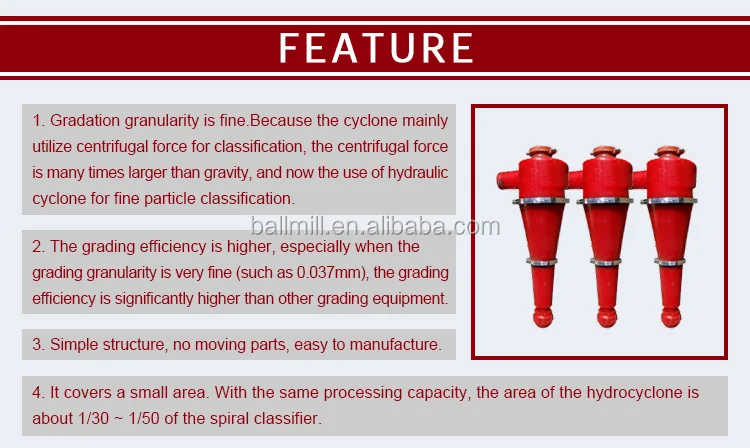

Advantage:

1. Automatic control can be adopted.

2. Large processing capacity and low operation cost.

3. Simple structure, easy to install and operate.

4. Small size, small footprint, easy to transport.

5. High grading efficiency (up to 80% ~ 90%) and fine grading granularity.

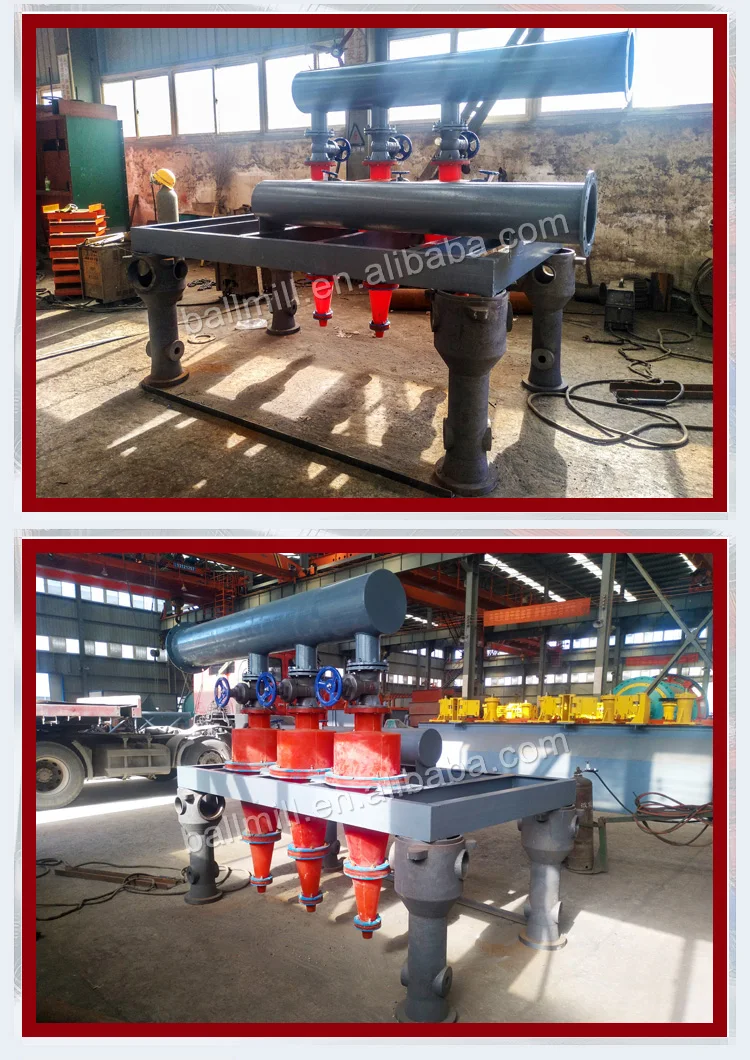

6. Multiple sets can be used in parallel or in series to improve the classification efficiency and processing capacity.

7. Using polyurethane wear-resistant material, the service life is greatly improved.

Note:

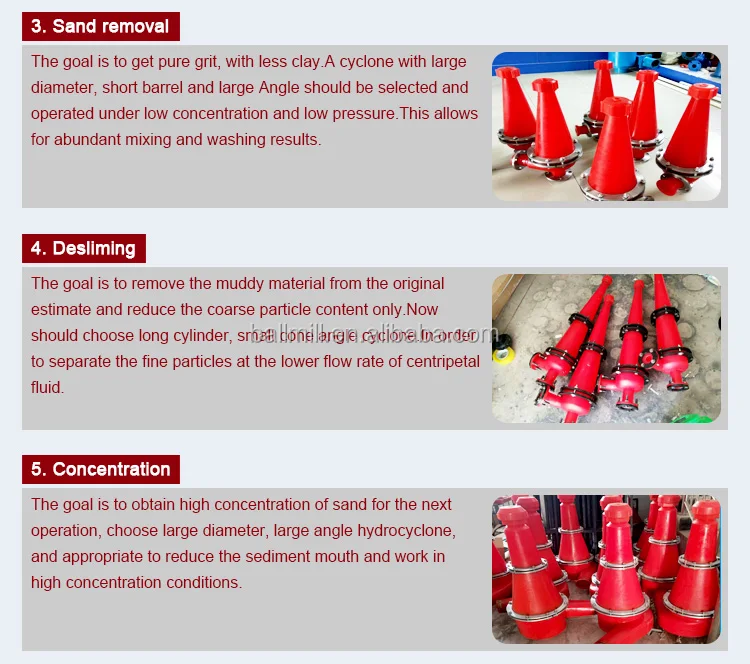

Mainly reflected in the above five types of operations. Hydrocyclones have been widely used in the processing technology of various metal mines.

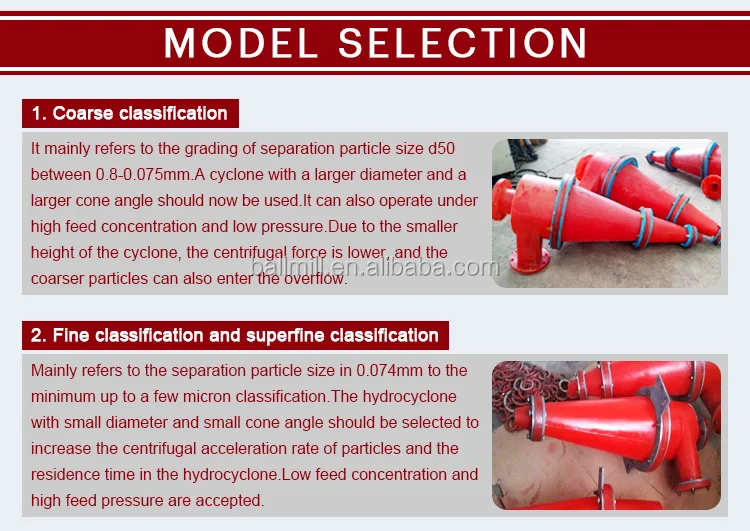

According to the requirements of grinding capacity, fineness of overflow and concentration of sand deposition, it is the precondition to select the proper size and type of cyclone to reach the optimum working condition. We can provide users with φ100, φ125, φ150, φ200, φ250, φ300, φ350, φ500, φ660 and other single, parallel or series units.

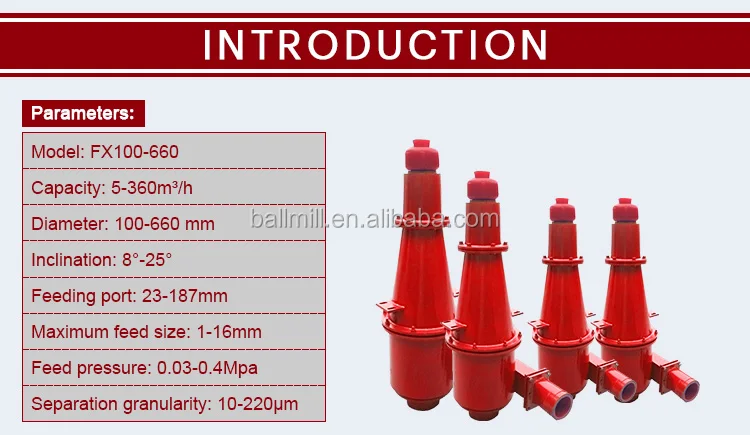

Model

Diameter

(mm)

Inclination

(°)

Maximum feed size

(mm)

Feed pressure

(Mpa)

Capacity

(m³/h)

Separation size

(mm)

Dimensions

(mm)

FX-100

1

257x210x829

257x210x575

FX-125

1

8-15

20-74

210x240x973

20-100

280x185x617

FX-150

8

20-74

290x295x1267

15

30-74

252x349x899

20

30-74

320x270x682

FX-200

2

320x307x1114

548x307x1025

FX-250

3

548x415x1380

548x390x1057

563x534x1178

FX-300

5

563x410x1490

530x410x1304

FX-350

6

50-120

530x413x1674

530x413x1411

530x413x1411

FX-500

FX-660

16

1215x850x2720

Packaging detail:

Standard containers, bare main machine, motors and small parts are packed in wooden cases.

Delivery port:

Within 45 days Qingdao,Shanghai,Tianjin and other ports.
