Трехфазный 60 мм Размер рамы двигатель переменного тока 220 В 400 Вт

Описание и отзывы

Характеристики

AC servo system:

	power	driver B1	frame size	motor model	Speed(r/min)	torque(N*m)
B1  220VAC	100W	EPS-B1-0D10AA-A030	40	40DNMA2-0D10DIAK/M	3000	0.32
	100W	EPS-B1-0D10AA-A000	40	40DNMA2-0D10DKAK/M	3000	0.32
	200W	EPS-B1-0D20AA-A000	60	60DNMA2-0D20DKAM	3000	0.64
	400W	EPS-B1-0D40AA-A000	60	60DNMA2-0D40DKAM	3000	1.27
	750W	EPS-B1-0D75AA-A000	80	80DNMA2-0D75DKAM	3000	2.39
	1KW	EPS-B1-0001AA-A000	130	130DNMA2-0001DKAM	3000	3.18
	1KW	EPS-B1-0001AA-A000	130	130DNMA2-0001CKAM	2000	4.77
	1KW	EPS-B1-0001AA-A000	130	130DNMA2-0001AKAM	1000	9.55
	1.2KW	EPS-B1-01D5AA-A000	130	130DNMA2-01D2CKAM	2000	5.73
	1.2KW	EPS-B1-01D5AA-A000	110	110DNA-12CK1AMS	2000	5.73
	1.5KW	EPS-B1-01D5AA-A000	130	130DNMA2-01D5CKAM	2000	7.2
	1.8KW	EPS-B1-02D2AA-A000	130	130DNMA2-01D8DKAM	3000	5.73
	2.2KW	EPS-B1-02D2AA-A000	130	130DNMA2-0002CKAM	2000	9.55
	3KW	EPS-B1-0003AA-A000	130	130DNMA2-0003CKAM	2000	14.33
	3KW	EPS-B1-0003AA-A000	180	180DNA-30BK1AMS	1500	19.1
	4KW	EPS-B1-04D5AA-A000	180	180DNA-40BK1AMS	1500	25.5
	4.5KW	EPS-B1-04D5AA-A000	180	180DNA-45BK1AMS	1500	28.6
	5.5KW	EPS-B1-05D5AA-A000	180	180DNA-55BK1AMS	1500	35

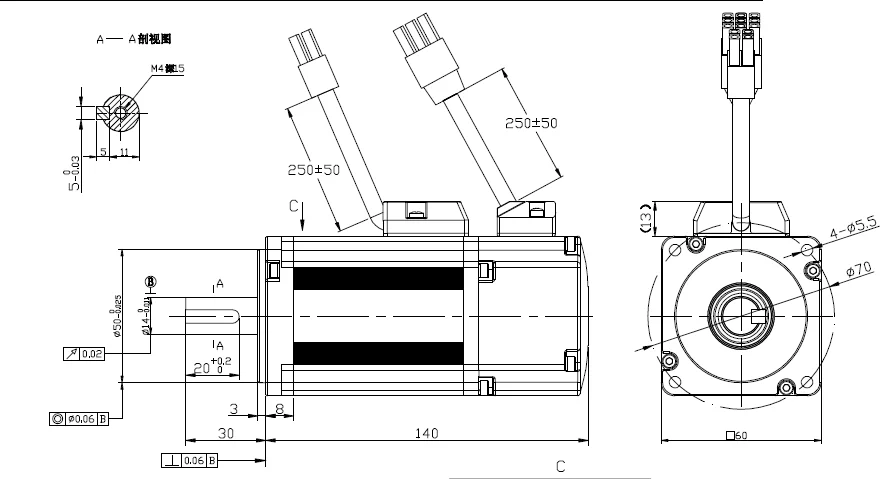

AC servo motor Dimensions:

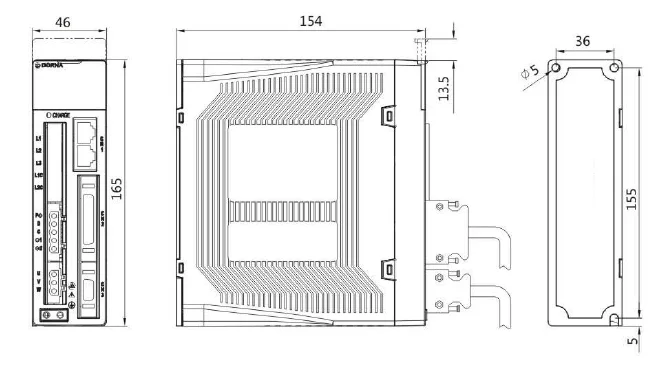

AC servo driver dimensions:
