Product Description

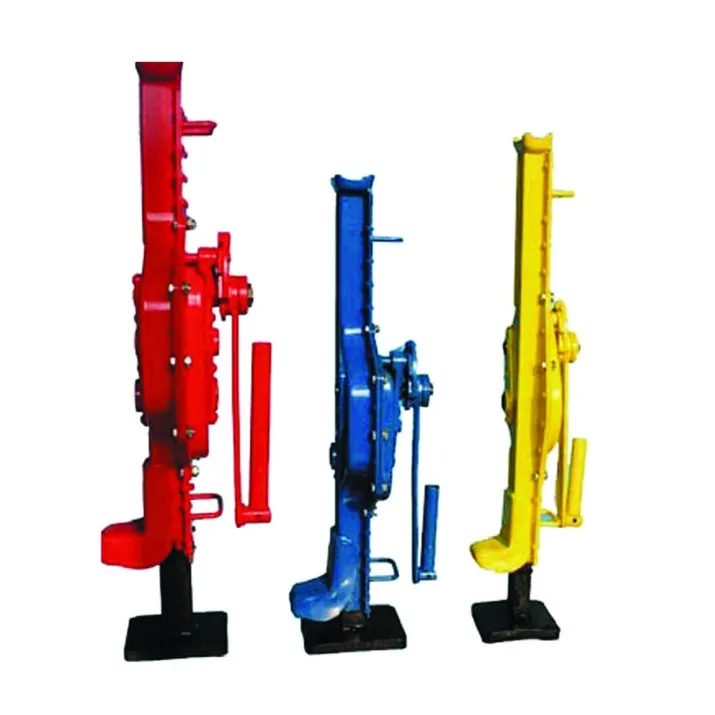

Mechanical Rack Pinion Steel Jack
This mechanical jack can eliminate the problems that come with a hydraulic powered jack, and due to the design still requires very limited effort.
You can use the toe or clawed head to lift off, with up-to 350mm of lift, which is a lot. All controlled by the robust mechanical ratchet mechanism, simply rotate clockwise to raise and anti-clockwise to lower all in a controlled manner.
The long handle provides enough leverage to be able to operate these jacks even towards the top end of their capacity with ease.
Feature
Both vertical and horizontal use in many applications
Made of high quality forged steel
Carrying parts are hardened
Safety crank and load lock
Hinged handle for transport
Two safety pegs controlled return
Parameters
Model | KD-1.5 | KD-3 | KD-5 | KD-10 |
Cap.(t) | 1.5 | 3 | 5 | 10 |
Size (mm) | 151*156*1090 | 164*212*975 | 188*219*1170 | 220*274*1240 |
Lifting height(mm) | ≥800 | ≥565 | ≥700 | ≥700 |
Net weight(kg) | 13 | 21 | 29 | 50 |
Packing size(mm) | 170*175*1125 | 185*230*1010 | 205*235*1205 | 240*295*1275 |
Model | KD5-3 | KD10-7 | KD15-10 |
Cap.Top(t) | 5 | 10 | 15 |
Cap.Toe(t) | 3 | 7 | 10 |
Max Lifting H.(mm) | 200 | 300 | 320 |
Toe lowest position(mm) | 60 | 60 | 60 |
Toe highest position(mm) | 260 | 360 | 380 |
Top highest position(mm) | 680 | 920 | 1040 |
Top lowest position(mm) | 480 | 620 | 720 |
Self Weight(kg) | 18.5 | 31 | 45 |

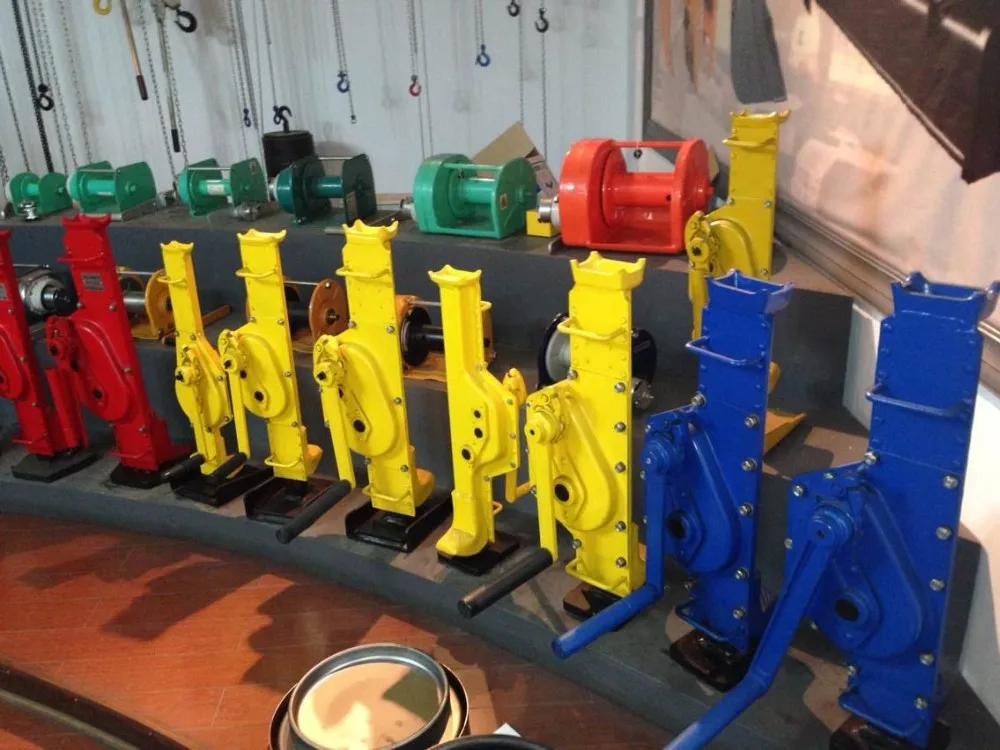

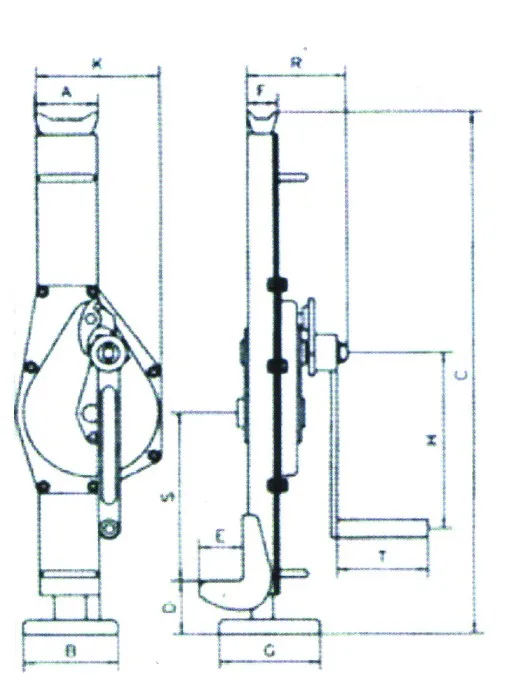

Detailed Images
