china cnc auto feeder wood lathe machine for conical, curved

1)Suitable for: bed head, bed top, sofa legs, dining chair feet, coffee table legs, coat rack poles, table legs, wooden stools, wooden vases. Cylindrical, conical, curved, spherical and solid wood furniture, solid wood stairs, solid wood Roman columns, solid wood floor hangers, home improvement, wooden crafts and other complex shapes of revolving wood or semi-finished products and Rotary engraving, Helix, Line engraving, flat engraving, slot, turning and hollow etc.

2)Suitable for the industry: furniture factory, stair factory, decoration company, wooden handicraft production plant, etc.

3) Processing materials: It can process various wooden materials such as oak, beech, birch and teak. Sapele, ash, pineapple, sandalwood, rosewood, etc.



Parameter of china cnc auto feeder wood lathe machine for conical, curved



Model	AI-CNC310	AI-CNC315	AI-CNC415	AI-CNC420	AI-CNC425
Machining dimension	1000*300mm	1500*300mm	1500*400mm	2000*400mm	2500*400mm
Motor power	4~5.5kw( CVT)
Control	CMC-PC /DSP
Machine type	wooden
Working speed	3000mm/min
Voltage	220V/380V,50HZ/60Hz, 3 PH
Dimension	(2700~3700)*(1400~1800)*1700mm
Weight	1550kg	1600kg	1750kg	1900kg	2500kg

Feature of china cnc auto feeder wood lathe machine for conical, curved

1. It adopts reliability numerical control module, international universal CNC system, high-precision motor drive, and the operation is simple and accurate.

2. Using the variable frequency speed control system, the problem of wood flutter can be solved by adjusting the rotation speed.

3. High quality slide rail combined with precision screw drive reduces error.

4. Bed body, power head, tailstock high-stiffness cast iron structure, stable material, improve resistance to deformation.

5.Suitable for processing various wooden rotating parts within 400mm diameter, the maximum processing length of 1m, 1.5m, 2m, 2.5m, optional.

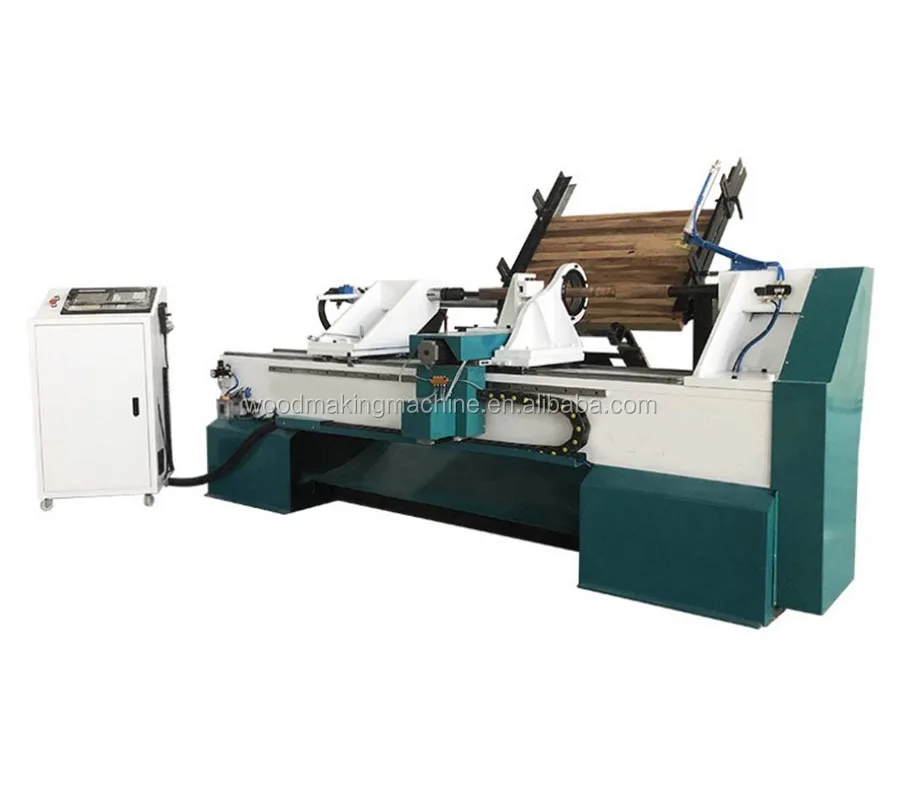

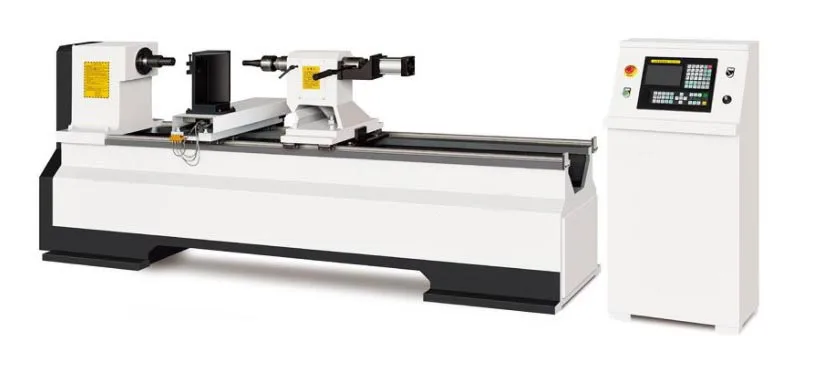

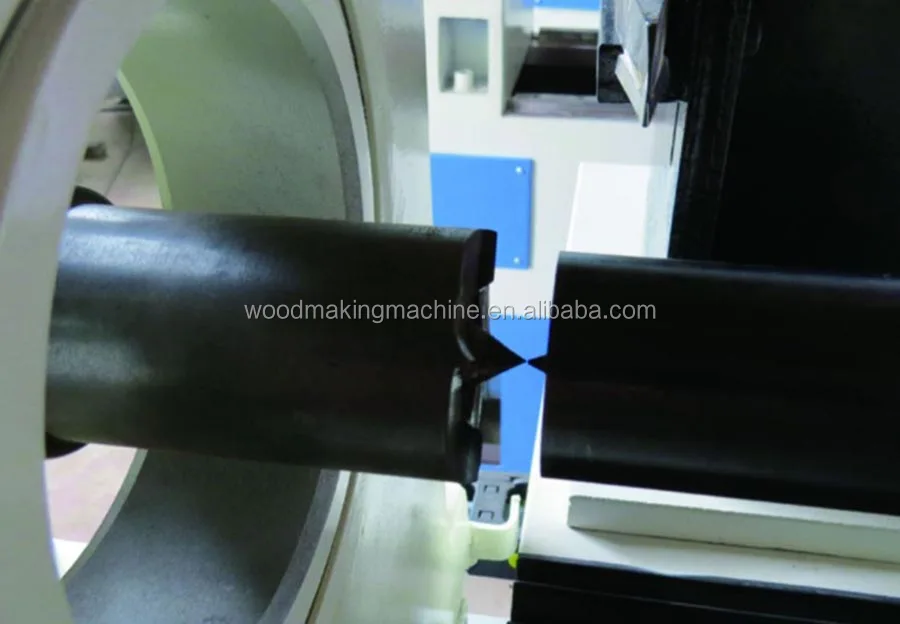

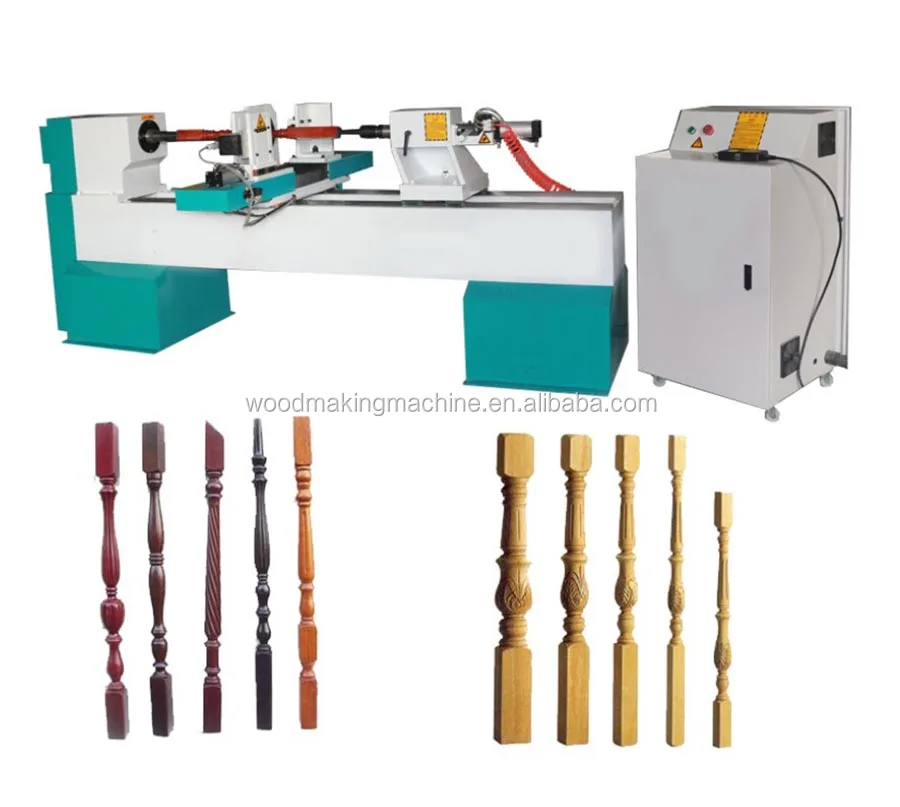

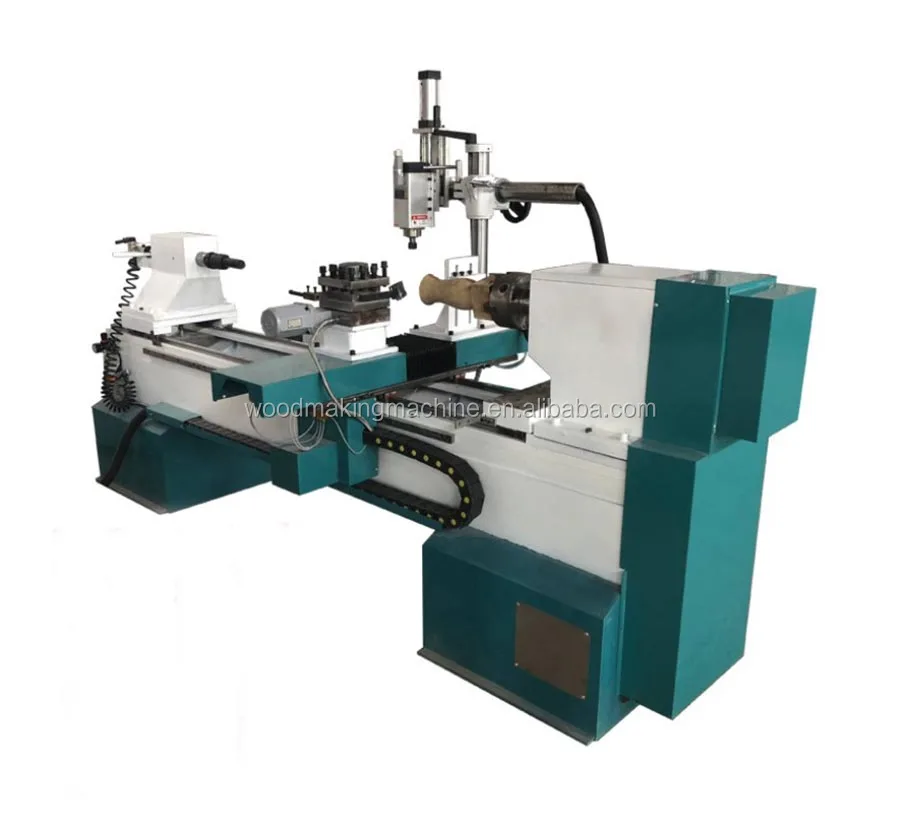

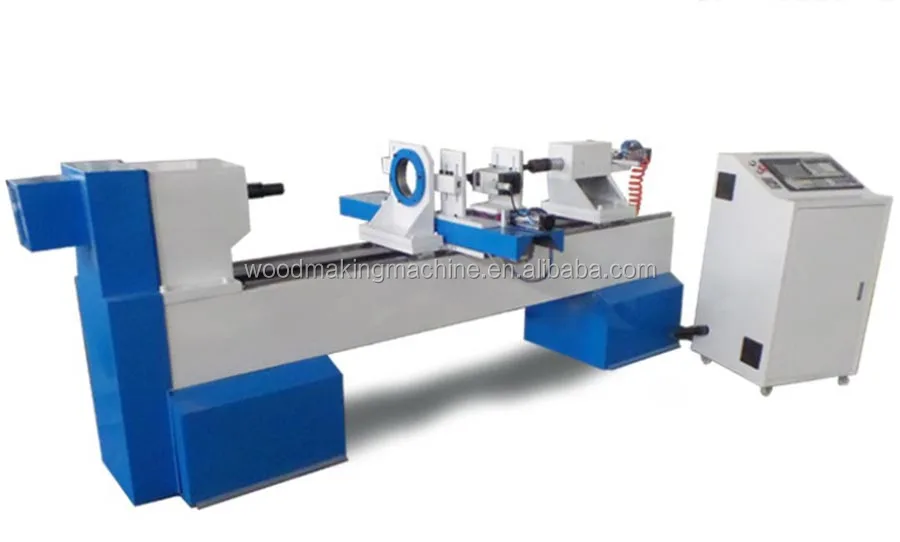

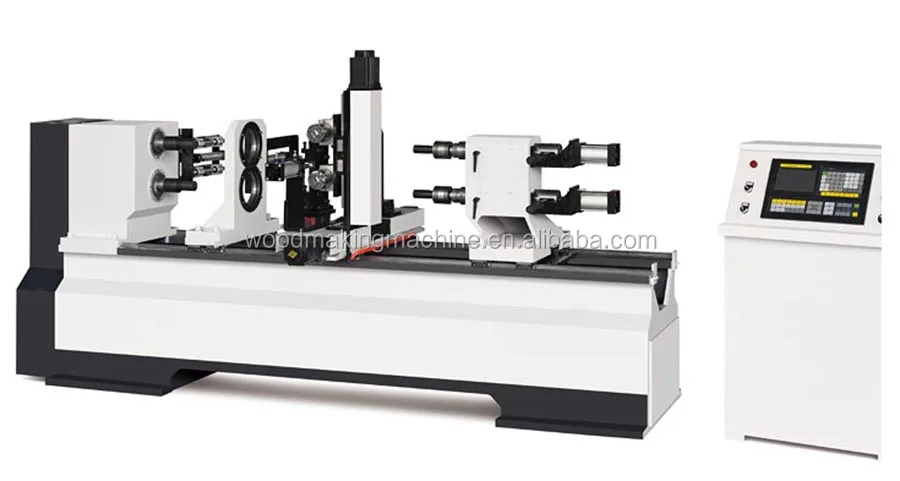

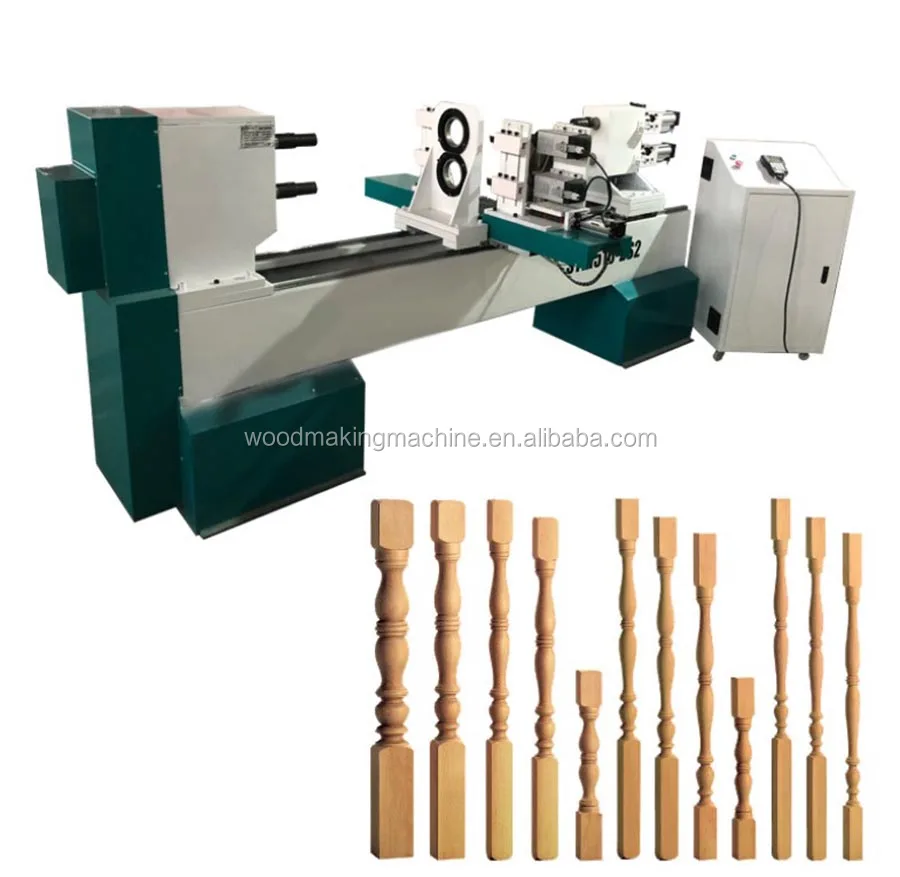

Photo of china cnc auto feeder wood lathe machine for conical, curved

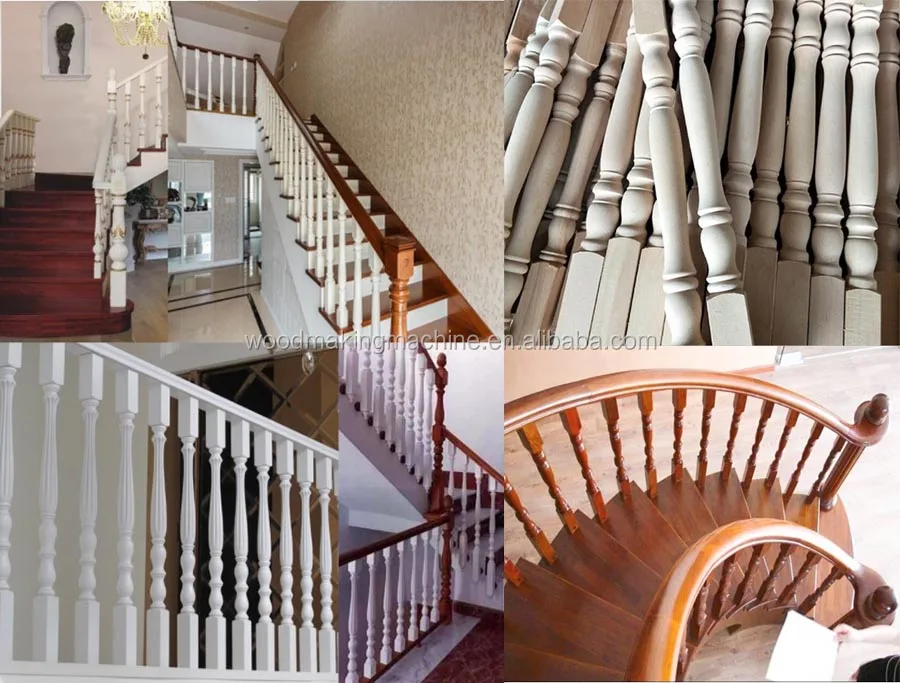

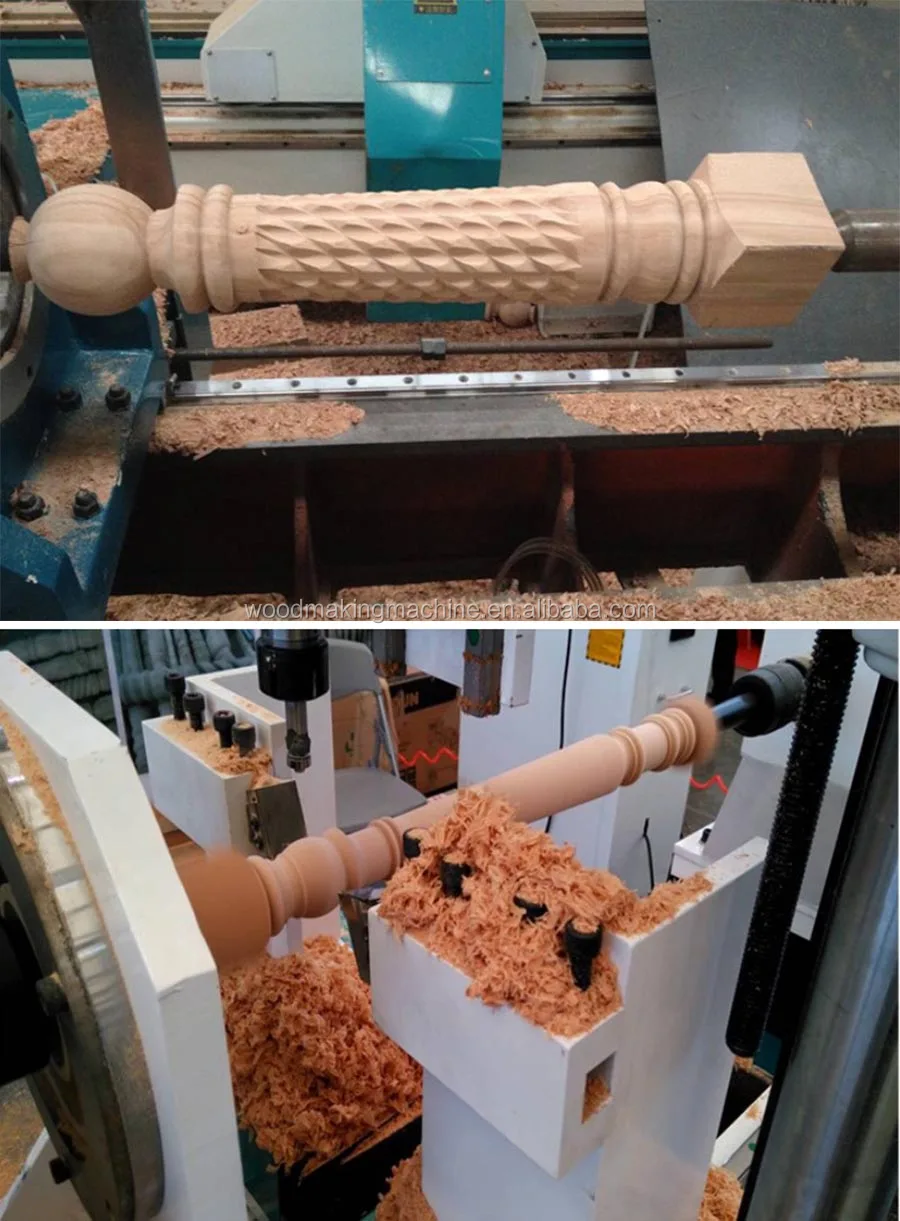

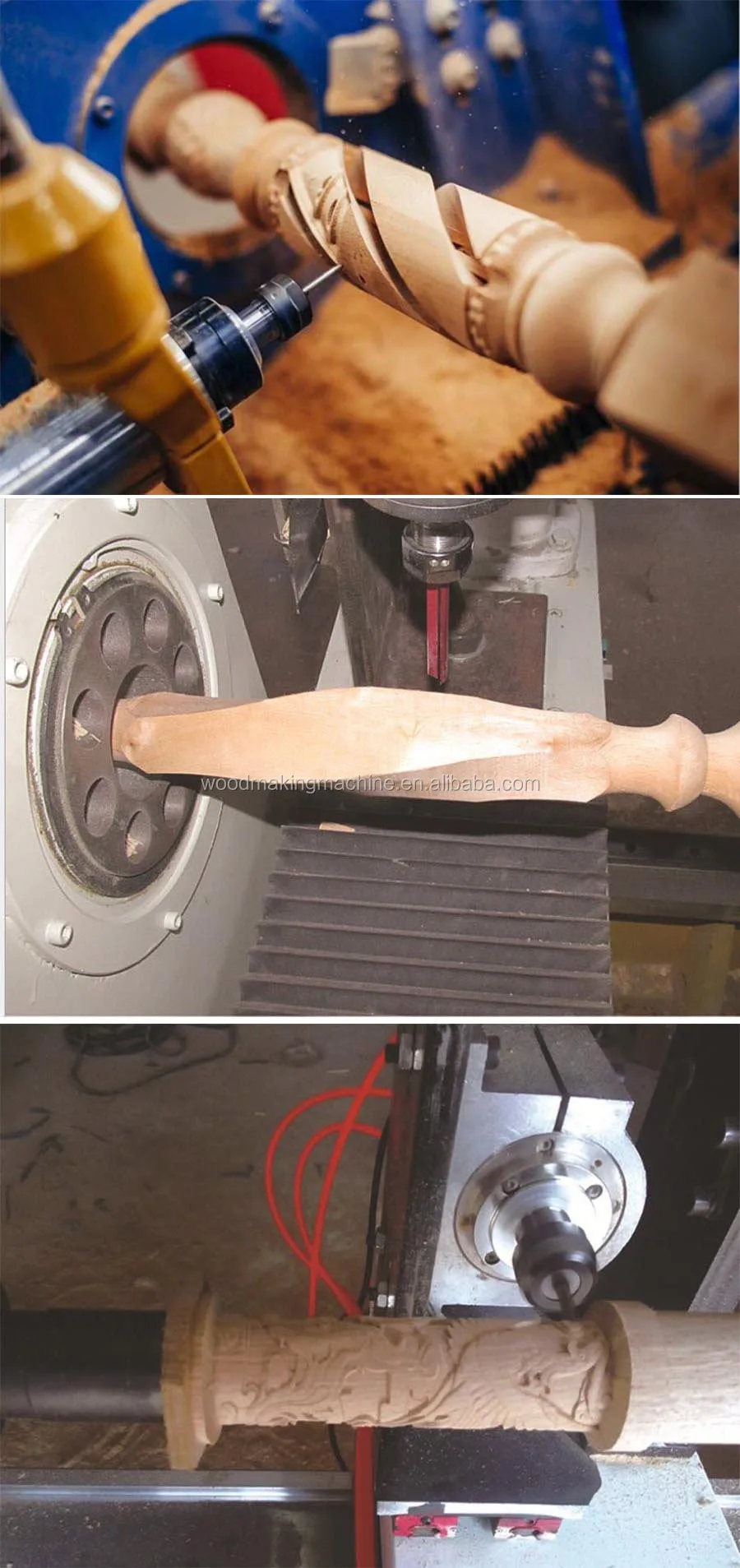

Application of china cnc auto feeder wood lathe machine for conical, curved
