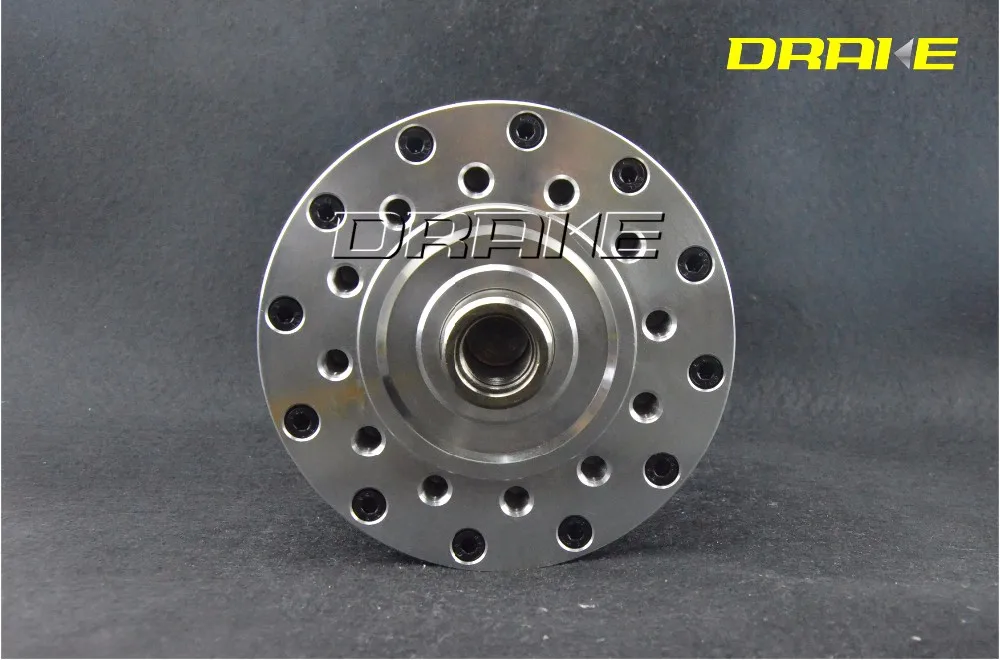

Long life High speed solid rotating hydraulic oil cylinder

Product Description







Technical features:

1. The rotary valve and cylinder body, all made of special light alloy, are light-weight.
2. Through unique design, efficebtly increase its utilization.
3. Built-in safety check valves.



Parameters

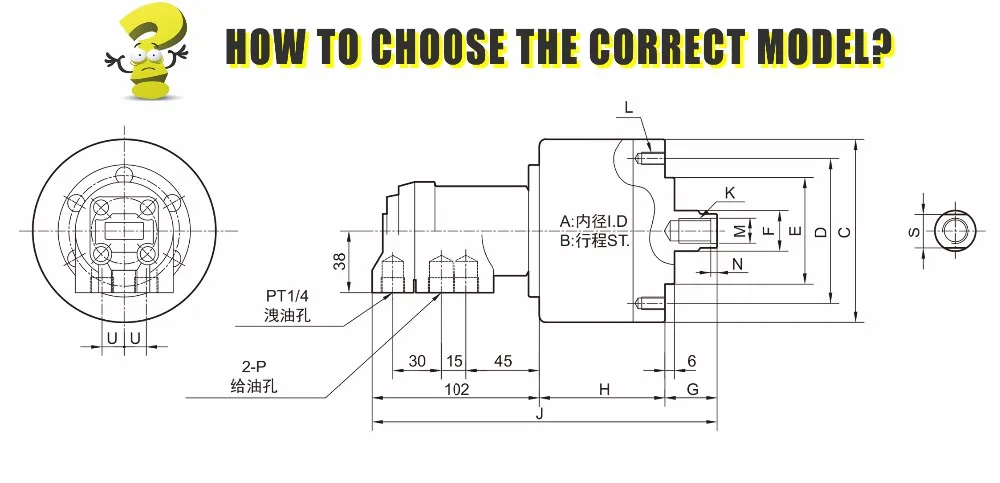

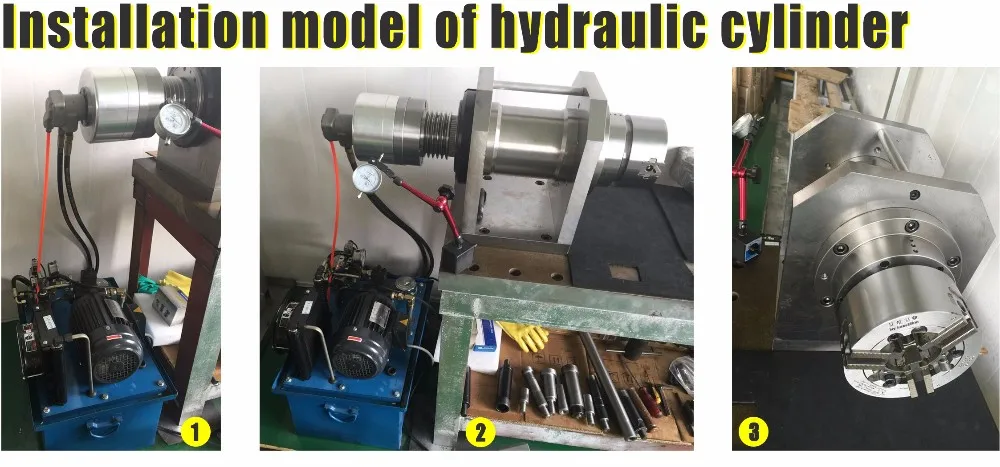

 There are three questions to answer to aid the correct choice of power chuck:

1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?





Size Parameters

Model/Spec

A

BCD

E

(h7)

F

G

(max.)

G

(min.)

H

J

M

H8

NKL2-p
SH65651598806022453074175--M12×2.06-M8×16PT3/8
SH808015112906525453074175--M16×2.06-M8×16PT3/8
SH100100201351008030452589190--M20×2.56-M10×20PT3/8
SH1251252516013011036502596197--M24×3.06-M12×20PT3/8
SH15015030190130110455525105206315M30×3.512-M12×24PT3/8
SH20020035245145120557025130231375M36×4.012-M16×30PT3/8







Performance Parameters



Model/SpecPiston area(cm²)

Stroke

(mm)

Highest turnover nimber

min-1 (rpm)

Max. working pressure

Mpa (kgf/cm²)

Moment of inertia

(kg.m²)

Weight

(kg)

Press sidePull side
SH653127.91560003.5(35)0.012.9
SH8047.742.81560003.5(35)0.013.4
SH10075.470.52055003.5(35)0.044.9
SH125119.6112.52555003.5(35)0.086.8
SH150173.6157.73040003.5(35)0.1811.5
SH200310286.33540003.5(35)0.3820.4

It is recommended to grease chucks at least twice a day in order to maximize longevity

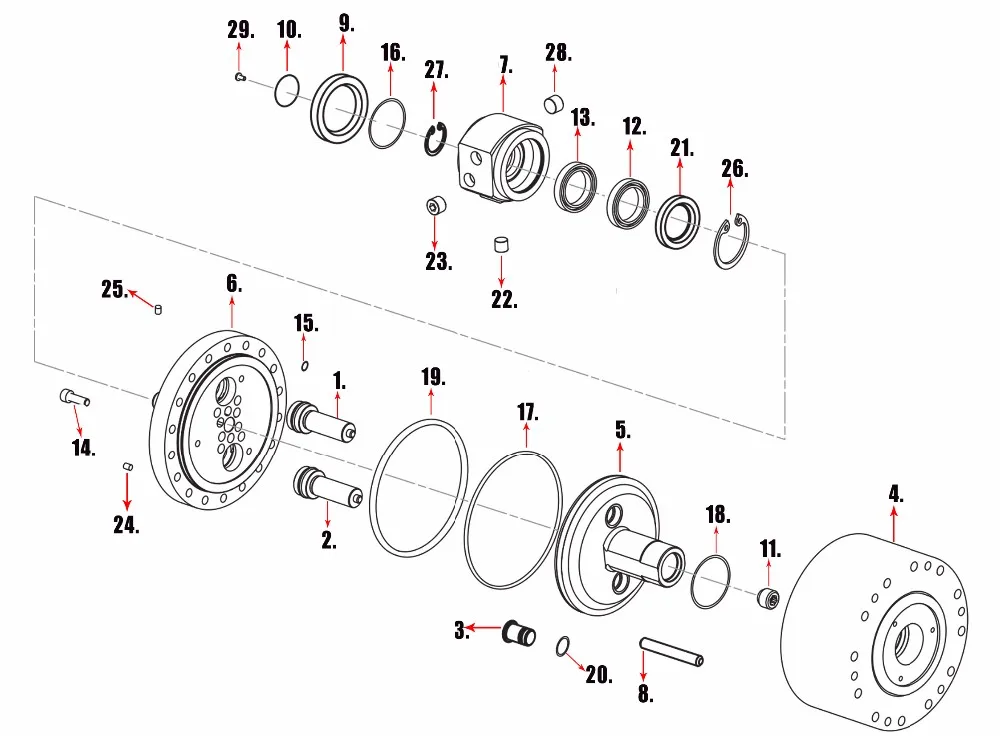

No.NameNo.Name
1Lock Valve17O-Ring
2 Lock Valve18O-Ring
3Relief Valve19O-Ring
4Cylinder Body20O-Ring
5Piston21Oil Seal
6Rotation Valve22PVC Plug
7Sleeve23PVC Plug
8Guide Pin24Set Screw
9Seelve Cover25Set Screw
10Name Plate26Snap Ring
11Set Screw27Snap Ring
12Bearing28PT Plug
13Bearing29Fist Head Cap Screw
14Wrench Bolt
15O-Ring
16O-Ring
