HOWO 6x4 10 колесный грузовик с бобтейном 20 м3 200 л для наполнения газовых баллонов сжиженного углеводородного

Описание и отзывы

Характеристики

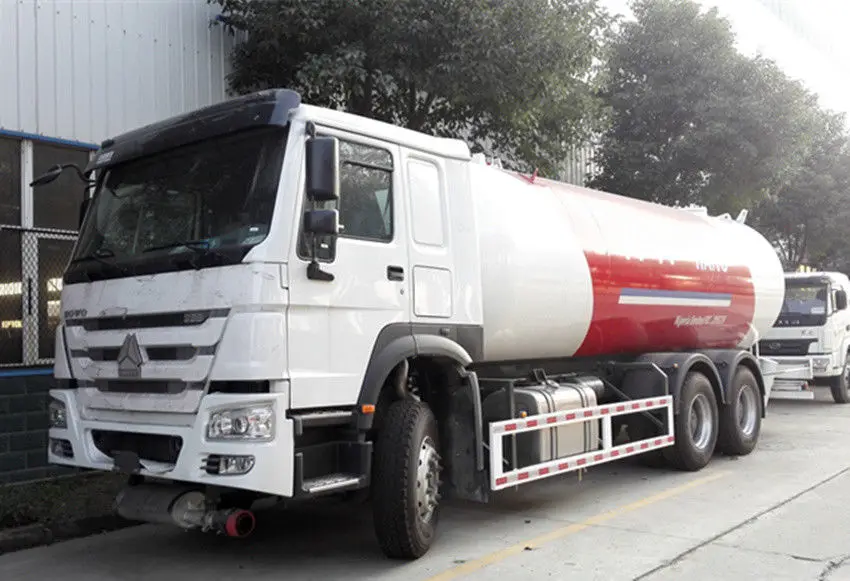

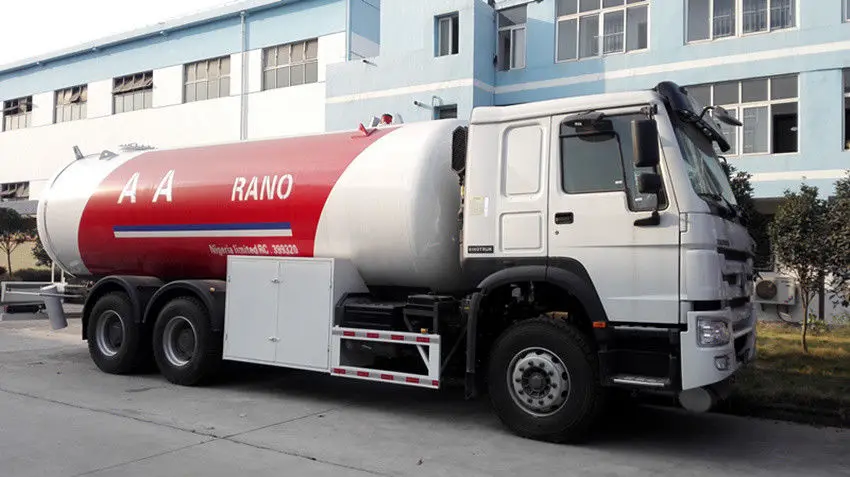

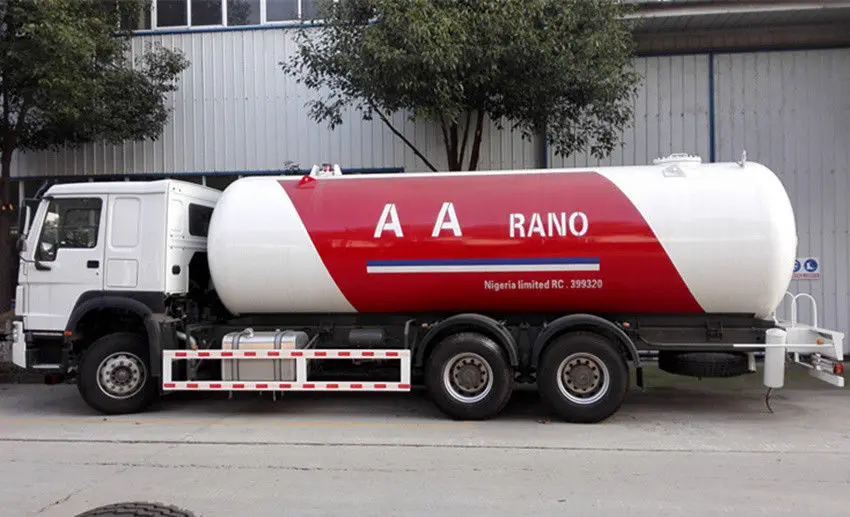

HOWO 6x4 10 wheel 20M3 LPG Tanker LPG Gas Bobtail Truck 20000L price



Pressure vessel tank for LPG summary:

1.Domestic or imported High quality Safety accessories is optional for LPG storage tank,the tank volume capacity optional from 10 M3 to 115 M3.

2.According to strict manufacturing engineering to guarantee the lowest rate of contraction and highest dimensional stability.

3.Strict quality testing:A and B class weld joint with 100% x-ray radiographic inspection grade II qualified;C and D class weld joint with 100% magnaflux inspection class I qualified.

4.Anti-corrosion coating on the LPG tank surface.Using sand-blasting treatment, spraying, blowing and other advanced technology.

5.We can accept custom design to meet the conditions of many other gas transport. Transport medium include liquid ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas (LPG), dimethyl ether, normal butane, isobutane, butene, isobutene, butadiene and ethylene oxide.

6.Standard configuration: Safety valve, level gauge, pressure gauge, thermometer, emergency shut-off valve, valve boxes, fire extinguishers, fire star cover, antistatic grounding tape, fencing, tires and fenders.


Technical Specifications


Cabin		Sinotruk Hw76 Cabin ,left hand drive, with air conditioner3 Passengers Allowed
Vehicle Main Dimensions		Overall dimensions (L x W x H)mm			8980×2500×3690
		Wheel base (mm)			4350 +1350
		Wheel track (front/rear) (mm)			1900 /1800
		Approach/Departure angle(°)			38/18
Weight in KGS		Tare Weight			12000
		Payload			10000
		Front axles loading capacity			1x7000
		Rear axles loading capacity			2x16000
Max. driving speed(km/h)				90
Engine	Brand		Sinotruk
	Model		WD615.47
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		371
	Displacement (cc)		7200
	Emission standard		Euro II
Gearbox	10 forwards & 2 reverse
Steering	Left hand driven
Tire	10.00-20 nylon tires with one spare ,11 pieces totally
LPG Tank System	Volume of tank: 20 CBM Filling Medium: Liquefied Petroleum Gas (propane) Medium Density:420-590 kg/ cbm Design Temperature(ºC):Under 50ºC Water Pressure Test(MPa) : 2.1 Mpa / 21 Bar Design Pressure(MPa): 1.61 Mpa / 16.1 Bar Corrosion Allowance(mm): 1mm Tank Material: Q345R high tension steel, 10 mm Thick Tank Body. With filling system , hydraulic pump ,hydraulic motor,lpg pump , meter, filling hoses , filling nozzle. Main Accessories: Safety Valve DN100,Emergency Cut-off Valves, DN25 for gas phase,DN50 for liquid phase;Ball Valves,DN25 for gas phase, DN50 for liquid phase;Liquid level meter, Pressure gauges,Temperature Gauge, Valve Box.



 More Pictures of Lpg tank station for your reference:







Packing & shipping
Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly

Certification

 Customer visiting

Our Service

Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.

Other Products we sell

  Comany information

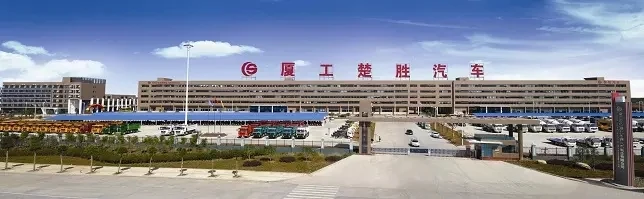

1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.



2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.



3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.

** We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
