Wi-Fi камера для глазок с экраном 4 3 дюйма дверной звонок

Описание и отзывы

Характеристики

Wifi Peephole Camera With 4.3 Inch Display Door Bell Camera Video Gate Door Viewer



Functional characteristics:

Using Huawei Lite OS operating system

Huawei Hass program, 4.3-inch high-definition color screen, built-in Dingdong

App Active wake up

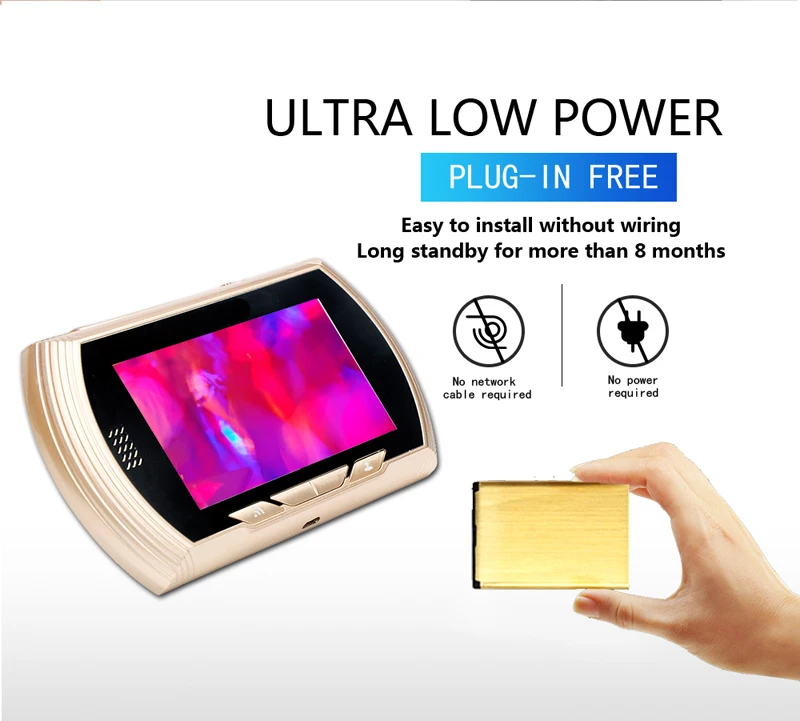

Ultra-low power design (standby current as low as 200uA), normal use time up to 6 months (PIR function off)

device seconds (connected within 1 second)

Easy to install

PIR anti-theft function, provide active wake-up function

Mobile phone APP, support mobile video viewing and intercom function

Unique removable battery design that can be recharged directly from USB without removing the host

Cat's head:

1 million pixel CMOS sensor;

M7 Full Glass 200W Pixel HD Lens;

Support multiple video formats, maximum support 1280*720P (25fps);

With wide dynamic and low illumination capabilities, support for automatic color to black;

32-bit processor and professional video codec chip;

Infrared distance 1-2 meters 4 850 infrared lights PMW spectroscopy;

Host instruction:

Built-in Huawei Lite OS, rapid startup, within one second of online time;

Support recording mode or record mode to prevent personnel;

Video recording time is 15 seconds, stored in TF card, camera mode captures one, cloud storage and push to APP;

Automatic shutdown time is 15 seconds;

Support PIR human sensing motion detection;

Supports manual image capture ;

4.3 inch IPS HD display;

Instruction:

Equipped with DC3.7V 3500MAH lithium battery;

Integrated design, compact structure, high reliability;

Full metal cat head shell, elegant and prevent damage;

Bronze anti-old craft cat head plus gold, black, silver multi host optional;

Through the cat's eye hole reserved for installation, convenient and quick;

Using EEPROM data storage, the stored data is not lost after power off;

Supports up to 8G high-speed TF memory card, 8G memory card can save 4000 15 seconds of video;







Technical and parameters:

model		BS-MK43W
parameter		4.5”Wifi Smart Digital Door Viewer
	APP mobile operating platform	Support Android, Apple operating system (YBELL)
Camera module	Image Sensor	1/4" CMOS(9712)
	Effective Pixels	1280(H)×720(V)
	Minimum illumination	0.5Lux/F1.6 (color)
		0Lux/F1.6 (black and white, with infrared)
	White balance	Automatic tracking of white balance
	Gain control	automatic
	Signal to noise ratio	Greater than 50dB
	BLC	automatic
	Wide dynamic	YES
	Electronic shutter	1/4-1/10,000s
	Day and night mode	Filter color to black
	focal length	2.4mm
	Wide angle of view	166°
	Aperture	F2.0
	Infrared night light	4 pieces, 3MM, flat head, angle 90,850 infrared light
Features	Automatic shut-down	No connection and standby for 15 seconds after operation
	Language	Chinese and English (other languages can be customized)
	Motion Detection	On/Off
	Video time	15 seconds
	Number of photos taken	One sheet
	format	Support formatting TF card
	Light source frequency	50HZ/60HZ
	Power off memory	stand by
	default setting	stand by
	ring	Built-in ringtones
parameter	main chip	Hass 3518E+ Hass 1131
	Indoor unit size	165mm*92mm*16mm
	Outdoor machine size	62mm*62mm*15mm(45mm)
	Indoor machine material	ABS plastic
	Outdoor machine material	Zinc alloy
	Infrared body sensor	PIR induction
	PIR induction	9.5MM Fresnel lens
	LCD screen type	4.3
	LCD screen resolution	480*272
	TF card	Maximum support 8G
	Maximum image size	1280×720
	Frame rate	50HZ: 25 frames (1280×720P)
	Video compression	H.264
	Audio compression	PCM format
	stand-by current	200UA
	Operating temperature and humidity	-30°C-65°C(outdoor) / -10°C-50°C(indoor) Humidity is less than 90%
	Protection level	IP55
	Installation method	Screw plate
	Applicable door	40~110mm
	For cat eyes	15~50MM
	weight	Net weight 0.25Kg/Gross weight 0.5Kg
	Package Size	190*117*76mm
	Host color	Silver, black, gold
Accessories	Screws	M3*35 2 M3*65 2 M3*85 2
	Mounting base plate	72mm*52mm*6.5mm
	TF card	Capacity 8G (optional)
	USB charging cable	Charging and data transmission Length 1.5m 1
	battery charger	5V lithium battery charger (optional)
	battery	3.7V 3500MA lithium battery Standard 1

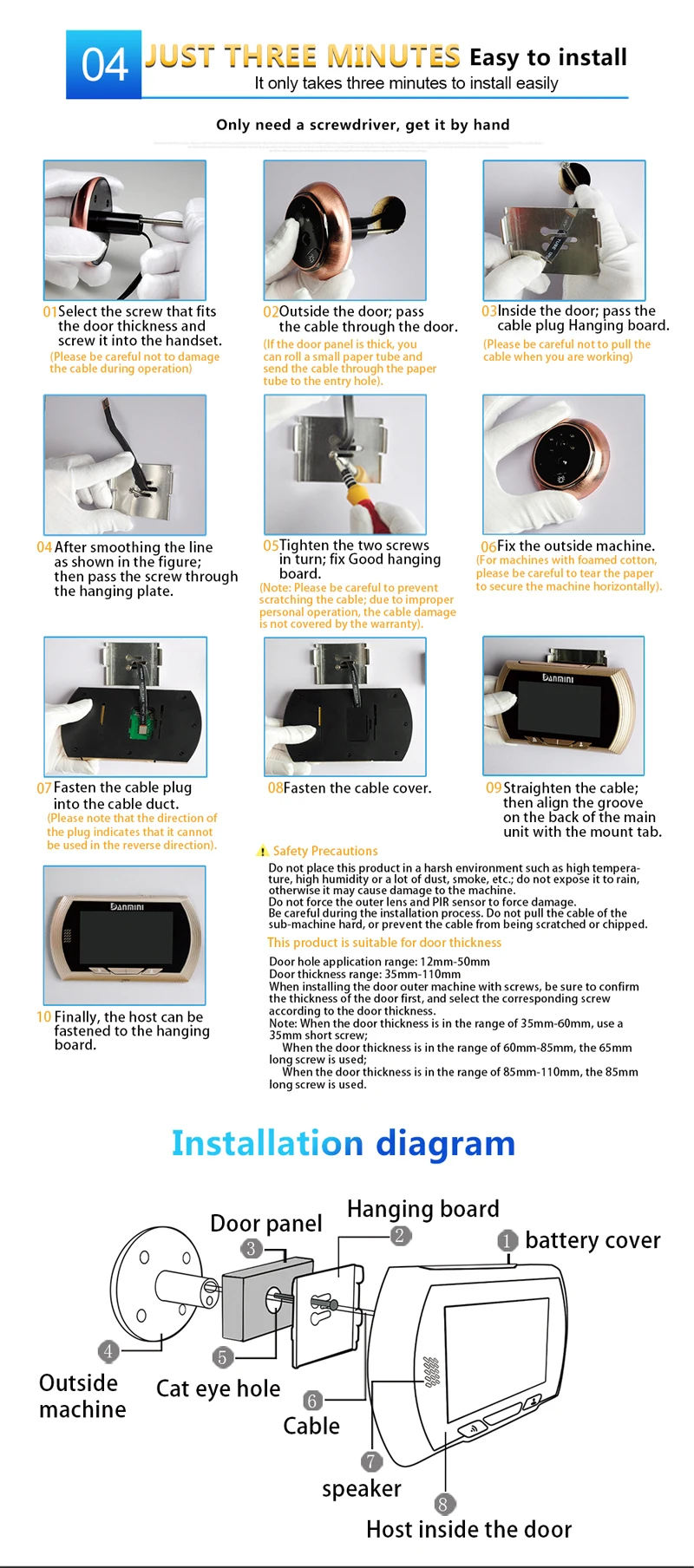

Installation:
