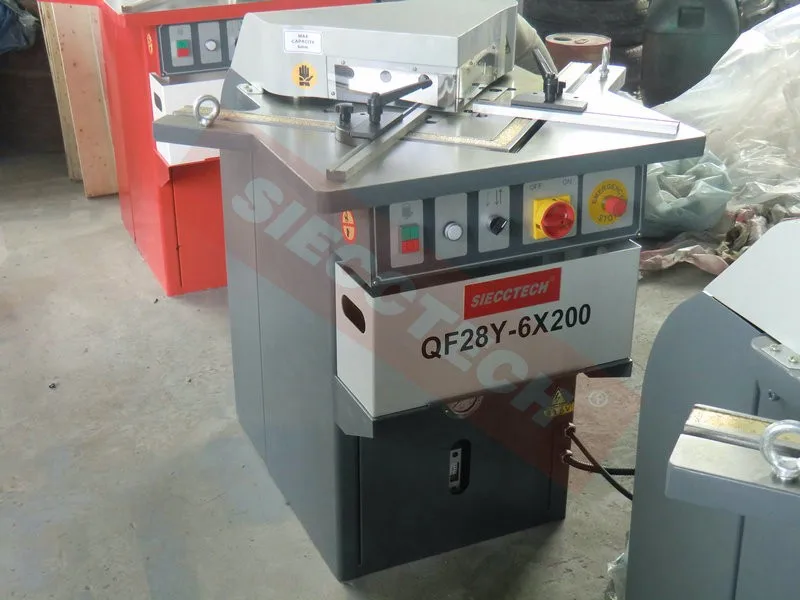

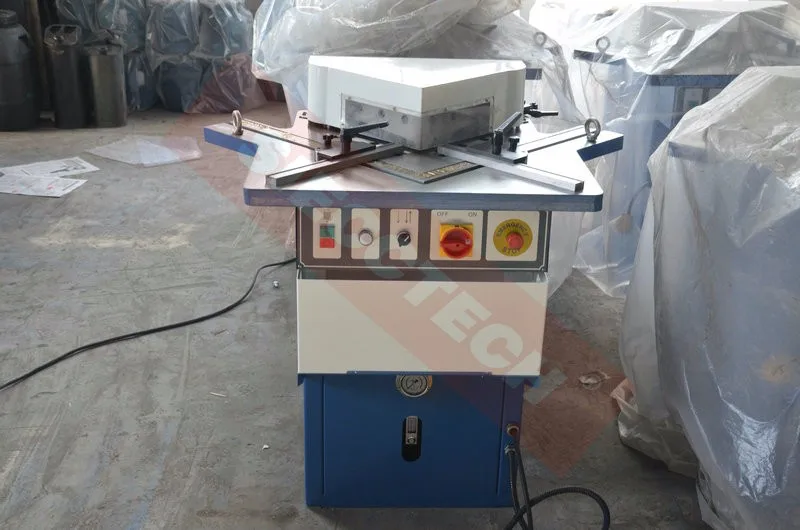

Регулируемое устройство для резки на 45 градусов QF28Y-4 * 200

Описание и отзывы

Характеристики

Max. Shearing Thickness			4-6MM
Max. Shearing Width			200MM
Strength of Shearing Sheets			450N/MM2
Shearing Angle			30-135
Cut times			30/MIN
Blade Material			9CrSi
Power			5.5KW
Overall dimension			1050X1020X1320MM
Weight			900KGS



Main Character Of QF28 Cut Machine 1) Foot Switch control
2) Slug chute
3) Two protractor gauges
4) T-Slotted table with recessed measuring scales
5) Blade suitable for mild or stainless steel
6) Material hold downs
7) Easy maintenance The machine can be the shear plate into 30-135degrees, the main structure is composed of steel plate integral welding sturdiness and durability, only marking machine wearing tool can meet the processing needs of sheet metal processing factory. Not like ordinary punch, processing an angle or a thickness of the workpiece to produce a set of mold, reduces the cost, reduces the ordinary punch frequently replacing clamping trouble, improve work efficiency, reduce the labor intensity of workers, reduces the danger modulus, low noise processing factories and workers to create a quiet environment. The machine is suitable for cutting metal plate material, which is widely used in automobile manufacturing plant, shipyard, elevators, electrical equipment, pipeline, cooking utensils and stainless steel products and other fields.
