60A MPPT Auto Solar Panel Charge Controller 60A 12V 24V Battery Charger Controller 5V 2A Dual USB





Note:we have PWM 10-60A


                      MPPT 30-100A

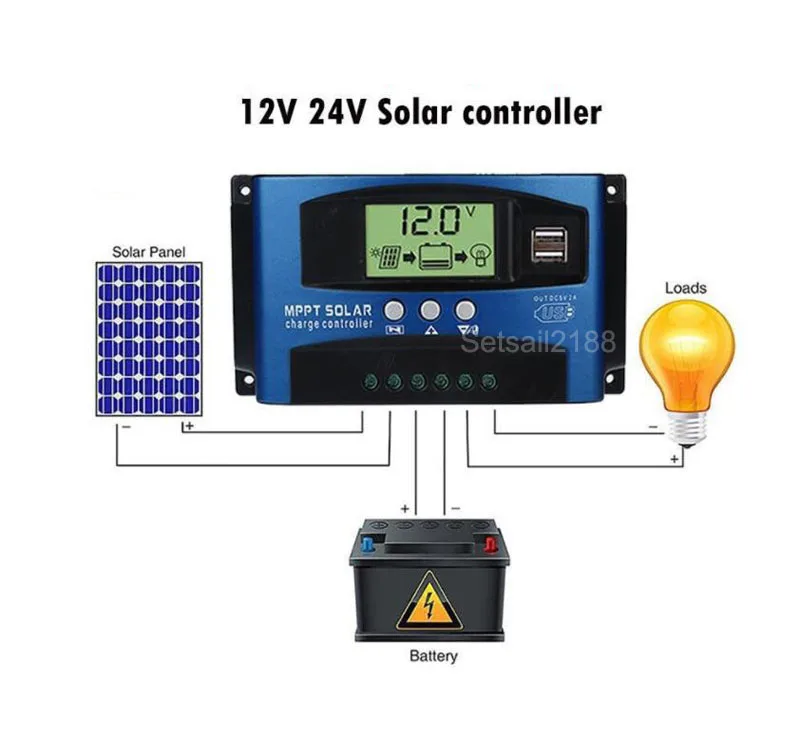

Work for 12V/24V lead acid/12V lithium battery





Description:



















































































 MPPT30MPPT40MPPT50MPPT60MPPT100
Charging Current30A40A 50A60A100A
Discharging Current10A20A 20A30A50A
Solar photovoltaic voltage12V with 18V solar panel 24V with 36V solar panel
Equalization 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge13.7V/27.4V
Discharge stop10.7V/21.4V
Discharge reconnect12.6V/25.2V
USB output5V/2A

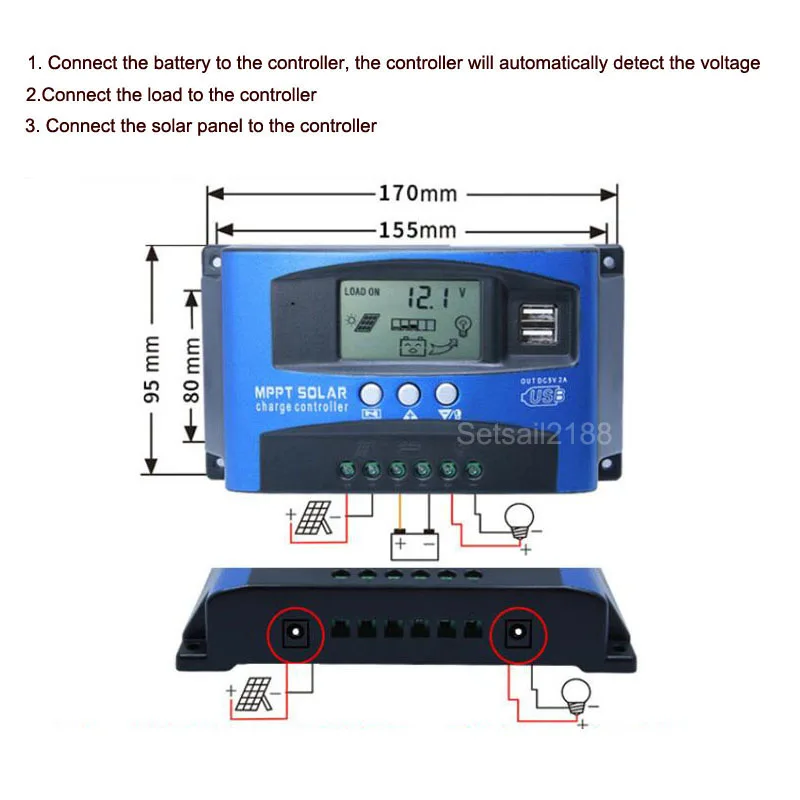

Dimensions170*92*45mm
Packing Size175*100*47mm
Packing Weight320g
Self-consum <10mA
Operating temperature-35°C~+60°C
Installation linenumber≤5#AWG(6mm2)







Product Parameters:





System voltage: 12/24V (automatic)
Rated charging current:   30a | 40a | 50a| 60a | 100a
Rated discharge current: 10a | 20a | 20a | 30a | 50a
Solar photovoltaic voltage:12V battery with 18V solar panel, 24V battery with 36V solar panel
Full Voltage Value : Lithium Battery (12.2V) |


                        B02 Colloidal Battery (14.2V) |


                                    B03 Open Cell (14.6V)



Floating Charge Voltage : 13.7 V ( Default, Adjustable )
Discharge cut-off voltage::10.7 V ( default, adjustable )
Discharge recovery voltage: 12.6 V ( default, adjustable )
Standby current :10mA
USB Output : 5V/2A MAX
Operating temperature:- 35 - 60






Features:





1. Industrial-grade main control chip, 16-level AD sampling accuracy. Temperature, charging current and discharging current are accurately displayed in real time, and the power generation is clear at a glance.
2. MPPT auto-focusing technology tracks charging, with high charging efficiency, detection during charging, and two-way focusing tracking.
3. Large LCD display with adjustable charging and discharging parameters. The ultra-wide charging and discharging parameters can be adjusted, so long as the characteristics of the battery and its corresponding charging parameters are known, it can be used to charge any battery, and the output is turned off. Minutes and hours can be adjusted, so it is more convenient.
4. Complete 3 - stage charge management to effectively protect the battery and make the battery more durable.
5. Built - in overheat, overcurrent, short circuit and reverse connection protection. When the fault is eliminated, the controller itself automatically resumes operation without damaging the controller.
6. Double MOS tube anti-reflux circuit, high-power charging mode, ultra-low calorific value.
7. Humanized design: 3A ( 5521 ) DC charging interface is provided at the lower left side of the front of the controller, and 3A ( 5521 ) DC output interface is provided at the lower right side of the front of the controller to allow direct connection to the bulb.













Product Information:





Menu key: switch parameter display interface and settings
Upturn: press this key once to add a level to the corresponding parameter
Down: press this button once to decrease the corresponding parameter down one level

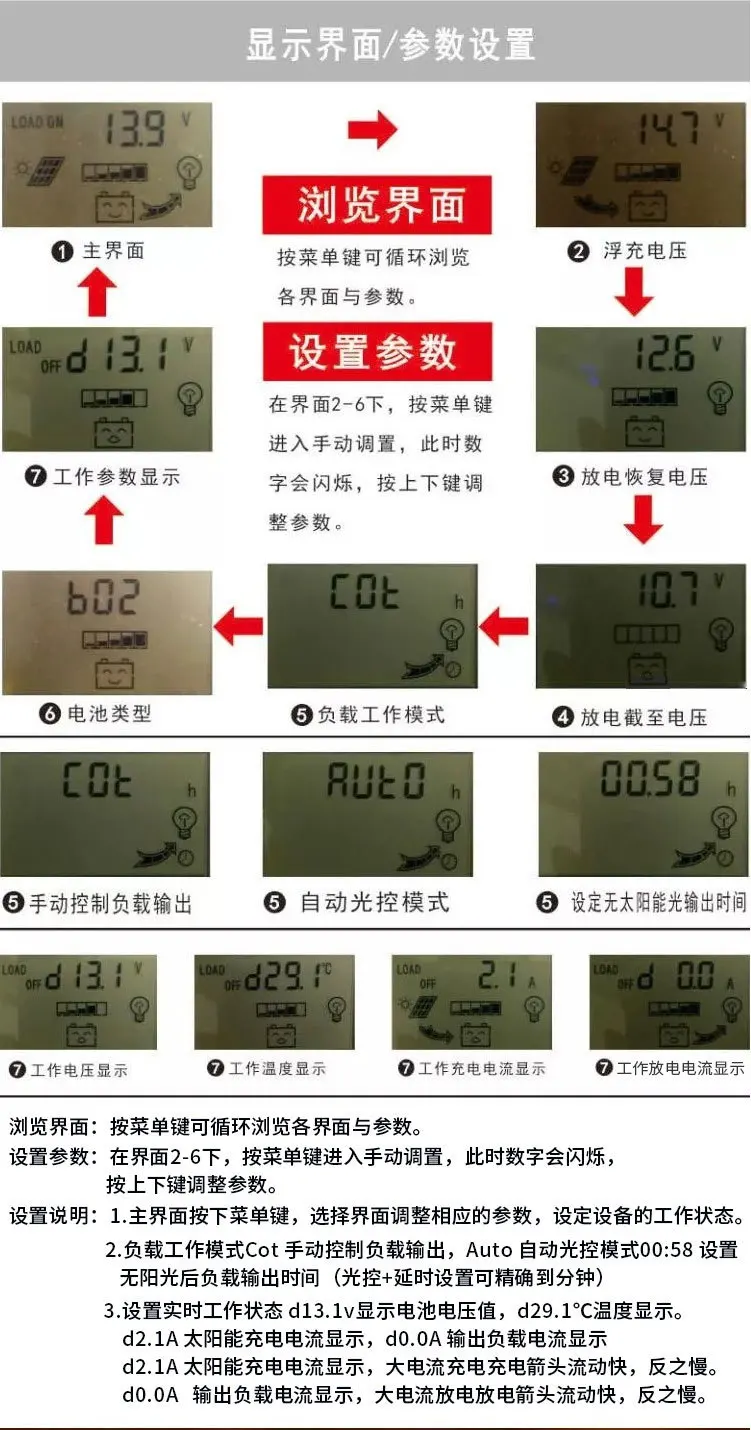

Setup Description:





1. Press the menu key in the main interface, select the interface to adjust the corresponding parameters and set the working state of the equipment.
2. Working mode of load, COT manual mode load output, AUTO automatic light control mode. 00: 58 Set the output time after no sunlight.
3. Set the real-time working status: D 13.1 V the battery voltage value display, D 29.1 ℃ temperature display, D2.1A solar charging current display, large current charging arrow flows fast, and vice versa. The d0.0a output load current dispaly, the large current discharge arrow flows fast and vice versa.

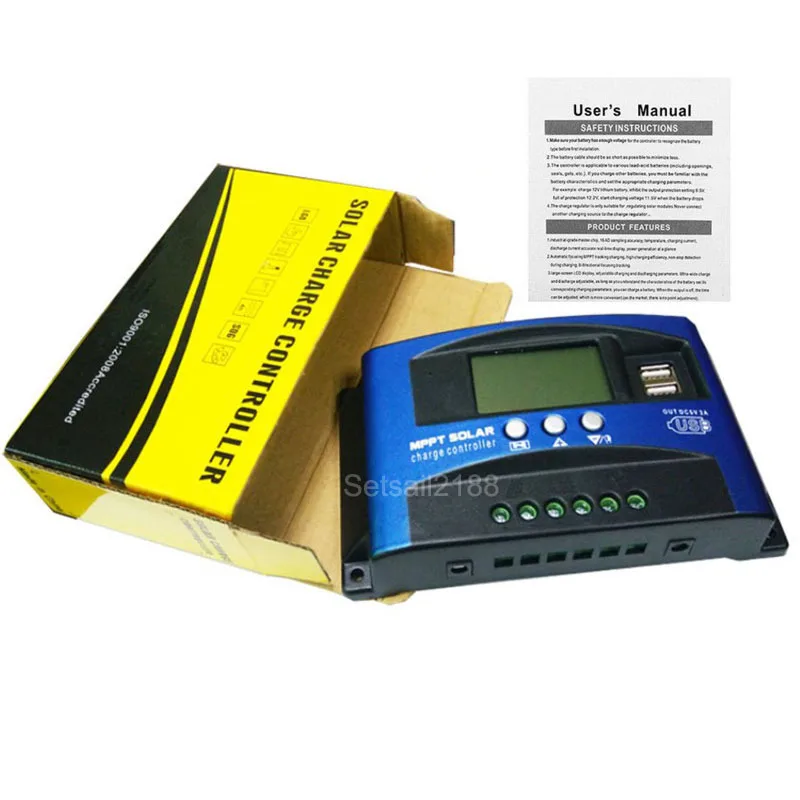

Packing List:


1 *Solar charger controller
1 *Manual
1 *Packing box
1pcs: 175*100*47mm/300g,
50pcs/ box GW16.5kg
