Фрезерный станок хобби с ЧПУ XH7125, фрезерный станок с ЧПУ
US $14900-$15300
VMC1270 вертикальный промышленный металлический фрезерный
- Категории: Machine Centre >>>
- Поставщик: Shandong,Gsk,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

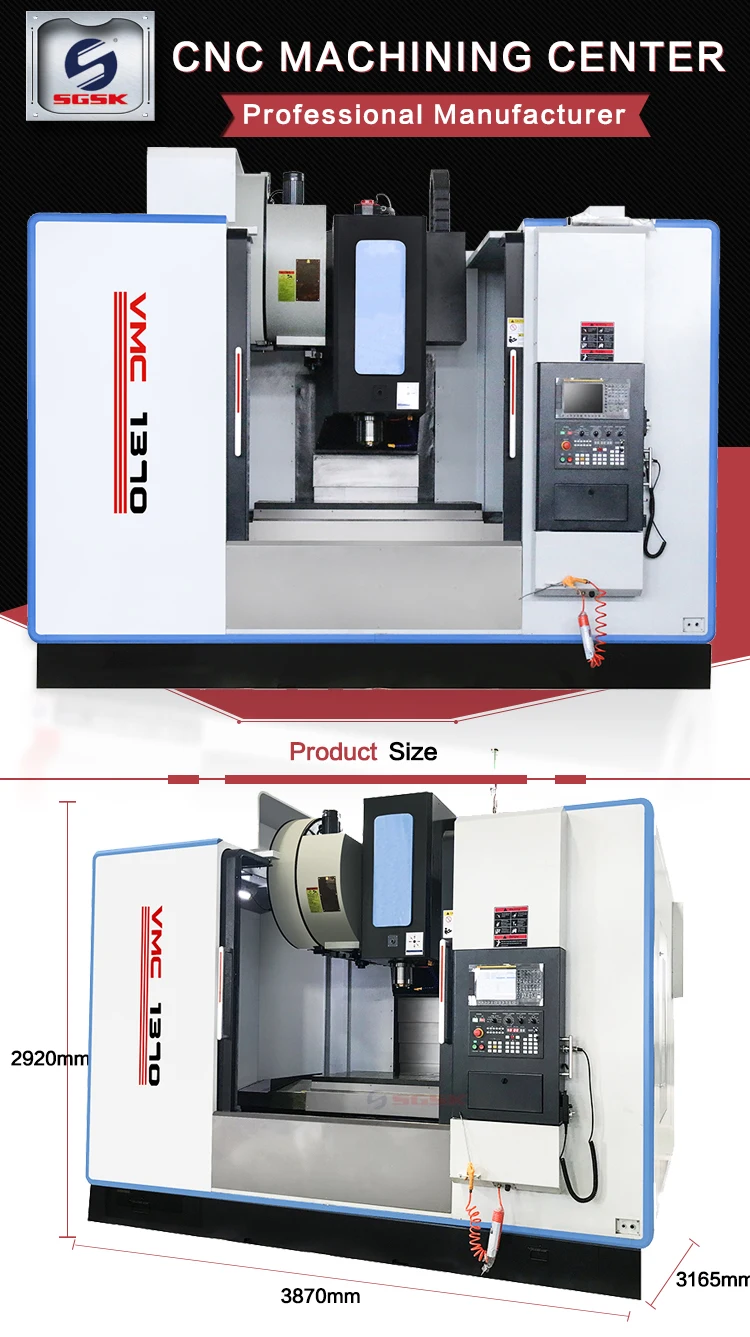

VMC1270 vertical industrial metal milling machine center
Products Description
Details Display
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:
specifications | unit | VMC1270 |
Table size | mm | 1300x700 |
X axis travel | mm | 1200 |
Y axis travel | mm | 700 |
Z axis travel | mm | 700 |
Distance between spindle center and column surface | mm | 767 |
Distance between spindle nose and table surface | mm | 130-830 |
T slot | 5-18*115 | |
Spindle taper | mm | BT50/Ø155 |
Max. spindle speed | r/min | 8000 |
Main motor power | kw | 11/15 |
X/Y/Z axis servo motor power | kw | 4/4/4 |
X/Y/Z motor connection | direct | |
X/Y/Z guide rail form | 3 axis linear guide rail | |
Max.table load | kg | 1000 |
Automatic tools changer | 24 arm type | |
X/Y/Z axis rapid traverse | M/min | 24/24/18 |
Cutting feed speed | M/min | 1-10 |
Position accuracy | mm | ±0.005/300 |
Repeat positioning accuracy | mm | ±0.004 |
Machine dimension | mm | 3800x3000x2650 |
Machine weight | kg | 11000 |
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
