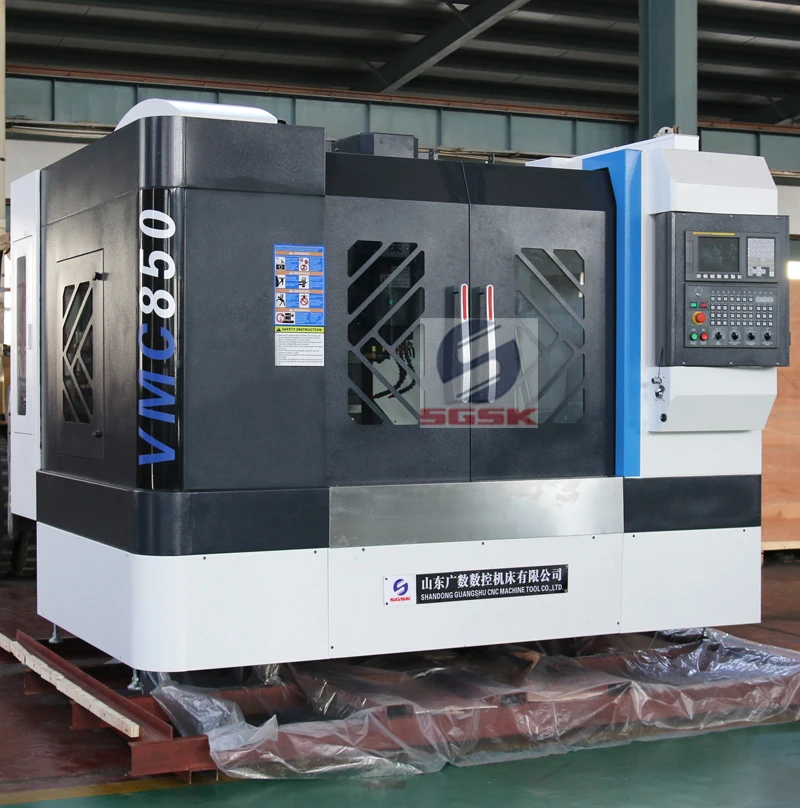

vertical machining center VMC850 3axi 4axi China cnc milling machine
Products Description

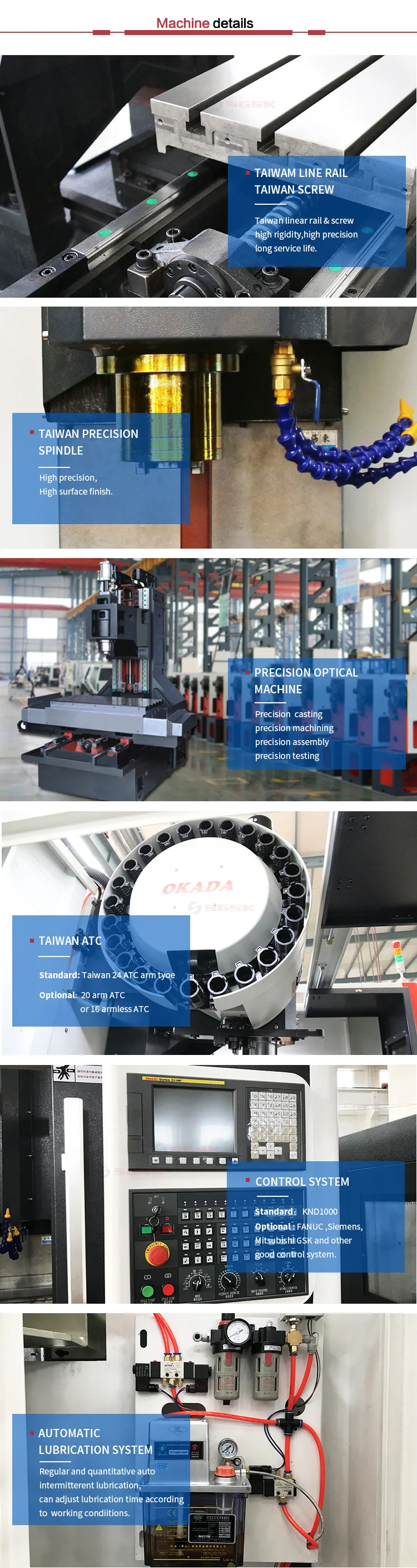

Details Display
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:
specifications
unit
VMC850
Table size
mm
1000x500
X axis travel
mm
800
Y axis travel
mm
500
Z axis travel
mm
500
Distance between spindle
center and column surface
mm
571
Distance between spindle nose
and table surface
mm
150-650
T slot
5-18*90
Spindle taper
mm
BT40
Max. spindle speed
r/min
8000(10000 optional)
Main motor power
kw
7.5
X/Y/Z axis servo motor torque
N.M
15/15/18
X/Y/Z motor connection
direct
X/Y/Z guide rail form
3 axis linear guide rail
Max.table load
kg
500
Automatic tools changer
16 Armless type(optional:24 arm type)
Max.tool weight
kg
8
Max. tool length
mm
250/350
Max. tool diameter
mm
100(Adjacent)/150(Apart)
X/Y/Z axis rapid traverse
M/min
24/24/20
Cutting feed speed
M/min
10
Position accuracy
mm
±0.005
Repeat positioning accuracy
mm
±0.003
Machine dimension
mm
2800x2300x2700
Machine weight
kg
5500
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
