Introduce |

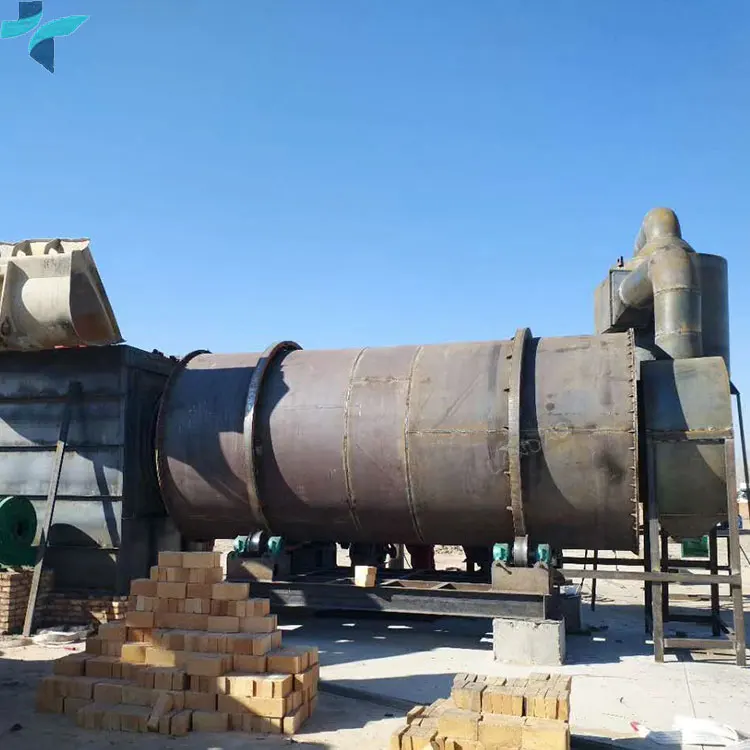

Three drum dryer is can be also called drum dryer, or dryer drum or rotary dryer machine,etc. Three drum rotary dryer fit to dry river sand ,sand, yellow sand ,quartz sand , material that is little viscosity. Coal fuel, wood fuel, diesel fuel, natural gas fuel, electric fuel and so on.
|
Integrated Type 3 To 5 Ton Per Hour Small Sand Dryer Complete Production Line
Integrated Type 3 To 5 Ton Per Hour Small Sand Dryer Complete Production Line
Performance Parameter of three cylinder dryer
Three Pass Dryer | TDS623 | TDS625 | TDS6210 | TDS6220 |
Drying Capacity | 1-3 m3/h | 4-6m3/h | 10-14m3/h | 20-30m3/h |
Diameter Of Drum | 2200mm | 2200mm | 2500mm | 2600mm |
Length | 1500mm | 2500mm | 2700mm | 3700mm |
Motor Power | 4KW | 5.5KW | 4KWX2 | 5.5KWX2 |
Reducer Model | XWD-5 | XWD-5 | XWD-5 | XWD-5 |
Speed Of Drum Rotation | 4-10r/min | 4-10r/min | 4-10r/min | 4-10r/min |
Moisture Of End Products | 0.1%-0.8% | 0.1%-0.8% | 0.1%-0.8% | 0.1%-0.8% |
Max. Temperature Inside | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ |
Outlet Temperature | 30-60℃ | 30-60℃ | 30-60℃ | 30-60℃ |
Integrated Type 3 To 5 Ton Per Hour Small Sand Dryer Complete Production Line
Working Principle |

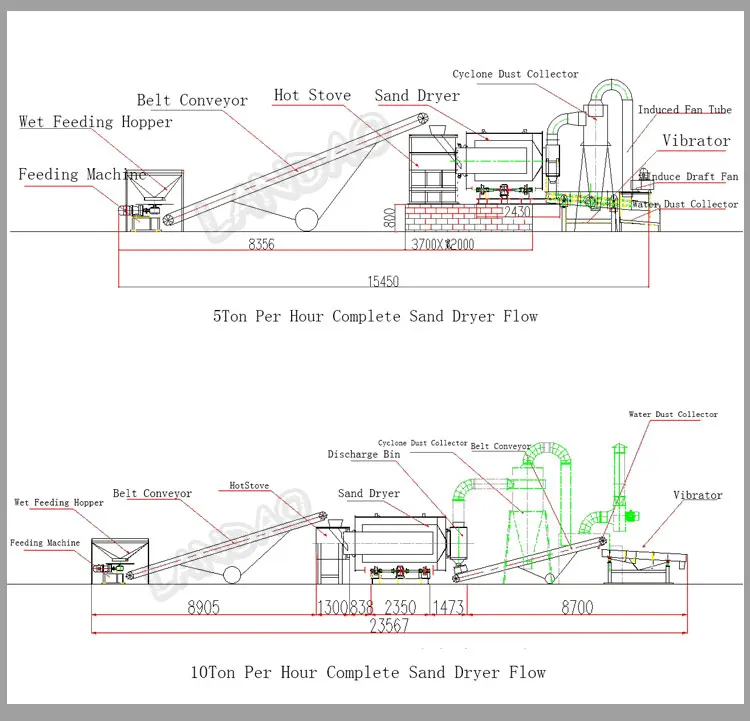

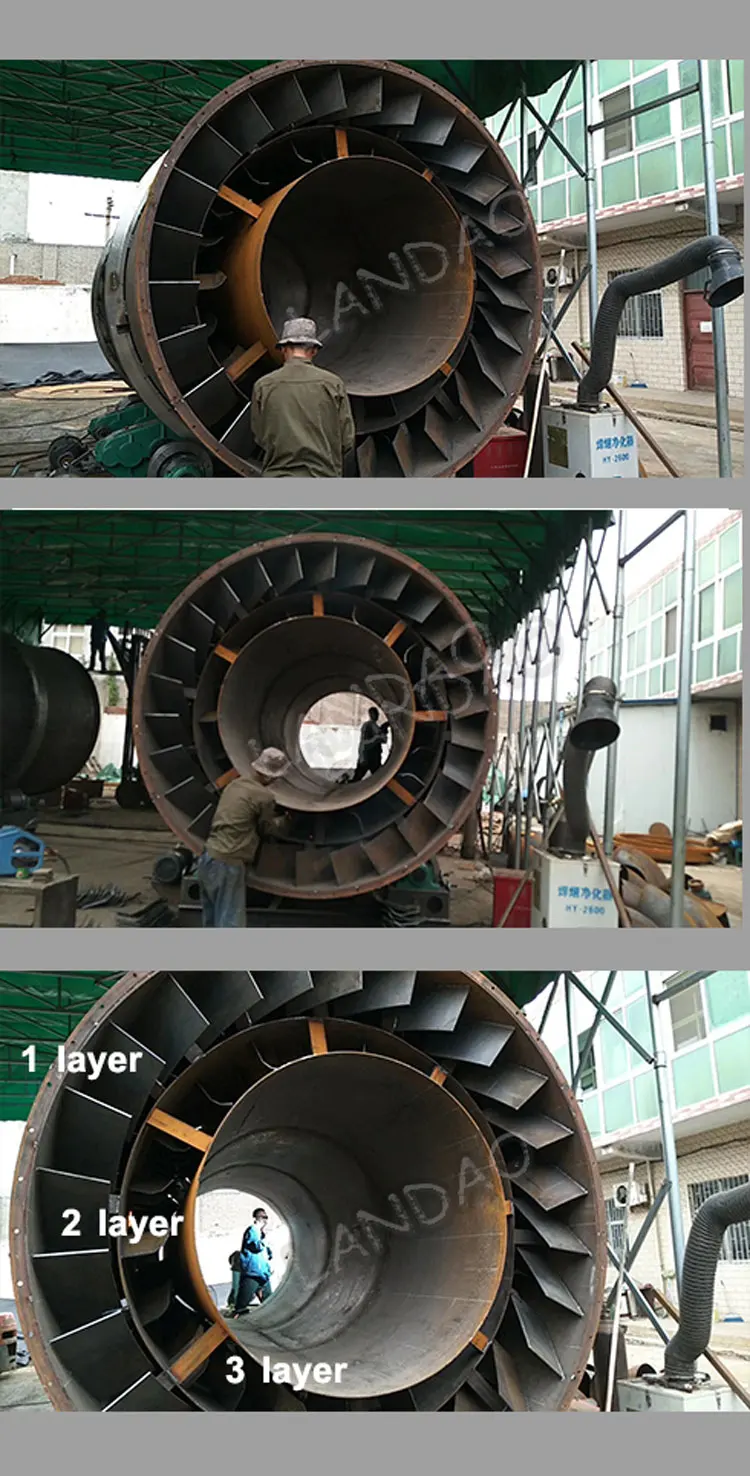

Material are delivered to the hopper by belt conveyor or bucket elevator . Then they go into the the charger tip by passing through the pipe of charger. When materials go into the tip of the dryer , heat carrier go into the dryer with material.After that ,they go into the discharging exit by passing through inner drum , middle drum and outer drum to go into the discharging storehouse . After heat carrier pass through the dryer it needs cyclone dust collectors to gather in the material within the gas . If you want to reduce the amount of dust within tail gas , you should use bag duster or wet process duster to discharge .Then, materials are sifted and segregated qualified production by linear vibrating screen . |
Integrated Type 3 To 5 Ton Per Hour Small Sand Dryer Complete Production Line

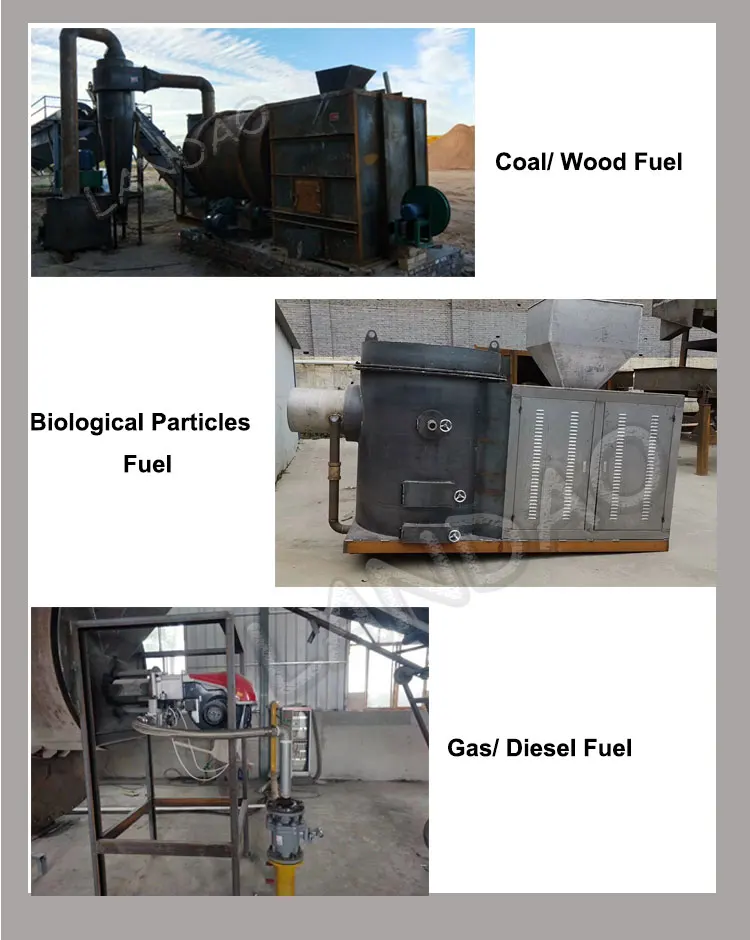

Fuel | 1ton wet sand consume fuel | Calorific value |
Coal | 10kg | 5500 kilocalorie/kg |
Biological particles | 13kg | 4000 kilocalorie/kg |
Natural gas | 6m3 | 8000 kilocalorie/kg |
Liquefied gas | 5kg | 11311 kilocalorie/kg |
Diesel | 5kg | 11010 kilocalorie/kg |
Methanol | 14kg | 3700 kilocalorie/kg |
Remark:1ton dry sand need remove 10% water then need 54000 kilocalorie |
1)FCL: in nude for standard exporting container |
2)LCL: Poly wood case |
Wire cables are used for fastening the machine |
Cork wood are placed in front or behind the machine to protect it. |
Plastic film is covered on the machine as a rain-roof. |
1.According to your inquiry, We will reply to you in 24 hours. |
2.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods. |
3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair. |
Henan Landao Machinery And Equipment Co., Ltd. is a manufacturer and specializing in the research, development and production of construction machinery for nearly 13 years. and mained manufacture construction equipment,like concrete mixer,concrete batching plant,winch,dry mortar production line and sand dryer. |
