Fanless i3 i5 i7 4005U 4200Y 4200U 4500U MiniPC Intel Celeron Pfsense Router Firewall Mini Pc
Product promotion
Product Description
Dimension | 187*111*50mm(L*H*W) |
Weight | 2Kg (Reference) |
Power Consumption | 15W |

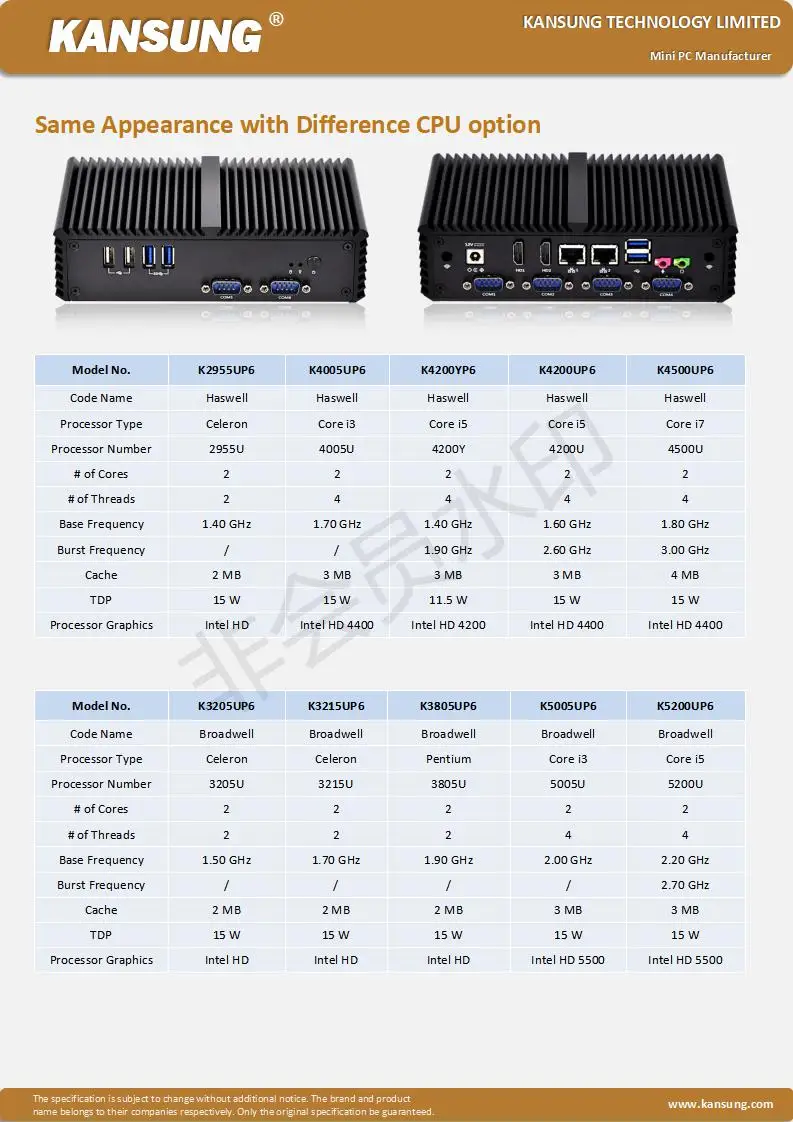

Onboard CPU | K4005UP6: Intel Core Processor i3-4005U(Dual-Core 3M Cache,1.7GHz) K4200UP6: Intel Core Haswell SOC Processor Default i5 4200U Dual Core Processor, 1.6GHz, 3M Cache, up to 2.6GHz K5200UP6: Intel Core SOC Processor Default i5 5200U/5250U Dual Core Processor, 2.2GHz, 3M Cache, up to 2.7GHz |
Memory | 1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
Chipset | Intel Soc Chipset |
Hard Disk | 1 x 2.5-inch HDD/SSD
1 x Mini-PCIe for mSATA SSD |
Onboard VGA | Intel HD Graphics 4400 |
Onboard LAN | 2* Intel I211AT - 10/100/1000 Controller |
Front-Panel Connectors | • 1 x Power Button • 1 x Power LED • 1 x HDD LED • 2 x USB 3.0 • 2 x USB 2.0 • 2 x RS-232 Serial port (COM5, COM6) |
Expansion | • 1 x Full Length Mini-PCIe for SSD • 1 x Mini-PCIe for Option (Full-length for 3G, or Half- length for Wi-Fi Module by default) • 1 x SIM Card Slot • 1 x Automatically Boot Jumper • 1 x 2.0 Pitch Header for GPIO • 1 x 2.0 Pitch Header for VGA • 1 x DC-in Header *COM2 can be set up as RS-232/RS-485 (Factory Setting) *COM3 can be set up as VGA (Factory Setting) |
Back-Panel Connectors | • 1 x 12V DC Power Jack • 2 x HD • 2 x RJ-45 Port for Gigabit LAN • 2 x Audio (Mic-in & Line-out) • 2 x USB 3.0 • 4 x RS-232 Serial ports(COM1, COM2, COM3, COM4) |
Operating System | Support Win7 /8 / Win10 /Linux etc(can't support winXP). |
Configuration for Selection
Memory | 2G, 4G , 8G DDR3 RAM |
Hard Disk | 8G/16G/24G/32G/64G/128G/256G/512G Msata SSD or 500G/1Tb 2.5" HDD(Optional) |
WIFI | Optional |
Front Port
1 x Power Button
1 x Power LED, 1 x HDD LED
2 x USB 3.0, 2 x USB 2.0
2 x RS-232 Serial port (COM5, COM6)
Back Port
1 x 12V DC Power Jack
2 x HD Ports
2 x RJ-45 Port for Gigabit LAN
2 x Audio (Mic-in & Line-out)
2 x USB 3.0
4 x RS-232 Serial ports (COM1, COM2, COM3, COM4)
Expansion
1 x Full Length Mini-PCIe for SSD
1 x Mini-PCIe for Option (Full-length for 3G, or Half- length for Wi-Fi Module by default)
1 x SIM Card Slot
1 x Automatically Boot Jumper
1 x 2.0 Pitch Header for GPIO
1 x 2.0 Pitch Header for VGA
1 x DC-in Header
>>>COM2 can be set up as RS-232/RS-485 (Factory Setting)
>>>COM3 can be set up as VGA (Factory Setting)
>>>If you need, pls leave message in advance.
BIOS support
F11 key boot from USB Drive. Delete key enter into BIOS.
Support configure for Auto startup after Power interruption, specific time startup;
Support Diskless booting and Wake on LAN.
What's in the box
1 x Mini PC
1 x Power adapter
1 x Power cable
1 x Bracket
Hot Sale
New Products
Motherboard Related
Company Information
FAQ
Q1: Can I get a sample for testing?
A1: Yes, sample will be delivered as your request after receiving sample cost and shipping cost.
Q2: What mode of transport you can choose?
A2: By Express such as DHL.Fedex.EMS, or By Air & Sea transportation, or your appointed.shipping company.
Q3: What's the payment term?
A3: We accept T/T, western union, Paypal.For bulk order by T/T, 30% in advance and 70% before delivery.
Q4: Can I print my logo on the mini computer?
A4: Yes, we can print your logo on the mini computer with free cost.
Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7/365, BIOS can set up Auto Power after a power loss. For high performance CPU item, the temperature would be a little high, but don't affect working
Q6: What's the warranty of mini computer?
A6: 3 month for replacement, 1 year warranty for repair
Q7: If we come to China, can you arrange the visiting to your factory?
A7: We warmly welcome and look forward to your visiting to our factory at any time.
