Экструдер для пластиковых нитей с маленькой 3D печатью
US $400.00-$700.00
Машина для изготовления дверей и окон из ПВХ экструзионная производственная линия по
- Категории: Экструдеры для пластика >>>
- Поставщик: Greenwill,Machinery,(,Zhangjiagang),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
PVC window profile production line
Plastic pvc doors and windows making machine
PVC profile extrusion line
PVC windows and doors profile making machine
1) Mainly used to produce the PVC window profiles, plastic decorative plates and PVC
foam profiles
2) Use frequency conversion for speed regulation
3) Has super-taper twin-screw extruder with temperature controlling instrument in the screw core
4) Saves power by 30% - 40%
5) The rigid gear surface of the reducer can be operated continuously for a long
time without trouble
6) Operation and mold changing are smooth and steady
7) Long usage life
8) Can produce steel plastic profiles by changing the wood imitation foaming profile
mold, combines with one set of steel liner conveying devices
Description of PVC window profile making machine
Description | Parameters |
Product size | customized |
Material | PVC powder+ additives |
Production line speed | 0.5-1.5m/min |
Max. output | 150-240kg/h |
Overall dimensions | 25m×2.5m×3m (L×W×H) |
Weight(Approx) | 13T |
Total installed power | 120kw |
Actual energy consumption power | 80kw |
Gas consumption | 0.4m3/min |
Air pressure | 0.6mpa |
Water circulating device | 0.5m3/min |
Electric condition | 380V/3P/50Hz |
Water supply | Water used for industry, no impurities, by filtrating, water pressure: 0.4mpa water temperature14~25°C |
Work environment temperature | 0-40°C |
Detailed Images

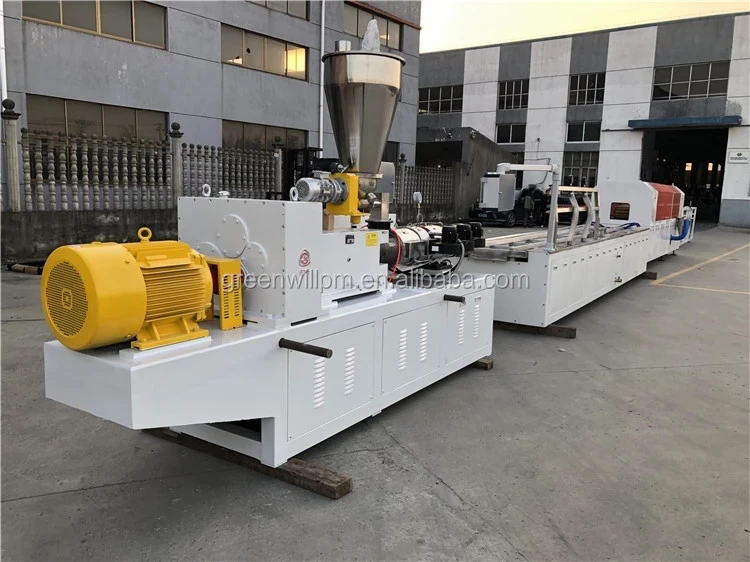

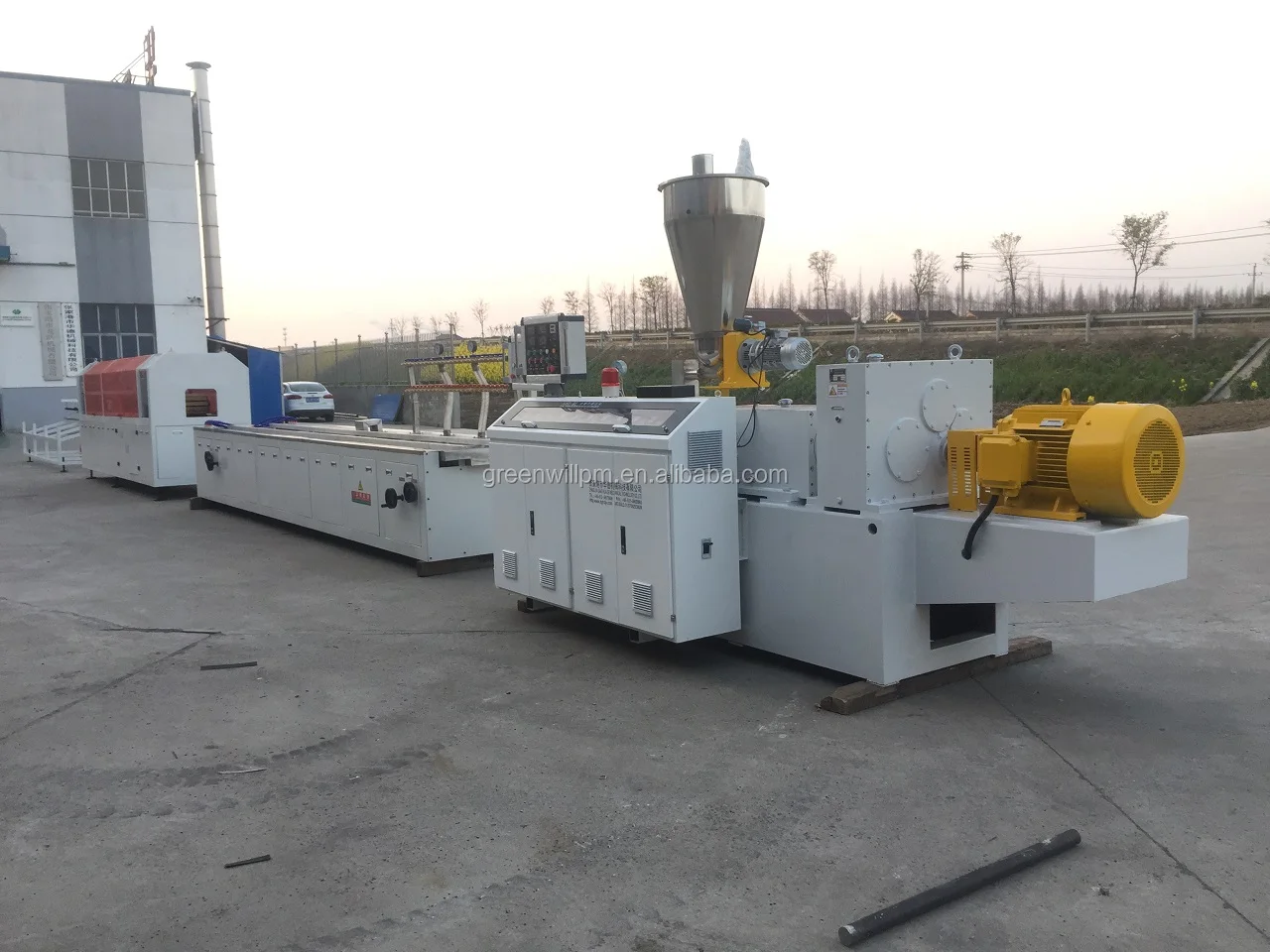

Complete plastic pvc door window profile/ceiling panel making machine extrusion production line

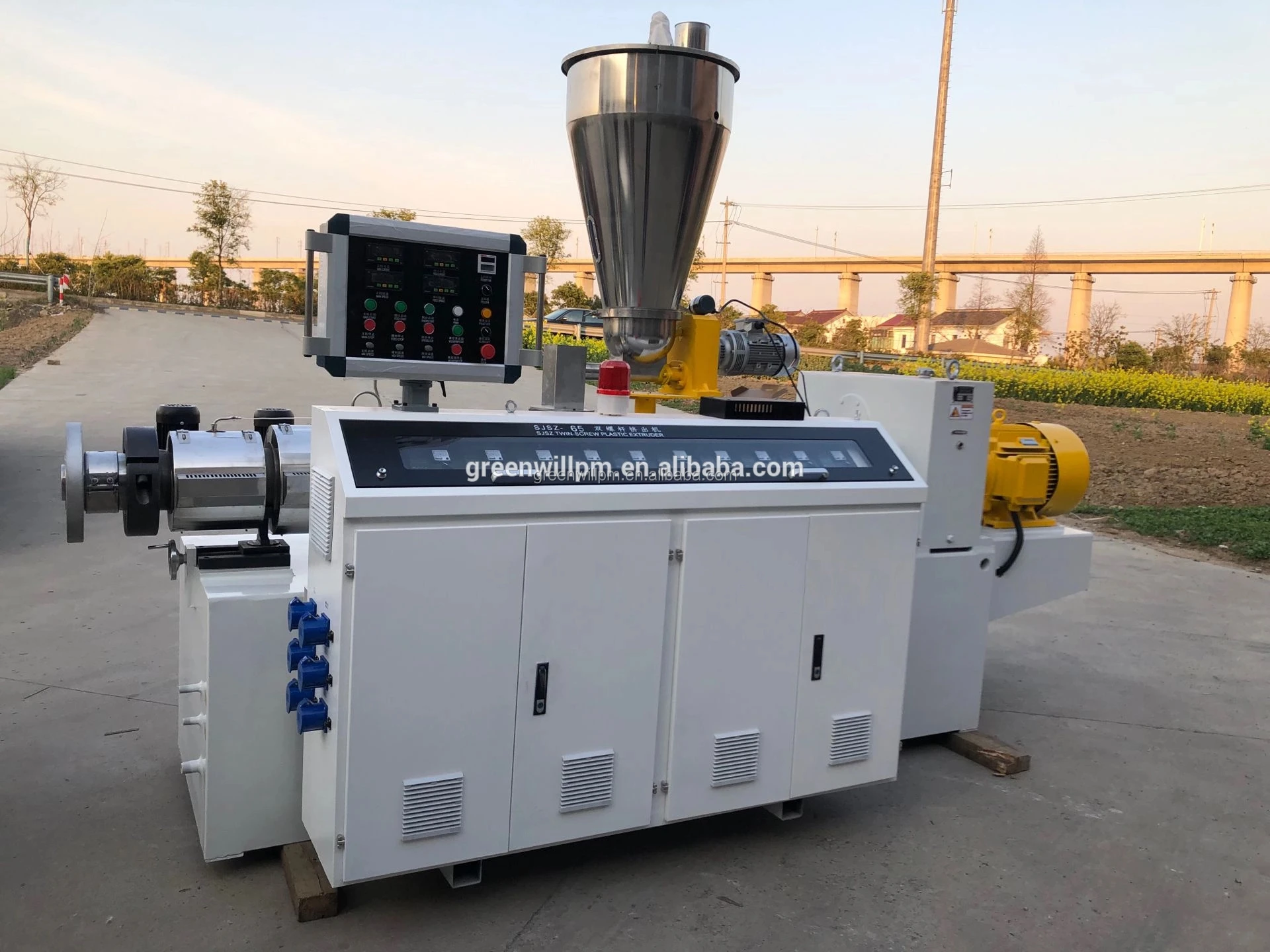

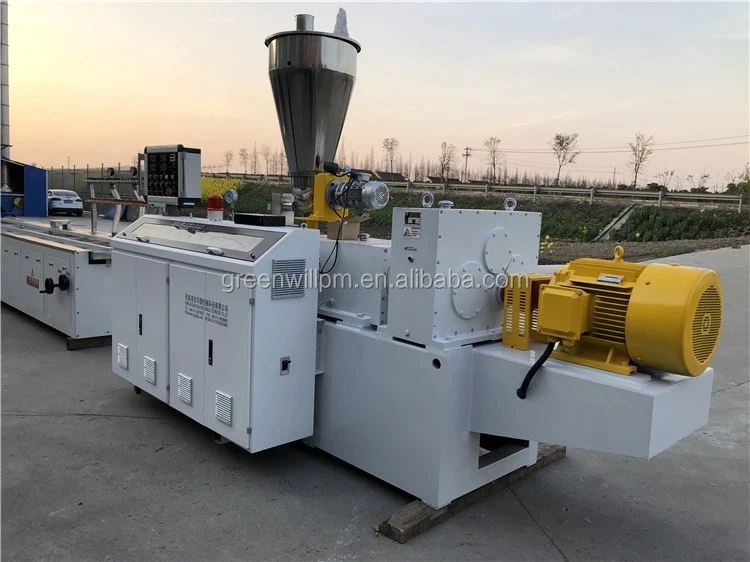

Extruder machine of pvc profile production line

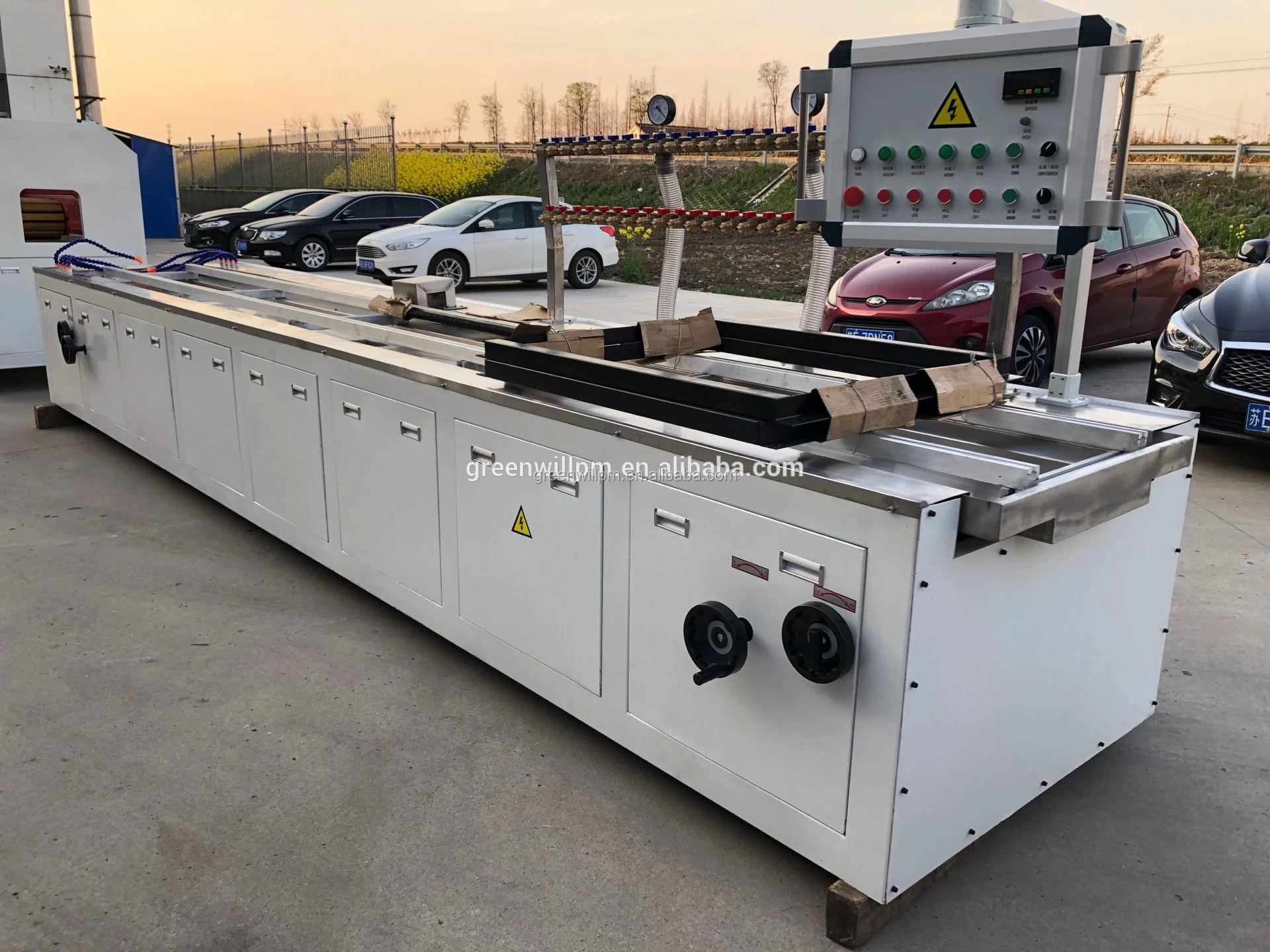

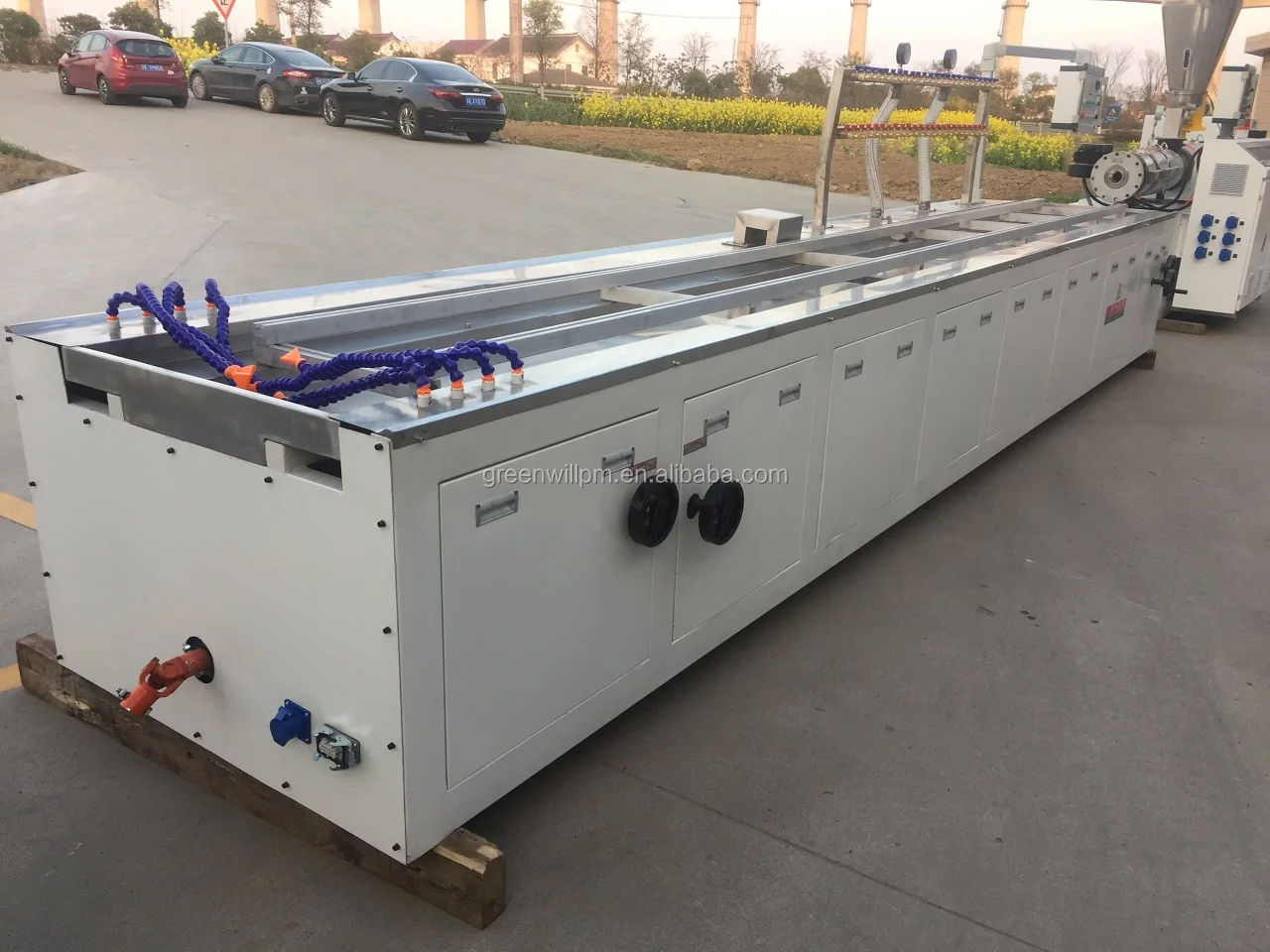

Calibration table of plastic window profile making machine

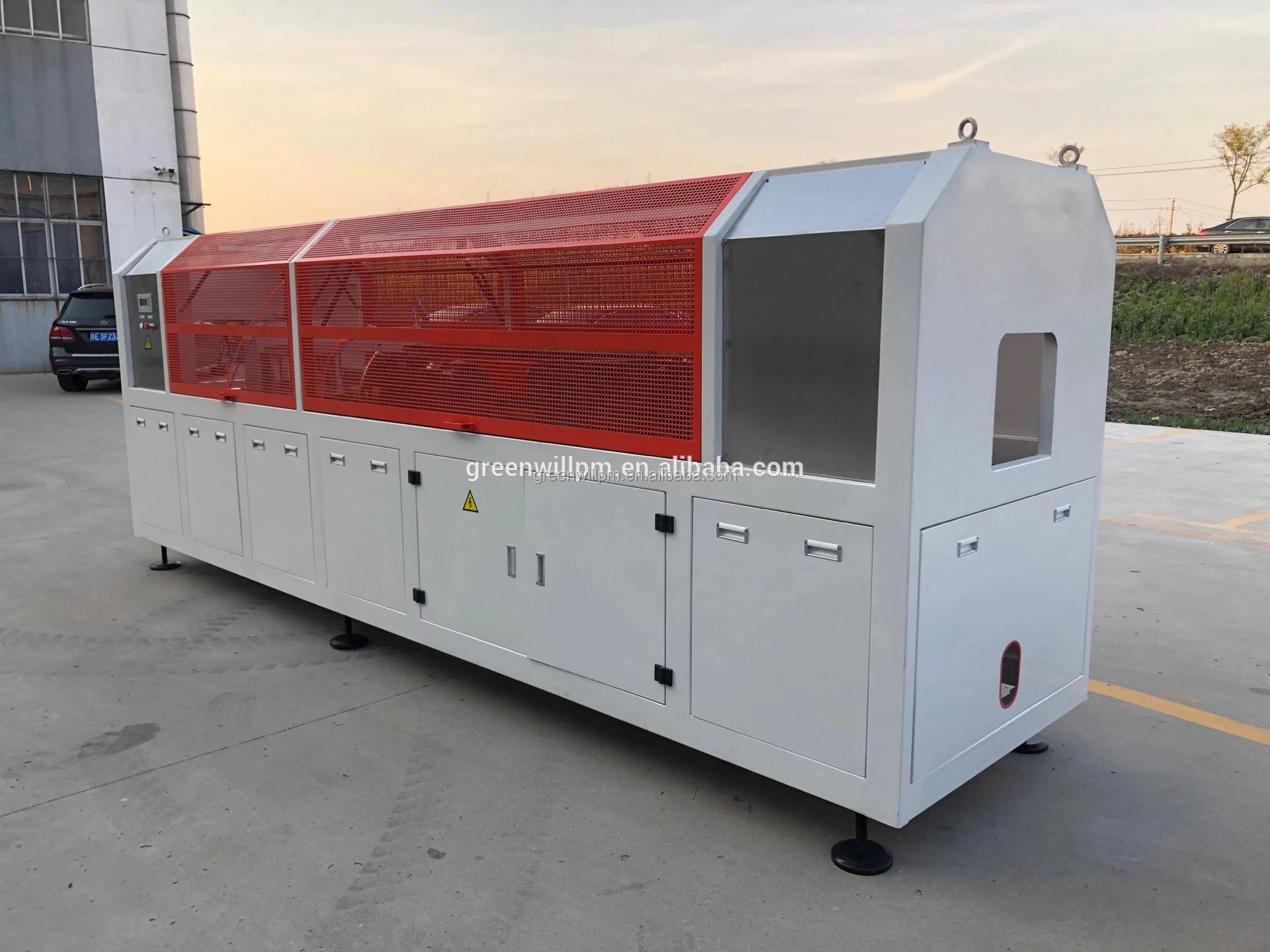

Haul off and automatic cutting machine of pvc window extrusion line

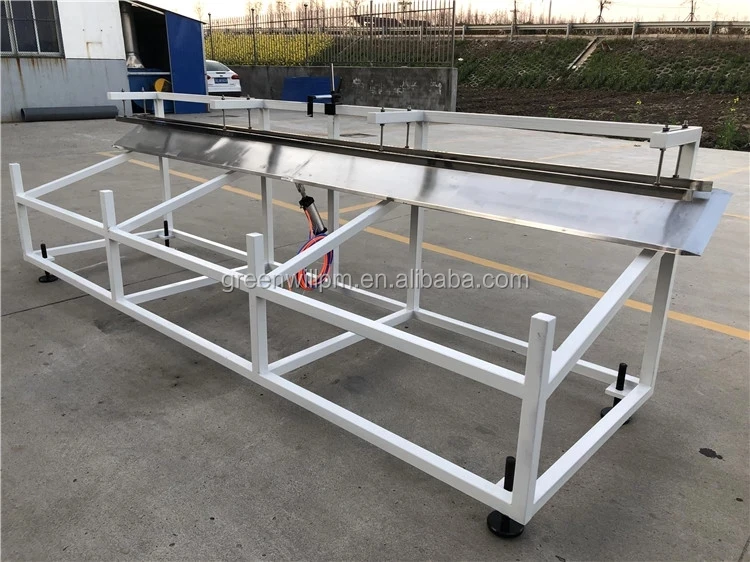

Stacker of plastic pvc door profile extrusion production line

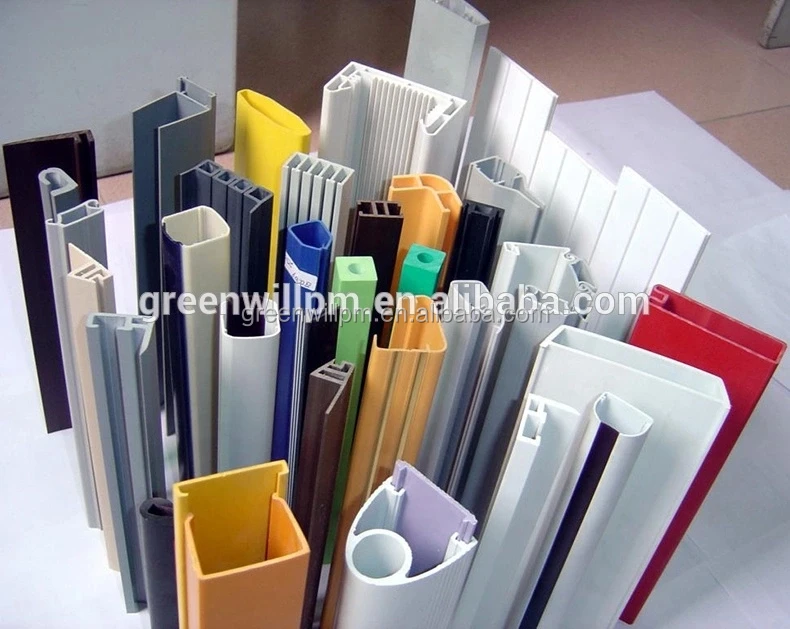

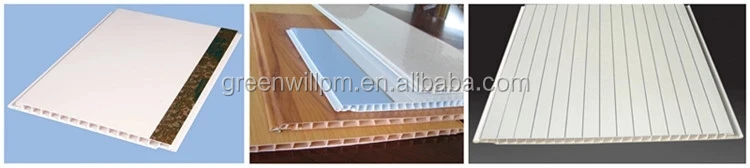

Final pvc ceiling panel and window profile with some surface treatment such like lamination or hot stamping
Related Products
You may also like

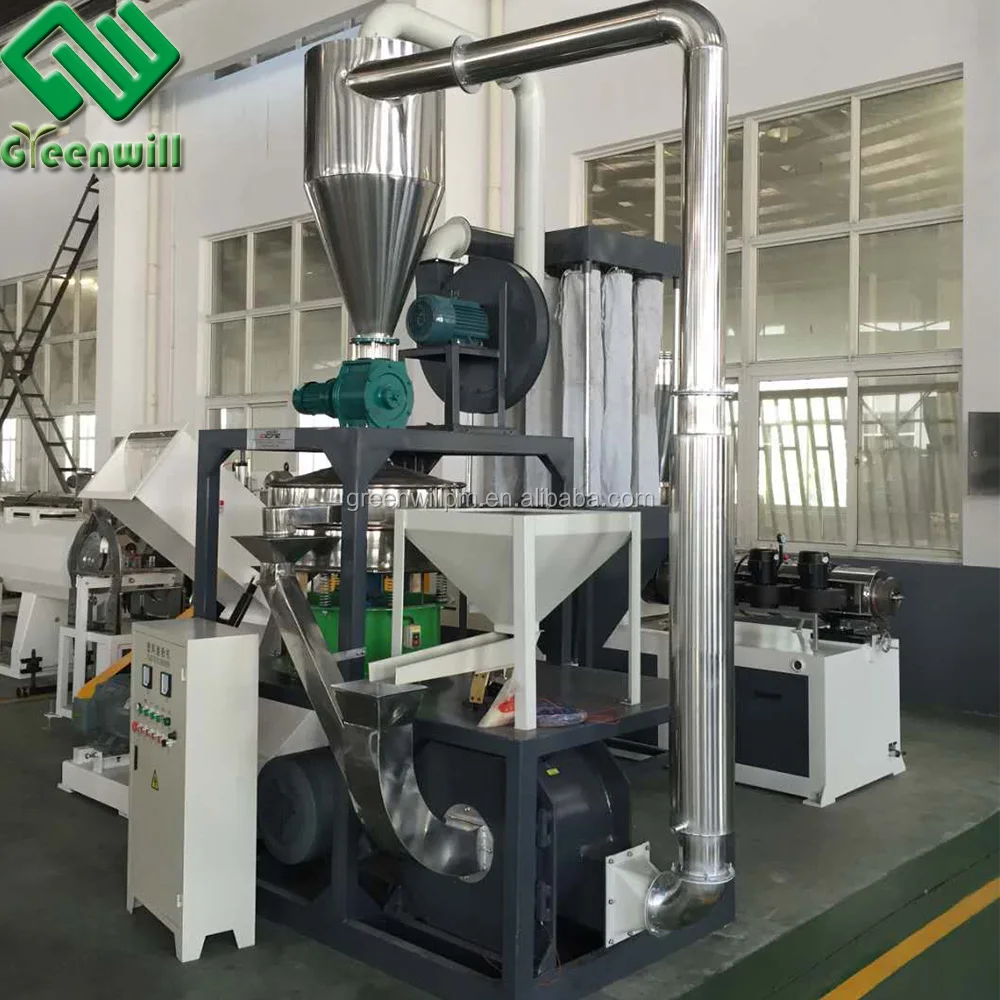

Plastic pulverizer/milling machine for recycling PVC panel or profile
(Click to get more information)
Certifications

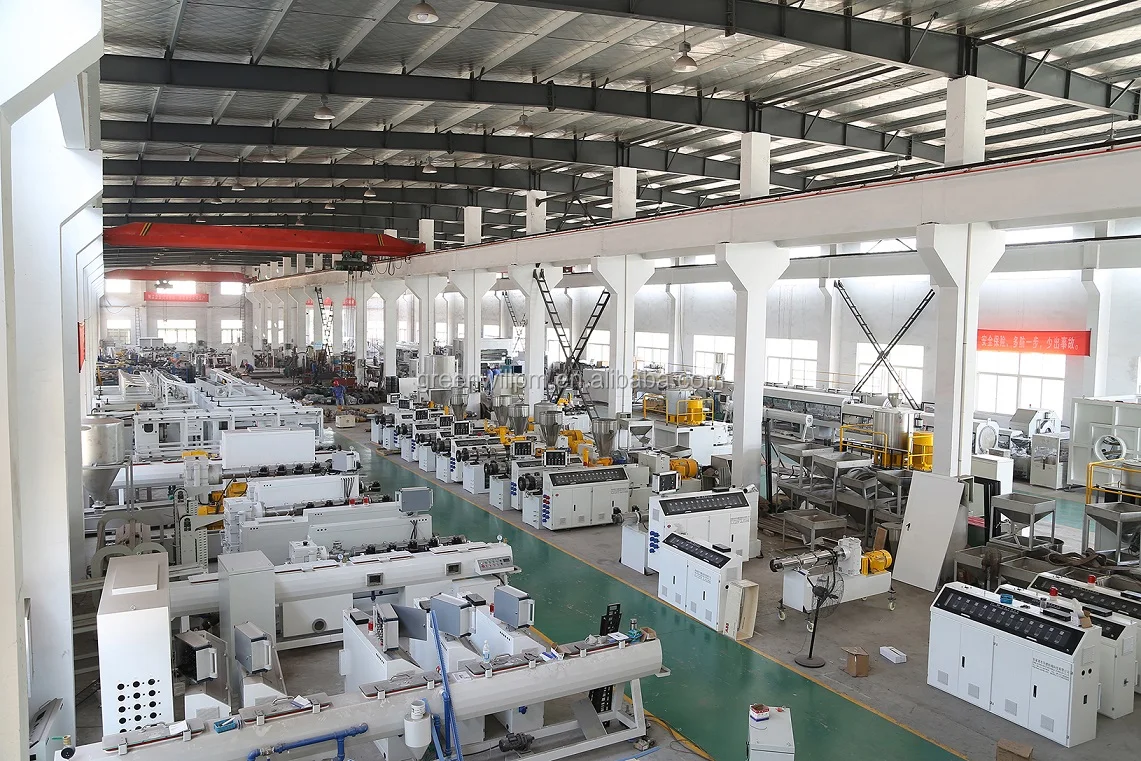

Company Information
Exhibition show
Packaging & Shipping
Do our best to packing and loading to protect each part of machines from the Risk or Accident.
FAQ
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or Alibaba trade assurance.
Q3:If you can extend the guarantee time?
A3:Yes.Our guarantee time is 24 months.Double times of other factory because we have strong confidence for our product.
Q4:If you will send engineer coming to our factory to install and test the machines?
A4:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q5:If you have CE,SGS,ISO certificate?
A5:Yes,except these,if you also need other certificates,we also can help to apply.
Q6:If we buy your machines, can you offer us wear-out spare pats?
A6:Yes,We provide our high quality machine 2 years’ guarantee,and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q7:The voltage,if you can design according to our request?
A7:Yes.
Q8:If you support Alibaba trade assurance pay?
A8:Yes.100% support.
