Metal fireproof door roll forming machine anti-fire door panel production line

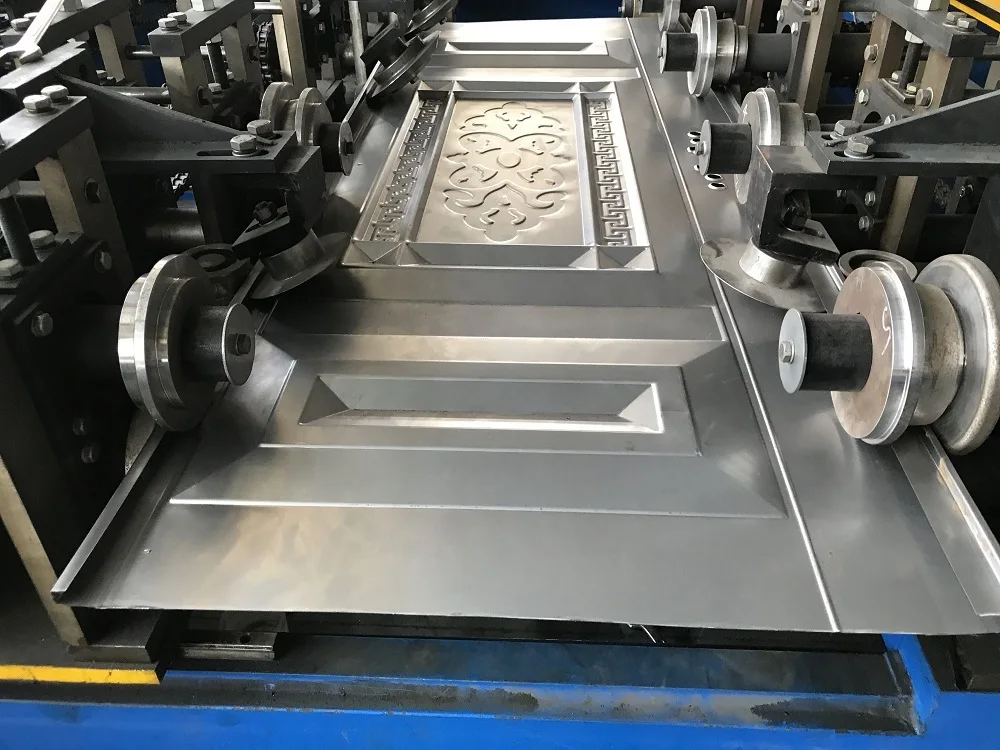

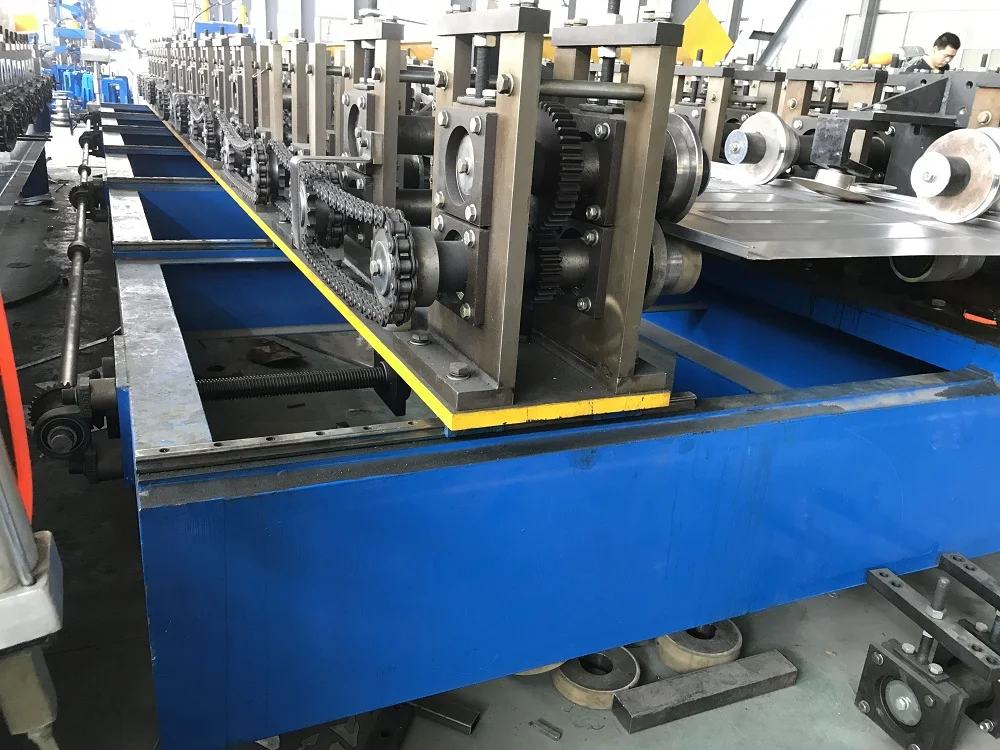

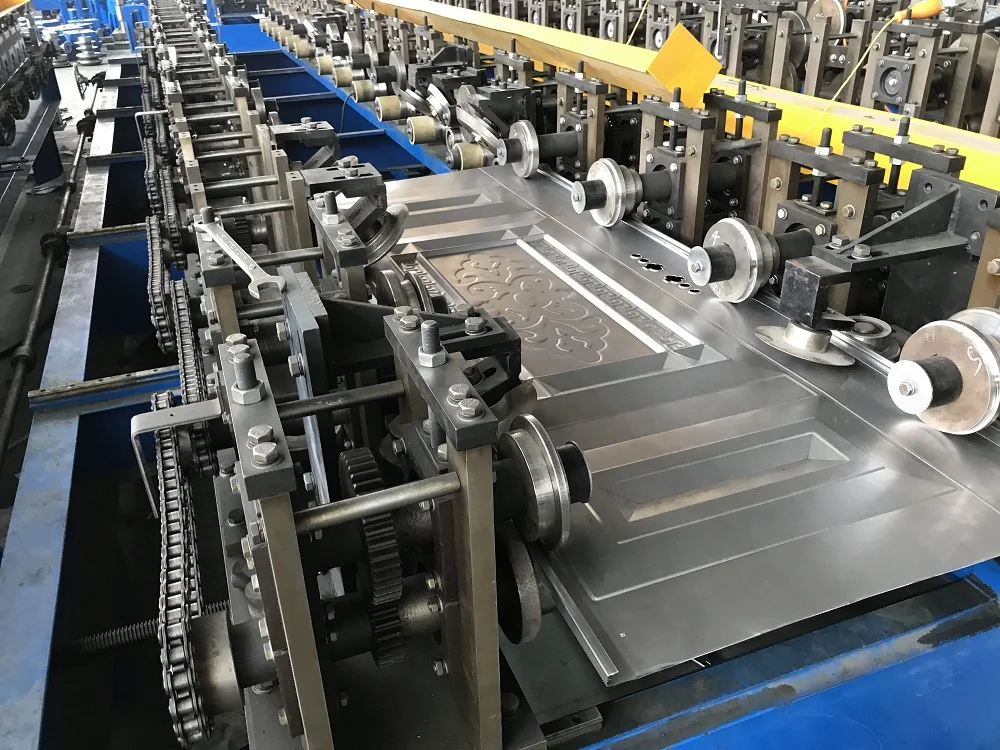

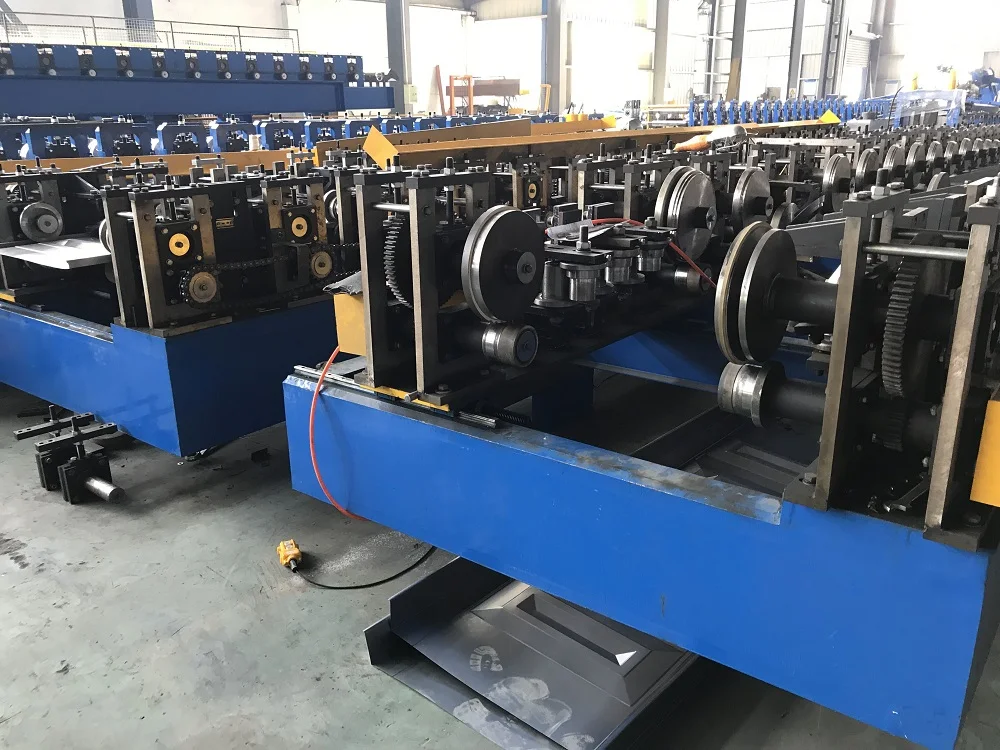

Metal fireproof door roll forming machine anti-fire door panel production line is designed to make the metal doors for buildings and houses. Metal door rollforming line including the decoiler, embossing, punching and roll forming system, whole line is full automatic running. below are some pictures for your reference:









































































According to so many application of the metal hollow doors, our factory has many years of designing and manufacturer the metal hollow doors rollforming lines. Hollow metal doors, there are different width and length, depending on this requirements, we design the metal Rollformer with automatic adjusting function, which can be moveable from right side to left side, and from left side to right side, for changing the door width.

If you want to know more about Door Panel Rollforming Line, Door Frame Rollforming Line, please feel free send me an inquiry, i will feedback the information with machine pictures, videos, designing solution to you!

According to your metal door thickness, sizes, we can offer you a quotation within 24 hours.



the basic  Information of stud door frame roll forming machine



name	stud door frame roll forming machine
Processing material	colored steel, galvanized sheet, or aluminium plate
Material thickness	0.8-1.5 mm
Material hardness	550 mpa---350 mpa
Material width	200mm(according to the profile)
Formed width	101.6mm (according to the profile)
Forming speed	12m/min
Working speed	8m/min
Voltage	380V 50HZ 3Phase
Roller fixer	Guide column
Frame	400 H steel
Drive mode	chain
Material of rollers	45# steel, surface hard chromium plating.
Material of shafts	45# steel with tempering
Diameter of shafts	φ70mm
Number of rollers	20 rollers
Main power	5.5kw
Hydraulic power	3kw
