Specifications:

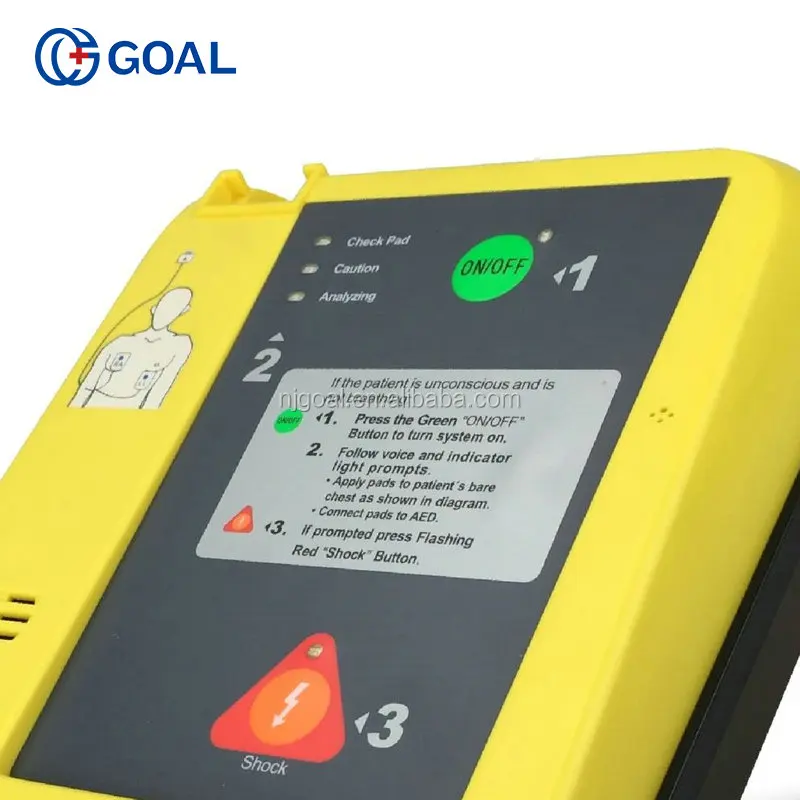

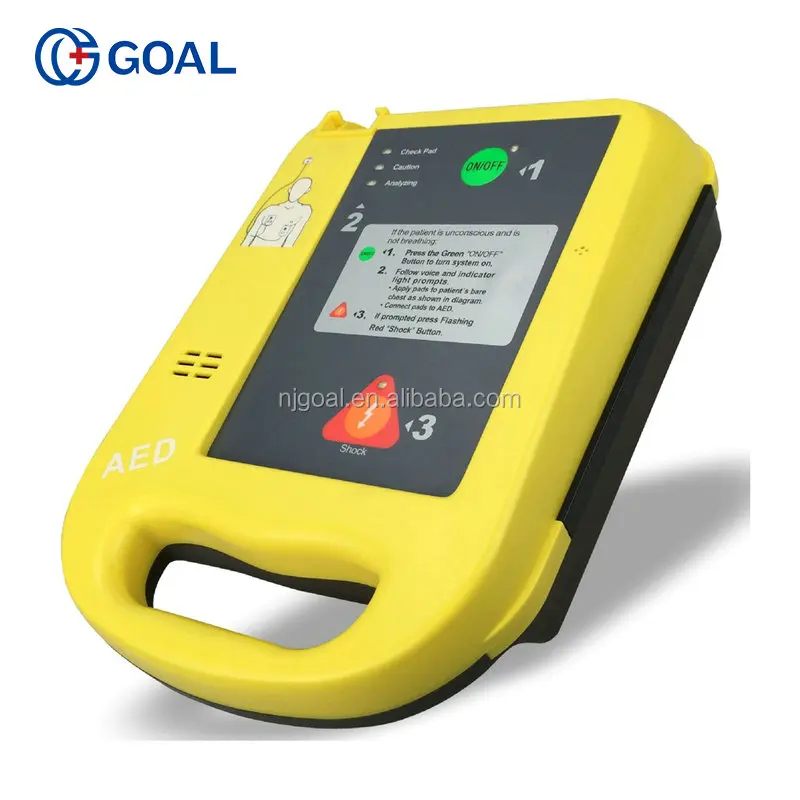

1. Automatic External Defibrillator features include:
2.Three-step defibrillation process
3.Two-button operation
4.Extensive voice and visual prompts for the operator
5.Biphasic energy output
Battery:
Category | Specification |
Part No | CR123A-4x2 |
Non-rechargeable | 12V d.c. 2.8Ah |
Capacity | 100 discharges at 200 Joules or 120 discharges at 150 Joules |
Shelf Life (25℃±15℃) | 5 years |
Physical:
Category | Specification |
Dimensions | 303 x 216 x 89 mm |
Weight | 2.0 kg |
Operating Temperature | 0℃ to 40℃ |
Operating Humidity | Relative humidity between 30% and 95% (non-condensing) |
Storage Temperature(without battery) | -20℃ to 55℃ |
Storage Humidity(without battery) | Up to 93% (non-condensing) |
Electrical Isolation:
Category | Specification |
Power | Unit operates on internal battery only |
External Electrical | No external devices are attached to the unit |
Risk Current Category | Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard) |
