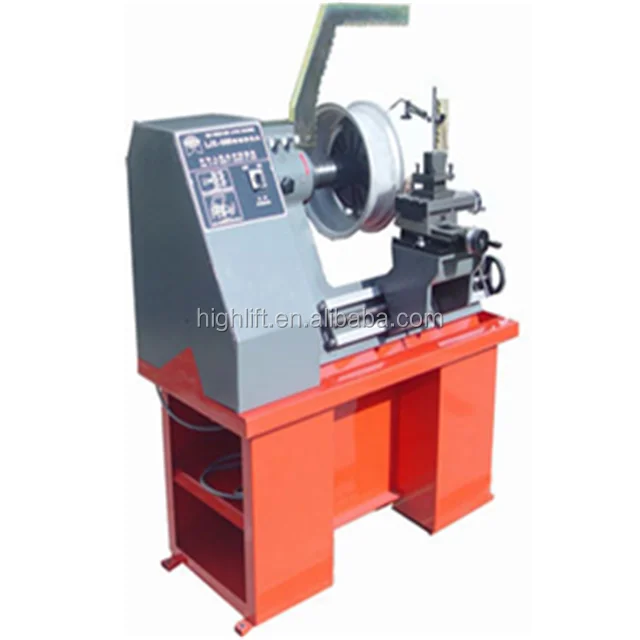

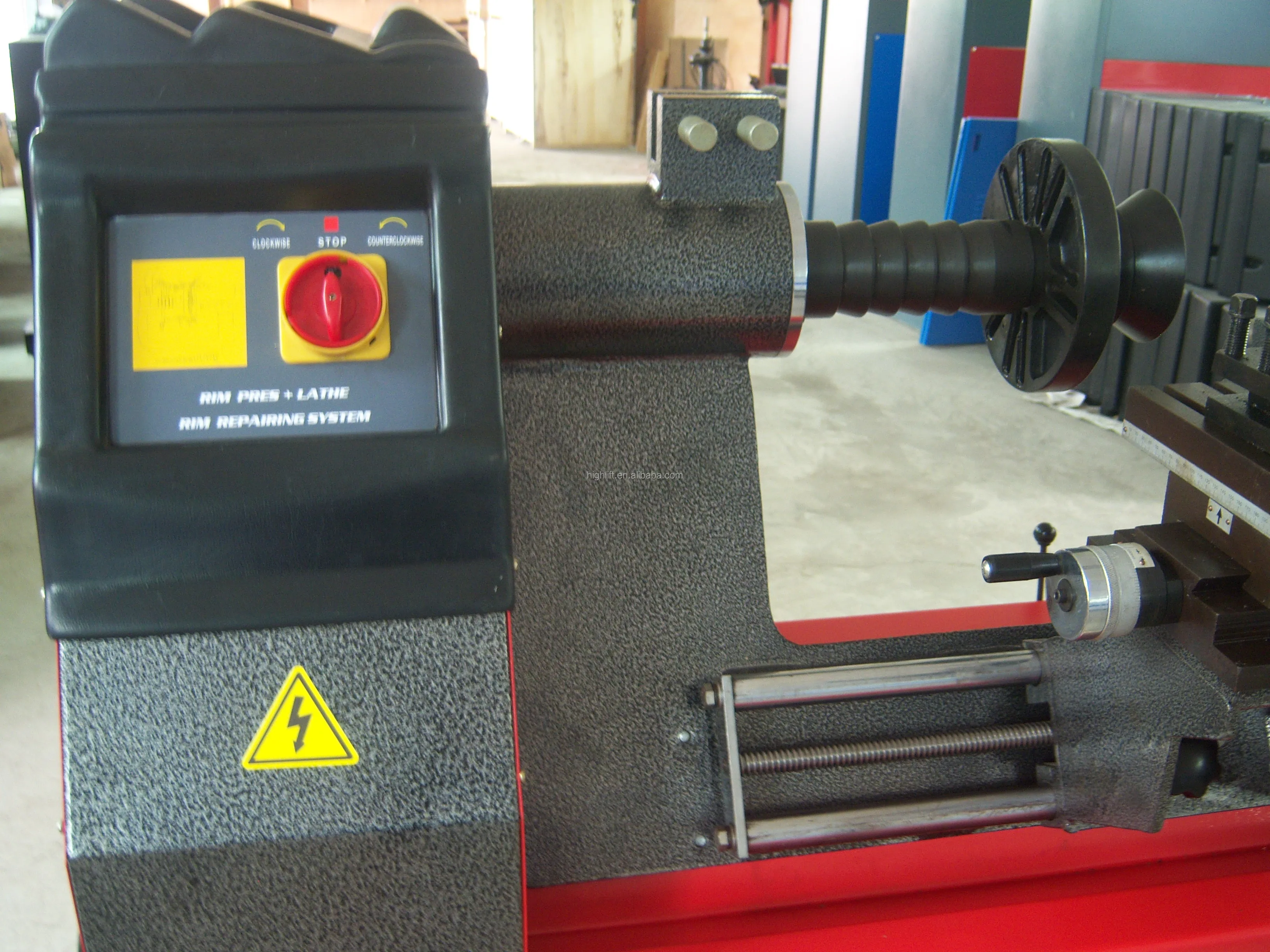

~~~~~Manual level control with hydraulic Aluminum alloy rim repair machine With LATHE System~~~~

rim repair machine YL-85 .png10.jpg13.jpg15.jpg6_.jpg7.jpg8.jpg9.jpg


Specification

DIMENSIONS

Specification

Height

1250 mm

Width

1110 mm

Length

900 mm

Machining capacity

10’--22.5’

Rotation

110 rpm

Hydraulic piston power

0.55kw /0.75 hp Sound 35 db,3 Phase - single phase, 220V - 380 V

Working motor

Mechanic 0,55 kw, 1 hp, 3 phase - single phase, 220V - 380 V

Working pressure

140 bar

Gross/Net Weight

350/330kg

Features

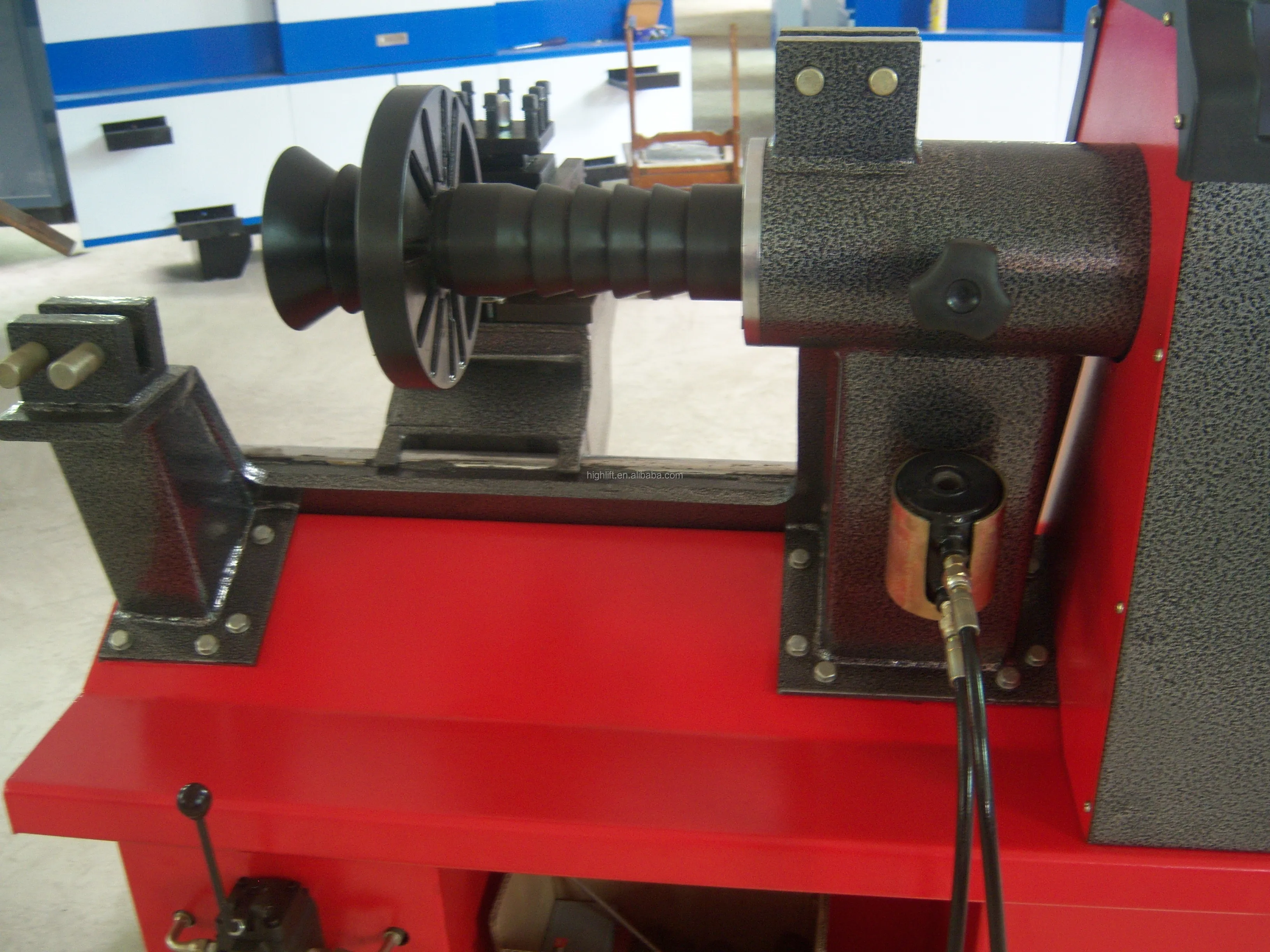

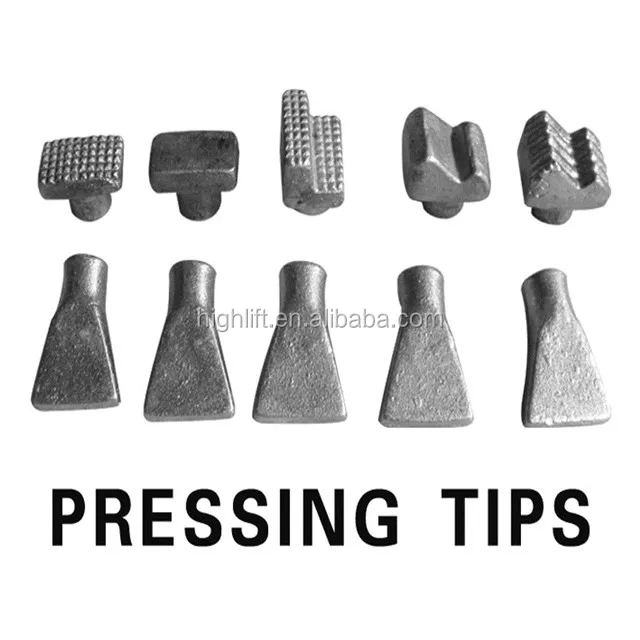

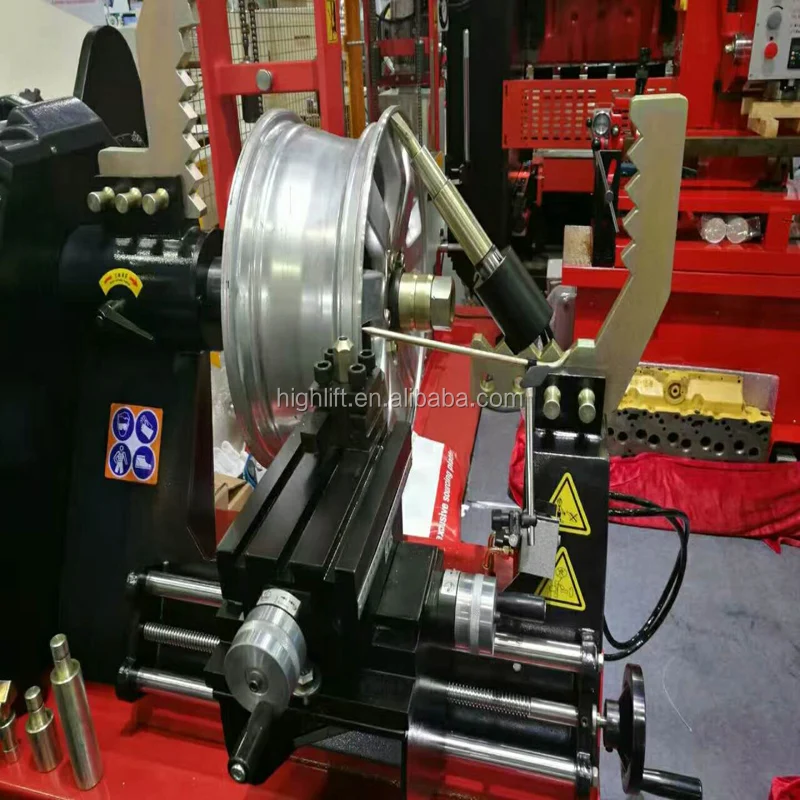

      The model 85 is designed and manufactured to repair by straightening all kind of steel,aluminium and alloy wheels with range diameter between 10’-- 22.5’ The system uses an easy to handle piston controlled by an hydraulic unit that,conveniently positioned,pushes on the damaged part of the rim taking it back to the original shape.Such operation is made easier with the aid of a wide set of shaped punches that perfectly lean tothe different rim profiles.85 moreover is equipped with a lathe unit that allows,after the wheel straightening operation,to remove dents on the edges.



Company Information


HIGH LIFT EQUIPMENT CO.,LTD. is a professional manufacturer and trading combination enterprise in auto maintenance equipment area engaged in 2 Post car lift, clear floor car lift,4 post car lift, scissor lift, Tyre Changer and V-3D-TL and auto body frame machine etc.



Our products have been shipped to global markets in the quantities of 500-1000 sets per month,such as Europe, North & South America, Africa, Australia, the Middle East, Asia as well as different provinces in China.



FAQ





Q1:Are you a trading company or manufacturer?

-We are the manufacturer with exporting license.

Q2:Can you do OEM for us?

-OEM are welcome for us.customer's brand ,logo,label can be customized for product and export standard package.

Q3: Can you help us to do some change about your product?

-Yes,special drawing and design will be evaluated by our technical department,until cost will be calculated by finance department for your final confirmation.All procedures will be informed and confirmed with you in advance.
