ATC auto loading and unloading nesting cnc router machine for wood furniture production
The purpose of the auto loader is to get more productivity out of the CNC without requiring more people. one person can still operate the machine, because all the materials handled automatically and it really makes it a much simpler job for the operator.
3 steps know how it works

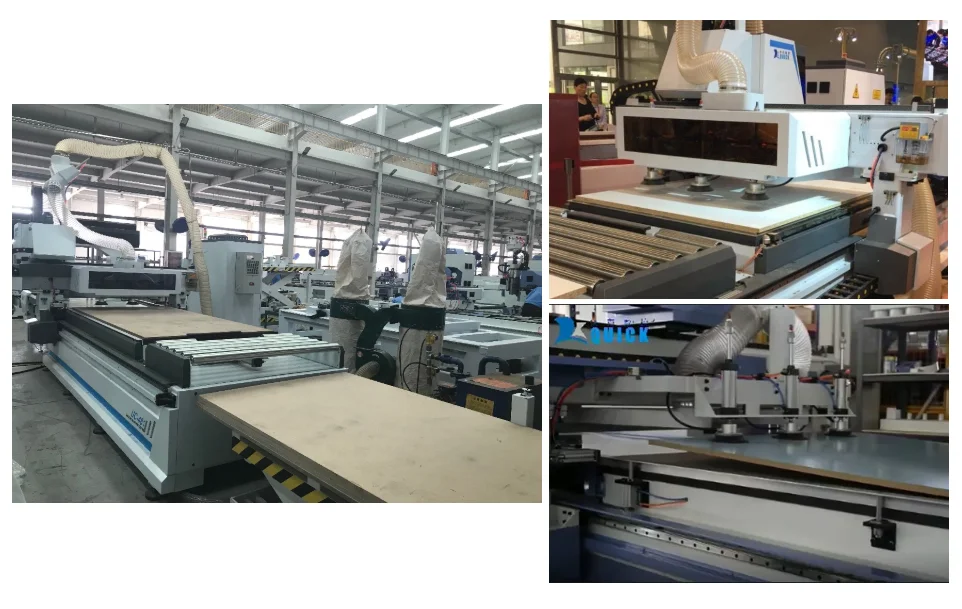

Step 1:as the sheet is loaded ,the stack automatically raises to the next sheet
Step 2:the machine Traverse at the end of middle table ,then 3 suction cups are over the end of the panel, they pick it up with vacuum.at meanwhile ,pusher come out from fence and push the sheet to unloading table,it starts feeding all these parts down here, until they break a light beam on this end. poisition device align the sheet.so that lines it perfectly on the table Step 3:operator could put labels on and operator also take the parts off of the machine and it's real simple ,operator puts it on a stack or a rack or wherever.
Product Description
Model
UC-481 Loading unloading cnc
X-Y-Z axis working area
1220*2440*200mm
Machine size
3500*2200*2200mm
Repositioning resolution
0.02mm
X-Y movement
Rack and pinion, gear drive/Taiwan
Z movement
Ball screw drive/Germany
Guide
Linear 30mm square/Taiwan
Spindle power
9.6KW Italy spindle(ISO30, fan cooling ATC)
Spindle speed
24000rpm
Inverter power
11KW
Tool magazine
10 pcs tools, carousel type
Drive motors
Japan Yaskawa Servo Motor
Working voltage
AC380V/50-60Hz, 3-phase
Command code
G code
Computer interface
USB 2.0
Reduce
Shimpo
Software
Artcam , Alphacam copy
Controls
Syntec 21A
Standard equipment included
1.Auto tool length compensation device
2.Auto oil lubrication system
3.Dust hood
4.Double layer vacuum table with the 5.5 kW Germany Becker pump
5.Tool shanks
6.Positioning pins
Optional
Dust collector
Product details
Sample Show
ATC loading unloading CNC router automatically loading and unloading, greatly saving labor and time.Suitable processing doors and windows wardrobe furniture.The samples are exquisite and popular with customers.
