Стальная машина для полировки квадратных труб для алюминиевых труб
US $46000-$50000
Высококачественная Вибрирующая полировальная машина для обработки камня металла круглого
- Категории: Metal Polishing Machine >>>
- Поставщик: Huzhou,Zhenxi,Hengda,Grinding,Material,Factory
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Description:
Applications:
suitable for deburring and metal polishing of aluminum, brass, copper, stainless steel, and iron workpieces such as machined parts, injection molding parts, stamping parts, and die casting parts.

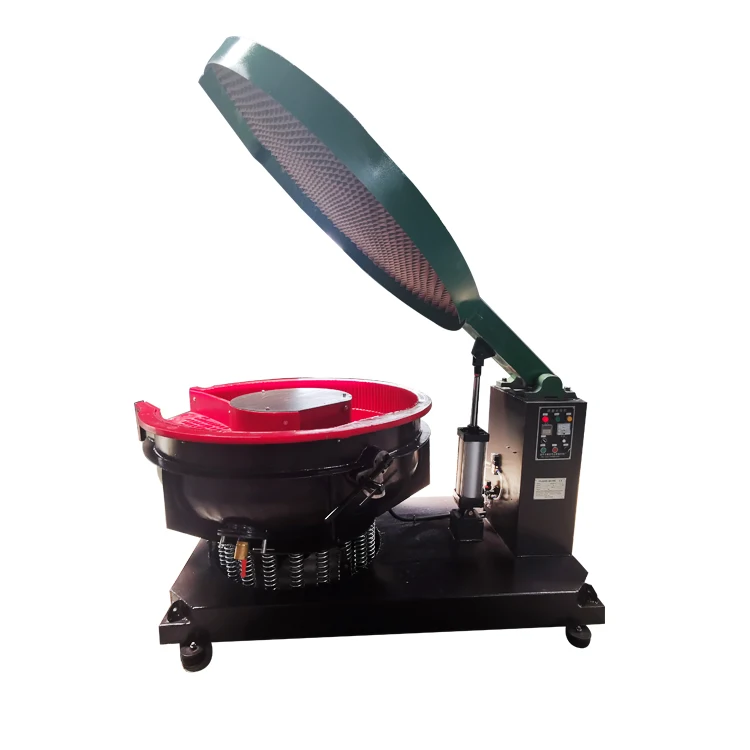

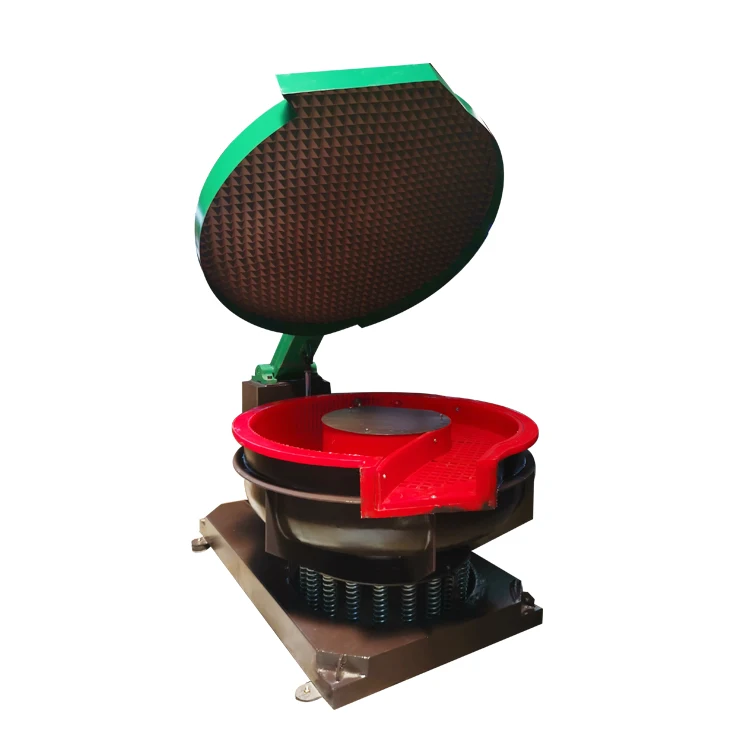

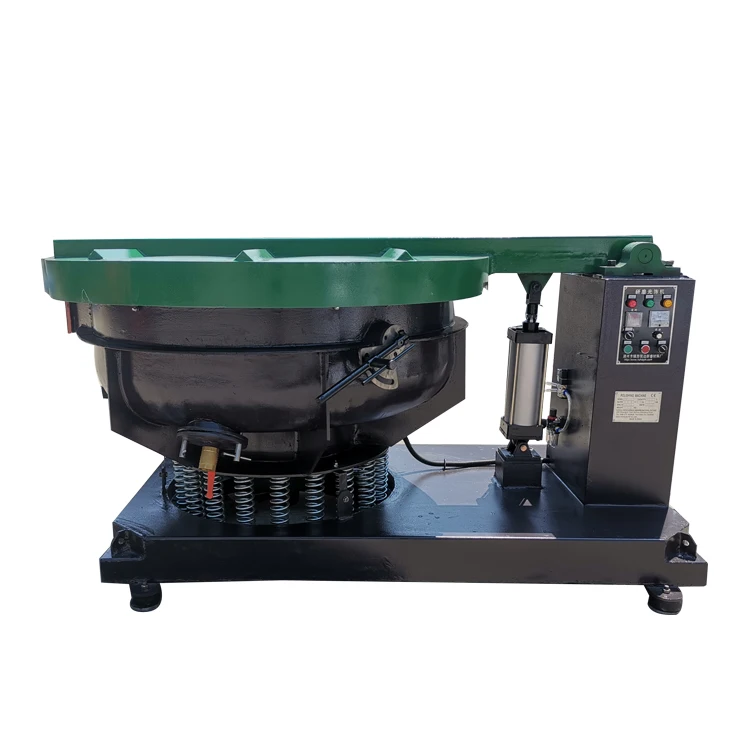

ZDP-A Vibratory Finishing Machine Feature:
• Timing settings
• Drain and unload product functions
• PU lining for longer machine life
• Large capacity, suitable for product deburring and polishing
• Increase coverage function, effectively reduce noise and prevent liquid splash
ZDP-A Vibratory Finishing Machine Optional setting:
• Compound Dosing Pump
• Variable Frequency Drives
• PLC touch screen control panel

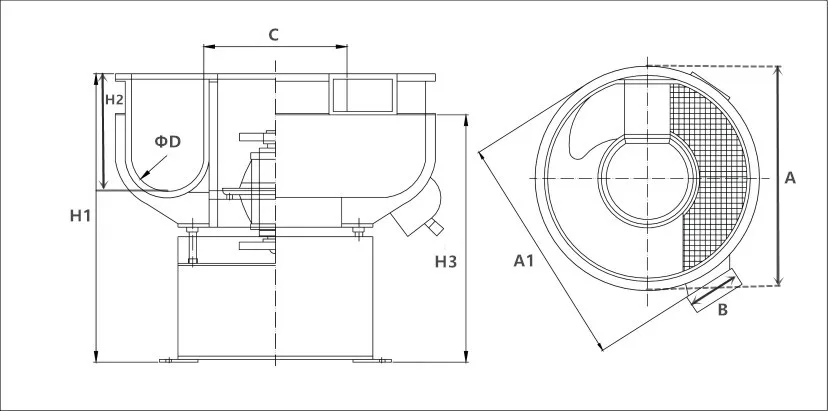

Engineering Drawings
Technical Parameters
Total volume | Max overall dimension A1 | Bowl diameter A | Motor installation tube C | Process bowl width D | Unload width B | Unload height H3 | Tunnel depth H2 | Machine height H1 | Motor | Weight |
| 150 | 1100 | 1030 | 450 | 230 | 190 | 650 | 300 | 900 | 1.5/2.2 | 290 |
| 200 | 1300 | 1180 | 520 | 280 | 250 | 680 | 340 | 900 | 2.2/3.0 | 350 |
| 400 | 1500 | 1450 | 610 | 340 | 320 | 820 | 400 | 950 | 3.7/5.0 | 650 |
| 600 | 1950 | 1850 | 910 | 400 | 350 | 1030 | 480 | 1250 | 5.5/7.5 | 1400 |
| 1200 | 2200 | 2150 | 860 | 550 | 500 | 1300 | 560 | 1600 | 11.0 | 2500 |
