The inexpensive entry-level ECG for doctor.
Large 7" display for 12 leads - Internal memory for 12 ECG recordings - Includes automatic measurement, internal battery and accessories.

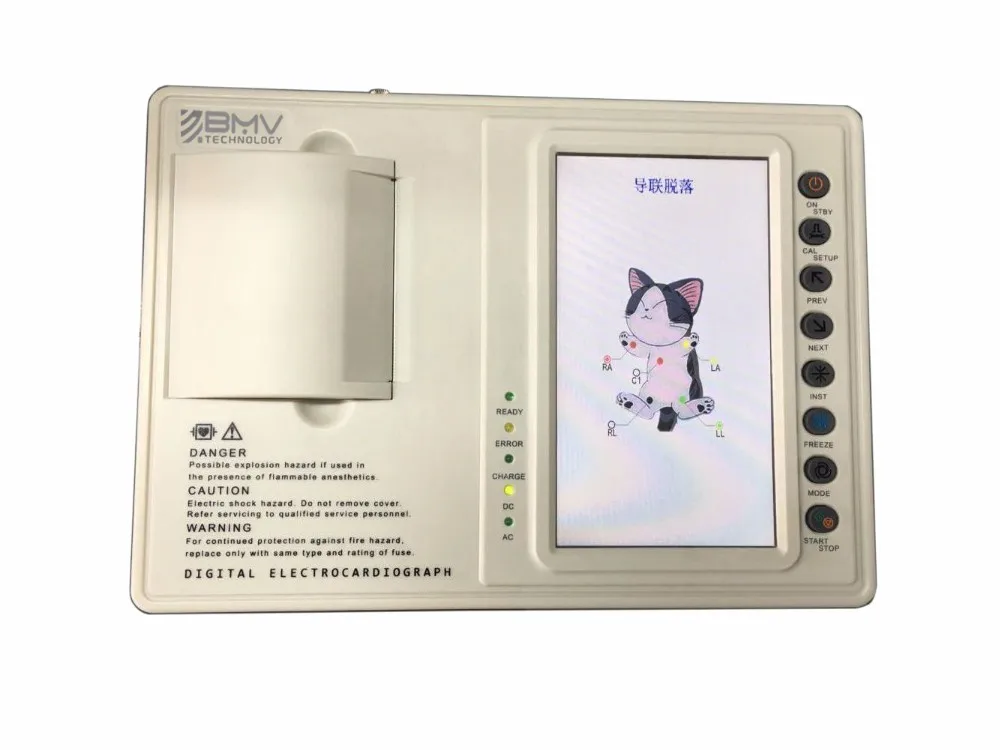

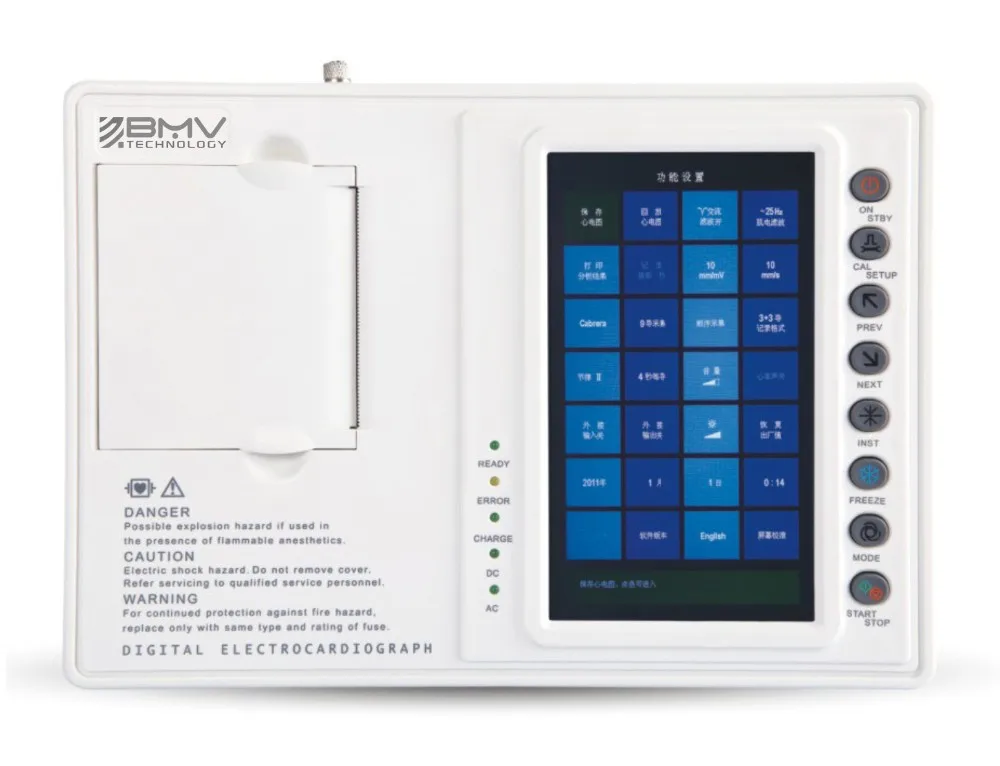

The BES307DT is a small and lightweight ECG unit with 3-channel Printer. Its LCD display offers ease of use for checking in patient data as well as clear, accurate viewing of ECG waveforms. The user can select recording formats from 1 or 3-channels. The Automatic Recording Mode allows these selections as well as the selection of a 1 channel + 1 rhythm lead with a selectable continuous recording waveforms mode. Reporting format for measurement or analysis can be selected as required.
Features:
7 inch 480x680 high brightness color TFT display
Three channel ECG machine with interpretation
12-lead ECG simultaneous acquisition
Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes
80mm 3-channel recording with a rhythm lead
Digital filters eliminate EMG, AC, Baseline Drift interference
Built in rechargeable Li-ion battery, 3 hours continuous working
Adapt 110-240V, 50/60Hz AC power supply
250 patients save/replay
Built in USB/RS232 interface
Filter | AC(50Hz or 60Hz, -20dB) EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB) Drift (0.5Hz,-3dB) | Case storage | 150 cases at least, can be stored on external SD card |
CMRR | > 80dB and 100dB(AC filter in use) | Time constant | > 3.2S |
Input circuit current | <0.1uA | Paper size | 80mm/18m roll type or Z-fold thermal paper |
Input Impedance | 50 MΩ DC | Noise Level | <15µV |
Time constant | > 3.2S | Frequency Response | 0.05--150Hz,-3dB |
Other Options:
Packing Details : 1 standard configuration pack in an aluminium box, then pack in a carton.
Delivery Details : 3-15 working days according to the quantity.
A: We are factory.
A: Generally it is 3-5 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
A: T/T in advance, Western Union, Paypal, L/C etc.
