8KW OFS-ADS-S-S-8-2 OEM Электрический котел отопления бойлер
- Категории: Other Home Heaters >>>
- Поставщик: Foshan,Shunde,Cafos,Electric,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Hot Selling Easy Installation Wall-hung Electric Central Heating Boiler for Home
Connect with underfloor water heating pipe ,radiator or solar available
Our model
1. Combi (heating + shower) Samll (8KW-14KW)
2. Combi (heating + shower) Large (16KW-25KW)
3. Sealed (Heating Only) small (4KW-14KW)
4. Sealed (Heating Only) Large (16KW-25KW)
5. Opened (Heating Only) Small (4kw-14kw)
6. Opened (Heating Only) Large (16kw-50kw)
7: Free standing type (power :50KW - 500KW)
Certifications:CE,EMC,LVD,RoHS,CCC,ISO9001,ISO14001,OHSAS18001 ect
Main Features
Main Features:

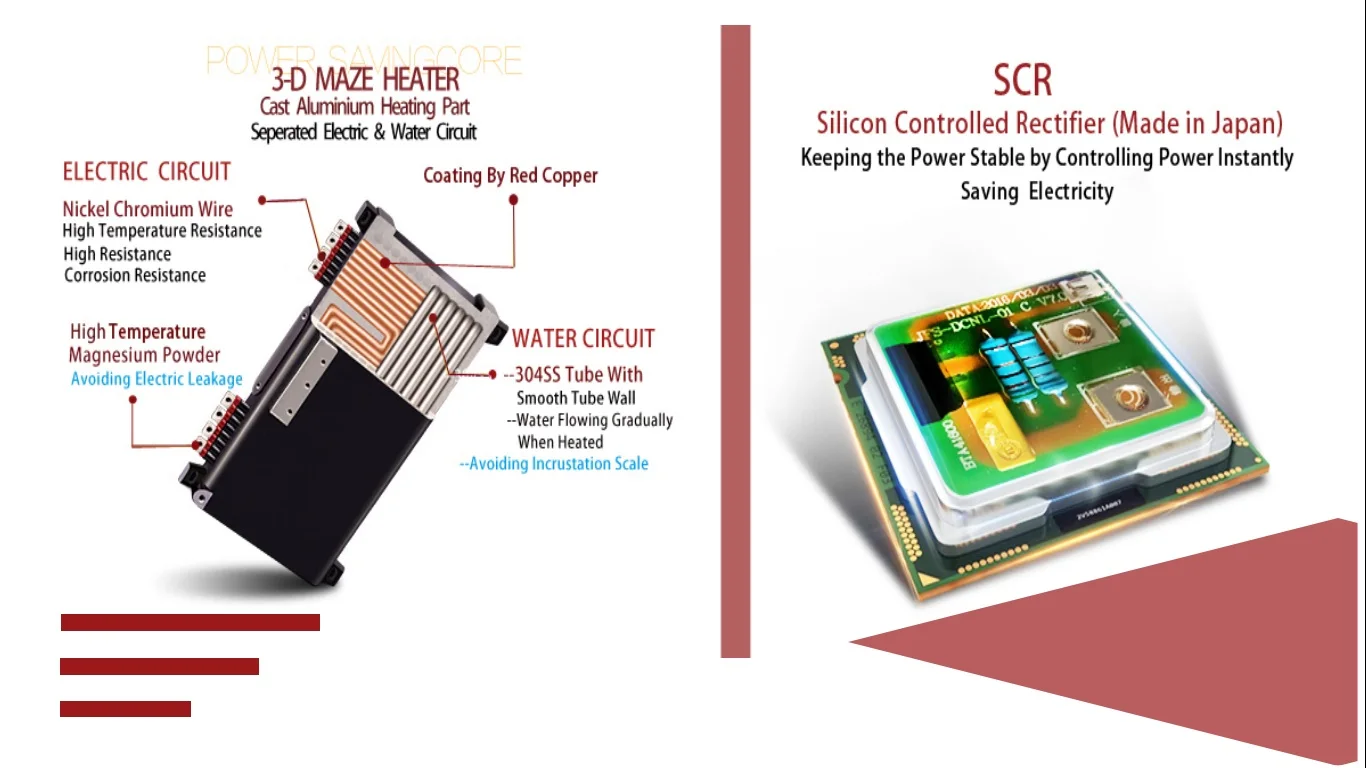

Water circuit and Electric circuit
Separation Heating system. The
heat efficiency of our heating parts
reaches to 96%-98.6%. Applying
high temperature resistance Nickel
chromium. High temperature magnesium
powder avoiding leakage. Smoothly 304SS
tube avoiding incrustation scale.

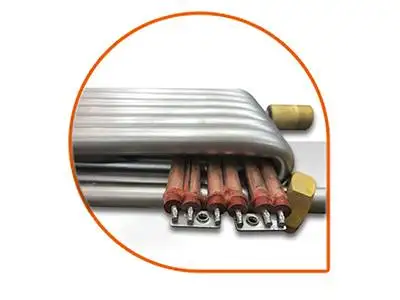

Name: Self-developed HEATING PART
The biggest advantage of SCR is precise control,
infinite speed regulation. It can quickly adjust
power according to temperature changes.
Therefore to achieve the effect of energy saving
and power saving.

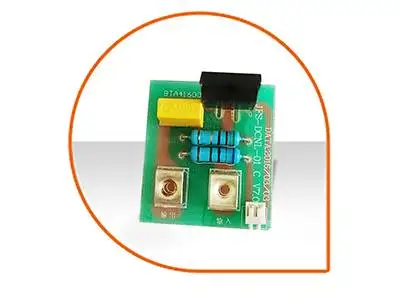

Name: SCR (Made in Japan)
Silicon Controlled Rectified

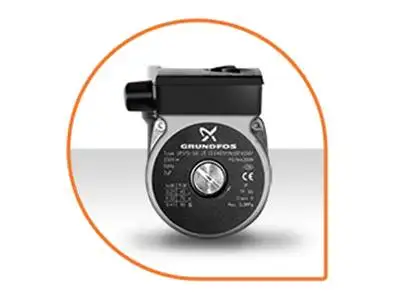

Stable quality, long service life, strong
cyclic power and quiet operation,
water lift can be 5 - 7 meters.
Name: GRUNDFOS WATER PUMP
(Made in Denmark)

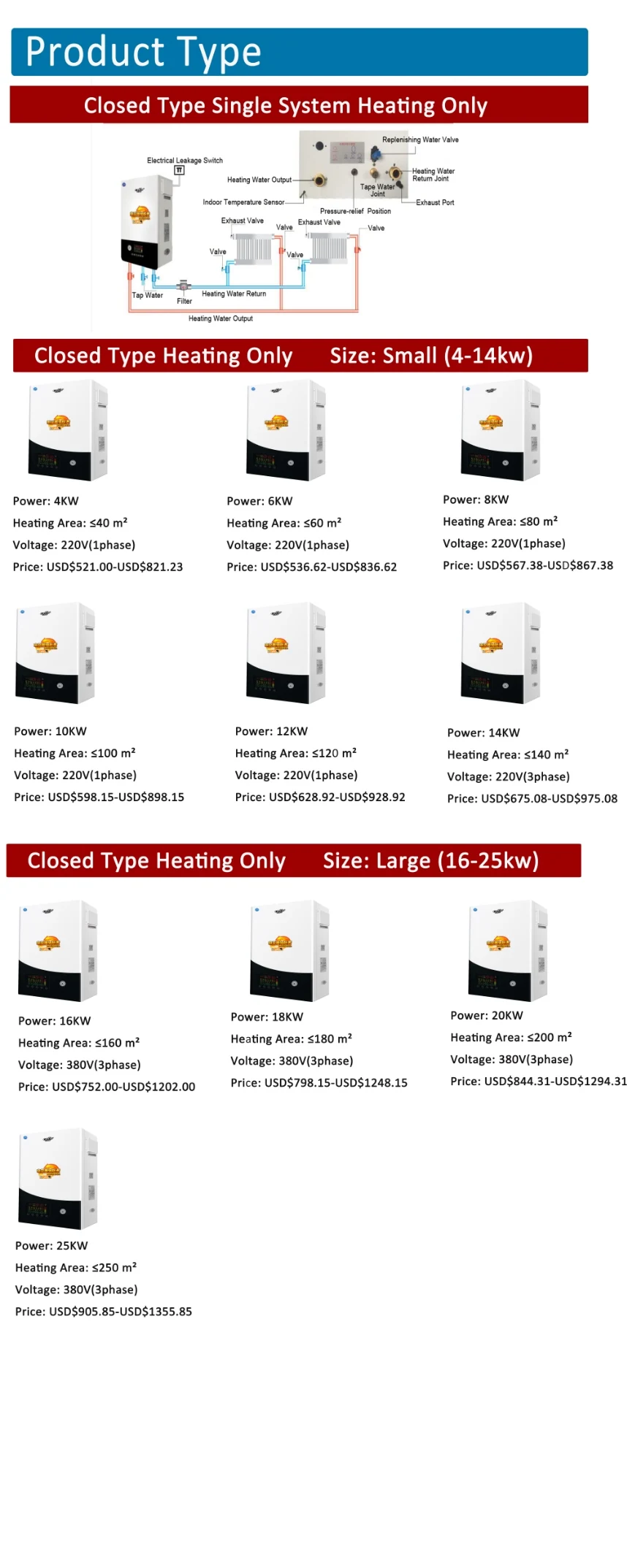

Sealed Type
| Closed Type Single System Heating Only(Size: S) | ||||||
| Power(KW)&Voltage Frequency(V/Hz)/Phase | 4kW/220V (1 phrase) | 6kW/220V (1 phrase) | 8kW/220V (1 phrase) | 10kW/220V (1 phrase) | 12kW/220V (1 phrase) | 14kW/380V (3 phrase) |
| Copper Core(MM2)/ Ammeter Requirement/ Leackage Switch(A) | 2.5mm²/60A/32A | 4mm²/60A/32A | 6mm²/60A/40A | 10mm²/60A/63A | 10mm²/60A/63A | 4mm²/3 phrase/40A |
| Heating Area (M2) | ≤40 | ≤60 | ≤80 | ≤100 | ≤120 | ≤140 |
| Rated Current(A) | 18.2 | 27.3 | 36.4 | 45.5 | 54.5 | 21.2 |
| Water Pump | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China |
| Water Pump | 5L | 5L | 5L | 5L | 5L | 5L |
| Capacity of Expansion Tank | 140℃ | 140℃ | 140℃ | 140℃ | 140℃ | 140℃ |
| Thermal Cut-out | G1/2" | G1/2" | G1/2" | G1/2" | G1/2" | G1/2" |
| Inlet & Outlet Connection | G3/4" | G3/4" | G3/4" | G3/4" | G3/4" | G3/4" |
| Backwater Inlet Connection | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 |
| Net Weight KGS | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Gross Weight KGS | 580*360*230 | 580*360*230 | 580*360*230 | 580*360*230 | 580*360*230 | 580*360*230 |
| Product Size (MM) | 690*430*310 | 690*430*310 | 690*430*310 | 690*430*310 | 690*430*310 | 690*430*310 |
| Single Packing Size (L/W/H) mm | 0.091977 | 0.091977 | 0.091977 | 0.091977 | 0.091977 | 0.091977 |
| FLQ (20GP) | 294 | 294 | 294 | 294 | 294 | 294 |
| Closed Type Single System Heating Only(Size: L) | ||||
| Power(KW)&Voltage Frequency(V/Hz)/Phase | 16kW/380V (3 phrase) | 18kW/380V (3 phrase) | 20kW/380V (3 phrase) | 25kW/380V (3 phrase) |
| Copper Core(MM2)/ Ammeter Requirement/ Leackage Switch(A) | 4mm²/3 phrase/40A | 4mm²/3 phrase/40A | 6mm²/3 phrase/50A | 6mm²/3 phrase/63A |
| Heating Area (M2) | ≤160 | ≤180 | ≤200 | ≤250 |
| Rated Current(A) | 24.25 | 27.3 | 30.3 | 37.9 |
| Output Voltage of Pump | 220V | 220V | 220V | 220V |
| Water Pump | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China | GRUNDFOS or Made in China |
| Capacity of Expansion Tank | 5L | 5L | 5L | 5L |
| Thermal Cut-out | 140℃ | 140℃ | 140℃ | 140℃ |
| Inlet & Outlet Connection | G1/2" | G1/2" | G1/2" | G1/2" |
| Backwater Inlet Connection | G3/4" | G3/4" | G3/4" | G3/4" |
| Net Weight KGS | 29.7 | 29.7 | 29.7 | 29.7 |
| Gross Weight KGS | 32.3 | 32.3 | 32.3 | 32.3 |
| Product Size (MM) | 680*420*240 | 680*420*240 | 680*420*240 | 680*420*240 |
| Single Packing Size (L/W/H) mm | 805*495*320 | 805*495*320 | 805*495*320 | 805*495*320 |
| FLQ (20GP) | 224 | 224 | 224 | 224 |
Product Appearance

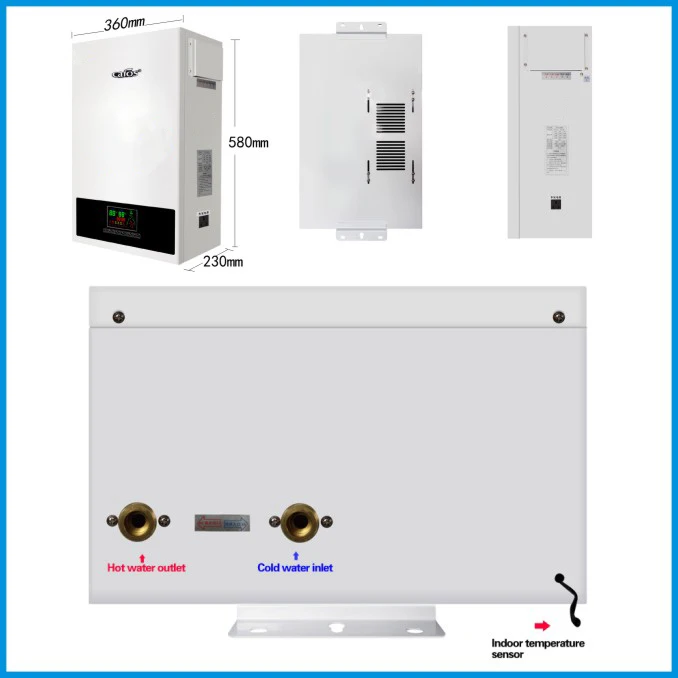

Product Appearance and Size

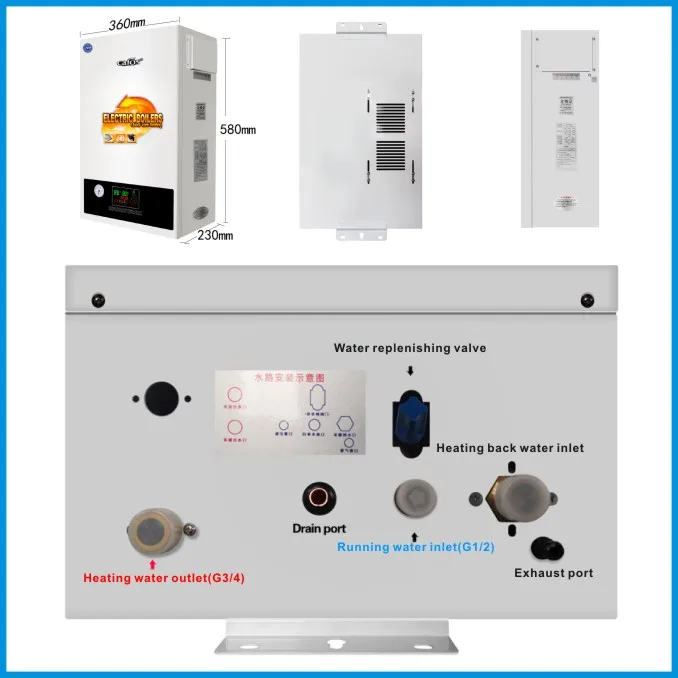

Sealed System
Open System

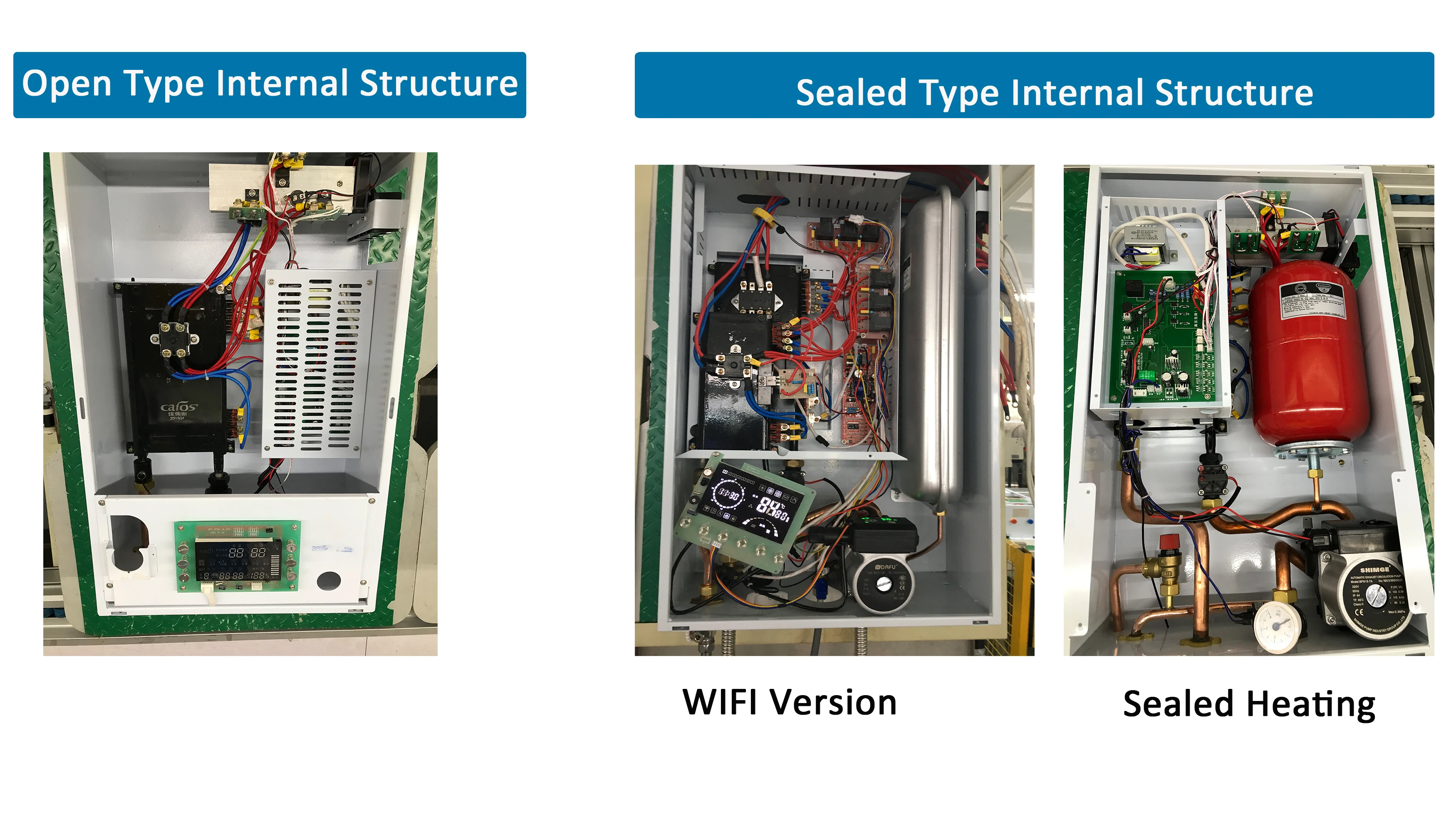

structure&cer
Contact Us
WhatsApp: +86 (0)13825579110
Wechat: +86 (0)13825579110
QQ: 547577184
Website:www.zhenangtop.com
