W12 20x2000 лист металлический глубокий коллектор под названием 4 ролика гидравлический листопрокатного машины роликовая листогибочная машина с сгорбленных
- Категории: Гибочные машины >>>
- Поставщик: Jiangsu,Longsheng,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
New Design 4 rolls Hydraulic Rolling Machine
Product Application
Four-roll plate bending machine, due to its full-featured, high-precision, and easy-to-use operation, this device is the ideal contemporary CNC coiling device. It is the ideal model for rolling circular and arc-shaped workpieces in energy, transportation, petroleum, chemical, boiler, shipbuilding, hydropower, and metal structure industries.
SPECIFICATIONS FOR PLATE ROLLING MACHINE | ||||||
1 | Max. Rolling thickness | 20mm | ||||
2 | Max working length | 2100mm | ||||
3 | Max plate bending width | 2000mm | ||||
4 | Symmetrical rolling | T20xB2000*min600mm(σs≤245Mpa) | ||||
5 | Asymmetric Rolling | T16xB2000*min600mm(σs≤245Mpa) | ||||
6 | Upper roller diameter | φ330 mm±3 | ||||
7 | Lower roller diameter | φ280 mm±3 | ||||
8 | Side roller diameter | φ260mm ±3 | ||||
9 | Main motor | 15kw | ||||
Main Features
This machine can be customized, its useful length can be from 500mm to 9000mm.
Thickness can be from 1 up to 100mm.
With our four rolls plate bending machine, plate can be bent on both side without returning.
Full automatic controlled by PLC, there's no need for additional processing steps for bending the ends.
The flat edge is 1.5-2 times of the thickness.
Quality certificate such as CE and ISO9001.
Certifications
Detailed Images

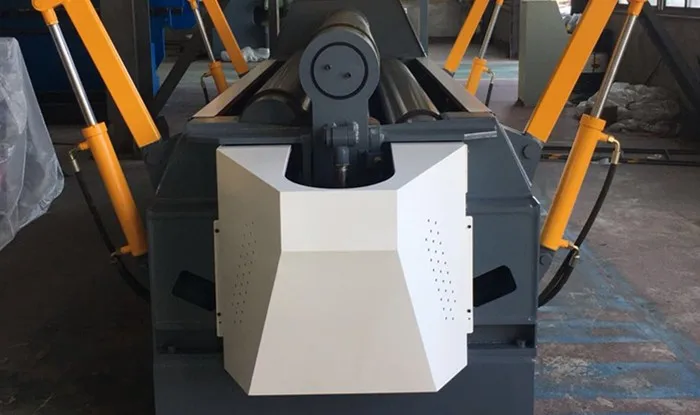

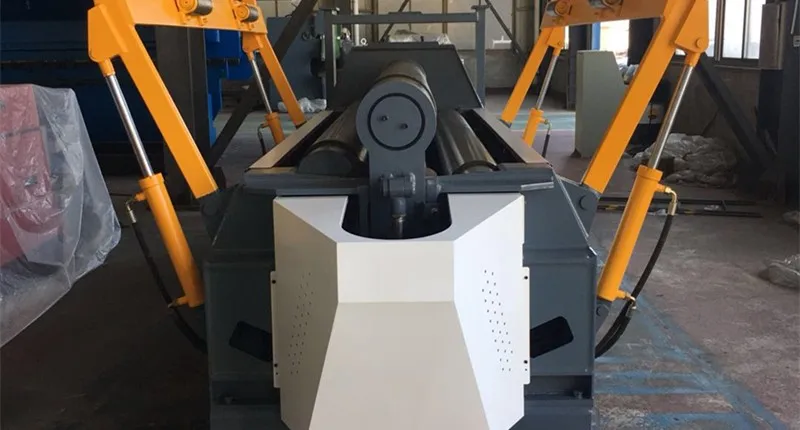

Machine Main Features
Name: Four-roll hydraulic plate bending machine
Brand: Longsheng
Original: China
CNC machine, full automatic controlled by PLC, there's no need for additional processing steps for bending the ends.

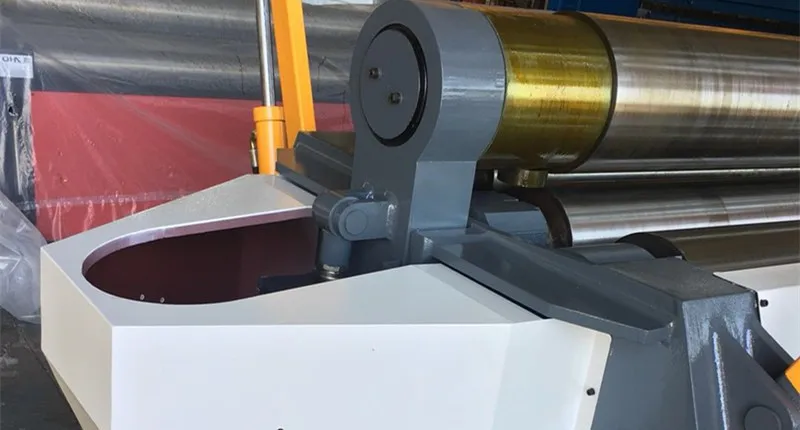

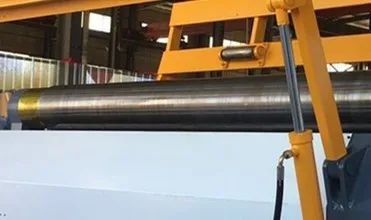

Machine part: 42CrMo Alloy Steel Work Roller
Upper roller likes drum with collaboration of carrier roller permit continual bending of any thickness of plate.
Bottom roller and lateral roller driven by hydraulic oil tank.

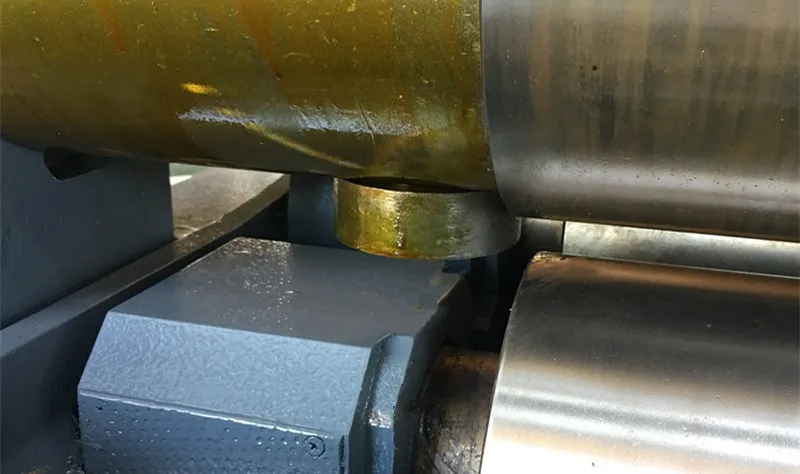

Machine Part: Cone Bending Device
Rolling for cone products. High strength and durability.

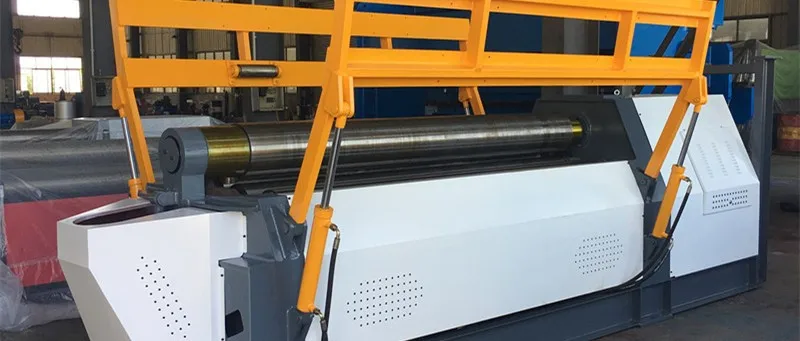

Machine Part: Release Device
Hydraulic drop-end for easy removal of finished ferrule. And we make drop-end protective fence to avoid safety accident.
Machine Part: Hydraulic System
Through exclusive technology, it can develop cones as easily as competitive machines can develop cylinders.
It eliminates scarring on the surface of shell or roll and also eliminates, in most cases, the need for grinding the lamination(bullnosing) on the minor diameter edge.
Yuken valve made in Japan.

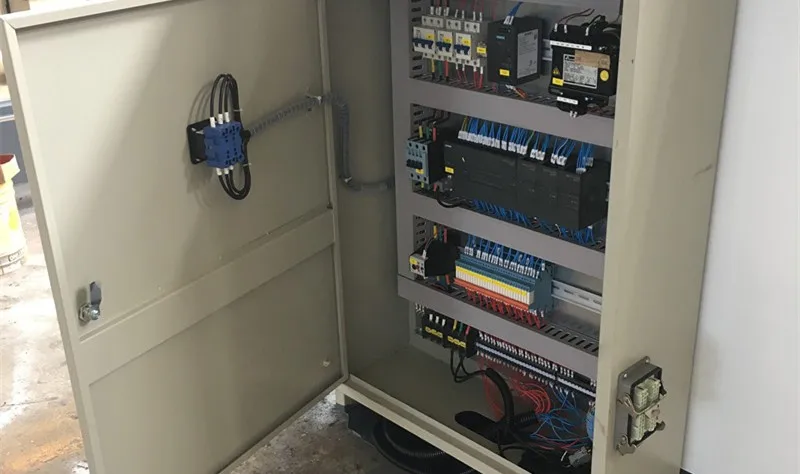

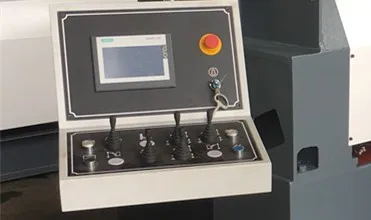

Machine Part: PLC Control System
HMI(human machine interface), intelligent operation. Self-compensating, single operate, high efficiency, safe and convenient.
Many models for choice, economic numerical control model.
A PLC control system ensure the machine's bottom and lateral rolls operate synchronously. Up to eight steps can be programmed with the touchscreen.
Machine Part: Main Motor
Main power: China famous brand.
Main electronic: elements: Siemens made in Germany.
Machine Part: Spherical Roller Bearings
Top rollers are guided with spherical bearings.
All rolls mounted with spherical bearing.
Finished Goods View
Round product - arc detection
Cone product view
FAQ
1.When can customers contact us?
We are available Monday through Saturday. 8AM to 12PM Beijing time.We also offer 24 hour online service for customers.
2.How do I order a rolling machine from you?
If you have any problems occur with our rolling machine or you are in need of assistance,please send email or call us via telephone.We will reply as quickly as possible.
We offer OEM and ODM services.
3.Terms of payment
1) T/T 30% prepayment,70% balance before shipment
2) L/C at sight
4.How about your rolling machine quality?
Longsheng is a mature brand in China. Through our over thirteen years research in rolling machine technology, our design including structure and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard. Where there are our rolling machine, there are good reputation and terminal user satisfaction.
Contact Us
Good Feedback from Customer
Contact Way
JIANGSU LONGSHENG MACHINE MANUFACTURING CO.,LTD
Add: Haian Libao Development Area,Jiangsu China
Tel: +86-513-88281688
Mobile: +86-15951415788
Email: lucy@ longshengmachine.com
Http://www.longshengmachine.com
Packing & Delivery
Packaging | ||
Size | 5200 (L) * 1800 (W) * 2000 (H) | |
Weight | 15 T | |
Packaging Details | The normal package is plastic film(Size: L*W*H). If you need wooden packaging, we can also provide it, but at an extra charge. And if export to european countries, the wooden box will be fumigated. Besides, if container is too tigher, we still recommend that the customer use a pe film package. | |
