Стабилизированное электрическое представление холодное время года одобрено немецкой электротехнической асоциацией 3 ядерный силиконовый резиновый

Описание и отзывы

Характеристики

Product Name	Stable electrical performance Cold Resistance  VDE 3 core Silicone Rubber cable

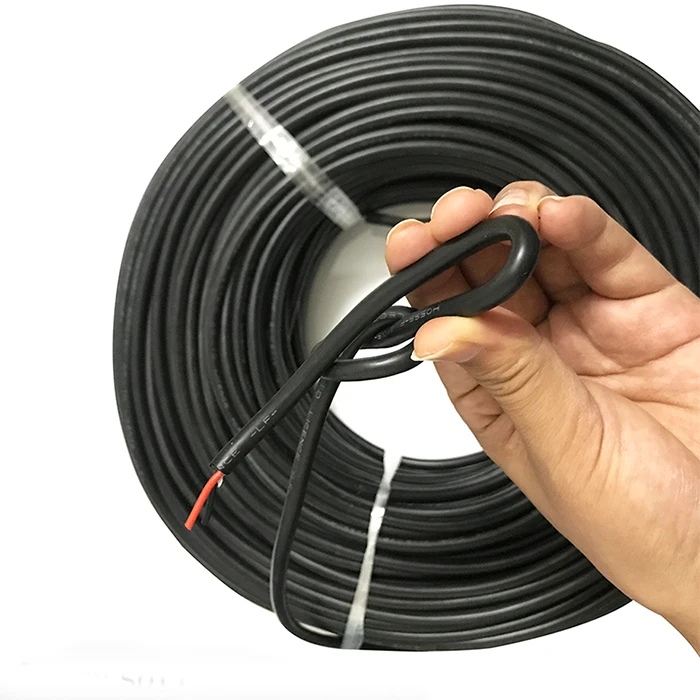

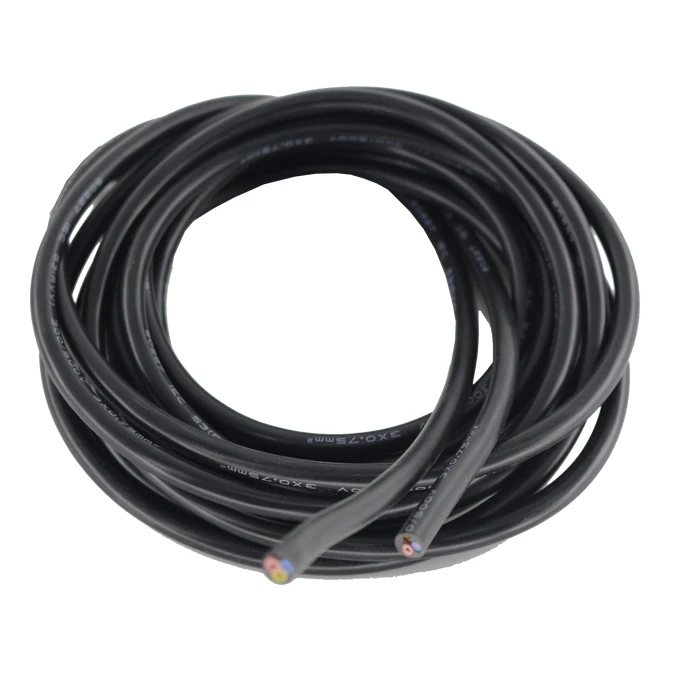

Cable Length Per Roll	100m
Use	Mainly used for wiring of various household appliances, lighting fixtures, industrial machines, electric heating products, etc.
Size	H05SS-F 2/3*0.5mm/0.75mm/1mm/1.5mm /2.5mm/4mm 05SS-F 4*0.5mm/0.75mm
Conductor Specification	24/0.2TS for H05SS-F 3*0.75mm
Insulated Material	Soft Silicone Rubber

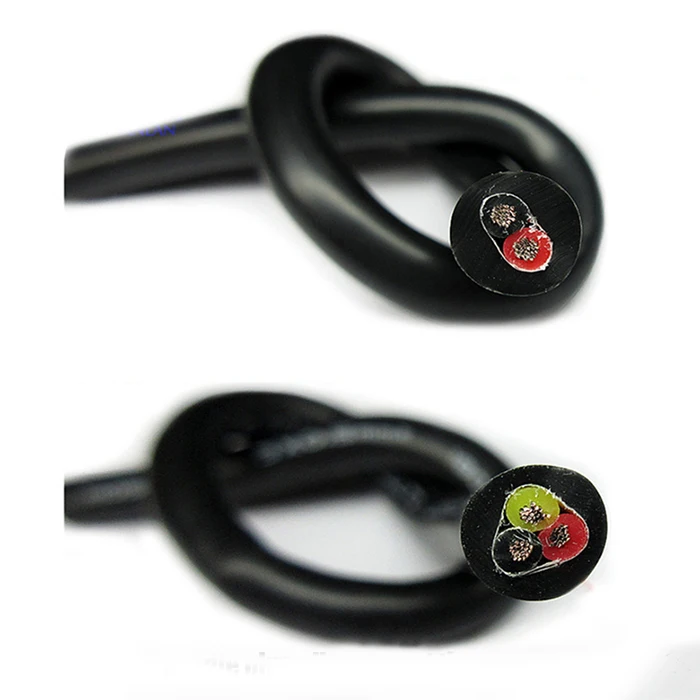

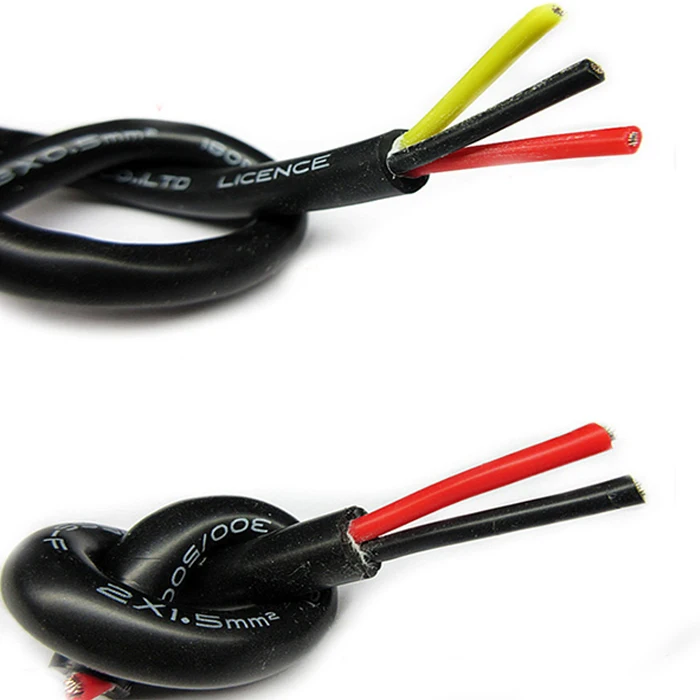

Features	The silicone wire is used for the power transmission line for fixed wiring with rated voltage of 0.6/1KV and below or the connecting cable for mobile electrical appliances. The product has the characteristics of heat radiation resistance, cold resistance, acid and alkali resistance, corrosive gas and waterproof. The cable structure is soft and the radiation is convenient. , high temperature (cold) environment, stable electrical performance, outstanding anti-aging performance, long service life
Color	Black red Pink Green White Blue Or Customized Color
OEM	Available
Material for Conductor	Pure Copper ,Tinned Copper,Copper Clad Aliuminum
Sample	Free sample if have stock



Each Size Specification For Soft Silicone Wire

Conductor		Insulation	Nominal Voltage	Unit length
Size	Construction	Over Diameter		(M)(Ft)
mm	(No./mm)	(mm)	(V)	Meter

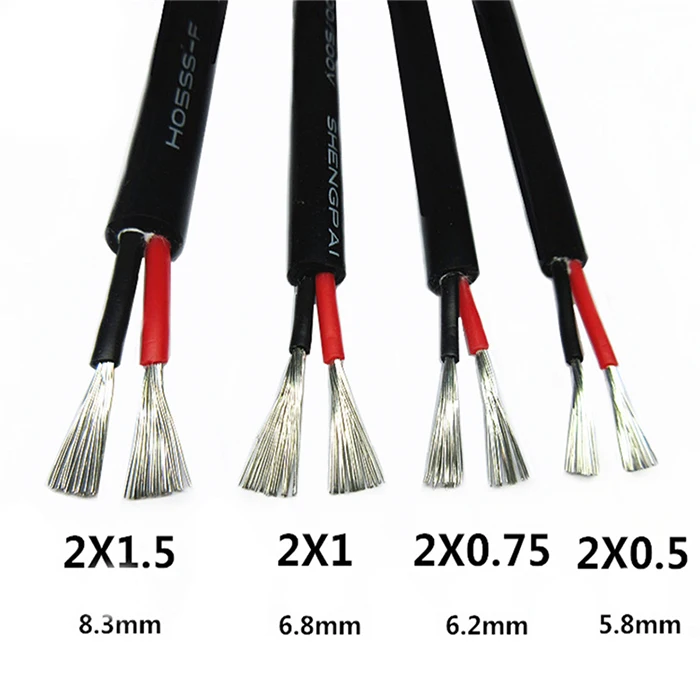

H05SS-F 2*0.5mm	20/0.18	5.8	300	100
H05SS-F 2*0.75mm	24/0.2	6.2	300	100
H05SS-F 2*1.0mm	32/0.2	6.8	300	100
H05SS-F 2*1.5mm	30/0.25	8.3	300	100
H05SS-F 2*2.5mm	49/0.25	9.4	300	100
H05SS-F 2*4.0mm	56/0.3	11	300	100

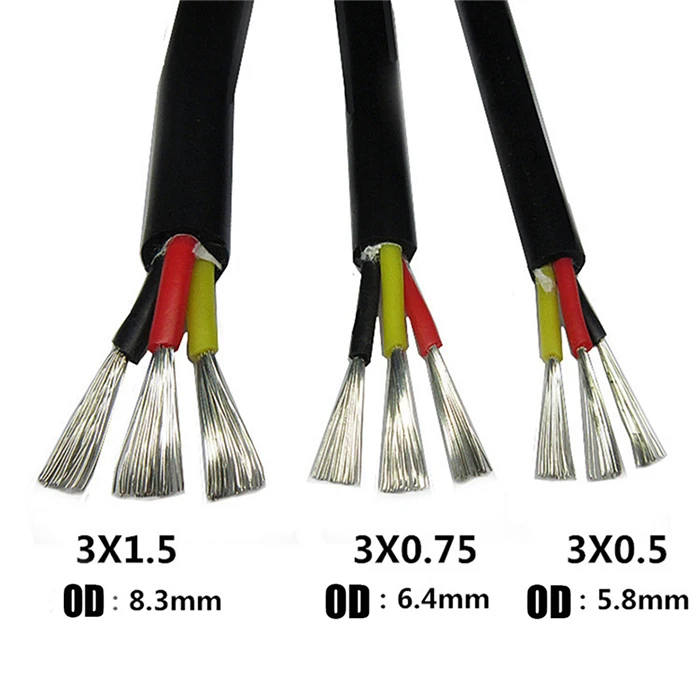

H05SS-F 3*0.5mm	20/0.18	5.8	300	100
H05SS-F 3*0.75mm	24/0.2	6.4	300	100
H05SS-F 3*1.0mm	32/0.2	6.8	300	100
H05SS-F 3*1.5mm	30/0.25	8.3	300	100
H05SS-F 3*2.5mm	49/0.25	9.4	300	100
H05SS-F 3*4.0mm	56/0.3	11	300	100

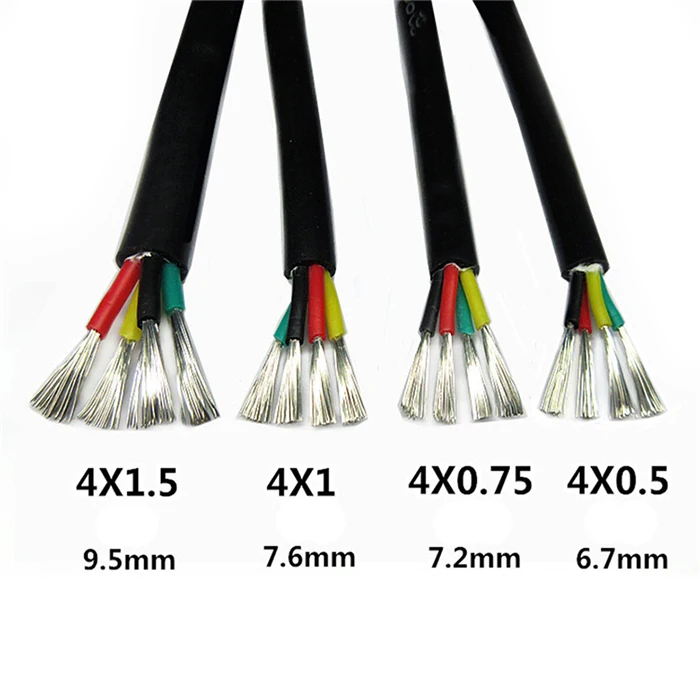

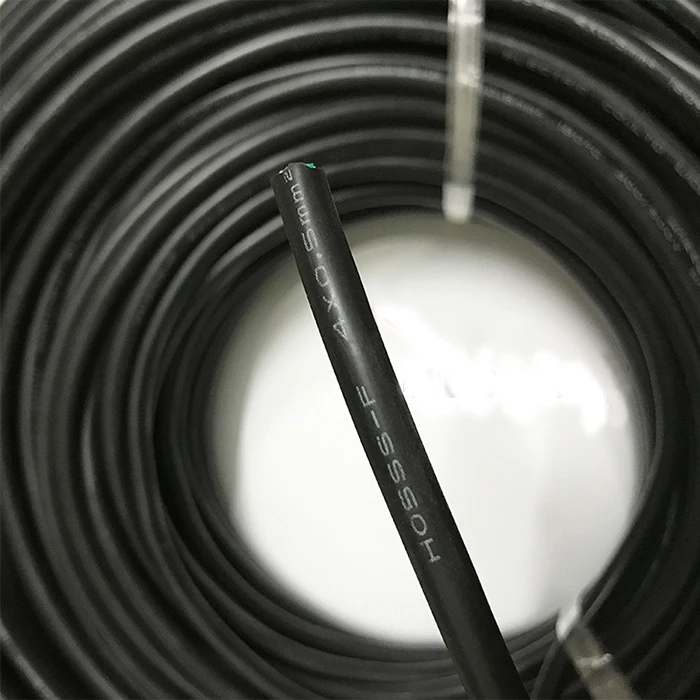

H05SS-F4*0.5mm	20/0.18	6.7	300	100
H05SS-F4*0.75mm	24/0.2	7.2	300	100

If you have any other questions, please click here to " send an inquiry "

1. Q: Are you trading company or manufacturer ?

A: We are factory. We always leads the new trend of modern society, actively adopts new materials and new technologies, and continues to write a new page of glorious history.



2. Q: How does your factory do regarding quality control?

A: "Quality is our culture." We always attach great importance to quality controlling from the very beginning to the very end..



3. Q: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay shipping charge.



4. Q: How long is your delivery time?

A: Normally  it is 10-20 days, it will depend on quantity.



5. Q: What is your terms of payment ?

A: Payment 30% T/T in advance, balance before shippment. we can accept Trade Assurance/Paypal/Western Union etc.



6. Q: After sales service:

A: All of our products are made by top quality ,we will check the quality before deliver to you. If there any problem on quality .We will solve the problem for you in the first time, and will come up with the most suitable solution to solve the after-sales problem.



If you have any other questions, please click here to '' send an inquiry ''
