Запчасти для мотоциклов велосипедные запчасти RT 110 AT LED AT110 FT110 AX110 110cc комплект зажигания блок питания

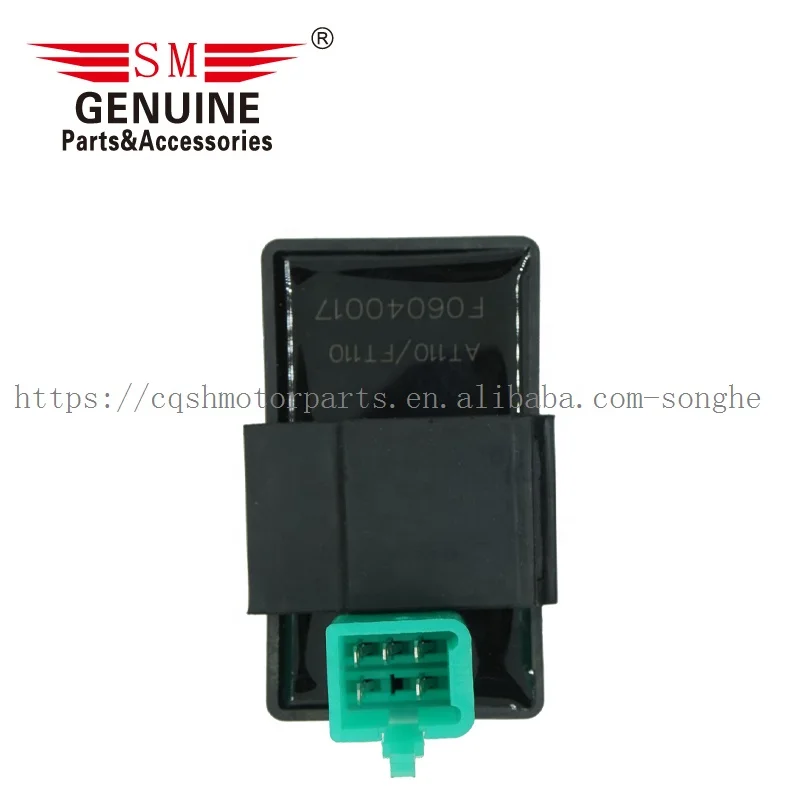

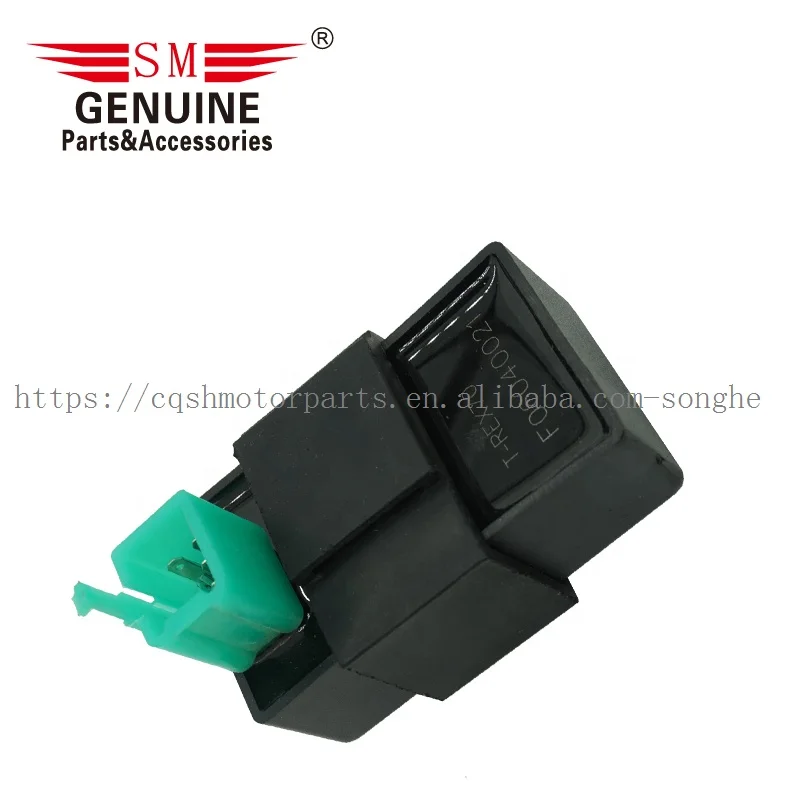

Motorcycle parts de para moto motocicleta partes RT 110 AT 110 RT LED AT110 FT110 AX110 110cc ignition kit unidad CDI unit

Technical requirements

1,The ignition characteristics:
--- AC power supply, capacitor discharge ignition;CDI UNIT;
---Ignition energy into the corner, low-speed, high-speed ignition performance;
---Operating temperature range: -30°C to+65°C;
--- Using SMT Surface Mount Technology, anti-jamming capability, environmental adaptability, high reliability;
2,Product performance:
--- Minimum continuous ignition speed: ≤350r/min (three-pin 6mm intermittent trigger gap was 0.7mm);
---Continuous ignition speed range: ≤350r/min ~ 11000r/min (three-pin intermittent 6mm, trigger gap was 0.7mm);
---Into the corner speed: 2000±200r/min (15±1.5°);
---End angle, speed: 3800±200r/min (36±1.5°);
--- Ignition advance angle: 21°±1.5°;
---Turn off the SW end of the ground, ignition should turn off.
3,Appearance requirements:
---Patch device and igniter shell at the bottom of the vertical tilt;
--- Package surface should be smooth, free of cracks and other foreign matter;
--- Encapsulation material and the shell is bonding well, without gaps, and should fully cover the components;
---Package surface height should not exceed the shell height, and the surface is smooth and no bubbles;
--- Shell, patch the surface should be encapsulated material, and other attachments;
4, Igniter insulation resistance shall be not less than 1MΩ (measured with 500V megger);
5, In line with the motorcycle JB/T8123.1 ~ 8123.2-1999 standards;

DT90,STRADA70,AT110,WS125,DS125,DS150,DM200,FT125,FT150,FT180,FT200,FT250,RT250,250Z,VX250,ATV150,ATV250,GTS175,VORTX300,X650,YBR125ED,FZ16,CRYPTON,BWS125,BOXER100,BM150,DISCOVER125,PULSAR180,PULSAR200NS,AUTORIKSHA180,CB110,AX4,GL150 CARGO,XR150L,CB190R,APACHE,KING,RTR180,GN125,AX100,GIXXER,BS250ATV,AGILITY
