JAC 3T 5T  water & foam fire engine  fire fighting truck for sale

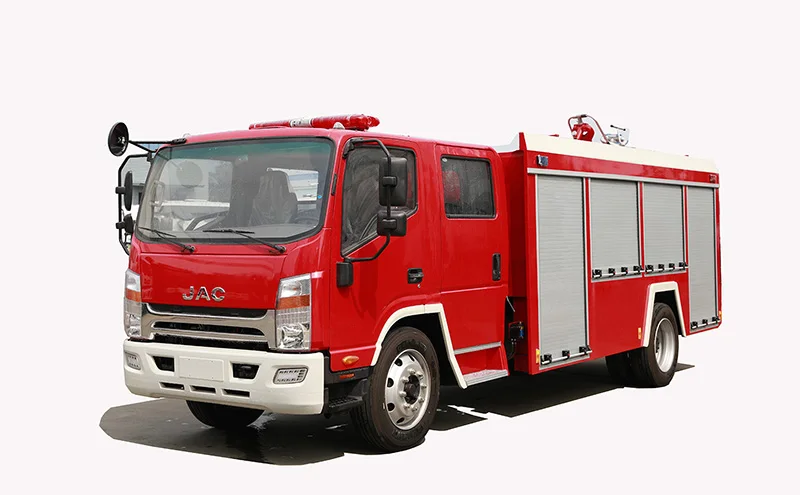

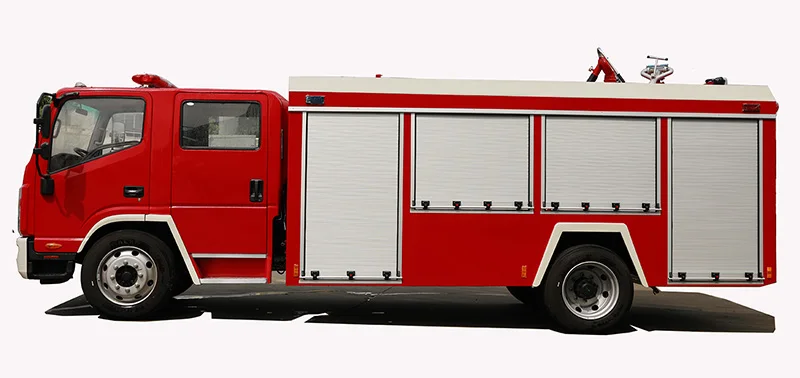

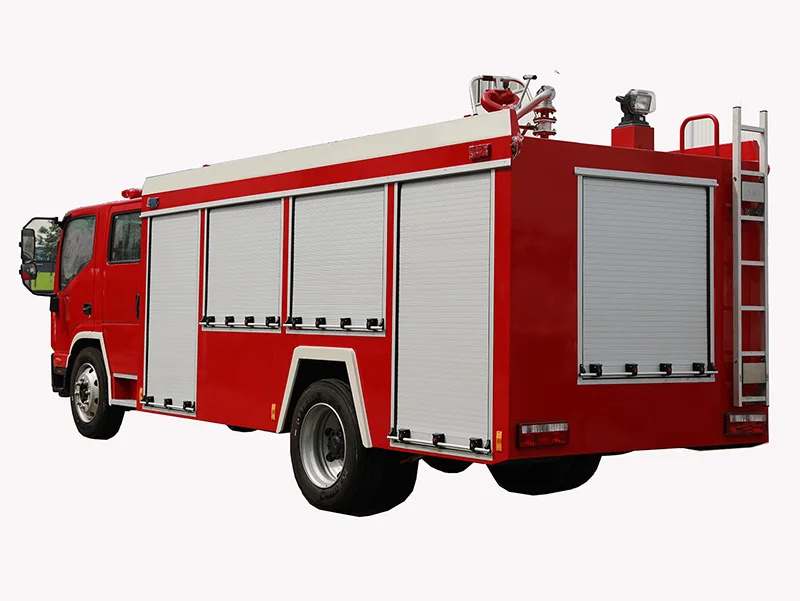

<JAC fire fighting truck >

< Water tank fire fighting truck specification list >

Subject	JAC 5000Liters water tank fire fighting truck
Dimensions	6840*2190*3010mm
Chassis Model	HFC1091SJ
Wheel Base(mm)	3815
Gross Vehicle Weight(kgs)	8395
Curb Weight (kgs)	5420
Engine	Engine brand	ChaoChai
	Model	CY4SK251
	Type	Multi cylinder, 4 stroke, water cooled direct fuel  injection, trubo-diesel engine
	Displacement Volume(ml)	3856
	Net Power(kw)	Min.   115kw at rated RPM
	Emission Standard
Clutch System	Model	Single plate, dry friction clutch
Steering System	Power Steering	RHD  or Left hand driving
Transmission System	manually operated seven forward & two reverse.
Brake System	Service Brake	Hydraulic Disk brakes/drum brakes ,
	Park Brake	Air brake/Oil brak and Handbrake,
Suspension System (front & rear)	Semi-elliptical leaf spring with telescopic shock absorber (both front & rear)
Tyre	Tyre Quantity	6PCS
	Tyre Specification	8.25R16 14PR
Cabin	Four-door with double-row cab of 2+3 persons (including driver) with power jack, tempered windshields.

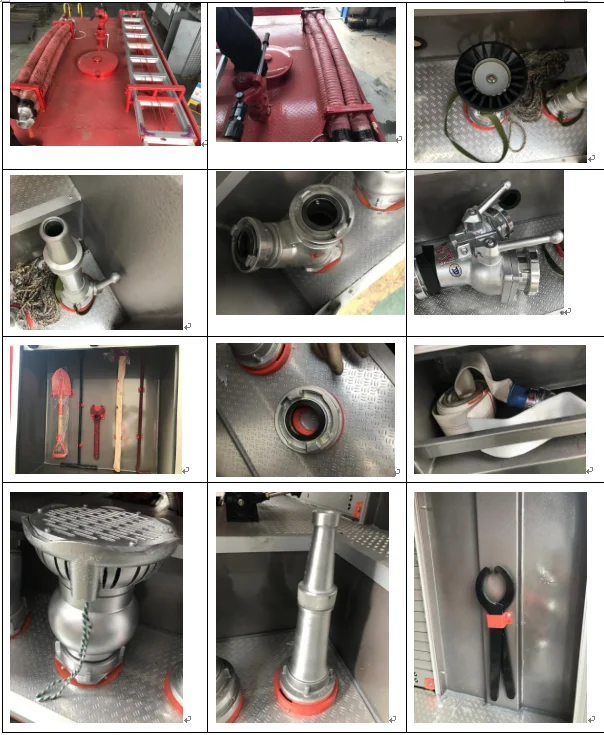

< JAC fire fighting truck equipment >

B.Cab

Construction :4 doors

Seats :front 2 passenger , back 4 passenger

Device :Except the original equipment ,add 100Wwarning alarm ,rotation warning light switch ,PTO control switch and indicated ligh

C. Water Tank

Volume :water  6000kgs

Material:water tank :carbon steel

construction:welding type  with wave-proof plate

Device:²1pc manhole,with quick locking and opening device

²1pc overflow device

²1pc water level gauge

²1drain outlet,manual valve control

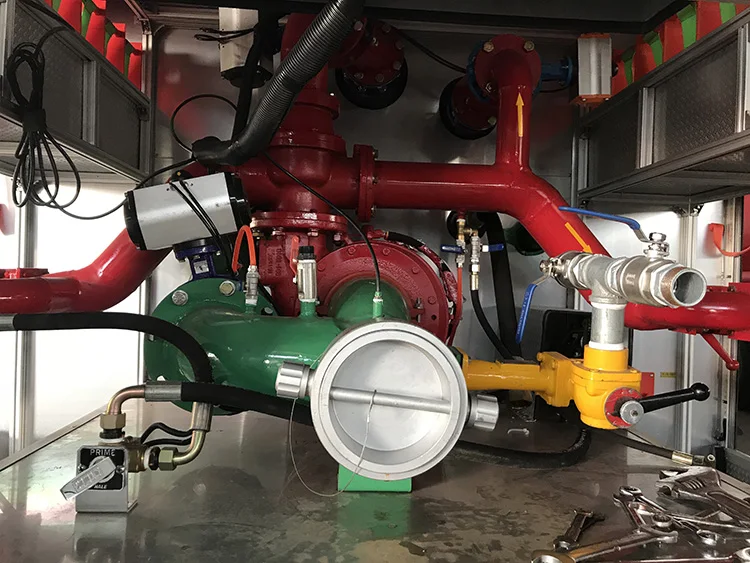

Technical Request :Compliance with the relevant provisions of GA39       D.Fire Pump and piping system

Model:CB10/40

Flow :Low pressure 40L/s

Pressure:low pressure 1.0Mpa

Water injection time:≤50s

Installation Type:rear-mounted



E. Pipe System

l  Inner Water inlet pipeline  : 1 X Φ125 mm back  water inlet  valve  , water tank  connect water pump have 1 x Φ125 mm butterfly valve

l  External water inlet pipeline : in the back of the water pump have  1 x Φ125 mm water inlet valve ,  connect water suction pipe .

l  Water outlet pipeline:  in the back of the water pump have 2 x Φ80mm ball valve control normal pressure water outlet mouth , 2xΦ65mm middle pressure water outlet mouth.

1 X80 mm pipeline , use flexible connector and ball valve control

l  Water injection pipeline: 1 x 50 mm inner Water injection pipeline, it can add water through water pump directly

l   In the both side of the tank have 1 x Φ65mm external water injection mouth .

l  Clean Remaining Water pipeline: in the bottom of the pipe have remaining water valve  to keep the water tank and valves  cleaning .

l  Cooling water pipeline

F.fire gun

Model:  PS50-60DX

Flow :50L/s

Range :water≥60m

Pressure :1.0Mpa

Rotation angle:horizontal ≥270°,Angle of pitch -15°~45°

Fire fighting truck device

Imported High quality fire pump is available



Remote control fire fighting monitor is available too .

If you are interested in purchase fire fighting truck ,please don't hesitate to contact us .

Fire fighting truck manufacture workshop view
