Scodeno IP40 Ethernet Switch DIN-rail 100M 8 Port OEM PoE Switch 48V
Product Description
Provider Mode Ports | |
Fixed port | 8*10/100Base-T |
Power interface | Phoenix terminal, dual redundant power supply |
LED Indicators | PWR, OPT, NMC, ALM |
DIP Switch | |
| 1 C/D | Reserve |
| 2 LGY | Stand/Non-standard PoE Mode |
| 3 VLAN | Port Isolation |
| 4 RST | Reset |
| Cable type & Transmission distance | |
| Twisted-pair | 0-100m(CAT5e,CAT6) |
| Monomode optical fiber | / |
| Multimode (optical) fiber | / |
Net Topology&Networking Scale | |
Star topology | Support |
Bus topology | Support |
Tree topology | Support |
Hybrid topology | Support |
Electrical Specifications | |
Input voltage | DC12-58V(Non-PoE), DC48~48V(PoE) |
Power consumption | Non PoE<6W, PoE<225W |
Voltage Alarm | Support |
PoE (Optional) | |
PoE port | 1~8 |
PoE Protocol | 802.3AF, 802.3AT |
PoE Pin Assignment | 1,2,3,6 |
PoE Mode | Standards and non-standards are support optional |
Layer 2 Switching | |
Switching capacity | 5.6G |
Packet forwarding rate | 4.16Mpps |
MAC address table | 8K |
Buffer | 1M |
Forwarding delay | <5us |
MDI/MDIX | Support |
Flow control | Support |
Jumbo Frame | Support 1632 Bytes |
WatchDog | Support |
Environment | |

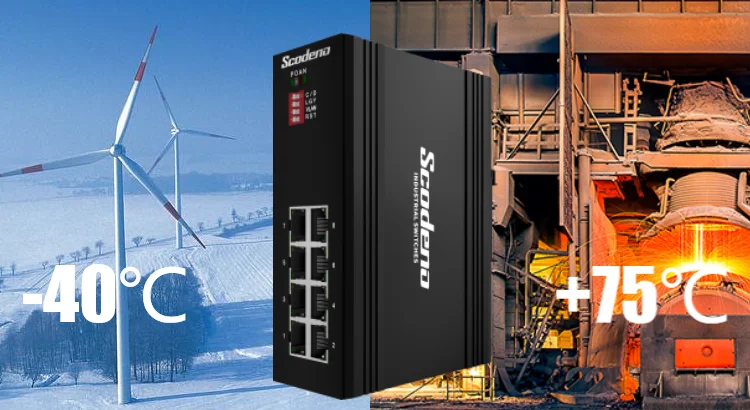

Operating temperature | -40℃~ +75℃ |
Storage temperature | -40℃~ +85℃ |
Relative humidity | 5%~95% (non-condensing) |
Thermal methods | Fan-free,natural cooling |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product size | 143X104X48mm |
Installation method | Din-rail |
EMC&INGRESS Protection | |
IP level | IP40 |
Surge protection of power | IEC 61000-4-5 Level X (6KV/6KV)(8/20us) |
Surge protection of ethernet port | IEC 61000-4-5 Level X (4KV/4KV)(10/700us) |
RS | IEC 61000-4-3 Level 3 (10V/m) |
| EFI | IEC 61000-4-4 Level 3 (1V/2V) |
| CS | IEC 61000-4-6 Level 3 (10V/m) |
| PFMF | IEC 61000-4-8 Level 4 (30A/m) |
DIP | IEC 61000-4-11 Level 3 (10V) |
ESD | IEC 61000-4-2 Level 4 (8K/15K) |
Free-Fall | 0.5m |
