Судно док-станция для резиновый ШВАРТОВЫЙ Кранец круговой буксир

Описание и отзывы

Характеристики

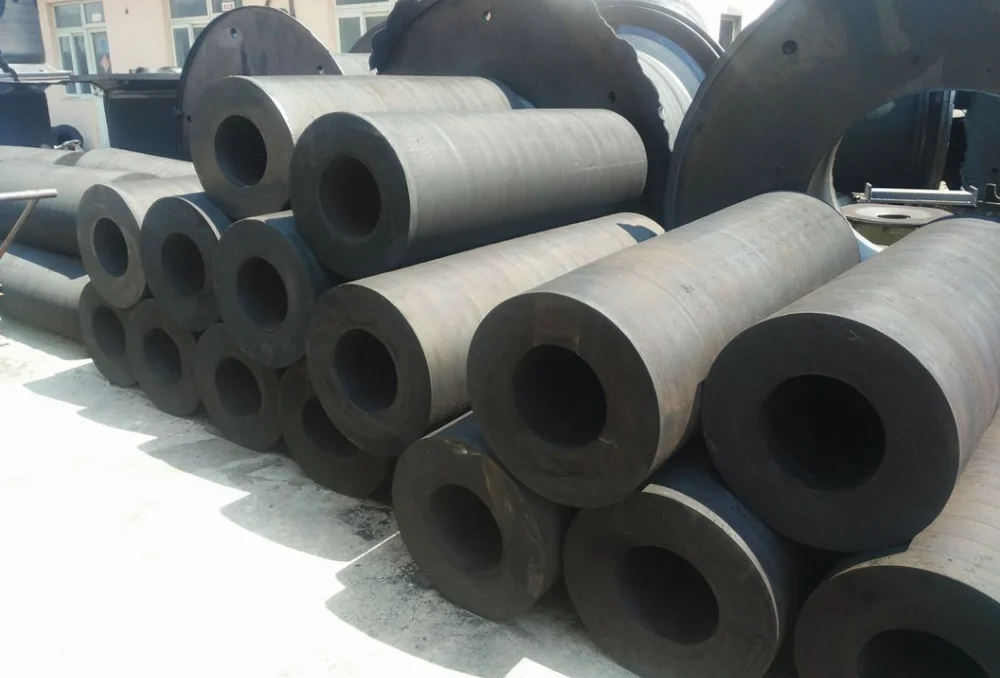

Tugboat Rubber Fenders

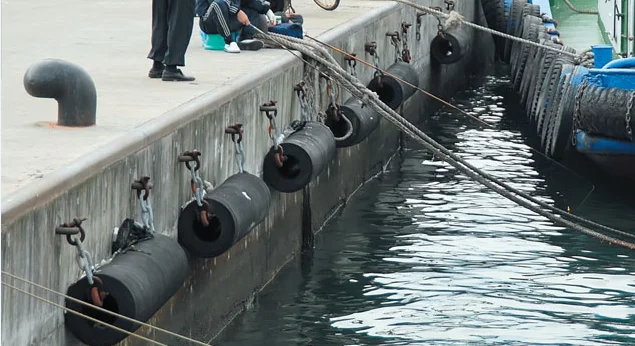

Applications of our Tugboat Rope Fender:

Bow,side and stern of most vessels

Bulk cargo berths

General cargo quays

RoRo and ferry terminals

Fishing and workboat berths

Pontoons and floating structures

Tug havens



Features of our Tugboat Rope Fender:

1.Hanged by chains and steel bars, easy to stall and maintain.

2.Low reaction forces, little surface pressure and reasonable energy absorption.

3.Especially applicable for upper part of integral docks

4.Good adaptability for transversal and longitudinal shape during berthing.

Standard of our boat fender: GB/T 19001-2008 idt9001:2008



Size Table of Tugboat Rope Fender

Type

Y150

Y200

Y250

Y300

Y350

Y400

Y450

Y500

Y600

Y700

Y800

Y900

Y1000

Y1100

Y1200

Y1300

Y1400

Y1500

Y1600

Y1800

Y 2000

Outer Diameter(mm)

Y150

Y200

Y250

Y300

Y350

Y400

Y450

Y500

Y600

Y700

Y800

Y900

Y1000

Y1100

Y1200

Y1300

Y1400

Y1500

Y1600

Y1800

Y 2000

Inner Diameter (mm)

75

100

125

150

175

200

225

250

300

350

400

450

500

550

600

650

700

750

800

900

1000

Other specifications out of the series can be produced upon request.

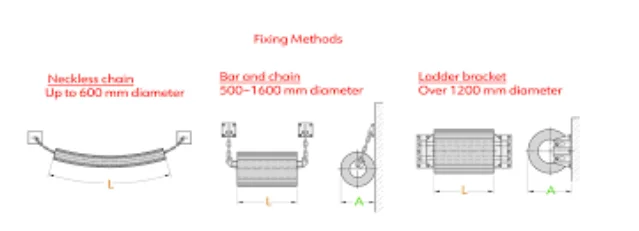

Installing

Performance

Sepcification	50% Relate Deflection
	Reaction Force(KN)		Engery Asorption(KN-M)
	Standard Type(FO)	High Type(FH)	Standard Type(FO)	High Type(FH)
FCY150	45	75	1. 5	2
FCY200	61	97	2. 7	4
FCY250	77	122	4. 1	6. 6
FCY300	91	146	6. 1	9
FCY350	106	170	8. 2	13
FCY400	121	195	10. 2	17
FCY500	151	244	16. 3	26. 5
FCY600	183	292	24. 5	27. 5
FCY700	212	341	31. 6	51
FCY800	242	391	41. 8	67. 3
FCY900	273	439	53	85.7
FCY1000	303	489	65. 3	105
FCY1100	338	539	78. 5	132
FCY1200	370	585	96. 9	155
FCY1300	400	635	110	183
FCY1400	430	683	131	212
FCY1500	460	732	150	243
FCY1600	491	792	180	288
FCY1700	521	840	210	345
FCY1800	552	889	252	414
FCY1900	581	938	294	497
FCY2000	666	1075	327	596
NOTE: Performance tolerance is ±10%
